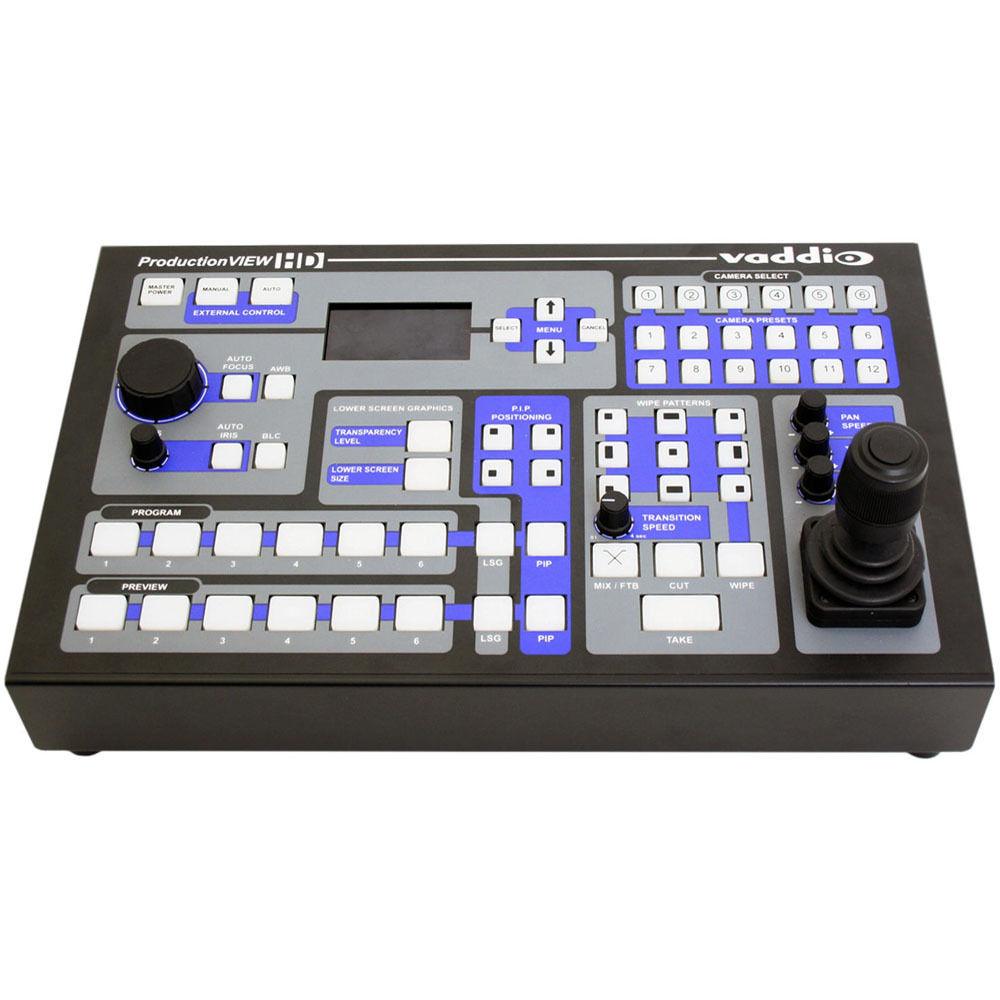

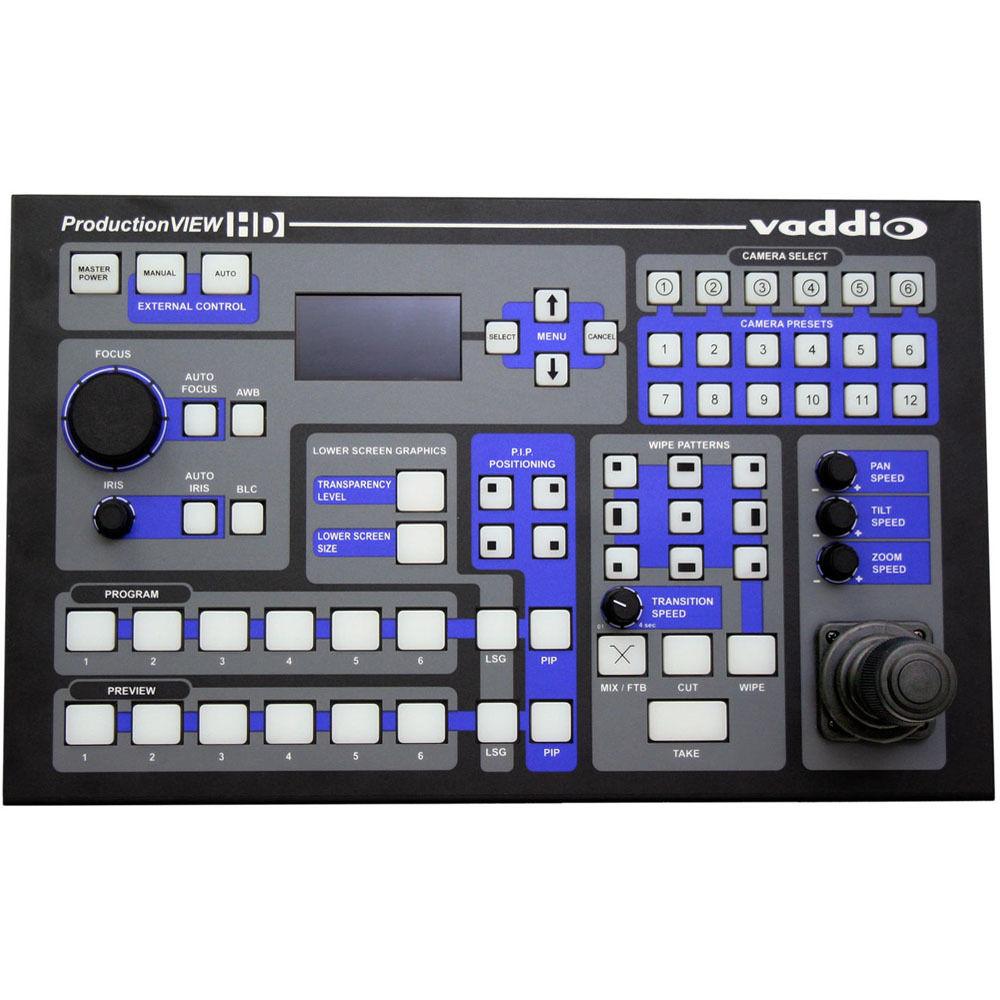

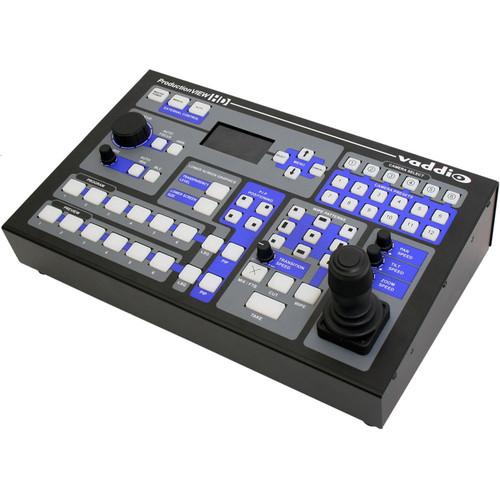

User Manual for Vaddio ProductionVIEW HD Camera Control Console Click to enlarge the picture
Contents of the user manual for the Vaddio ProductionVIEW HD Camera Control Console
- Product category: Camera Controllers Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Controllers
 |
User manual for the Vaddio ProductionVIEW HD Camera Control Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The Vaddio ProductionVIEW HD Camera Control Console has 6 HD/SD inputs, which can be up/down-converted from 480i (SD) to 1080p (HD), and a variety of analog SD/HD or RGBHV output resolutions. The console's camera auto-sensing feature easily detects the 6 discrete cameras. User-selectable transitions include cross fade, wipes (9), cuts, and FTB (Fade to Black), with the transition time being adjustable from 0 to 4 seconds. The console's dual bus mode allows users to switch between 2 separate programs (i.e. IMAG for live presentations on the program output, and a secondary program for a recording the live event on the preview output). The internal video switcher's automatic camera switching mode enables continuous monitoring even in the operator's absence. 6 tally outputs allow you to control the tally lights on external sources, such as Vaddio's WallVIEW CCUs and PreVIEW HD monitors. Video graphics insertion (i.e. "lower third") is possible through the unique LSG (Lower Screen Graphics) system. The LSG allows users to insert graphics from a variety of graphics programs without the complexity of luminance or chroma keying. Graphic templates on a DVD in both Keynote and PowerPoint help users create professional graphics quickly and easily. Each camera is provided with 12 camera presets (12 x 6) that are stored internally to the console. The PTZ camera joystick can be used to control the 6 discrete cameras. The internal menu can be viewed on the 8-line LCD screen and allows the user to configure the resolution on the outputs among the other console options; current settings can also be viewed on the screen. The console's built-in knobs allow you to easily adjust the focus, iris, and transition speed, as well as the PTZ control. - 6 HD/SD-SDI inputs can be up-converted or down-converted from SD-SDI up to 3 Gig HD-SDI output resolutions
- Camera auto-sensing for easy camera detection
- User-selectable transitions include fades, cross fades, cuts, wipes as well as FTB (Fade to Black)
- Dual bus mode of the console allows users to switch between 2 separate programs
- Video switcher is equipped with an automatic mode for continuous monitoring
- LSG (Lower Screen Graphics) feature for video graphics insertion
- 12 camera presets per camera for effective camera control through a PTZ joystick
- User-friendly knobs for easy adjustment of focus, iris, transition speed, and PTZ
- AutoView contact inputs for camera switching
- Auto/manual focus, auto/manual iris, backlight compensation, and automatic white balance for compatible PTZ cameras
In the Box Vaddio ProductionVIEW HD Camera Control Console Vaddio PowerRite 18 VDC, 2.78A Power Supply AC Cord Set DVD ROM (with templates and sample graphics for Lower Screen Graphics) Documentation and Manuals 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio ProductionVIEW HD Camera Control Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-5600-000 Specs | Input Video Resolutions | HD Resolutions:
1080i 59.94
1080i 50
720p 59.94
720p 50
1080p 59.94
1080p 50
SD Resolutions:
480i NTSC - Composite or Y/C
576i PAL - Composite or Y/C
RGBHV Resolutions:
640 x 480 @ 60Hz - VGA
640 x 480 @ 75Hz - VGA
800 x 600 @ 60Hz - SVGA
1024 x 768 @ 60Hz - XGA
1024 x 768 @ 75Hz - XGA
1280 x 768 @ 60Hz
1280 x 1024 @ 60Hz - SXGA
1366 x 768 @ 60Hz - WXGA
1400 x 1050 @ 60Hz - SXGA+
1600 x 1200 @ 60Hz - UXGA
| | Output Video Resolutions | HD Resolutions:
1080i 59.94
1080i 50
720p 59.94
720p 50
1080p 59.94
1080p 50
SD Resolutions:
480i NTSC - Composite or Y/C
576i PAL - Composite or Y/C
RGBHV Resolutions:
640 x 480 @ 60Hz - VGA
640 x 480 @ 75Hz - VGA
800 x 600 @ 60Hz - SVGA
1024 x 768 @ 60Hz - XGA
1024 x 768 @ 75Hz - XGA
1280 x 768 @ 60Hz
1280 x 1024 @ 60Hz - SXGA
1366 x 768 @ 60Hz - WXGA
1400 x 1050 @ 60Hz - SXGA+
1600 x 1200 @ 60Hz - UXGA

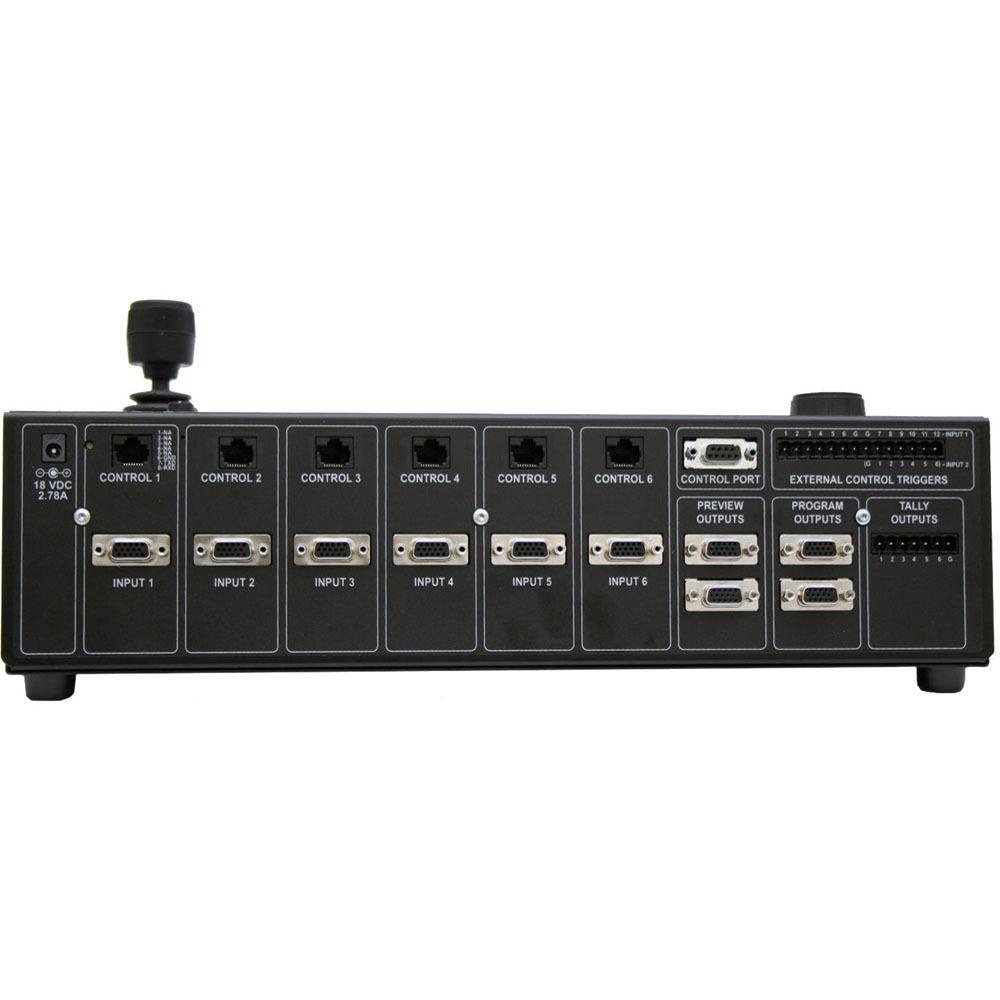

1920 x 1200 @60 HZ - WUXGA | | Compatible Cameras | Vaddio, Panasonic, Sony & Canon | | Switching | 6 x 2 | | Transitions | Cross Fade, 9 Wipe options and Straight Cuts, Fade to Black | | Video Inputs | Six (6) RGBHV, HD Component (YPbPr), Y-C or Composite (DE-15F) | | Preview Video Out | Two (2) Preview outputs (DE-15F) -- Y-C, Composite or HD Component (YPbPr) or RGBHV using breakout cables - same resolution on both outputs | | Program Output | Two (2) Program outputs (DE-15F) -- Y-C, Composite or HD Component (YPbPr) or RGBHV using breakout cables - same resolution on both outputs | | Camera Control | Six (6) RS-232 on RJ-45F | | Control Interface | One (1) RS-232 on DB-9F | | LCD Display | 8 - line backlit LCD display | | Power Requirements | PowerRite 18 VDC, 2.75 Amp | | Control Inputs for Auto Mode | (input 1 & 2)
Cameras 1 & 2 have 6 presets each or camera 1 can have 12 | | Tally Output | Tally outputs for each of the six video inputs | | Dimensions (WxHxD) | 10 x 16 x 4" (25.4 x 40.6 x 10.2cm) | | Weight | 9.5 lbs (4.3kg) | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 19.0 x 13.0 x 11.0" |
