User Manual for Vaddio ProductionVIEW HD MV Camera Control Console Click to enlarge the picture
Contents of the user manual for the Vaddio ProductionVIEW HD MV Camera Control
- Product category: Camera Controllers Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Controllers
 |
User manual for the Vaddio ProductionVIEW HD MV Camera Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

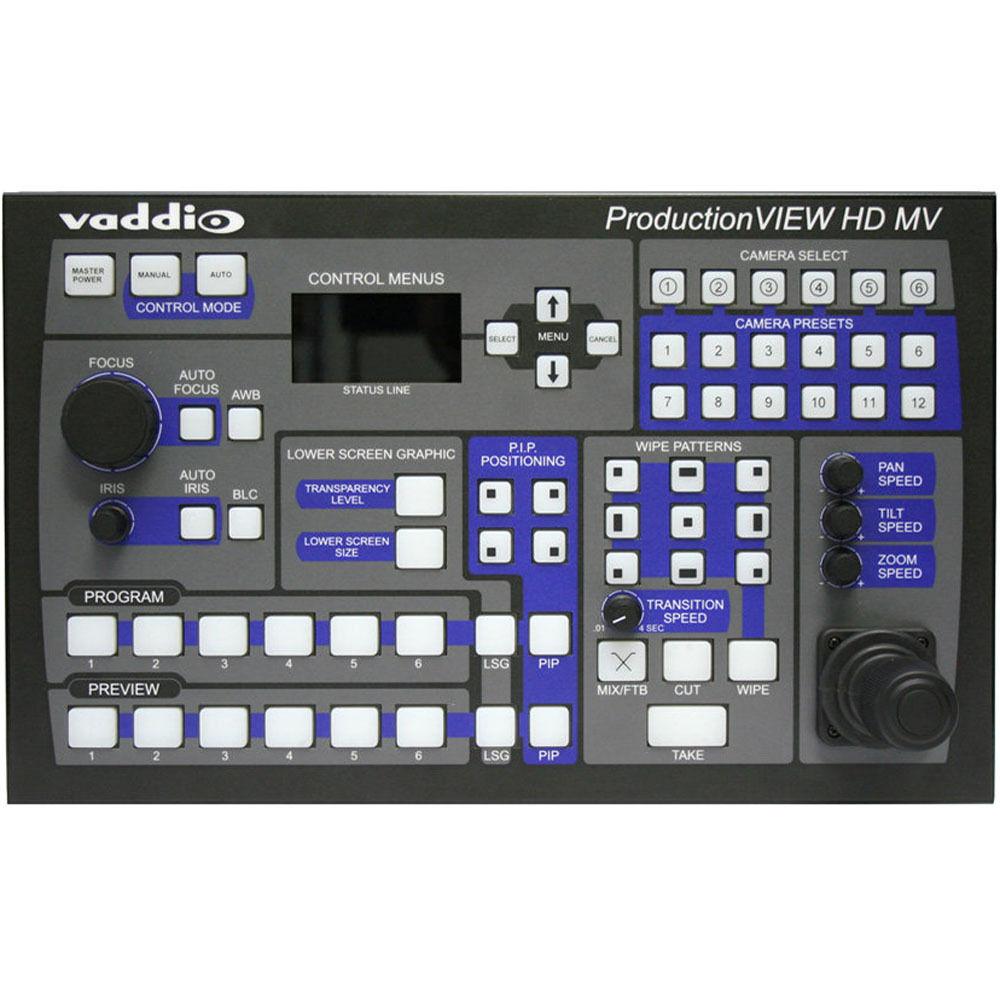

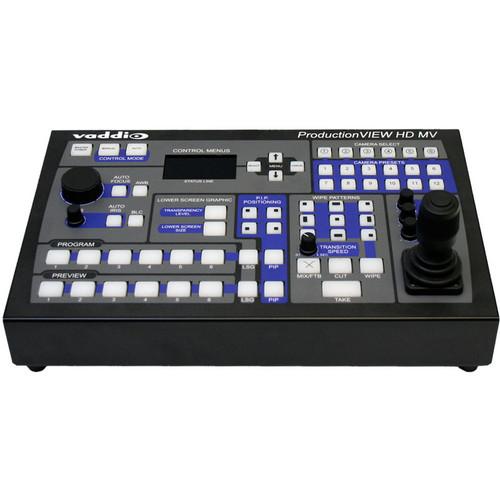

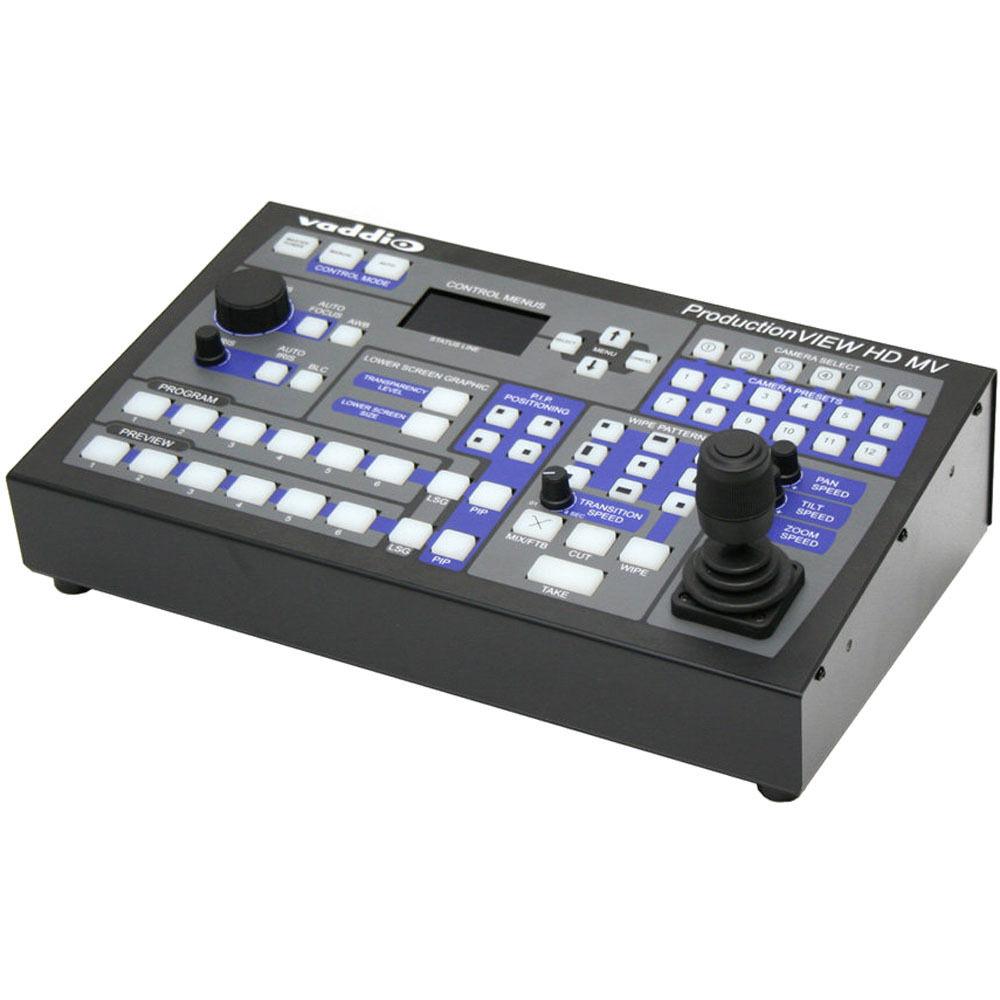

Product description The Vaddio ProductionVIEW HD MV Camera Control Console is a 6x2 seamless switcher with multiview output that also grants joystick control over up to six PTZ cameras, with up to 12 position presets for each camera. If that's not enough, the console also has knobs for controlling camera CCU functions such as focus and iris, buttons for inserting lower-third graphics, and transition controls.The console can also be driven by an optional TeleTouch multiviewer touchscreen LCD controller (not included), for which there's an RS-232 input on the ProductionVIEW HD MV. This way you can not only view all sources and switch via the touchscreen, but you can also create up to 12 "video thumbnails" to correspond to the PTZ presets.The ProductionVIEW HD MV console is a seamless video mixer, and its two discrete outputs can produce dual bus program feeds (meaning you've got dual independent 6x1 mixers). The first five video inputs have DB-15 connectors for inputting analog HD component, composite, S-Video, or VGA signals (HD, NTSC/PAL, or computer resolutions). The sixth is a DVI-I input for RGB, DVI-D, or HDMI. Video signals up to 1080p60 are supported, as are computer resolutions up to 1920 x 1200 @ 60 Hz.The two program outputs and the two multiviewer or preview outputs are DB-15 & DVI-D pairs, to support VGA/HD component/composite/S-Video as well as DVI and HDMI 1.3. Note: Adapters are necessary for many of these connection types (HDMI, Y/C, CVBS, and YPbPr) – not included. - Inputs include analog HD YPbPr (component), RGBHV (VGA), Y/C (S-Video), and CVBS (composite) via DB-15 connectors, and Input 6 provides a DVI-I input for RGBHV, DVI-D, or HDMI
- The program and preview outputs offer both analog (YPbPr, RGBHV, Y/C and CVBS) and digital (DVI-D and HDMI) outputs
- Six discrete PTZ control ports eliminate the need to daisy chain control cabling. The ProductionVIEW HD MV Controller is capable of auto-sensing each camera attached, including Vaddio, Sony, Panasonic, and Canon (see Specifications for complete camera compatibility list)
- HD resolutions up to 1080p60 are supported
- Optional TeleTouch Multiviewer touchscreen LCDs (not included)
- Up to 12 stored preset "video thumbnails"
- Transitions include cross-fade, nine wipes, cut and fade to black
- Users can overlay their computer graphics onto the program video output. A variety of sizes and transparency levels are available through buttons on the console
- 3-axis Hall-effect joystick includes large handle for excellent grip, along with a button that moves the PTZ camera to its home position when pressed
- Knobs for adjusting focus, iris, transition speed, and pan/tilt/zoom are built into the console
In the Box Vaddio ProductionVIEW HD MV Camera Control Console Vaddio PowerRite 18V DC, 2.75A Switching Power Supply AC Power Cable Laird 100 Ω 1/4" Snap-On Rectangular Ferrite DVD-ROM with Templates & Sample Graphics for Lower Third Graphics (Requires PowerPoint or Keynote) 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio ProductionVIEW HD MV Camera Control Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-5625-000 Specs | Compatible Cameras | Vaddio ClearVIEW HD-Series PTZ Cameras
Vaddio WallVIEW, CCU and PRO Series Cameras
Vaddio CeilingVIEW 70 PTZ Series Cameras
Vaddio HideAway Series Cameras
Vaddio CeilingVIEW Document Cameras
Vaddio Model Series and PTZCam Series Cameras
Sony EVI and Sony BRC Series Cameras
Panasonic AW-HE100 Camera

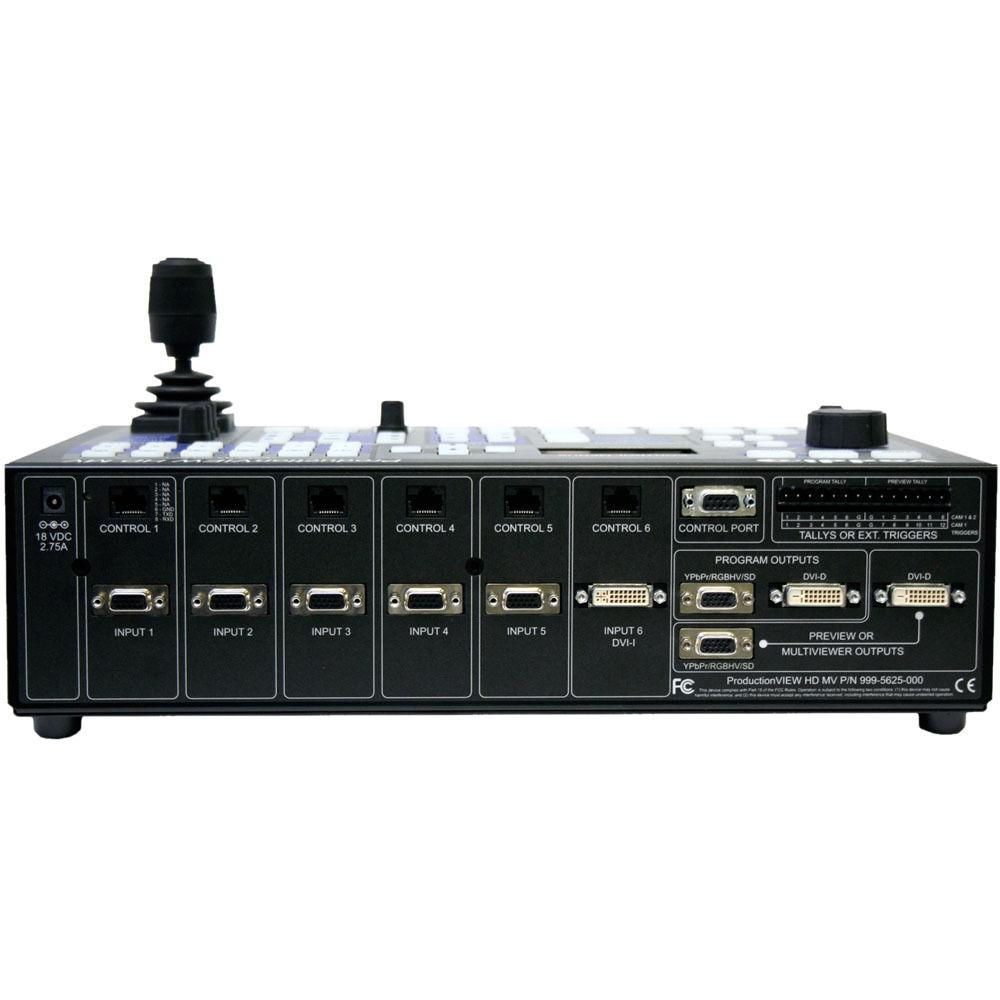

Canon VC-C50i & VC-C50iR Cameras | | Signal System | NTSC and PAL | | Video Switcher | 6 x 2 (or Two 6x1 in Dual Mode) | | Video Inputs | 5x DB-15: RGBHV, HD component (YPbPr), or Y/C & composite using adapter cables
1x DVI-I (both DVI-D and DVI-A): HDMI 1.3 receiver, compliant with DVI 1.0 and HDMI 1.3 | | Input Resolutions | 1080i59.94
1080i50
720p59.94
720p50
1080p59.94
1080p50
720 x 480 (NTSC)
720 x 576 (PAL)
640 x 480 @ 60 Hz
640 x 480 @ 75 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1024 x 768 @ 75 Hz
1280 x 768 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1400 x 1050 @ 60 Hz
1600 x 1200 @ 60 Hz
1152 x 720 @ 60 Hz (Input 6 only)
1280 x 720 @ 60 Hz (Input 6 only)
1440 x 900 @ 60 Hz (Input 6 only)
1920 x 1200 @ 60 Hz (Input 6 only) | | Output Resolutions | Program:
1080i59.94
1080i50
720p59.94
720p50
1080p59.94
1080p50
480i @ 29.97 Hz
576i @ 25 Hz
640 x 480 @ 60 Hz
640 x 480 @ 75 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1024 x 768 @ 75 Hz
1280 x 768 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1400 x 1050 @ 60 Hz
1600 x 1200 @ 60 Hz
1920 x 1200 @ 60 Hz
Preview:
1080i59.94
1080i50
720p59.94
720p50
1080p59.94
1080p50
480i x 29.97 Hz
576i @ 25 Hz
640 x 480 @ 60 Hz
640 x 480 @ 75 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1024 x 768 @ 75 Hz
1280 x 768 @ 60 Hz
1280 x 1024 @ 60 Hz
1360 x 768 @ 60 Hz
1400 x 1050 @ 60 Hz
1600 x 1200 @ 60 Hz
1920 x 1200 @ 60 Hz
Multiviewer:
1080p59.94
1080p50
1080i59.94
1080i50 | | Video Outputs | Preview or Multiviewer:
1x DE-15-F preview or multiviewer output: RGBHV, HD component (YPbPr), or Y/C & composite using adapter cables
1x DVI-D preview or multiviewer output: HDMI 1.3 transmitters, compliant with DVI 1.0 and HDMI 1.3
Program:
1x DE-15-F Program Output: RGBHV, HD component (YPbPr), or Y/C & composite using adapter cables
1x DVI-D program output: HDMI 1.3 transmitters, compliant with DVI 1.0 and HDMI 1.3 Same resolution on both preview outputs, and on both program outputs | | Control Output | 6x RS-232 on RJ-45F (for cameras) | | Control Input | 1x RS-232 on DB9
Control Inputs for Auto Mode: Cameras 1 & 2 have 6 presets each or Camera 1 can have 12 | | Tally Output | Tally output for each of the 6x video inputs | | LCD | 8-line backlit LCD display | | Power Requirements | PowerRite 18V DC, 2.78A (included) | | Dimensions (HxWxD) | 4 x 16 x 10" (10.2 x 40.6 x 25.4 cm) | | Weight (Approx.) | 9.5 lb (4.3 kg) | | | | Package Weight | 13.05 lb | | Box Dimensions (LxWxH) | 19.2 x 13.3 x 11.1" |
