User Manual for Vaddio ProductionVIEW Precision Camera Control Click to enlarge the picture
Contents of the user manual for the Vaddio ProductionVIEW Precision Camera Control
- Product category: Camera Controllers Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Camera Controllers
 |
User manual for the Vaddio ProductionVIEW Precision Camera Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

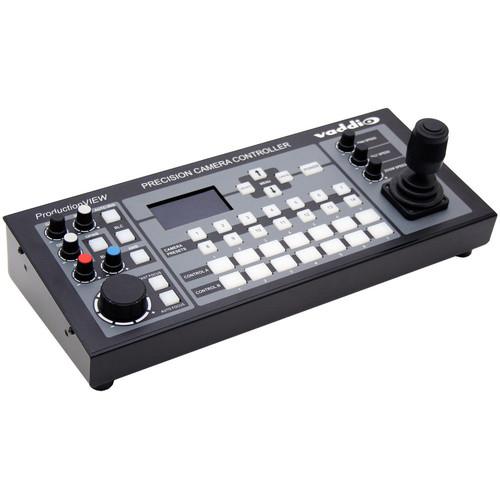

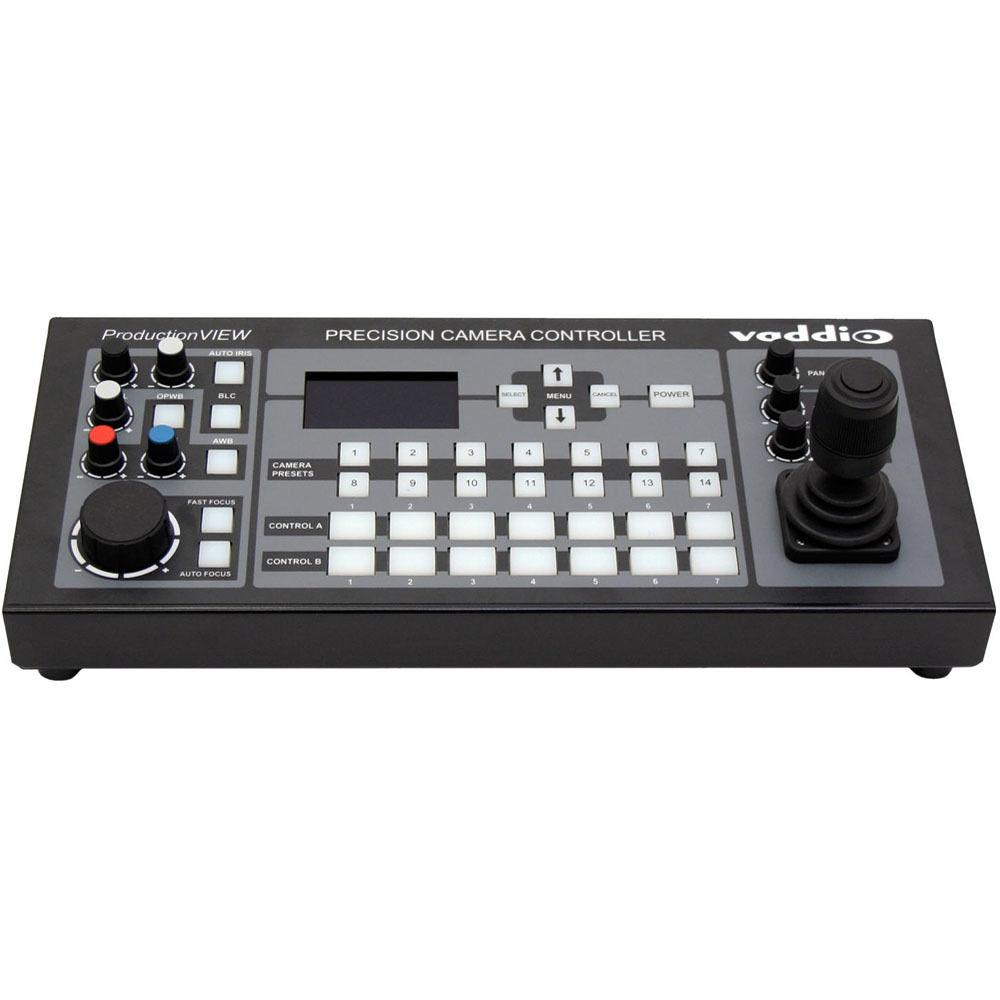

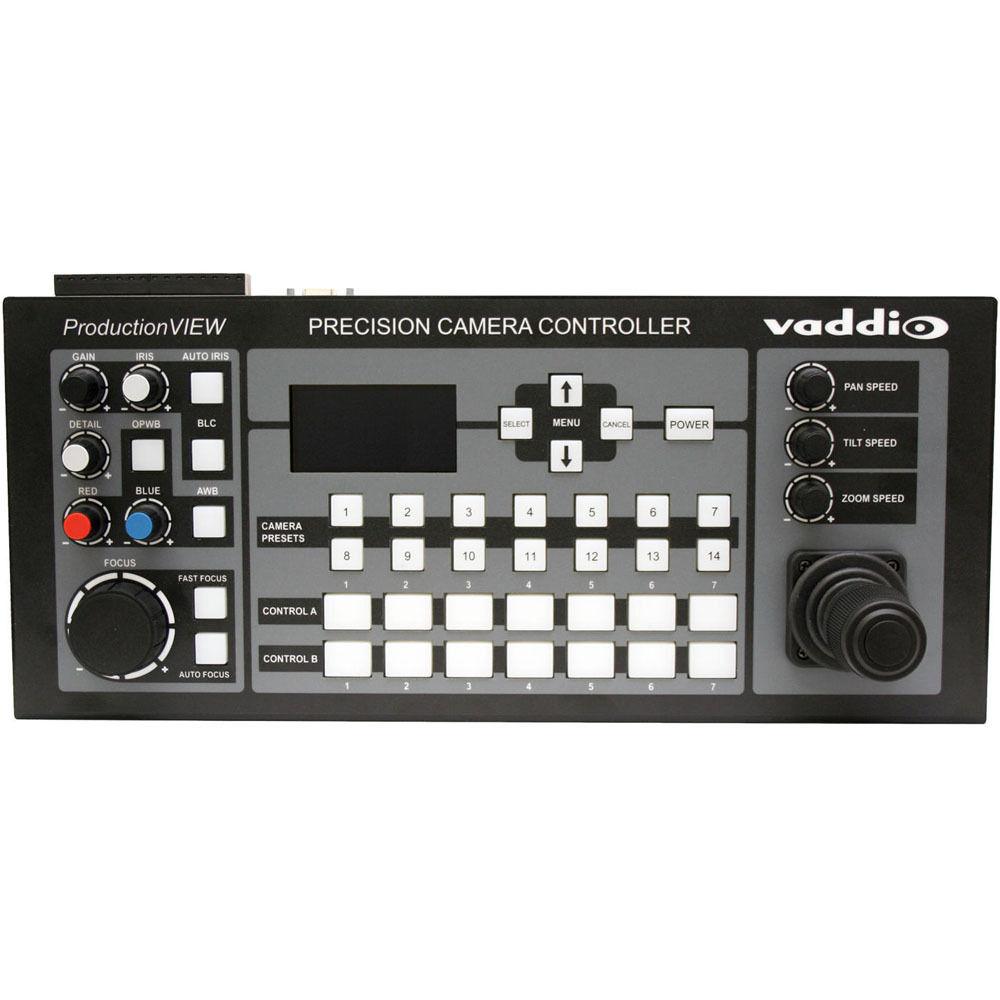

Product description The Vaddio ProductionVIEW Precision Camera Control has a built-in CCU (Camera Control Unit) for effective control of 7 discrete cameras through the RS-232 ports. The console's camera auto-sensing feature easily detects the 7 discrete cameras. Each camera is provided with 14 camera presets that are stored internally in the console. The broadcast-quality 3-axis Hall-effect PTZ camera joystick controls the 7 discrete cameras. Automated image control is provided by OPWB (One-push White Balance), AWB (Auto White Balance), and auto iris knobs by the CCU. In addition, the console has built-in knobs for PTZ and red/blue gain detail. The large focus wheel on the console provides fast and accurate focus controls. The console's dual bus mode allows users to switch between 2 separate programs as well as control an external switcher or mixer via either RS-232 or tally outputs on the back of the console. An 8-line LCD displays the menu for setting up the device as well as the status of the various camera controls such as gain, iris, etc. - Built-in CCU for effective control of 7 discrete cameras
- Camera auto-sensing for easy camera detection
- 14 camera presets per camera for effective camera control through a PTZ joystick
- OPWB (One-Push White Balance), AWB (Auto White Balance), and auto iris knobs
- Built-in knobs for PTZ and red/blue gain detail
- Fast and accurate focus controls provided by the large focus wheel
- Upgraded broadcast quality Hall-effect joystick for optimum PTZ control
- Dual bus mode of the console allows users to switch between 2 separate programs
- External control capability provided by RS-232 or tally outputs
In the Box Vaddio ProductionVIEW Precision Camera Control Vaddio PowerRite 18 VDC, 2.75A Power Supply AC Cord Set 2 x 8-pin Phoenix Type Connectors Documentation and Manuals 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio ProductionVIEW Precision Camera Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

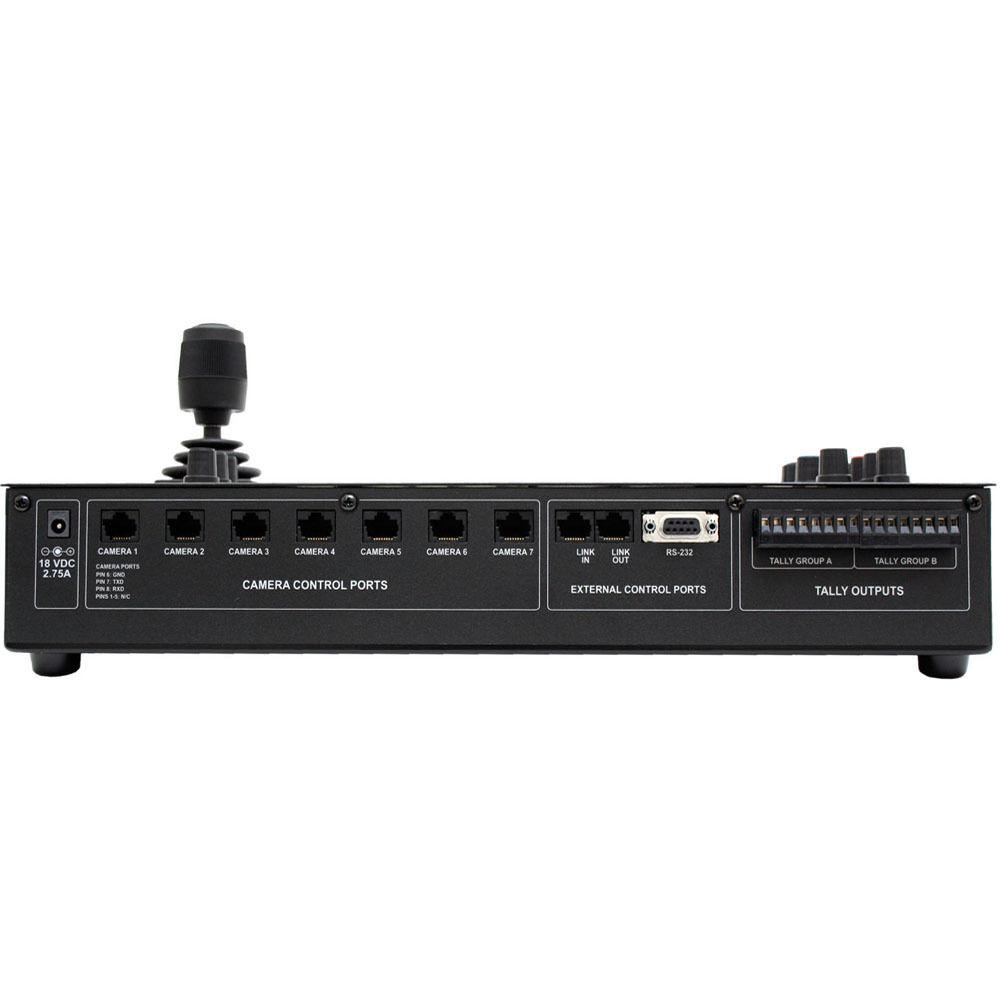

Technical parametersVaddio 999-5700-000 Specs | I/O Connections | Seven (7) RS-232 Camera Control Ports on RJ-45 Connectors
Two (2) Link Ports (In and Out) on RJ-45
One (1) RS-232 Control Port on DB-9F
Seven (7) Tally Outputs - Group A
Seven (7) Tally Outputs - Group B
One (1) Power Connector (Coaxial, Positive Center, 5.5mm OD x 2.5mm ID) | | Compatible Cameras | Vaddio WallVIEW, HideAway, Model and Add-Cam Series Cameras
Panasonic AW-HE100 PTZ Camera
Sony EVI and BRC Series PTZ Cameras
Canon VC-C50i and VC-C50iR | | Joystick | 3-Axis, Hall-Effect, Non-contacting type with single button | | Presets | 98 (14 per PTZ camera attached) | | Camera Control | Iris, Gain, Detail, Red Gain, Blue Gain, Focus (for compatible cameras)
Pan, Tilt and Zoom on Joystick
Pan, Tilt and Zoom speed (for Joystick PTZ functions)
Auto Iris, Backlight Compensation, One-Push White Balance, Auto White Balance, Fast Focus and Auto Focus on buttons. Not all functions are compatible with all cameras | | LCD Display | 8-line backlit LCD display | | Power Requirements | PowerRite 18 VDC, 2.78 Amp | | Dimensions (WxHxD) | 7 x 16 x 3.8" (17.8 x 40.6 x 9.5cm) | | Weight | 5 lbs (2.3kg) | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 19.1 x 13.4 x 11.1" |
