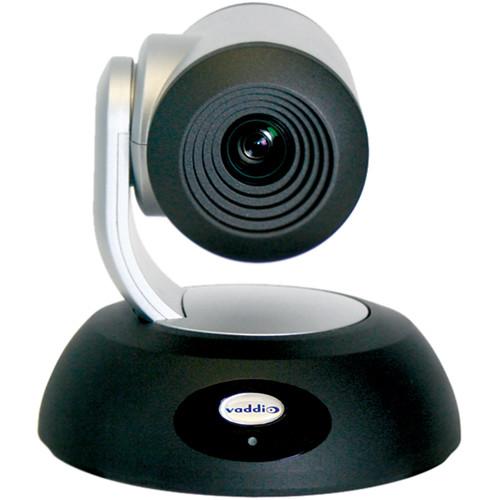

Product description The RoboSHOT 12 HD-SDI PTZ Camera from Vaddio features an Exmor 1/2.8” low-noise image sensor that is capable of recording 1080p images at 60 fps. The RoboSHOT camera features tri-synchronous motion, a silent and smooth direct-drive pan/tilt motor, and an ISP (Image Signal Processor).
The RoboSHOT 12 is suitable for small to medium-sized rooms, training rooms, or classrooms, and provides support for applications in small video studios, videoconferencing, distance learning, lecture capture, and telepresence. It features a PoE+, Gb Ethernet port, which allows the user to power the camera over a PoE+ network or with a PoE+ midspan power injector, and the built-in web server that gives the user camera control via a web browser from anywhere over the IP network. The user can watch the IP stream and control the RoboSHOT HD-SDI simultaneously by simply entering the camera’s streaming URL into any media player that supports H.264 and RTSP.
The tri-synchronous motion algorithm in the RoboSHOT camera is capable of moving all three PTZ axes simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt, and zoom arrive at the preset subject simultaneously, which allows for smooth and manageable on-air camera movements. - PoE+ GB Ethernet port powers the camera over the network, or with a PoE+ mid-span power injector
- Web interface controls the camera over the IP network using a browser, from anywhere
- Suitable for remote management, network operating centers, and overall IT control
- Use any standards-based (H.264 and RTSP format) media player to watch the IP stream
- Power connector 12 VDC, 3A EIAJ-04 with positive center
- Shielded RJ-45 for GB Ethernet with PoE+ for streaming IP/H.264 video, web and Telnet control, and camera power
- Rotary switch for setting HD-SDI and HDMI output resolutions
- DIP switches for IR frequency, IR on/off, image flip for inverted operation, normal or super-wide mode
- HD-SDI carrier class connector, edge mount gold contacts, 3 Gb/s compliant
- HDMI video output connector
- RS-232 port on shielded RJ-45 connector
In the Box Vaddio RoboSHOT 12 HD-SDI PTZ Camera IR Remote Commander 12 VDC, 3.0A Switching Power Supply AC Cord Set Thin Profile Wall Mount Mounting Hardware EZCamera RS-232 Control Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 12 HD-SDI PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio RoboSHOT 12 Specs | Image Device | 1/2.8" Exmor CMOS sensor | | Effective Pixels | 2.14 Million effective pixels
2.38 Million total pixels | | Lens | 12x Optical zoom | | Field of view (FOV) | Super Wide 12x Optical Zoom: 73.0° (wide) to 6.6° (tele), f=3.91 to 47mm, f/1.8 to f/3.4
Normal 10x Optical Zoom: 67.3° (wide) to 7.6° (tele), f = 3.8 to 38mm, f/1.8 to f/3.4 | | Video Outputs | HD-SDI, HDMI | | Supported Resolutions | 1080p: 60/59.94/50/30/25
1080i: 60/59.94i/50
720p: 60/59.94/50 | | Video Aspect Ratio | 16:9 For all resolutions | | Streaming | Simultaneous IP (RTSP format with H.264 compression) up to 1080p30 | | Minimum Illumination | 1.0 Lux (f/1.8, 50 IRE)
Recommended Illumination: 100 lux or more | | Minimum Working Distance | 10mm (wide), 0.8 m (tele) | | Pan / Tilt | Angle: ±160° / +90°, -30°
Speed: minimum 0.35°/sec, maximum: 120°/sec | | Network Connection | PoE+ (IEEE 802.3at), Gigabit Ethernet | | S/N Ratio | > 50 dB | | Sync System | Internal | | Control Method | Ethernet (web interface and Telnet); IR Remote Commander; RS-232 for external controllers | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity (Relative) | 20 to 80% RH | | Dimensions (H x W x D) | 6.9 x 7.1 x 7.0" (17.5 x 18.0 x 17.7 cm) | | Weight | 5 lb (2.3 kg) | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 13.6 x 12.3 x 11.7" |
