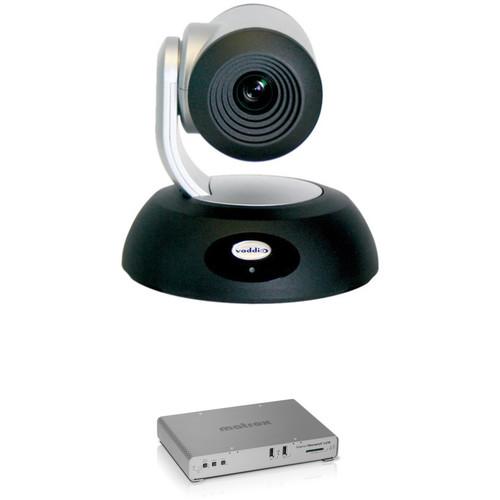

User Manual for Vaddio RoboSHOT 12 HD-SDI PTZ Camera with Monarch LCS Lecture Capture Appliance Kit Click to enlarge the picture
Contents of the user manual for the Vaddio RoboSHOT 12 HD-SDI PTZ Camera
- Product category: PTZ Cameras Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio PTZ Cameras
|
User manual for the Vaddio RoboSHOT 12 HD-SDI PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description This B&H kit includes the Matrox Monarch LCS Lecture Capture Appliance and a Vaddio RoboSHOT 12 HD-SDI PTZ Camera. It is assembled to provide you a ready-to-go, Ethernet-controlled streaming conference system that allows you to simultaneously stream and record HDMI/SDI-based video. The Monarch LCS features an SDI input that you can feed from the RoboSHOT camera, and with two H.264 encoders it can process the SDI signal at up to 1080p30 resolution. Switcher mode is another Monarch LCS option, offering operators on-the-fly input selection throughout their event. The RoboSHOT 12 is suitable for small to medium-sized rooms, training rooms, classrooms, videoconferencing, distance learning, lecture capture, and telepresence. You can power and control the camera via PoE+ and control of the camera is via the built-in web server. The user can watch the IP stream and control the RoboSHOT HD-SDI simultaneously by simply entering the camera's streaming URL into any media player that supports H.264 and RTSP. - Vaddio RoboSHOT 12 HD-SDI PTZ Camera The RoboSHOT 12 HD-SDI PTZ Camera from Vaddio features an Exmor 1/2.8” low-noise image sensor that is capable of recording 1080p images at 60 fps. The RoboSHOT camera features tri-synchronous motion, a silent and smooth direct-drive pan/tilt motor, and an ISP (Image Signal Processor).
The RoboSHOT 12 is suitable for small to medium-sized rooms, training rooms, or classrooms, and provides support for applications in small video studios, videoconferencing, distance learning, lecture capture, and telepresence. It features a PoE+, Gb Ethernet port, which allows the user to power the camera over a PoE+ network or with a PoE+ midspan power injector, and the built-in web server that gives the user camera control via a web browser from anywhere over the IP network. The user can watch the IP stream and control the RoboSHOT HD-SDI simultaneously by simply entering the camera’s streaming URL into any media player that supports H.264 and RTSP. The tri-synchronous motion algorithm in the RoboSHOT camera is capable of moving all three PTZ axes simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt, and zoom arrive at the preset subject simultaneously, which allows for smooth and manageable on-air camera movements. - PoE+ GB Ethernet port powers the camera over the network, or with a PoE+ mid-span power injector
- Web interface controls the camera over the IP network using a browser, from anywhere
- Suitable for remote management, network operating centers, and overall IT control
- Use any standards-based (H.264 and RTSP format) media player to watch the IP stream
- Power connector 12 VDC, 3A EIAJ-04 with positive center
- Shielded RJ-45 for GB Ethernet with PoE+ for streaming IP/H.264 video, web and Telnet control, and camera power
- Rotary switch for setting HD-SDI and HDMI output resolutions
- DIP switches for IR frequency, IR on/off, image flip for inverted operation, normal or super-wide mode
- HD-SDI carrier class connector, edge mount gold contacts, 3 Gb/s compliant
- HDMI video output connector
- RS-232 port on shielded RJ-45 connector
- Matrox Monarch LCS Lecture Capture Appliance The Monarch LCS Lecture Capture Appliance from Matrox allows you to simultaneously stream and record HDMI/SDI-based video. Expanding on the Monarch HDX, the Monarch LCS features two HDMI inputs, one for video sources and one for computer sources, plus one SDI input. Its dual encoders can process up to two of these three inputs simultaneously. Live content preview is available in both HDMI and SDI outputs. The Monarch LCS is designed to provide a mix of live video footage and/or SDI/HDMI presentation material. Suitable for on-line courses or lectures, video of the instructor can be displayed alongside the class material being referenced. The Monarch LCS's two H.264 encoders can process each HDMI/SDI signal at up to 1080p30 resolution. These dual streams make multiple modes including PiP, side by side, and dual isolated layouts possible. Select newer third-party video players enable viewers as well as operators to choose layouts. Switcher mode is another Monarch LCS option, offering operators on-the-fly input selection throughout their event. Mismatched audio and video signals are a thing of the past thanks to the Monarch LCS's frame synchronizer. Frame rate differences are eliminated by synching the computer and audio signals to the video camera signal. The Monarch LCS Command Center offers easy operation via any device (tablet, etc.) supporting standard web-browsing software (Internet Explorer and Safari fully validated). There are preset encoding and layout options for effortless operation or you can create and save up to eight user-defined setting profiles. Advanced network administrators can employ any VMS software (available separately) to use command controls with the Monarch LCS.
- Multiple Operating Modes
- The user can choose between multiple operating modes with preset layouts or can actively alternate inputs in Switcher Mode.
- Viewer Defined Layouts
- In Isolated mode, the Monarch LCS can be used with select third-party players that allow viewers to choose between layout options.
- High Streaming Rate
- Choose individual encoding settings for each of the Monarch LCS's two channels. A total of up to 20 Mbps, 1080p30 encoding capacity can be shared across the dual streams.
- Integrates Easily with Asset Management Software
- The Monarch LCS is designed to work with existing network infrastructures using third-party video or lecture management software such as OpenCast or Moodle. It also integrates easily with open-source scheduling programs such as Google Calendar. 1
Please Note: The scheduler feature will be available in a future release of Monarch LCS. close - Simple or Advanced Operation Options
- Accessible through any web-browser–equipped device on its network, the Monarch LCS Command Center provides a variety of control options. One-click encoding and multiple presets simplify operation for novice users while advanced operators can create and save up to eight custom profiles.
- Multiple Destination Options
- The Monarch LCS records content in MOV or MP4 files, ensuring playback on almost all devices. Record to USB drives, SD cards, or network-mapped drives for use with distance-learning software. It uses RTMP or RTSP protocols to deliver live streams to local servers or cloud-based networks. 2
Please Note: USB: Powered USB drives recommended SD/SDHC: NTFS-formatted SDXC cards required, Class 10 recommended close - HDMI and SDI Inputs
- Both HDMI and SDI video inputs are supported, offering the option of using whichever best suits your needs. Either embedded HDMI or analog audio can be used as audio sources.
- Frame Synchronization Between Inputs
- The Monarch LCS resolves any viewing issues arising from varying resolution and frame rates among video, audio, and computer-based content. These different signals are synchronized before encoding, ensuring perfectly aligned video and audio feeds. Integrated frame syncs also correct any breaks in the input signal continuity, providing uninterrupted streaming and recording.
- Live Production Preview Output
- Both the SDI and HDMI outputs remain active while the Monarch LCS is in use. Each output can be mapped to either input. The HDMI output also offers a preview option when the content output is matched to the frame size of the encoding parameters.
- Additional Features
-
- Integrates with Crestron control systems via the Monarch LCS Control API
- Use the Matrox Utils application to remotely manage, update, and reboot all Monarch devices on your network
- Enterprise-level users can configure their options with the Monarch LCS Dev Tools application
- HTTP computer-based control via browser using Monarch LCS Command Center
- On-unit control buttons offer an alternative to using the Command Center
- Media slots and control buttons are located on the front of the unit for easy access
- Fit up to two Monarch LCS units on an optional 1 RU rack tray
UPC: 790750248950 In the Box - RoboSHOT 12 HD-SDI PTZ Camera
- IR Remote Commander
- 12 VDC, 3.0A Switching Power Supply
- AC Cord Set
- Thin Profile Wall Mount
- Mounting Hardware
- EZCamera RS-232 Control Adapter
- Limited 2-Year Warranty
- Matrox - Monarch LCS Lecture Capture Appliance cdzxcyvxsesdvfrbb
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 12 HD-SDI PTZ Camera with Monarch LCS Lecture Capture Appliance Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vaddio RoboSHOT 12 HD-SDI PTZ Camera
Image Device | 1/2.8" Exmor CMOS sensor | Effective Pixels | 2.14 Million effective pixels 2.38 Million total pixels | Lens | 12x Optical zoom | Field of view (FOV) | Super Wide 12x Optical Zoom: 73.0° (wide) to 6.6° (tele), f=3.91 to 47mm, f/1.8 to f/3.4 Normal 10x Optical Zoom: 67.3° (wide) to 7.6° (tele), f = 3.8 to 38mm, f/1.8 to f/3.4 | Video Outputs | HD-SDI, HDMI | Supported Resolutions | 1080p: 60/59.94/50/30/25 1080i: 60/59.94i/50 720p: 60/59.94/50 | Video Aspect Ratio | 16:9 For all resolutions | Streaming | Simultaneous IP (RTSP format with H.264 compression) up to 1080p30 | Minimum Illumination | 1.0 Lux (f/1.8, 50 IRE) Recommended Illumination: 100 lux or more | Minimum Working Distance | 10mm (wide), 0.8 m (tele) | Pan / Tilt | Angle: ±160° / +90°, -30° Speed: minimum 0.35°/sec, maximum: 120°/sec | Network Connection | PoE+ (IEEE 802.3at), Gigabit Ethernet | S/N Ratio | > 50 dB | Sync System | Internal | Control Method | Ethernet (web interface and Telnet); IR Remote Commander; RS-232 for external controllers | Operating Temperature | 32 to 104°F (0 to 40°C) | Humidity (Relative) | 20 to 80% RH | Dimensions (H x W x D) | 6.9 x 7.1 x 7.0" (17.5 x 18.0 x 17.7 cm) | Weight | 5 lb (2.3 kg) | | Box Dimensions (LxWxH) | 13.6 x 12.3 x 11.7" | - Matrox Monarch LCS Lecture Capture Appliance
| HDMI Video Input | HDMI Video Input 1 (Video Sources) (Auto-Detected): 1080p 25/29.97/30/50/59.94/60 1080i 50/59.94 720p 50/59.94/60 HDMI Video Input 2 (Computer Sources) (Auto-Detected): 1080p 50/60 1080i 25/29.97 720p 50/60 HDMI Specs: HDMI YCbCr 4:2:2 /RGB HDMI embedded 2-channel audio HDCP not supported | HDMI Video Output | Preview Output of Video Input Signals: HDMI YCbCr 4:2:2 /RGB HDMI embedded 2-channel audio | SDI Video Input | 1 x SDI Video Input (Auto-Detected): 1080p 25/29.97/30/50/59.94/60 1080i 50/59.94 720p 50/59.94/60 576i 50 486i 59.94 SDI Specs: SDI embedded 8-channel, 24-bit, 48 kHz audio SDI compliant with SMPTE 259M/292M/424M (level A)/425M Terminated 75 Ohms BNC connector Full audio and VANC preservation | SDI Video Output | Preview Output of Video Input Signals: SDI compliant with SMPTE 259M/292M/424M (level A)/425M SDI embedded 8-channel, 24-bit, 48 kHz audio 75 Ohms BNC connector | Audio Input | Embedded Audio: First two channels processed Unbalanced analog stereo input, 1/8" (3.5 mm) jack Input Impedance: High | Audio Output | Embedded Audio: Passthrough of up to 8 channels Unbalanced analog stereo output, 1/8" (3.5 mm) jack Output Impedance: 25 Ohms THD+N at 1 kHz, 10 Ohms, nominal level <0.05% Frequency Response: 20 Hz-20 kHz +/- 1 dB Channel Separation, Nominal Level: -85 dB Signal-to-Noise Ratio: -88 dB | | Encoder | H.264/MPEG-4 Part 10 (AVC) | Encoding Resolutions | Selectable Range: 128 x 128 to 1920 x 1920 | Maximum Bit Rate | Streaming or Recording (One Encoder): 16 Mbps Streaming (Two Encoders): 8 Mbps per channel Recording (Two Encoders): 10 Mbps per channel | Encoding Frame Rates | 12.5, 14.98, 15, 25, 29.97, 30, 59.94, 60 | Encoding Profiles | Baseline, main, high | Encoding Controls | 2, 3, 3.1, 4, 4.1 level support GOP size Variable bit rate support Average maximum/minimum data rate controls Deblocking filter | | Standard | AAC-LCS | Sample Frequency | Digitized from Analog Source: 32, 44.1, 48 kHz | Channels | 2 Stereo (L&R) | Bit Rates | 32 to 256 kbps | | Downscaling | 10-bit downscaler and deinterlacer | | Recording File Size | Maximum: 300 minutes | Recording Formats | MOV (2 channels of embedded AAC audio) MP4 (2 channels of embedded AAC audio) | File System Options | FAT32 NTFS | Recording Options | 2 x USB 2.0 1 x SD/SDHC card slot Network-Mapped Drive: via Windows Share or NFS protocols | Supported Media Card Types | SD/SDHC Cards: NTFS-formatted SDXC cards only Class 10 recommended | | Streaming Protocols | RTSP RTMP IPv4 Support Unicast, Multicast: 3-10 Clients | Data Ports | 1 x Auto-sensing 10/100/1000 Base-T Ethernet RJ45 port 1 x RS-232 The RS-232 port is currently deactivated | Supported Browsers | Microsoft Internet Explorer Apple Safari | Supported Operating Systems | Mac OS X El Capitan Microsoft Windows 8.1 (64-bit) (requires Microsoft .NET Framework) | | Power Input | 9-24 VDC Connector: DIN 4 Total Consumption: 20-30 W (42 W maximum) | Power Supply | Line Voltage: 100-240 VAC Frequency: 50-60 Hz Input Connector: IEC320-C8 Output Connector: Locking power DIN 4 Output: 12 VDC (42 W) | AC Power Adapter | US/UK/EU | | Operating Temperature | 32-104°F (0-40°C) | Humidity Range | Operating: 20-80% (non-condensing) Storage: 5-95% (non-condensing) | Maximum Altitude | Operation: 9843 ft (3000 m) Transportation: 39,370 ft (12,000 m) | | Dimensions (LxWxH) | 8.5 x 5.59 x 1.47" (21.59 x 14.2 x 3.73 cm) | Weight | 1.3 lb (0.6 kg) | | Box Dimensions (LxWxH) | 14.1 x 8.6 x 3.4" |
