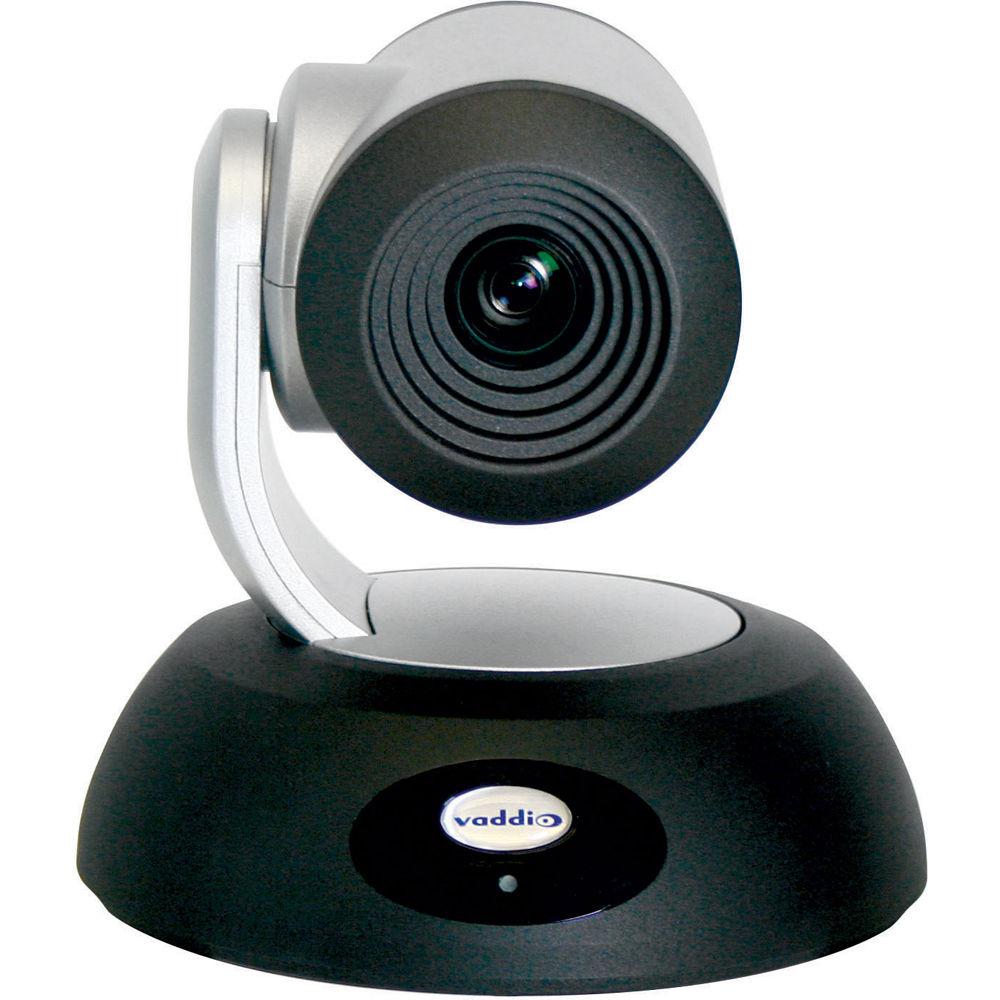

User Manual for Vaddio RoboSHOT 12 HDMI HD PTZ Camera with 12x Optical Zoom Click to enlarge the picture
Contents of the user manual for the Vaddio RoboSHOT 12 HDMI HD PTZ
- Product category: PTZ Cameras Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio PTZ Cameras
 |
User manual for the Vaddio RoboSHOT 12 HDMI HD PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

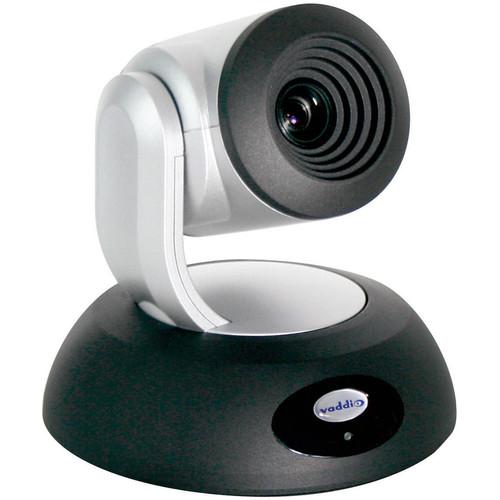

Product description The RoboSHOT 12 HDMI Full HD PTZ Camera with 12x Optical Zoom from Vaddio features a Exmor 1/2.8” low-noise image sensor that is capable of recording 1080p images at 60 fps. The RoboSHOT camera features tri-synchronous motion, a silent and smooth direct-drive pan/tilt motor, multi-element glass lens, and ISP (image signal processor).The tri-synchronous motion algorithm in the RoboSHOT camera is capable of moving all three PTZ axes simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt, and zoom arrive at the preset subject simultaneously, which allows for smooth and manageable on-air camera movements. The RoboSHOT HDMI lens features a 12X optical zoom with a 73° wide horizontal field of view. The 2.38 MP, high-speed, low-noise CMOS image sensor combined with the ISP produces vivid, realistic, and accurate color with fast and sharp automatic focus and iris routines.The RoboSHOT HDMI camera has an Ethernet port and a built-in web server, which allows the user to control the camera functions on a web page with any browser over the IP network. It also supports Telnet, IR remote, and RS-232 control protocols. The RoboSHOT 12 HDMI is suitable for use in small to medium sized conference rooms, training rooms or classrooms and provides incomparable support for applications including, UC conferencing, videoconferencing, distance learning, lecture capture, telepresence, and more. - Exmor 1/2.8", 2.38 MP, high-speed, low-noise CMOS image sensor
- Records native 1080p60 images
- Produces vivid and accurate color with fast, razor sharp automatic focus and iris routines
- 12x optical zoom with a 73° wide horizontal field of view
- Tri-synchronous motion detection for concurrent PTZ motor movement and simultaneous PTZ arrival at a stored preset
In the Box Vaddio RoboSHOT 12 HDMI HD PTZ Camera with 12x Optical Zoom IR Remote Commander 12 VDC, 3A Switching Power Supply AC Cord Set Thin Profile Wall Mount Mounting Hardware EZCamera Control Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 12 HDMI HD PTZ Camera with 12x Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio RoboSHOT 12 Specs | Zoom | 12x optical zoom (super-wide mode)
10x optical zoom (normal mode) | | Horizontal Angle of View | 12x Mode: 73.0° wide end to 6.6° tele end
10x Mode: 67.3° wide end to 7.6° tele end | | Focal Length | 12x Mode: f=3.91 to 47 mm, F1.8 to F3.4
10x Mode: f=3.8 to 38 mm, F1.8 to F3.4 | | Minimum Illumination | 1.0 lux (F1.8, 50 IRE)
Recommended illumination >100 lux | | Minimum Working Distance | 0.4" (1.0 cm) (wide), 31.4" (80.0 cm) (tele) | | Image Sensor | Exmor 1/2.8", 2.38 MP, Full HD (1080p/60 native) high-speed, low noise CMOS image sensor | | Effective Pixels | 2.14 MP | | Supported Resolutions | HD Resolutions: 1080p/60/59.94/50/30/25, 1080i/60/59.94/50, 720p/60/59.94/50, 16:9 format | | Features | Tri-Synchronous Motion: Concurrent PTZ motor movement and simultaneous PTZ arrival at a stored preset.
Advanced ISP: Vivid and accurate color with extremely fast, razor sharp automatic focus and iris routines. | | S/N Ratio | > 50 dB | | Pan & Tilt Range | Pan/Tilt Angles: ±160°, Tilt: 90 to -30°

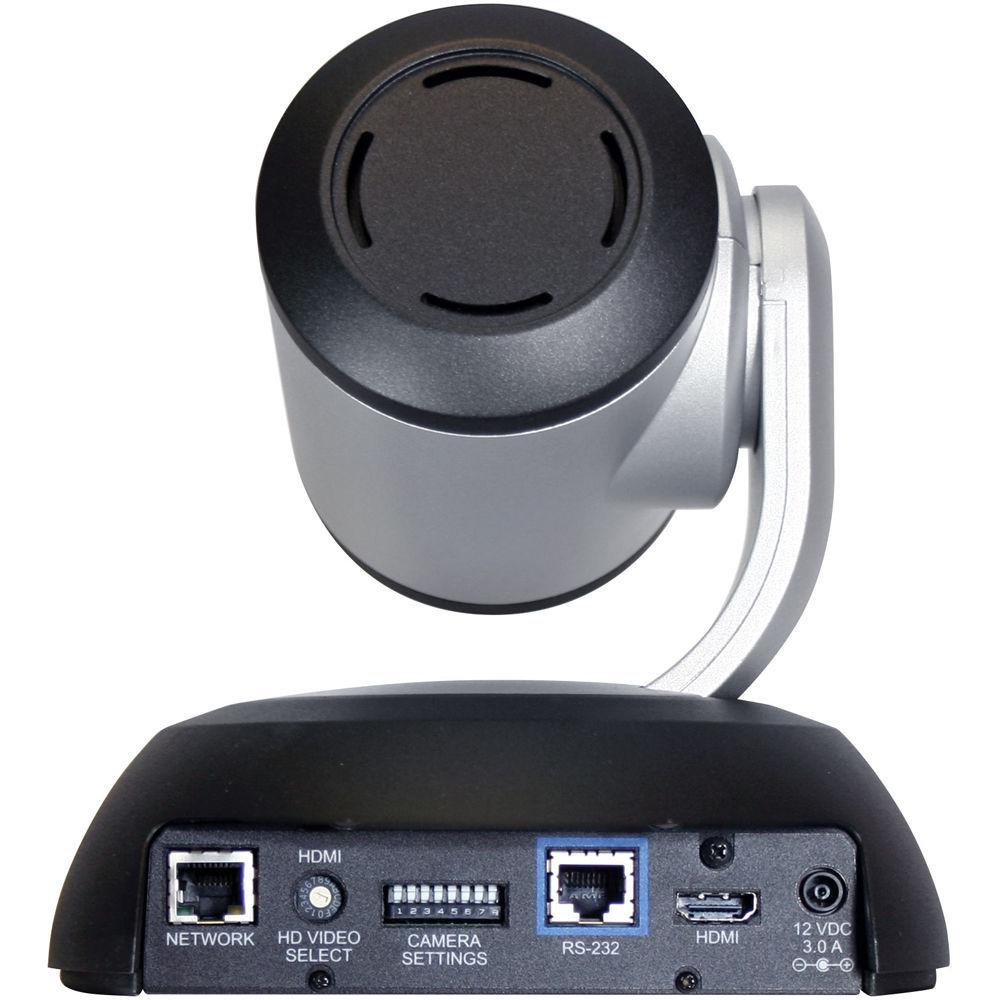

Pan/Tilt Speeds: Both Axes 0.35 to 120°/sec | | Sync System | Internal | | Control | Ethernet for internal web pages and telnet, IR remote commander and RS-232 for external controllers | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 20 to 80% | | Dimensions (H x W x D) | 6.8 x 7.1 x 6.7" (17.6 x 17.9 x 17.2 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 10.7 lb | | Box Dimensions (LxWxH) | 13.5 x 12.2 x 11.9" |
