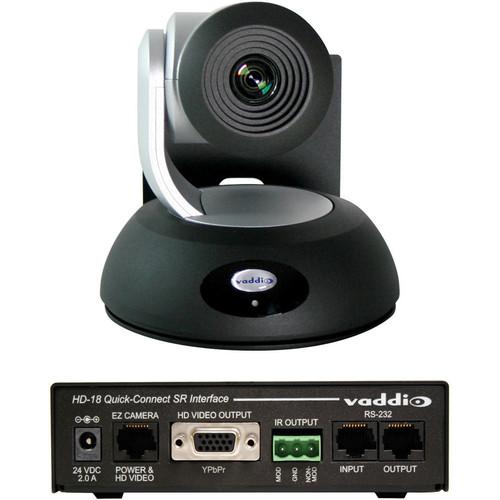

User Manual for Vaddio RoboSHOT 12 QSR System Click to enlarge the picture
Contents of the user manual for the Vaddio RoboSHOT 12 QSR System
- Product category: PTZ Cameras Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio PTZ Cameras
|
User manual for the Vaddio RoboSHOT 12 QSR System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description Vaddio's RoboSHOT 12 QSR System is a professional quality PTZ camera with fine detail and quality color reproduction packaged with a Quick-Connect USB Control unit. It's suitable for small to medium-sized rooms, houses of worship, medium auditorium A/V systems, small to medium distance learning classrooms, live event theaters, and lecture theaters with lecture capture. The key features of the camera are Tri-Synchronous Motion; Range-Set for setting optical limits; and the combination of an advanced image sensor, lens, and ISP (image signal processor).
Paired with the camera is the Quick-Connect SR System Interface uses the Vaddio EZCamera Cat-5 Cable System to transport HSDS (differential video), power, and control to and from the camera over standard Cat-5 cable up to 150' away with virtually no latency or loss in video quality. The unit supports IR passthrough as well as RS-232 input & output. - RoboSHOT 12 HD PTZ Camera with 12X Zoom Vaddio's RoboSHOT 12 HD is a professional quality PTZ camera with fine detail and exceptional color reproduction. It's ideal for small to medium sized conference rooms, training rooms, or classrooms, and it provides support for such applications as UC conferencing, videoconferencing, distance learning, lecture capture, and telepresence. The key features of this camera are Tri-Synchronous Motion, Range-Set for setting optical limits, and an advanced image sensor/lens/ISP (image signal processor) combination.
The Tri-Synchronous Motion algorithm is capable of moving all three (pan, tilt, and zoom) axes simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt, and zoom arrive at the preset subject simultaneously, which finally allows for smooth and manageable on-air camera movements. The Range-Set feature allows the camera's zoom range to be custom tailored to the room by setting optical zoom limits on both the tele and wide ends of the lens. With Range-Set there is no way for the end-user to mess up the shot by zooming in too close or zooming out too far. The lens is a multi-element, glass lens featuring a 12X optical zoom with a 6.6° tele end and 73° wide field of view. The latest generation Exmor 1/2.8", 2.34 Megapixel, Full HD (1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP produces vivid, realistic, and accurate color with extremely fast, sharp automatic focus and iris routines.
The RoboSHOT 12 HD uses the Vaddio EZCamera System to transport HSDS differential video, power, and control to and from the camera over Cat-5e cables. The market proven Quick-Connect Interfaces, sold separately, immediately provide the ultimate in configuration flexibility. Four models of Quick-Connects are available, including the Quick-Connect USB Mini, Quick-Connect SR, Quick-Connect USB, and the Quick-Connect Universal CCU. One Quick-Connect interface is required.
The RoboSHOT 12 HD has an Ethernet port and a built-in web server, which allows the user to control the camera functions on a web page with any browser from anywhere in the world over the IP network. Telnet, IR Remote and RS-232 control for the camera are available to satisfy almost any system control requirements. - Quick-Connect Short Range Video Interface The Quick-Connect Short Range Video Interface from Vaddio allows you to install and power remote Vaddio cameras. With a single Cat-5 cable, it connects with the camera. The interface powers and controls the remote camera and receives HD video from the camera at up to 150 feet away. This unit is compatible with all Vaddio PTZ and POV cameras.
The Short Range Interface provides a local access to an HD monitor via a 15-pin Sub-D connector as well as infrared connectivity. The IR infrared output allows you to send IR remote controls to third party equipment, such as videoconferencing codecs. The IR signals can be transmitted as either modulated (through the air) or non-modulated (wired) signals. - Integrates with Cat-5 cables
- Compatible with all Vaddio cameras
In the Box Bundle Items RoboSHOT 12 HD PTZ Camera with 12X Zoom - Thin Profile Wall Mount and Mounting Hardware
- User and Installation Guide
- Limited 2-Year Warranty on Parts and Labor
Quick-Connect Short Range Video Interface uxafxbfxsqtbytseyesursfafzav Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 12 QSR System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RoboSHOT 12 HD PTZ Camera with 12X Zoom
| Image Sensor | Exmor 1/2.8", 2.34 Megapixel, Full HD (1080p/60 native) High-speed, Low Noise CMOS Image Sensor | | Lens | Normal Mode: 10X Optical Zoom with 67.3° (wide end) to 7.6° (tele end) limited
Super-Wide Mode: 12X Optical Zoom with 73.0° (wide end) to 6.6° (tele end) | | Supported Resolutions | HD Resolutions: 1080p/60/59.94/50/30/25, 1080i/60/59.94/50, 720p/60/59.94/50/30/25 16:9 format | | Miscellaneous | Tri-Synchronous Motion: Concurrent PTZ motor movement and simultaneous PTZ arrival at a stored preset
Range-Set: Optical zoom limits on tele end and wide end to limit shot badness
Advanced ISP: Vivid and accurate color with extremely fast, razor sharp automatic focus and iris routines | | S/N Ratio | > 50 dB | | Minimum Illumination | 1.0 lux (F1.6, 50IRE)
Recommended illumination: >100 lux and above | | Minimum Distance | 0.4" (10 mm) wide end and 3.9 ft (1.4 m) tele end | | Pan & Tilt | Angles:
Pan: ±165°, Tilt: +90°, -30°
Speeds:
Pan: 120°/sec, Tilt: 100°/sec | | Sync System | Internal | | Control Method | Ethernet: Internal Web Pages and Telnet, IR Remote Commander and RS-232 for external controllers | | Quick-Connect Systems | One of the following separately sold Quick-Connect Systems is required:
Quick-Connect USB: USB 2.0 (UVC) or IP (H.264) Streaming, Simultaneous HDMI and YPbPr outputs
Quick-Connect Universal CCU: Simultaneous HD-SDI, HDMI, and YPbPr (HD) outputs with image controls
Quick-Connect SR: YPbPr output with IR forwarding
Quick-Connect USB Mini: USB 2.0 streaming only | | Dimensions | 7 x 7 x 6.8" (17.6 x 17.9 x 17.2 cm) | | Weight | 5.2 lb (2.4 kg) | - Quick-Connect Short Range Video Interface
| Connectors | 1 x RJ45, power & HD video
1 x 15-pin Sub-D female, YPbPr video output
1 x 3-pin Phoenix, IR output
1 x RJ45, RS-232 input
1 x RJ45, RS-232 output
1 x 5.5 mm DC barrel, power input | | Video Resolution | 1080p, 1080i, 720p | | Power Requirements | 24 VDC, 2.0 A | | Dimensions (H x W x D) | 1.6 x 5.5 x 3.25" (40.6 x 139.7 x 82.6 mm) | | Weight | 0.45 lb (0.21 kg) |
