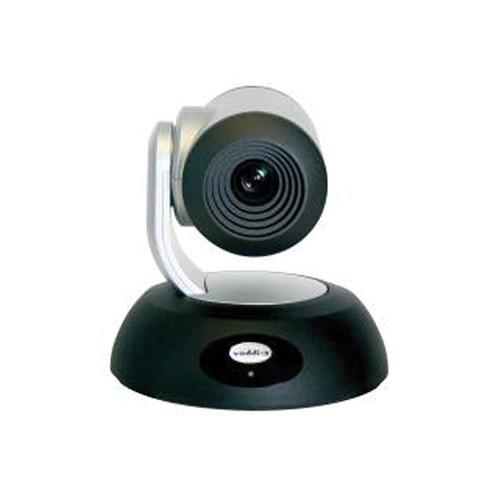

User Manual for Vaddio RoboSHOT 12 USB PTZ Conferencing Camera with 12x Optical Zoom Click to enlarge the picture
Contents of the user manual for the Vaddio RoboSHOT 12 USB PTZ Conferencing
- Product category: PTZ Cameras Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio PTZ Cameras
|
User manual for the Vaddio RoboSHOT 12 USB PTZ Conferencing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The RoboSHOT 12 USB PTZ Conferencing Camera from Vaddio is an enterprise class camera supporting simultaneous USB 3.0 and IP streaming (H.264) capabilities with HDMI video output functionality. The included lens is a multi-element, glass lens featuring a 12x optical zoom with a 73° wide horizontal field of view.The Tri-Synchronous Motion algorithm is capable of moving all three axes (pan, tilt, and zoom) simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so that the pan, tilt, and zoom arrive at the preset subject simultaneously. This allows for smooth and manageable on-air camera movements.The RoboSHOT 12 USB has a PoE+ GB Ethernet port. Its built-in web server allows the user to power the camera and control its functions with an internal web page on any browser from anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression. This feature is suitable for remote management, network operating centers, and overall IT control. Telnet, IR remote, and RS-232 control for the camera are available to meet major system control requirements.The RoboSHOT 12 is suitable for small to medium-sized conference rooms, training rooms, or classrooms and provides support for applications, especially in UC conferencing, videoconferencing, distance learning, lecture capture, and tele presence. In the Box Vaddio RoboSHOT 12 USB PTZ Conferencing Camera with 12x Optical Zoom Vaddio IR Remote Commander 12 VDC, 3A Switching Power Supply AC Cord Set Thin Profile Wall Mount & Hardware EZCamera Control Adapter USB 3.0 Cable (6') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 12 USB PTZ Conferencing Camera with 12x Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio RoboSHOT 12 Specs | Image Sensor | Exmor 1/2.8", 2.38 MP, Full HD (1080p60 native) high-speed, low noise CMOS | | Lens | Super-Wide Mode:
12x Optical zoom with 73° (wide) to 6.6° (tele), F = 3.91 to 47 mm, f/1.8 to 3.4
Normal Mode:
10x Optical zoom with 67.3° (wide) to 7.6° (tele), F = 3.8 to 38 mm, f/1.8 to 3.4 | | HDMI Resolutions | 1080p60 / 59.94 / 50
1080i60 / 59.94 / 50
720p60 / 59.94 / 50
16:9 format | | Streaming | Simultaneous IP (RTSP format, H.264 compression) up to 1080p30 and USB 3.0 (UVC) streaming up to 1080p60 | | USB | USB 3.0 type-B | | Network | Shielded RJ-45 PoE+ GB Ethernet port | | Special Features | Tri-Synchronous Motion: Concurrent PTZ motor movement and simultaneous PTZ arrival at stored preset
Advanced ISP: Vivid and accurate color with fast, sharp automatic focus and iris routines | | S/N Ratio | >50 dB | | Minimum Illumination | 1.0 Lux (f/1.6, 50 IRE)
Recommended Illumination: >100 Lux and above | | Pan & Tilt | Pan Angle: ±160°
Tilt Angle: +90°, -30°
Speed on Both Axes: 0.35° to 120°/sec | | Control Method | Ethernet: Internal Web Pages and Telnet
IR Remote Commander and RS-232 for external controllers | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 80% | | Dimensions | 6.9 x 7.1 x 6.8" (17.6 x 17.9 x 17.2 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 13.6 x 11.9 x 11.8" |
