Product description

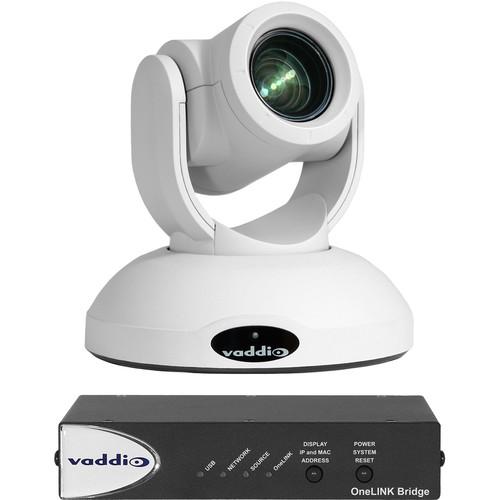

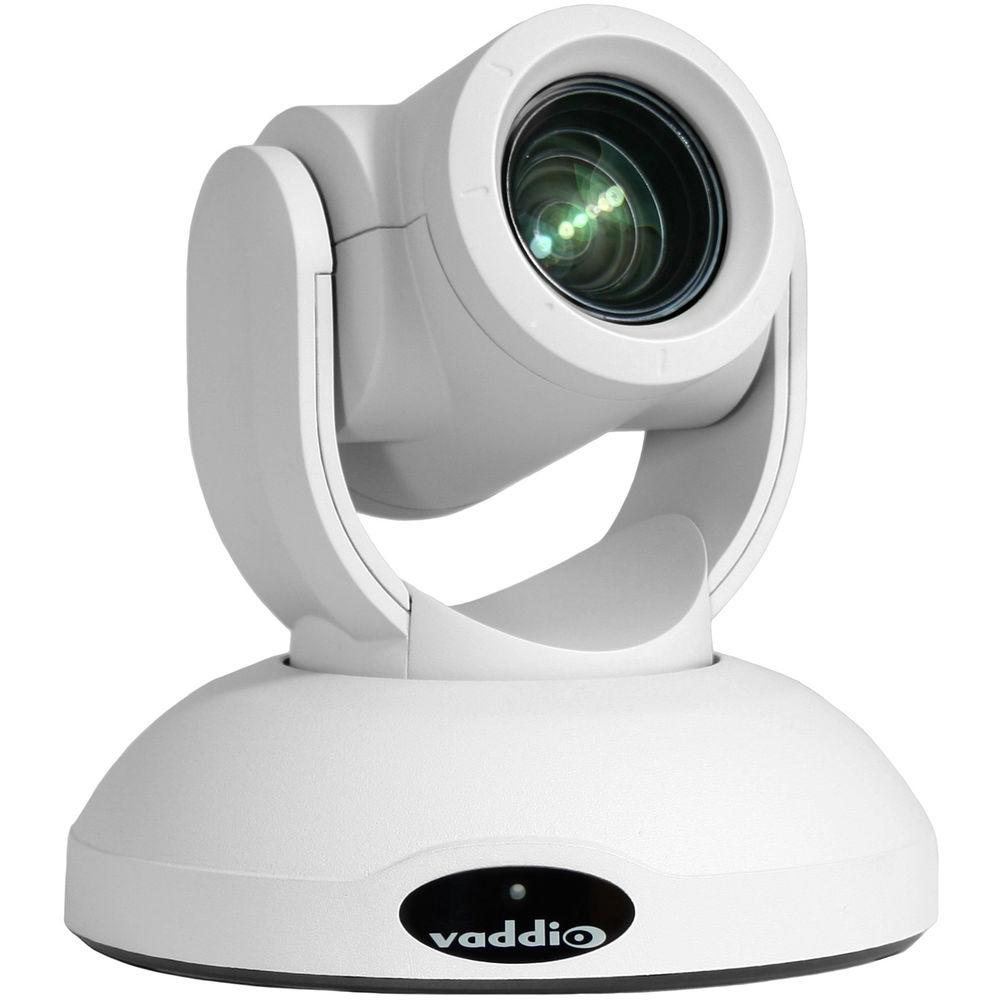

• RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White) This white RoboSHOT 20 UHD Ultra High Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3"-type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74° angle of view at wide, with a 4.8° angle of view when zoomed in all the way.

  The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera.
  • The camera's outputs are active at all times, so there is no need to select one output over another. This also allows you to output to more than one display device or recorder at the same time. The built-in IP streaming simplifies streaming your video over a network.
  • HDBaseT provides power over an Ethernet cable, so you are not limited where you can mount the camera by needing an AC outlet. You can mount this camera wherever you can run an Ethernet cable. Please note that you will need a network that supports HDBaseT to take advantage of this feature.
  • You can control the camera via the included IR remote commander, the RS-232 port, or the HDBaseT port.
  • The camera features built-in web based interface for control via your browser.
  Status Indicator LED
  • • Purple - Boot-up and Standby modes.
    • Blue - Normal operation and is a power on, ready condition.
    • Blinking blue - The camera has received IR from the remote or other IR source.
    • Red - Tally function; shows that the camera is on-air.
    • Blinking red - Fault condition.
    • Yellow - Firmware update is in progress.

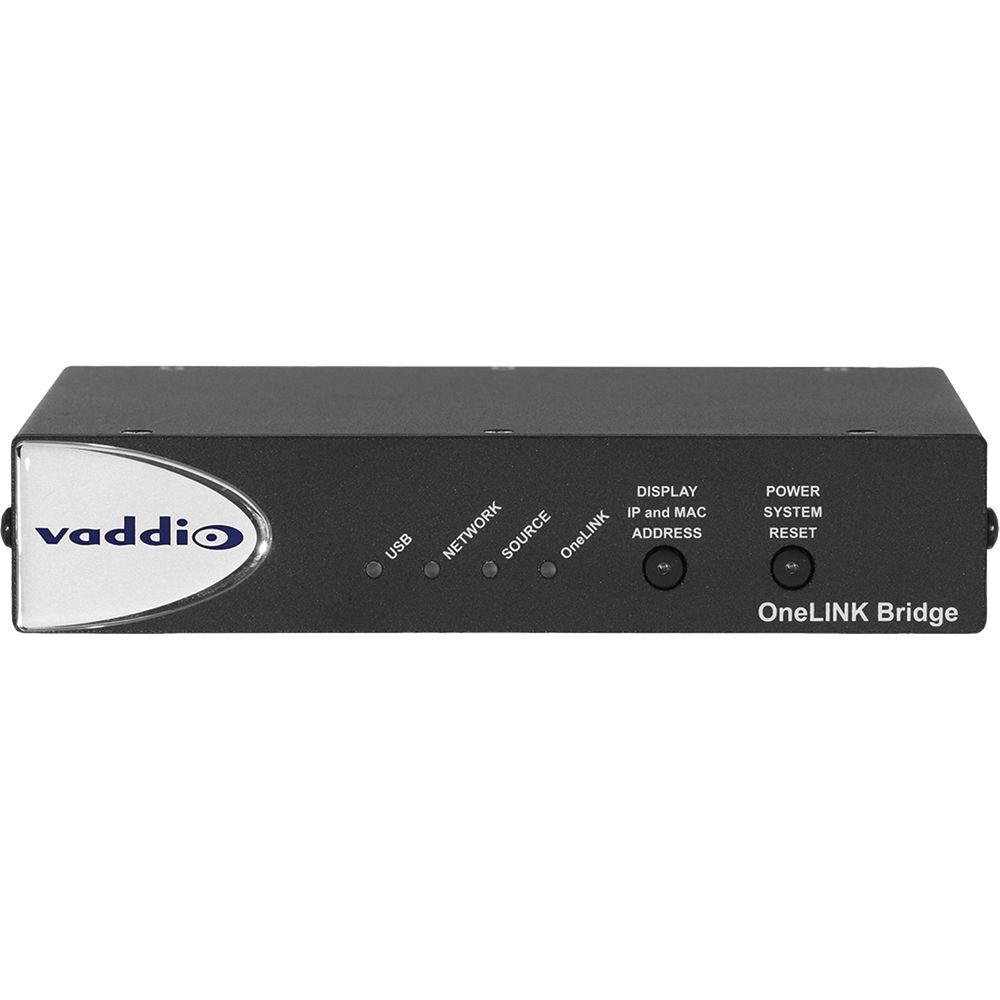

• OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
  • Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
  • Connects professional A/V equipment to PC applications via USB 3.0 media stream
  • Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
  • Two balanced audio inputs and two balanced audio outputs
  • Control via web interface or Telnet
  • Status lights

• Vaddio IR Remote Commander

• AC Adapter (12 VDC, 3 A)

• North American Power Cord Set

• Thin Profile Wall Mount

• EZCamera RS-232 Control Adapter

• Limited 2-Year Warranty

• Power Supply

• 4 x 3-Position 3.5mm Phoenix Plug

• USB Cable (6')

• RS-232 Adapter

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

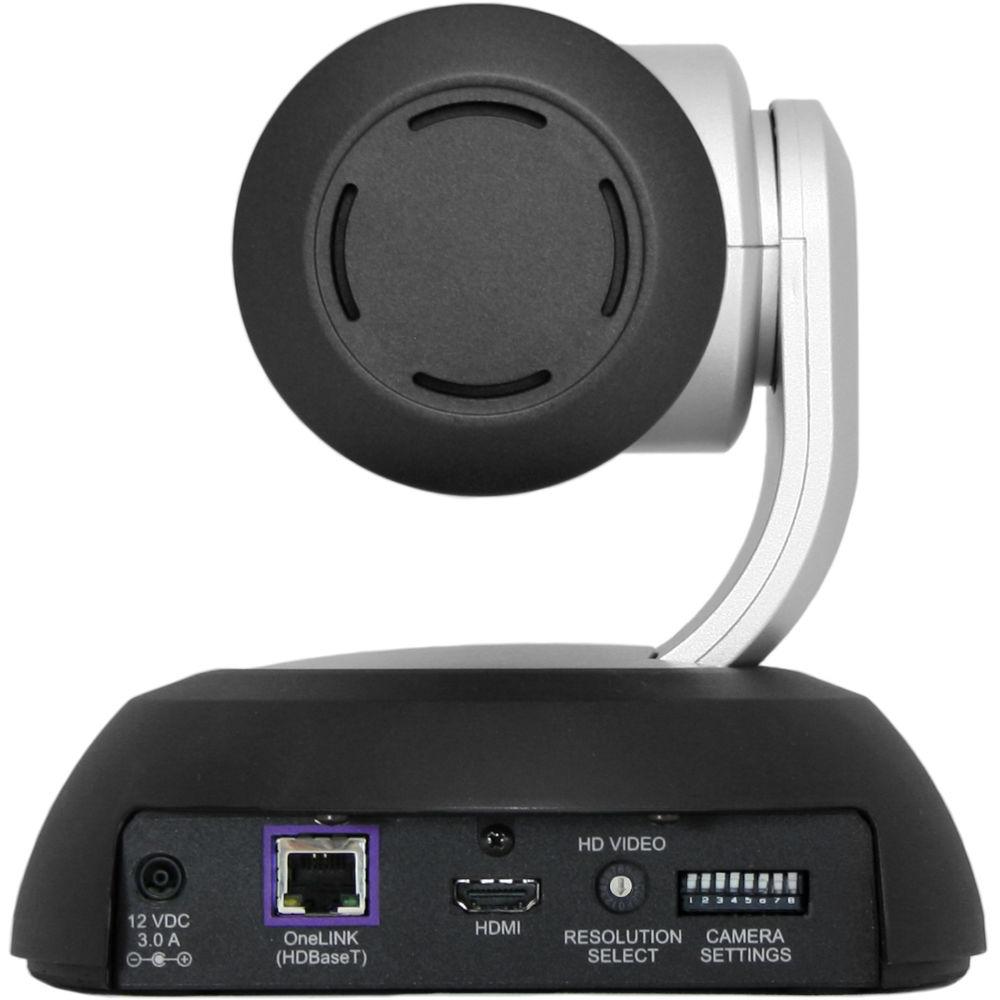

• RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White)

  Sync System	Internal
  Sensor	1/2.3"-type Exmor R CMOS
  Pixels	Total: 9.03 MP Effective: 8.93
  Minimum Illumination	Color: 3.0 lx (F1.8, 50IRE)
  Zoom	Optical: 12x Digital: 1.67x Combined: 20x
  Horizontal Field-of-View	Wide: 74° Tele: 4.8°
  Focusing	Auto Focus Manual Focus Mode One-Push Trigger Mode
  Minimum Focus Distance	Wide: 0.4" / 10 mm Tele: 59.1" / 1500 mm
  White Balance	Auto ATW Indoor Outdoor One-Push Manual
  Aperture/Detail	16 Steps
  Gain	Auto / Manual (0 to 33 dB)
  Backlight Compensation	On/Off
  Noise Reduction	6 Steps
  S/N Ratio	Over 50 dB
  Output	Protocols HDMI HDBT HD-SDI IP (H.264) Aspect Ratio HDMI: 16:9 (all resolutions) IP (H.264) Streaming: 16:9, 3:2, 4:3 HDMI Resolutions/Frame Rates 3840 x 2160: 30/25 fps 1080p: 59.94/50/29.97/25 1080i: 59.94/50 720p: 59.94/50 3G-SDI 1080p: 59.94/50/29.97/25 1080i: 59.94/50 720p: 59.94/50 Streaming: Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30

  Pan	Angle: -160 to 160° Speed: 0.35°/sec to 120°/sec
  Tilt	Angle: +90 to -30° Speed: 0.35°/sec to 120°/sec
  Control	Vaddio IR remote commander Web interface Telnet RS-232 API (modified VISCA)

  Power	12 VDC, 3A power supply LTPoE
  Temperature & Humidity	Operating 23 to 140°F / -5 to 60°C 20 to 80% RH (non-condensing) Storage -4 to 140°F / -20 to 60°C 20 to 95% RH (non-condensing)
  Dimensions	7.9 x 8.0 x 7.7" / 20.0 x 20.3 x 19.6 cm
  Weight	6.0 lb / 2.7 kg

  Box Dimensions (LxWxH)	13.5 x 13.5 x 11.8"

• OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)

  Cable Run	Max: 328' / 100 m
  Resolution	Up to 1080p60 (Full HD)

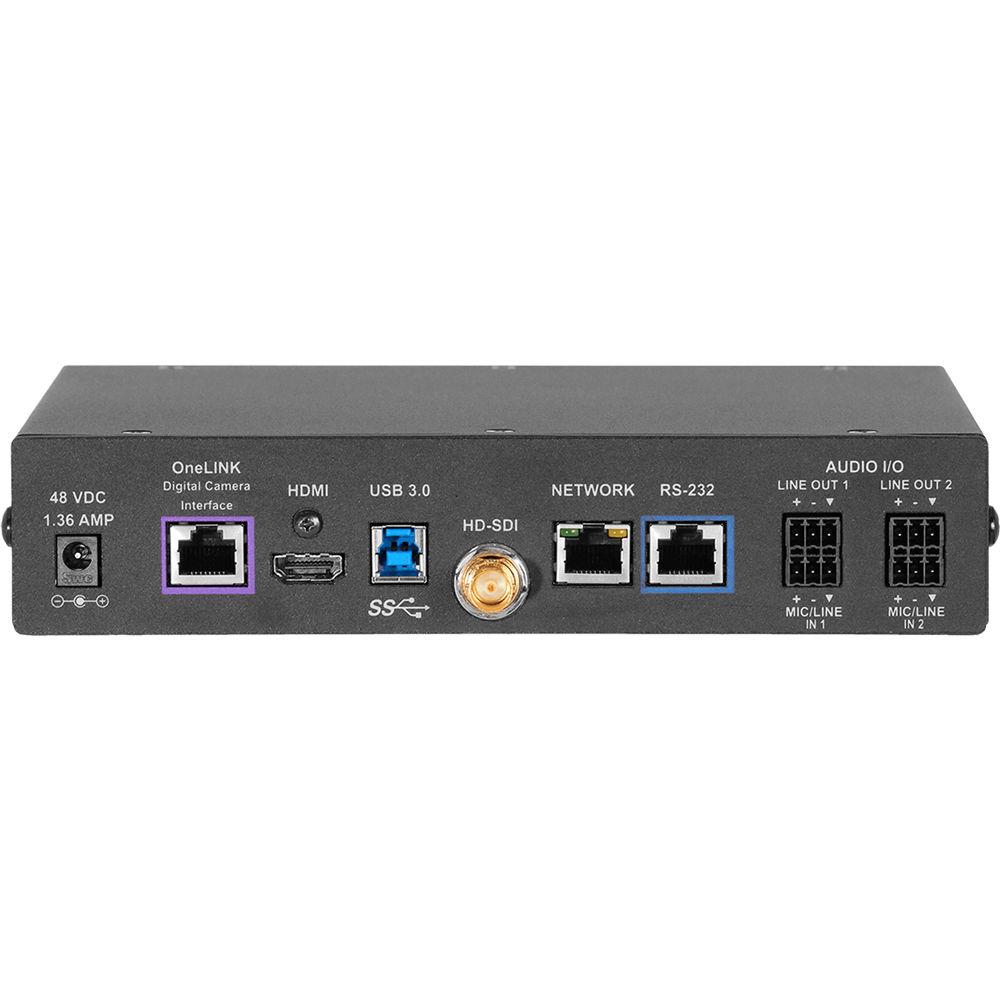

  Connectors	1 x HD-SDI input 1 x HDMI input 2 x Mic/Line audio inputs 1 x USB 3.0, video output with PCM audio 2 x Line audio outputs 1 x OneLINK digital camera interface 1 x Network, IP streaming and control 1 x RS-232, control 1 x Power port
  Control Features	Web interface for configuration via browser Telnet API for third-party external control USB Human Interface Device (HID) for room audio controls
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Power	48 VDC, 1.36 A
  Dimensions	1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm
  Weight	1.7 lb / 0.8 kg
