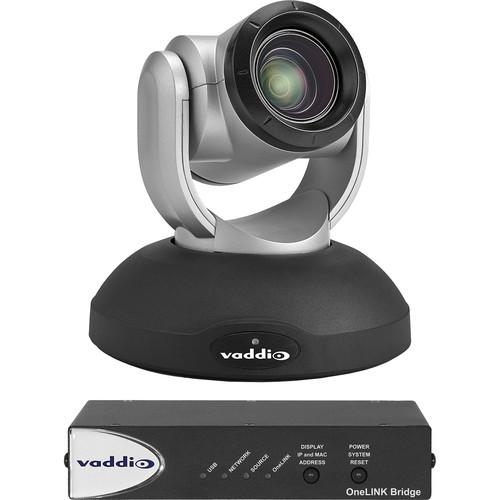

Product description The RoboSHOT 20 UHD OneLINK Bridge System from Vaddio combines a silver and black RoboSHOT 20 UHD PTZ camera and OneLINK Bridge interface. It is suitable for use in distance learning and corporate environments. The system captures 3840 x 2160 video at 30p from a single 1/2.3"-type Exmor sensor and transmits it up to 328' over CAT5e/6 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.

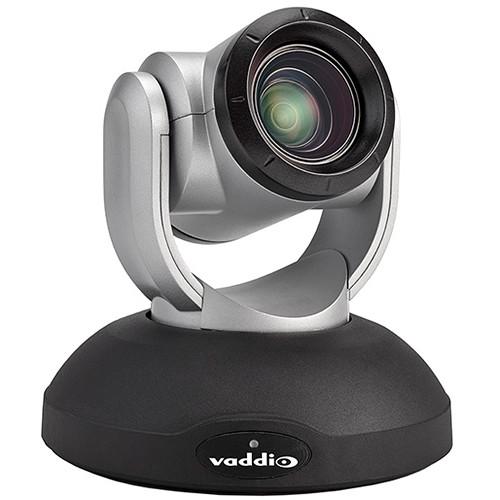

The PTZ camera features a 20x total zoom range with 74° angle of view at wide, with a 4.8° angle of view at maximum zoom in. The OneLINK features HDMI, USB 3.0, and HD-SDI video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet. - RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Silver/Black) This silver and black RoboSHOT 20 UHD Ultra High Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3"-type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74° angle of view at wide, with a 4.8° angle of view when zoomed in all the way.

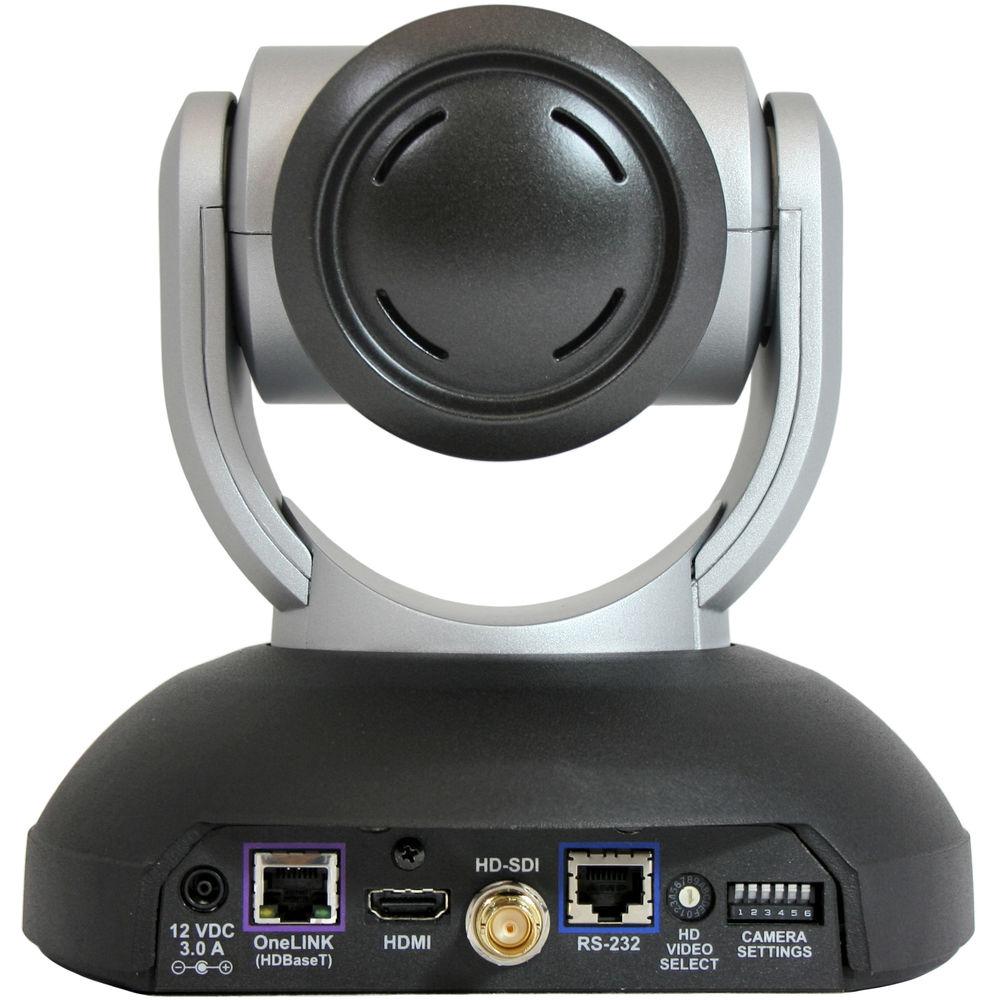

The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera. - The camera's outputs are active at all times, so there is no need to select one output over another. This also allows you to output to more than one display device or recorder at the same time. The built-in IP streaming simplifies streaming your video over a network.
- HDBaseT provides power over an Ethernet cable, so you are not limited where you can mount the camera by needing an AC outlet. You can mount this camera wherever you can run an Ethernet cable. Please note that you will need a network that supports HDBaseT to take advantage of this feature.
- You can control the camera via the included IR remote commander, the RS-232 port, or the HDBaseT port.
- The camera features built-in web based interface for control via your browser.
- Status Indicator LED
-
- Purple - Boot-up and Standby modes.
- Blue - Normal operation and is a power on, ready condition.
- Blinking blue - The camera has received IR from the remote or other IR source.
- Red - Tally function; shows that the camera is on-air.
- Blinking red - Fault condition.
- Yellow - Firmware update is in progress.

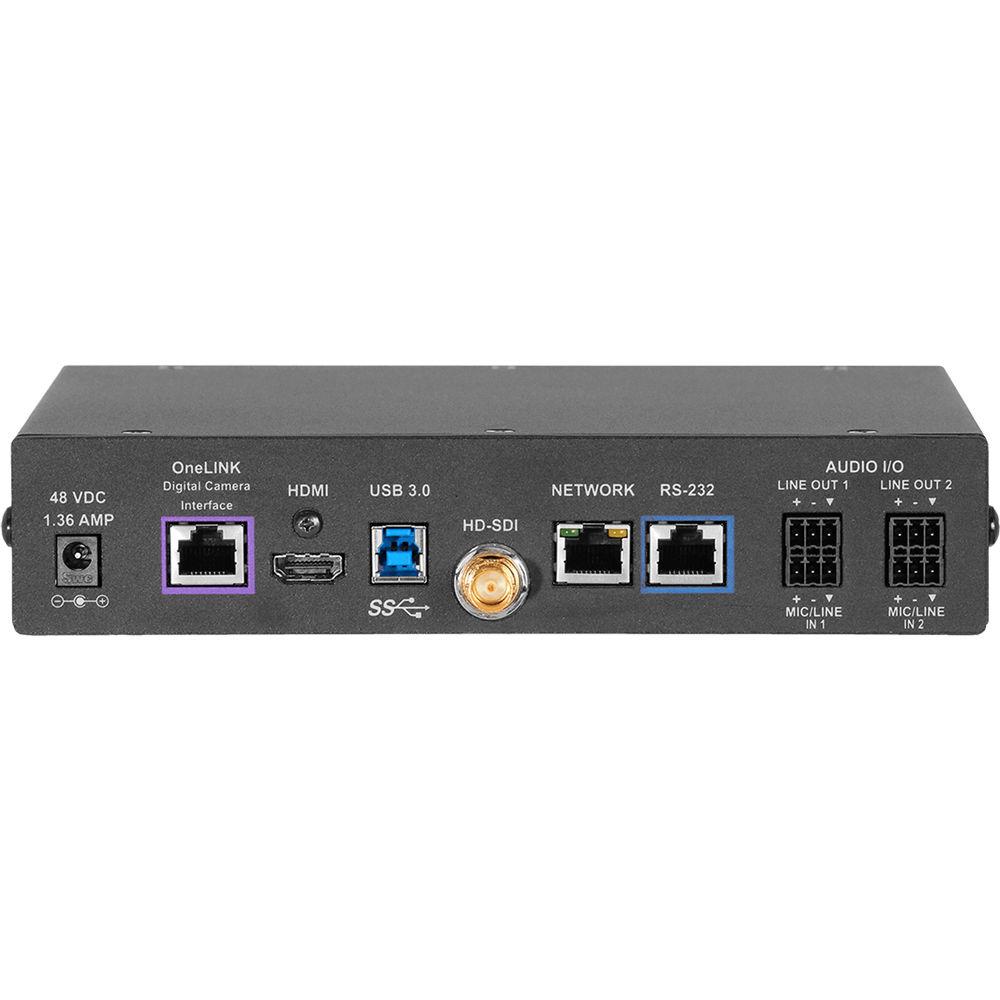

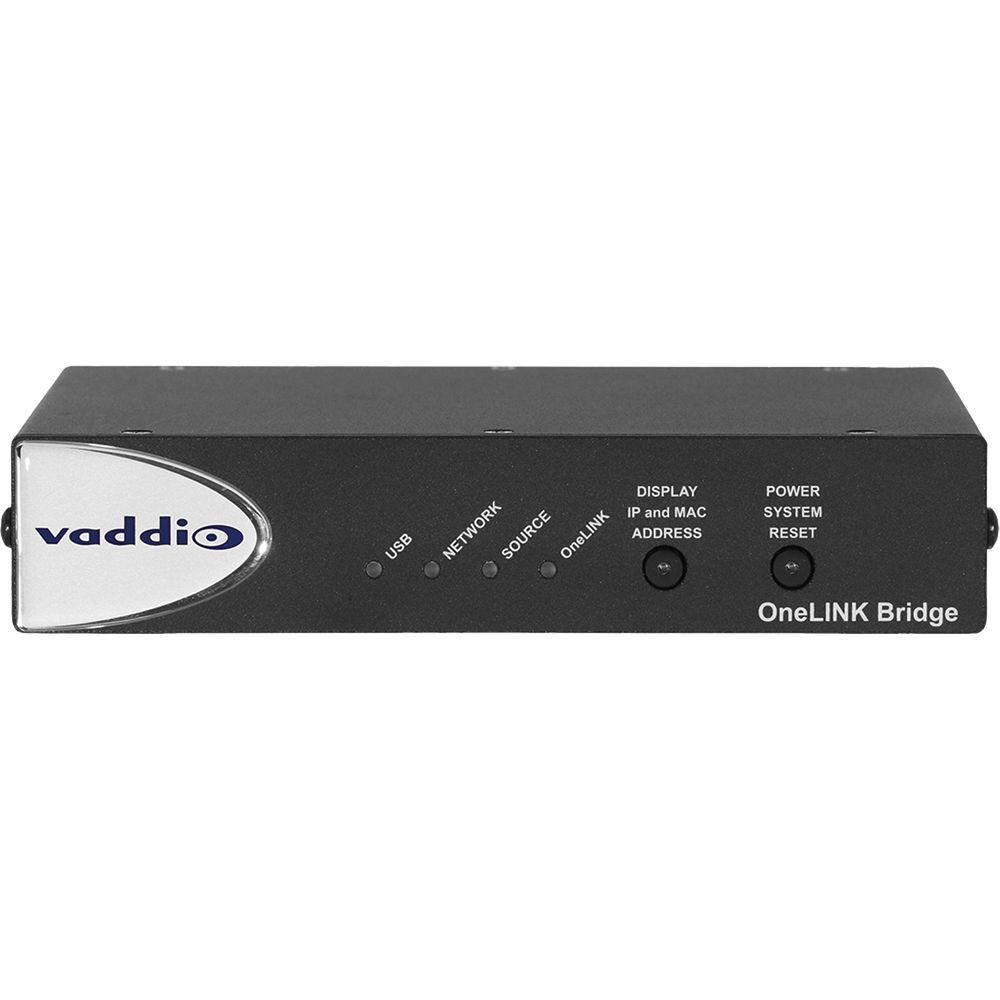

- OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
- Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
- Connects professional A/V equipment to PC applications via USB 3.0 media stream
- Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
- Two balanced audio inputs and two balanced audio outputs
- Control via web interface or Telnet
In the Box Bundle Items RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Silver/Black) excattcxtsreae - Vaddio IR Remote Commander
- North American Power Cord Set
- EZCamera RS-232 Control Adapter
OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) excattcxtsreae - 4 x 3-Position 3.5mm Phoenix Plug
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 20 UHD OneLINK Bridge System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Silver/Black)
| | | Sync System | Internal | | Sensor | 1/2.3"-type Exmor R CMOS | | Pixels | Total: 9.03 MP
Effective: 8.93 | | Minimum Illumination | Color: 3.0 lx (F1.8, 50IRE) | | Zoom | Optical: 12x
Digital: 1.67x
Combined: 20x | | Horizontal Field-of-View | Wide: 74°
Tele: 4.8° | | Focusing | Auto Focus
Manual Focus Mode
One-Push Trigger Mode | | Minimum Focus Distance | Wide: 0.4" / 10 mm
Tele: 59.1" / 1500 mm | | White Balance | Auto
ATW
Indoor
Outdoor
One-Push
Manual | | Aperture/Detail | 16 Steps | | Gain | Auto / Manual (0 to 33 dB) | | Backlight Compensation | On/Off | | Noise Reduction | 6 Steps | | S/N Ratio | Over 50 dB | | Output | Protocols
HDMI
HDBT
HD-SDI
IP (H.264)
Aspect Ratio HDMI: 16:9 (all resolutions)
IP (H.264) Streaming: 16:9, 3:2, 4:3
HDMI Resolutions/Frame Rates
3840 x 2160: 30/25 fps
1080p: 59.94/50/29.97/25
1080i: 59.94/50
720p: 59.94/50
3G-SDI
1080p: 59.94/50/29.97/25
1080i: 59.94/50
720p: 59.94/50
Streaming: Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30 | | | | Pan | Angle: -160 to 160°
Speed: 0.35°/sec to 120°/sec | | Tilt | Angle: +90 to -30°
Speed: 0.35°/sec to 120°/sec | | Control | Vaddio IR remote commander
Web interface
Telnet
RS-232 API (modified VISCA) | | | | Power | 12 VDC, 3A power supply
LTPoE | | Temperature & Humidity | Operating
23 to 140°F / -5 to 60°C
20 to 80% RH (non-condensing)
Storage
-4 to 140°F / -20 to 60°C
20 to 95% RH (non-condensing) | | Dimensions | 7.9 x 8.0 x 7.7" / 20.0 x 20.3 x 19.6 cm | | Weight | 6.0 lb / 2.7 kg | | | | Box Dimensions (LxWxH) | 13.5 x 12.4 x 11.6" | - OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)
| Cable Run | Max: 328' / 100 m | | Resolution | Up to 1080p60 (Full HD) | | Connectors | 1 x HD-SDI input
1 x HDMI input
2 x Mic/Line audio inputs
1 x USB 3.0, video output with PCM audio
2 x Line audio outputs
1 x OneLINK digital camera interface
1 x Network, IP streaming and control
1 x RS-232, control
1 x Power port | | Control Features | Web interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Power | 48 VDC, 1.36 A | | Dimensions | 1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm | | Weight | 1.7 lb / 0.8 kg |
