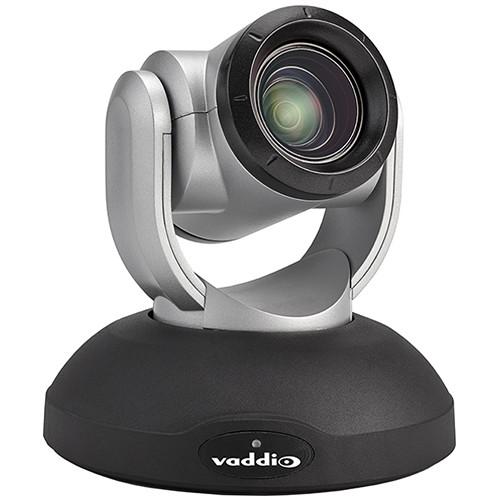

Product description This silver and black RoboSHOT 20 UHD Ultra High Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3"-type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74° angle of view at wide, with a 4.8° angle of view when zoomed in all the way.
The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera. - The camera's outputs are active at all times, so there is no need to select one output over another. This also allows you to output to more than one display device or recorder at the same time. The built-in IP streaming simplifies streaming your video over a network.
- HDBaseT provides power over an Ethernet cable, so you are not limited where you can mount the camera by needing an AC outlet. You can mount this camera wherever you can run an Ethernet cable. Please note that you will need a network that supports HDBaseT to take advantage of this feature.
- You can control the camera via the included IR remote commander, the RS-232 port, or the HDBaseT port.
- The camera features built-in web based interface for control via your browser.
- Status Indicator LED
-
- Purple - Boot-up and Standby modes.
- Blue - Normal operation and is a power on, ready condition.
- Blinking blue - The camera has received IR from the remote or other IR source.
- Red - Tally function; shows that the camera is on-air.
- Blinking red - Fault condition.
- Yellow - Firmware update is in progress.
In the Box Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Silver/Black) Vaddio IR Remote Commander AC Adapter (12 VDC, 3 A) North American Power Cord Set Thin Profile Wall Mount EZCamera RS-232 Control Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio RoboSHOT 20 Specs | | | Sync System | Internal | | Sensor | 1/2.3"-type Exmor R CMOS | | Pixels | Total: 9.03 MP
Effective: 8.93 | | Minimum Illumination | Color: 3.0 lx (F1.8, 50IRE) | | Zoom | Optical: 12x
Digital: 1.67x
Combined: 20x | | Horizontal Field-of-View | Wide: 74°
Tele: 4.8° | | Focusing | Auto Focus
Manual Focus Mode
One-Push Trigger Mode | | Minimum Focus Distance | Wide: 0.4" / 10 mm
Tele: 59.1" / 1500 mm | | White Balance | Auto
ATW
Indoor
Outdoor
One-Push
Manual | | Aperture/Detail | 16 Steps | | Gain | Auto / Manual (0 to 33 dB) | | Backlight Compensation | On/Off | | Noise Reduction | 6 Steps | | S/N Ratio | Over 50 dB | | Output | Protocols
HDMI
HDBT
HD-SDI
IP (H.264)
Aspect Ratio HDMI: 16:9 (all resolutions)
IP (H.264) Streaming: 16:9, 3:2, 4:3
HDMI Resolutions/Frame Rates
3840 x 2160: 30/25 fps
1080p: 59.94/50/29.97/25
1080i: 59.94/50
720p: 59.94/50
3G-SDI
1080p: 59.94/50/29.97/25
1080i: 59.94/50
720p: 59.94/50
Streaming: Simultaneous IP (RTSP format with H.264 compression) up to 1080p/30 | | | | Pan | Angle: -160 to 160°
Speed: 0.35°/sec to 120°/sec | | Tilt | Angle: +90 to -30°
Speed: 0.35°/sec to 120°/sec | | Control | Vaddio IR remote commander
Web interface
Telnet
RS-232 API (modified VISCA) | | | | Power | 12 VDC, 3A power supply
LTPoE | | Temperature & Humidity | Operating
23 to 140°F / -5 to 60°C
20 to 80% RH (non-condensing)
Storage
-4 to 140°F / -20 to 60°C
20 to 95% RH (non-condensing) | | Dimensions | 7.9 x 8.0 x 7.7" / 20.0 x 20.3 x 19.6 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 10.45 lb | | Box Dimensions (LxWxH) | 13.5 x 12.4 x 11.6" |
