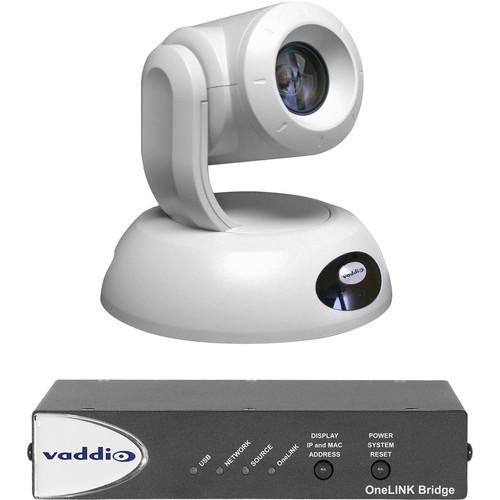

Product description The RoboSHOT 30 OneLINK Bridge System from Vaddio combines a white RoboSHOT 30 HDBaseT indoor PTZ camera and OneLINK Bridge interface. It is suitable for use in distance learning and corporate environments. The system captures 1920 x 1080 video at 60p from a single 1/2.8"-type Exmor sensor and transmits it up to 328' over CAT5e/6 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.

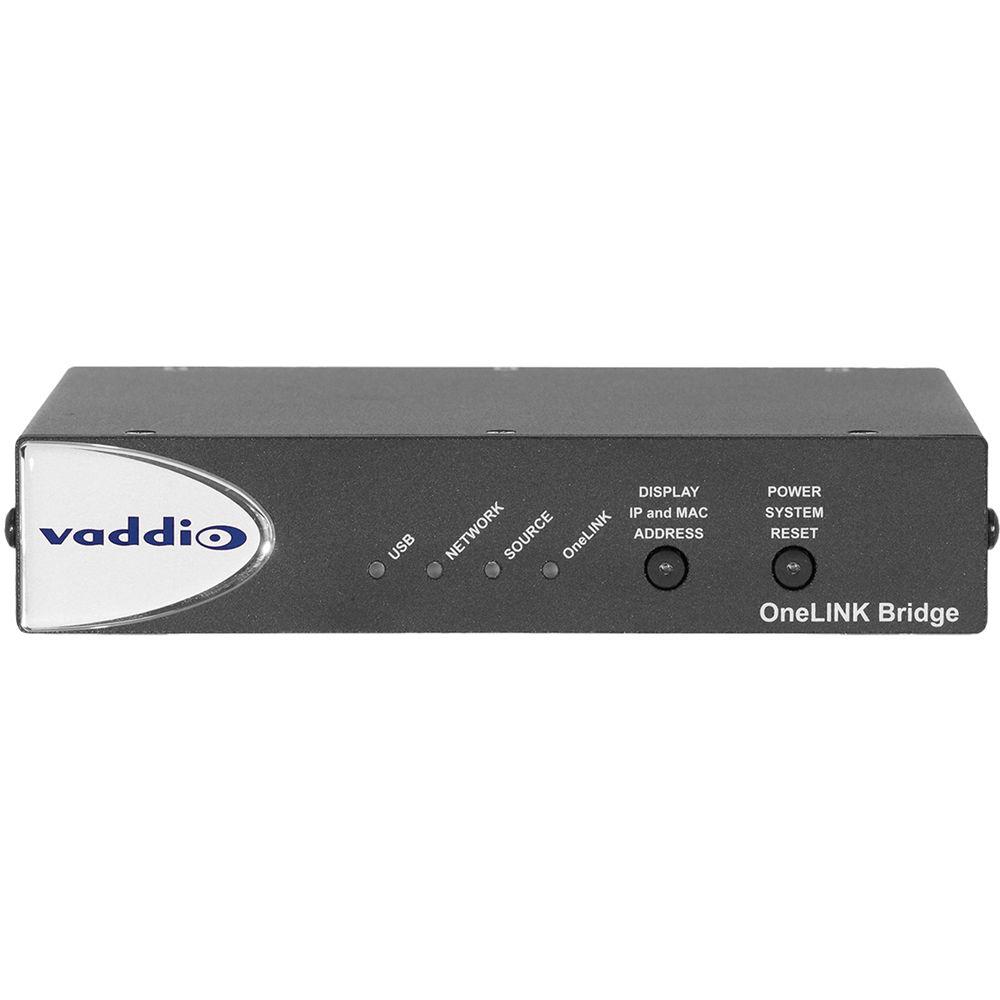

The PTZ camera features a 30x optical zoom range with 65° angle of view at wide, with a 2.3° angle of view at maximum zoom in. The OneLINK features HDMI, USB 3.0, and HD-SDI video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet. - OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge kit simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
- Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
- Connects professional A/V equipment to PC applications via USB 3.0 media stream
- Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
- Two balanced audio inputs and two balanced audio outputs
- Control via web interface or Telnet

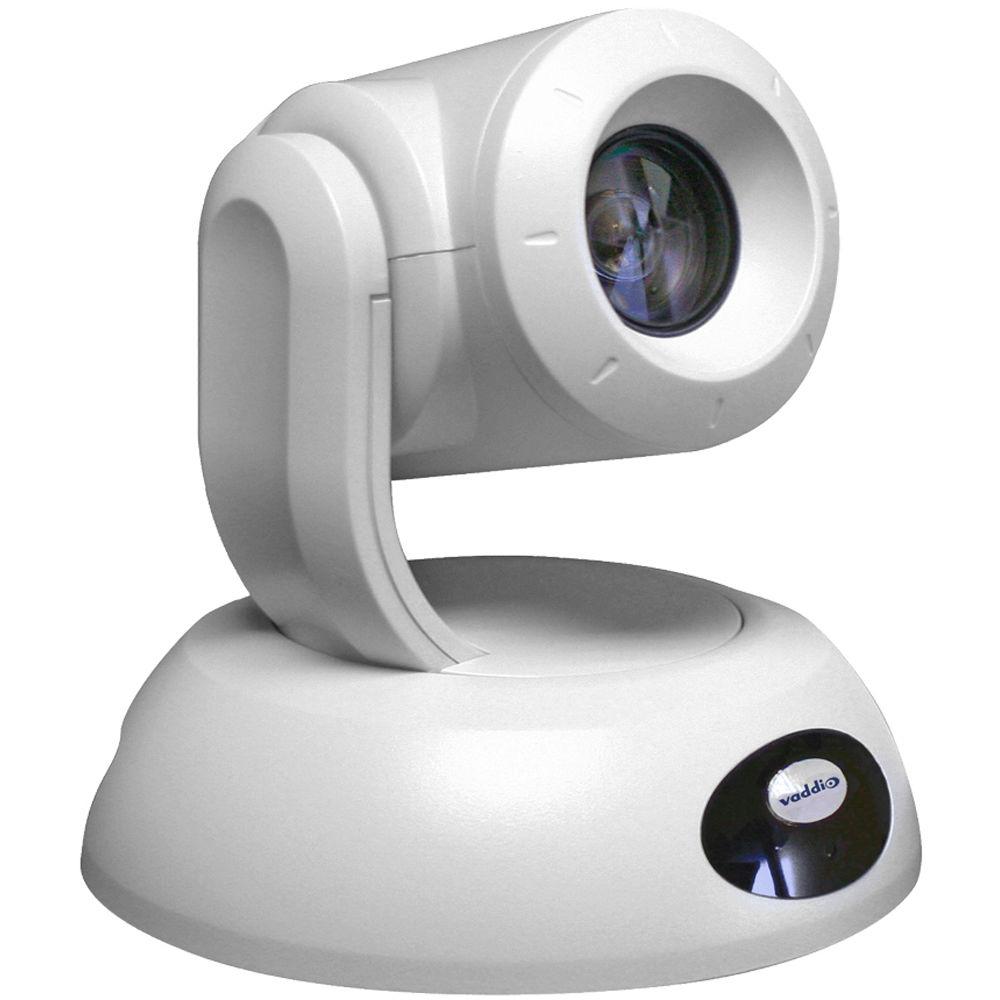

- RoboSHOT 30 HDBaseT Indoor PTZ Camera (White)
In the Box Bundle Items RoboSHOT 30 HDBaseT Indoor PTZ Camera (White) ufwfdywdwctavsbszasyvtw OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America) - 4 x 3-Position 3.5mm Phoenix Plug
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 30 OneLINK Bridge System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)

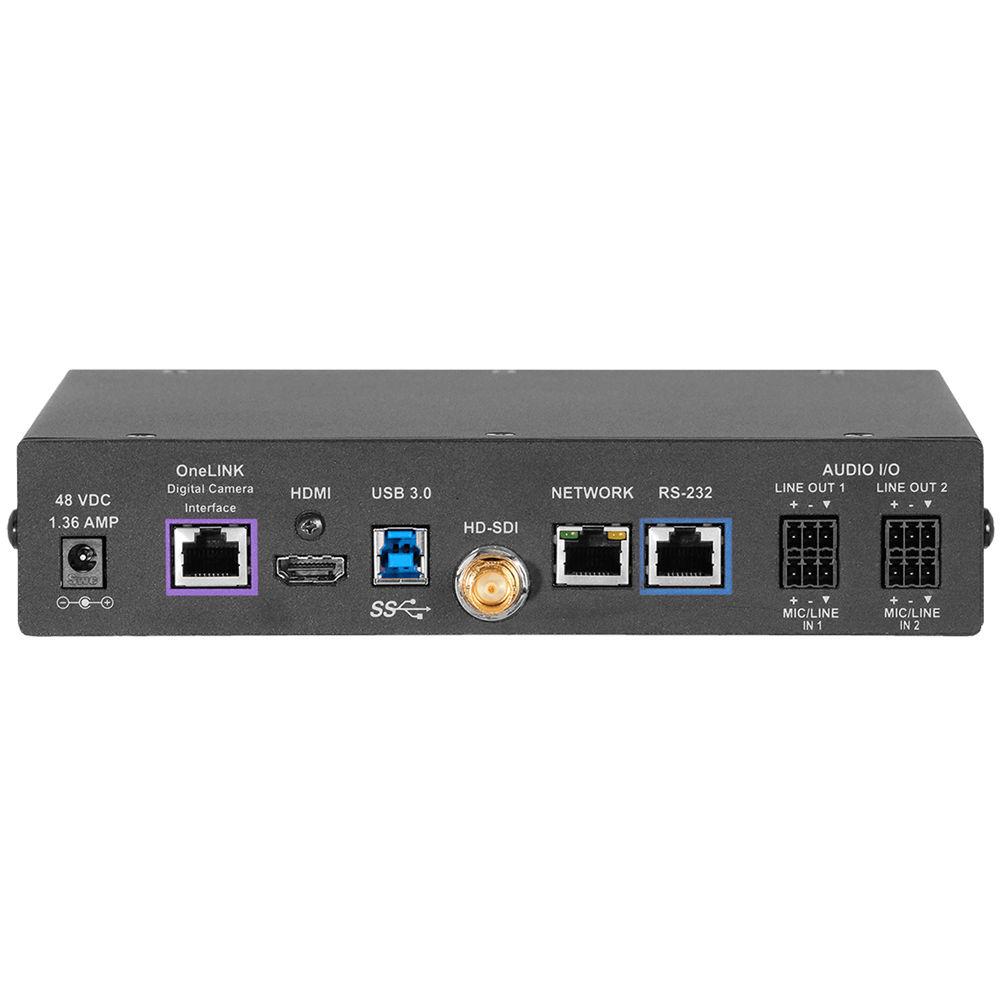

| Cable Run | Max: 328' / 100 m | | Resolution | Up to 1080p60 (Full HD) | | Connectors | 1 x HD-SDI input
1 x HDMI input
2 x Mic/Line audio inputs
1 x USB 3.0, video output with PCM audio
2 x Line audio outputs
1 x OneLINK digital camera interface
1 x Network, IP streaming and control
1 x RS-232, control
1 x Power port | | Control Features | Web interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Power | 48 VDC, 1.36 A | | Dimensions | 1.7 x 8.4 x 6.0" / 4.4 x 21.3 x 15.2 cm | | Weight | 1.7 lb / 0.8 kg | - RoboSHOT 30 HDBaseT Indoor PTZ Camera (White)
