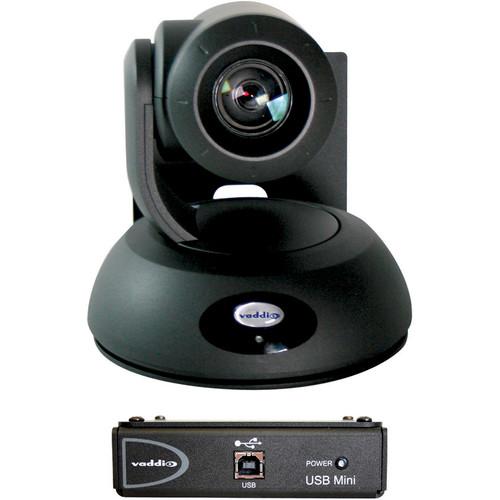

Product description Featuring a black color module, Vaddio's RoboSHOT 30 QMini System is a professional quality PTZ camera with fine detail and exceptional color reproduction packaged with a Quick-Connect USB Mini control unit. It's suitable for medium to large sized rooms, houses of worship, large auditorium A/V systems, large distance learning classrooms, live event theatres, and large lecture theatres with lecture capture. The key features of the camera are Tri-Synchronous Motion, Range-Set for setting optical limits, and the combination of an advanced image sensor, lens, and ISP (image signal processor).
Pairing the camera with the Quick-Connect USB Mini control unit uses the Vaddio EZCamera Cat-5 Cable System to transport HSDS (differential video), power and control to and from the camera over standard Cat-5 cabling up to 100' with virtually no loss in video quality or latency. The USB Mini provides 720p30 video over USB using UVC (Universal Video Class) drivers so you can connect the device to your computer with confidence that it will work. Camera - The Tri-Synchronous Motion algorithm in the RoboSHOT cameras is capable of moving all three (pan, tilt and zoom) axes simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset subject simultaneously.
- The camera incorporates an Exmor; 1/2.8", 2.34 Megapixel, Full HD (1080p/60) highspeed, low noise CMOS image sensor combined with a new ISP, produces vivid, realistic and accurate color with extremely fast, razor sharp automatic focus and auto iris.
- The RoboSHOT cameras use a single control arm for pan and tilt movements. Both ends of the cast control arm are anchored with silent and smooth BLDC (brushless DC) direct drive motors. These motors provide ultra-accurate and fast camera positioning and are capable of the slowest of crawls, which are suitable for on-air use.
- IR sensors are built into the front of the RoboSHOT to receive IR signals from the IR Remote Commander supplied with the camera. The IR sensors sit behind the Makrolon IR Window on the front of the base.
- Ethernet port and a built-in web server, which allows the user to control the camera functions on an internal web page with a browser from anywhere in the world, or in the same room, over your IP network. Telnet, IR Remote and RS-232 control for the camera are available to satisfy almost any system control requirements.
Quick Connect USB Mini - The USB Mini interface has two modes: Video Streaming Mode and Web Control Mode. While using the Web Control Mode, the video image is not available for preview. For this reason, the IR Remote Commander may be the best way to control the camera in real-time. If camera control via web browser is desired, use the web server inside the RoboSHOT camera. The camera is capable of concurrent video and control in real-time.
- The USB Mini will automatically show up as a native USB 2.0 device on the connected computer. If not prompted to allow the device as your primary UVC video source, it may be required to configure it as such in the operating system of the streaming/capture computer.
- Serial RS-232 output on RJ-45 connects via Cat-5 to the camera's RS-232 input on the camera. Control signals from the embedded webserver are sent via RS-232 to the camera over this control port.
- EZ POWER VIDEO: Simultaneously sends power to the camera to and returns HSDS (differential) video from the camera to generate USB 2.0 (UVC) video for the connected PC.
- The mounting flange provides for surface mounting the USB Mini (under table or in cable tray) and easy access to the USB connection for laptop or computer.
In the Box Vaddio RoboSHOT 30 QMini System (Black) RoboSHOT 30 Camera in Black Quick-Connect USB Mini Interface 24 VDC, 2.08 Amp Switching Power Supply with AC Cord Set for North America Vaddio IR Remote Commander Vaddio Thin Profile Wall Mount for RoboSHOT PTZ Cameras 6' (1.83m) USB Type-A to Type-B Cable User and Installation Guide 806-819 Gray RJ-45 Dust Cap (for 36 VDC RJ-45 Port on camera) Limited 2-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio RoboSHOT 30 QMini System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio RoboSHOT 30 Specs | | | Image Sensor | Exmor 1/2.8", 2.34 Megapixel, Full HD (1080p/60 native) High-speed, Low Noise CMOS Image Sensor | | Lens | 30X Optical Zoom
63.7° wide end to 2.3° tele end, f=4.3 mm to 129 mm, f/1.6 to f/4.7 | | Supported Resolutions | HD Resolutions: 1080p/60/59.94/50/30/25, 1080i/60/59.94/50, 720p/60/59.94/50/30/25 16:9 format | | Miscellaneous | Tri-Synchronous Motion: Concurrent PTZ motor movement and simultaneous PTZ arrival at a stored preset
Range-Set: Optical zoom limits on tele end and wide end to limit shot badness
Advanced ISP: Vivid and accurate color with extremely fast, razor sharp automatic focus and iris routines | | S/N Ratio | > 50 dB | | Minimum Illumination | 1.0 lux (f/1.6, 50IRE)
Recommended illumination: >100 lux and above | | Minimum Distance | 0.4" (10 mm) wide end and 4.6 ft (1.2 m) tele end | | Pan & Tilt | Angles:
Pan: ±165°, Tilt: +90°, -30°
Speeds:
Pan: 120°/sec, Tilt: 100°/sec | | Sync System | Internal | | Control Method | Ethernet: Internal Web Pages and Telnet, IR Remote Commander and RS-232 for external controllers | | Quick-Connect Systems | One of the following separately sold Quick-Connect Systems is required:
Quick-Connect USB: USB 2.0 (UVC) or IP (H.264) Streaming, Simultaneous HDMI and YPbPr outputs
Quick-Connect Universal CCU: Simultaneous HD-SDI, HDMI, and YPbPr (HD) outputs with image controls
Quick-Connect SR: YPbPr output with IR forwarding
Quick-Connect USB Mini: USB 2.0 streaming only | | Dimensions | 7 x 7 x 6.8" (17.6 x 17.9 x 17.2 cm) | | Weight | 5.2 lb (2.4 kg) | | | | Video Output | USB 2.0 (MJPEG): Resolution up to 720p/30 | | Connectors | Power: 5.5mm OD x 2.5mm ID Coaxial Connector, Positive Center
RS-232: RJ-45 Jack
EZ-Power Video: RJ-45 Jack (Power and Differential HD Video) | | USB Interface | Connector: Type-B, USB 2.0 Compliant, Standard UVC (Universal Video Class) Drivers | | Network Interface | Ethernet over USB 2.0 | | Streaming Protocols | USB 2.0, MJPEG (UVC standard drivers) | | Supported Web Browsers | Chrome (latest release - auto updating)
Firefox (latest release - auto updating)
Internet Explorer (IE 8 to 11)
Safari (Rev 6 and 7) | | CAT-5 Cable Distance | Two (2) Cat-5e cables (EZ-Power Video and RS-232) Max Distance up to 100' (30.48m) | | Power Supply | 24 VDC, 2.08 Amp Switching Power Supply | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 3.6 x 4.5 x 1.25" / 91.4 x 114.3 x 31.8 mm | | Weight | 1.1 lb / 0.5 kg |
