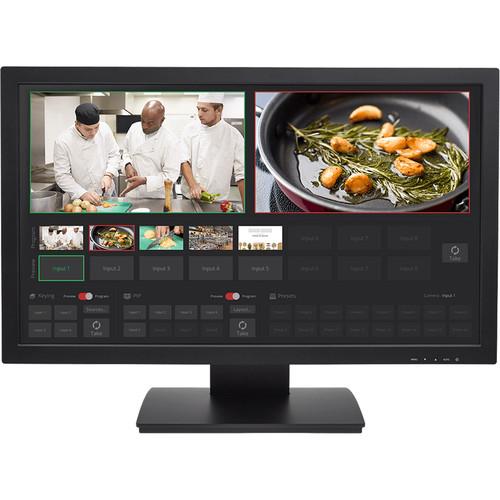

User Manual for Vaddio TeleTouch 27" USB Touchscreen Multiviewer Display Click to enlarge the picture
Contents of the user manual for the Vaddio TeleTouch 27" USB Touchscreen Multiviewer
- Product category: Production Monitors Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Production Monitors
 |
User manual for the Vaddio TeleTouch 27" USB Touchscreen Multiviewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The TeleTouch 27" USB Touchscreen Multiviewer Display from Vaddio features 16.7 million display colors delivering high-quality images at a resolution up to 1080p60. It offers a brightness of 300 cd/m² and a viewing angle of 170 x 160°.

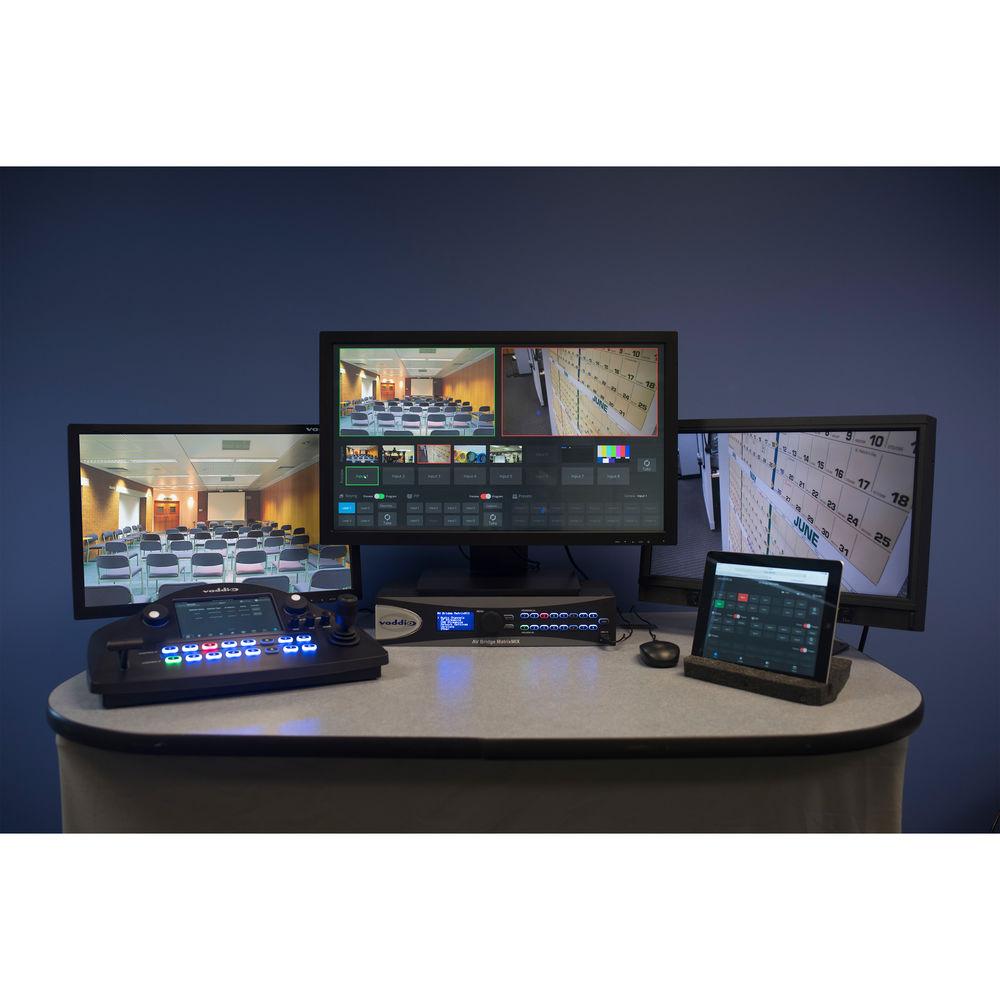

The multiviewer works in conjunction with the AV Bridge MatrixMIX and PCC MatrixMIX devices for an intuitive control interface suitable for both occasional and everyday users. The capacitive touchscreen creates an interactive surface for the MatrixMIX's multiview output—for simple preset recall, video switching, and graphics keying. Built-in speakers allow the operator to have a customizable audio mix from the switcher.
The backlit LED monitor and full-color LCD panel display ensure superior image quality. The industrial-grade surface is smudge resistant, durable, and easy to clean. The TeleTouch comes with a base stand that allows for up to 90° tilt, and can also be easily connected to mounting options that fit 100 x 100 and 200 x 100 VESA patterns. - Provides an intuitive visual user interface for live production environments
- Designed for use with the AV Bridge MatrixMIX and PCC MatrixMIX devices
- Shows the video available from each source, with program and preview clearly identified
- User can see what the audience sees, including manual transitions
- High-precision capacitive touchscreen does not respond to accidental contact with objects; requires fingertip contact
In the Box Vaddio TeleTouch 27" USB Touchscreen Multiviewer Display AC Cord Set USB 2.0 Type A to Type B Cable (4') HDMI Cable (4') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio TeleTouch 27" USB Touchscreen Multiviewer Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio TeleTouch Specs | Max Resolution | 1080p60 (Full HD) | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m² | | Viewing Angle | 170 x 160° | | Touch Screen Type | Surface capacitive | | Color Depth | 32-bit (16.7 million colors) | | Compatibility | AV Bridge MatrixMIX, PCC MatrixMIX | | Connectors | 1 x DisplayPort
1 x HDMI
1 x VGA
1 x Audio
1 x USB 2.0
1 x Power | | Power Requirement | 90 to 240 VAC | | Power Consumption | 60 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 5 to 90%, non-condensing | | Dimensions | 25.4 x 15.25 x 2.63" / 64.5 x 38.7 x 6.7 cm | | Weight | 10.8 lb / 4.9 kg | | | | Package Weight | 28.615 lb | | Box Dimensions (LxWxH) | 28.8 x 21.3 x 12.8" |
