User Manual for Vaddio TeleTouch HD Touch Screen LCD Monitor with Base Click to enlarge the picture
Contents of the user manual for the Vaddio TeleTouch HD Touch Screen LCD
- Product category: Production Monitors Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Production Monitors
 |
User manual for the Vaddio TeleTouch HD Touch Screen LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|

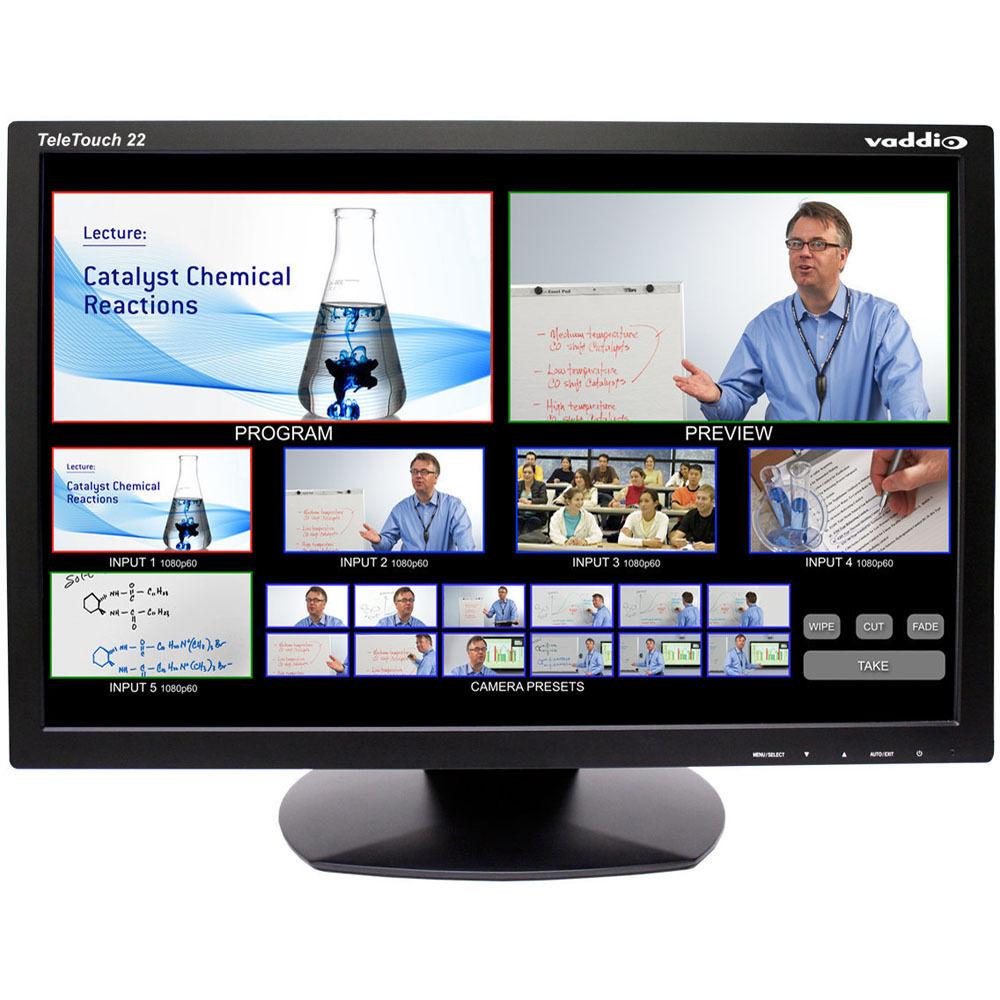

Product description The Vaddio TeleTouch HD Touch Screen LCD Monitor with Base (22") with 16.7 million display colors delivers high-quality images at a resolution up to 1080/60p & 1080/50p. It offers a contrast ratio of 1000:1, a brightness of 300 nit (cd/m2), and a viewing angle of 170° (H) x 160° (V). Using 5-wire resistive touch technology, the monitor allows you to control the ProductionVIEW MV series consoles with the simple touch of a finger, gloved hand, or stylus.

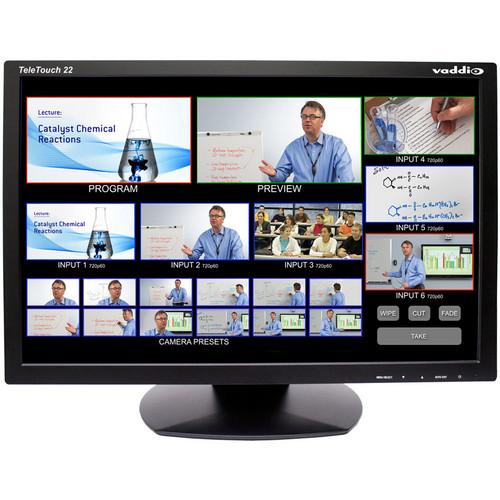

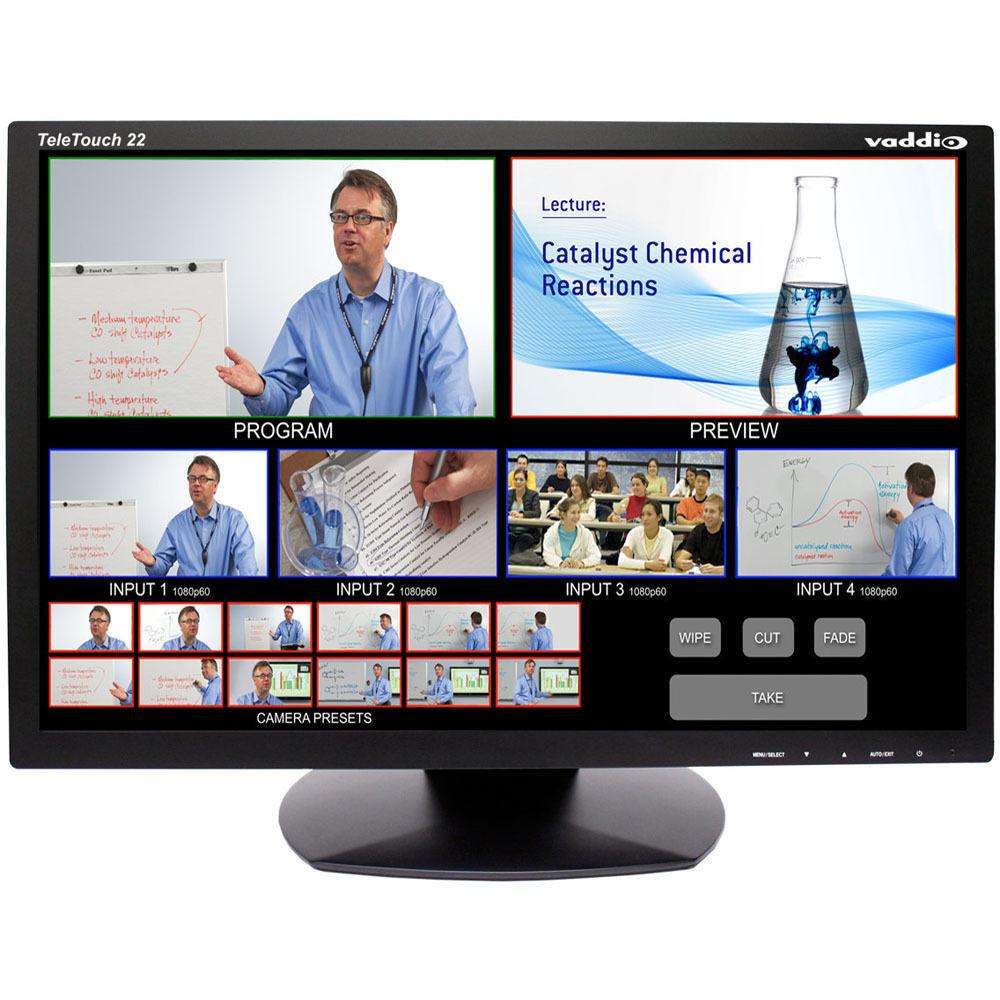

When used in conjunction with the ProductionVIEW MV series console firmware, the 22" LCD monitor lets you easily switch all live feeds and create video thumbnails of preset camera's shots. Besides, each PTZ camera input can store up to 12 video thumbnail preset camera shots. You can also configure the multiviewer to display up to 6 input windows and 2 larger preview and program windows with red green tally borders. The distance between the dots of the same color inside the display screen is described with the help of 0.282mm pixel pitch. - Offers 16.7 million display colors
- Delivers high-quality images at a resolution up to 1080/60p & 1080/50p
- Offers a contrast ratio of 1000:1, a brightness rating of 300 nit (cd/m2), and a viewing angle of 170° (H) x 160° (V)
- 5-wire resistive touch technology to control ProductionView HD MV and ProductionView HD-SDI MV Multiviewer video consoles
- Easily switch all live feeds and create video thumbnails of preset camera's shots
- Each PTZ camera input can store up to 12 video thumbnail preset camera shots
- Configure the multiviewer to display up to 6 input windows and 2 larger preview and program windows with red green tally borders
- Distance between the dots of the same color inside the display screen is described with the help of pixel pitch (0.282 mm)
In the Box Vaddio TeleTouch HD Touch Screen LCD Monitor with Base (22") DVI and RS-232 Cables World Wide Power Cord Set (North America, Euro, & UK) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio TeleTouch HD Touch Screen LCD Monitor with Base in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-5520-022 Specs | LCD Panel | 22" TFT Color LCD | | Touch Screen Type | 5-Wire Resistive Touch | | Control Interface | RS-232 (DB-9F) | | Resolutions | 1080/60p & 1080/50p | | Video Format/Input | DVI-D | | Aspect Ratio | 16:10 | | Brightness | 300 nit (cd/m2 ) | | Contrast Ratio | 1000:1 | | Pixel Pitch | 0.282 mm | | Display Colors | 16.7 Million | | Viewing Angle | 170° (H) x 160° (V) | | Power Supply | 12VDC, 5.0A with NA, Euro and UK Power Cord Set | | Mounting | Base or 100 x 100 mm VESA Hole Pattern | | Base Dimensions (WxHxD) | 20.1 x 13.3 x 2.4" (510.5 x 387.82 x 60.1 mm) | | Weight | 13.4 lb (6.07 kg) | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 23.0 x 18.9 x 7.5" |
