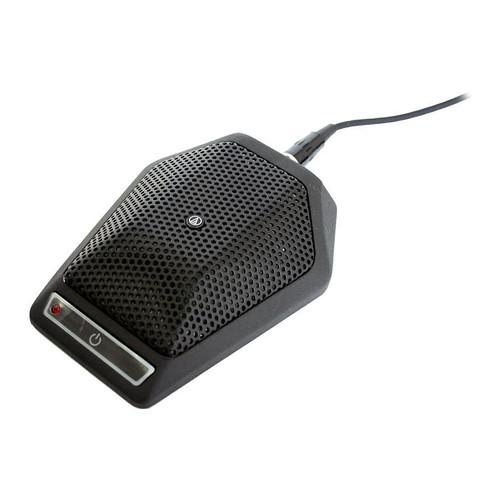

User Manual for Vaddio U891R UniPoint Condenser Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Vaddio U891R UniPoint Condenser Boundary Microphone
- Product category: Boundary Microphones Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio Boundary Microphones
|
User manual for the Vaddio U891R UniPoint Condenser Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description The Audio-Technica U891R UniPoint Condenser Boundary Microphone from Vaddio is identical to the standard Audio-Technica distributed model and is recommended for use with the Vaddio MicVIEW Teleconference Switcher / Mixer system. The U891R features a half-cardioid polar pattern, LED status indicator, programmable membrane switch and is impervious to RF (Radio Frequency) interference. - Half-Cardioid Polar Pattern
- The half-cardioid polar pattern provides a generous pick up at the top and perimeter sections while eliminating off-axis surface noise due to reflections.
- Programmable Switch
- A programmable membrane switch provides push On/push Off, push-to-talk and push-to-mute modes.
- Low Frequency Roll-Off
- A low frequency roll-off switch eliminates low frequency noise at 80Hz.
- RFI Shielding
- Noise due to Radio Frequency Interference (RFI) is eliminated due to specialized shielding within the structure of the microphone and cable.
- Interchangeable Capsules
- Optional microphone capsules are available and provide different polar patterns. An omni-directional capsule provides a 360 degree pick up range while the hyper-cardioid features a 100 degree area.
- Vibration Resistant Base
- The die-cast metal and foam pads combine to reduce noise caused by surface vibration.
- Pivoting Output Connection
- The pivoting output connector enables flexible surface installation, a standard XLR output cable is supplied.
In the Box Vaddio U891R UniPoint Condenser Boundary Microphone Soft Protective Pouch 25' TA3F to XLR-M Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio U891R UniPoint Condenser Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio U891R Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB | | Maximum SPL | 130 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | 19.9 mV/Pa | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | 104 dB | | | | Output Connectors | 1 x TB3M | | Operating Voltage | 11 to 52 V | | Length | 4.25" / 107.95 mm | | Weight | 9.3 oz / 0.26 kg | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.8 x 5.1 x 2.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
