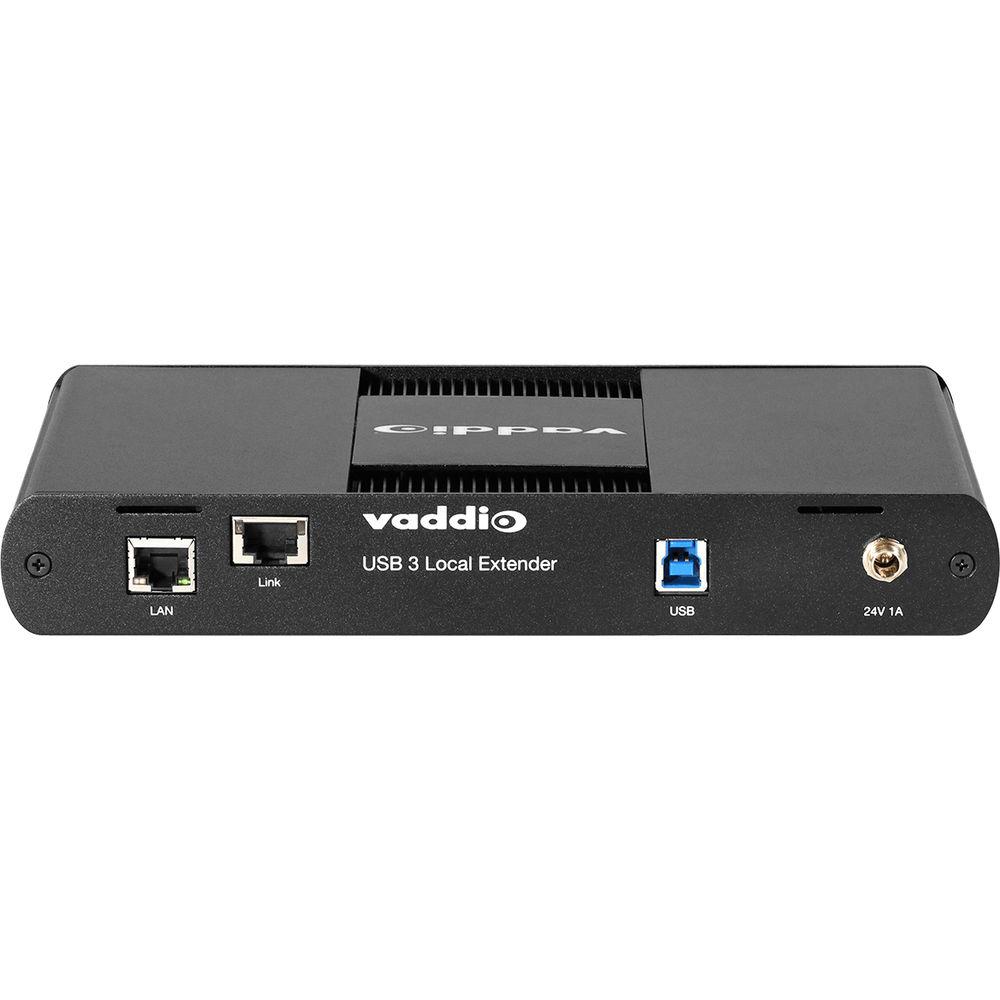

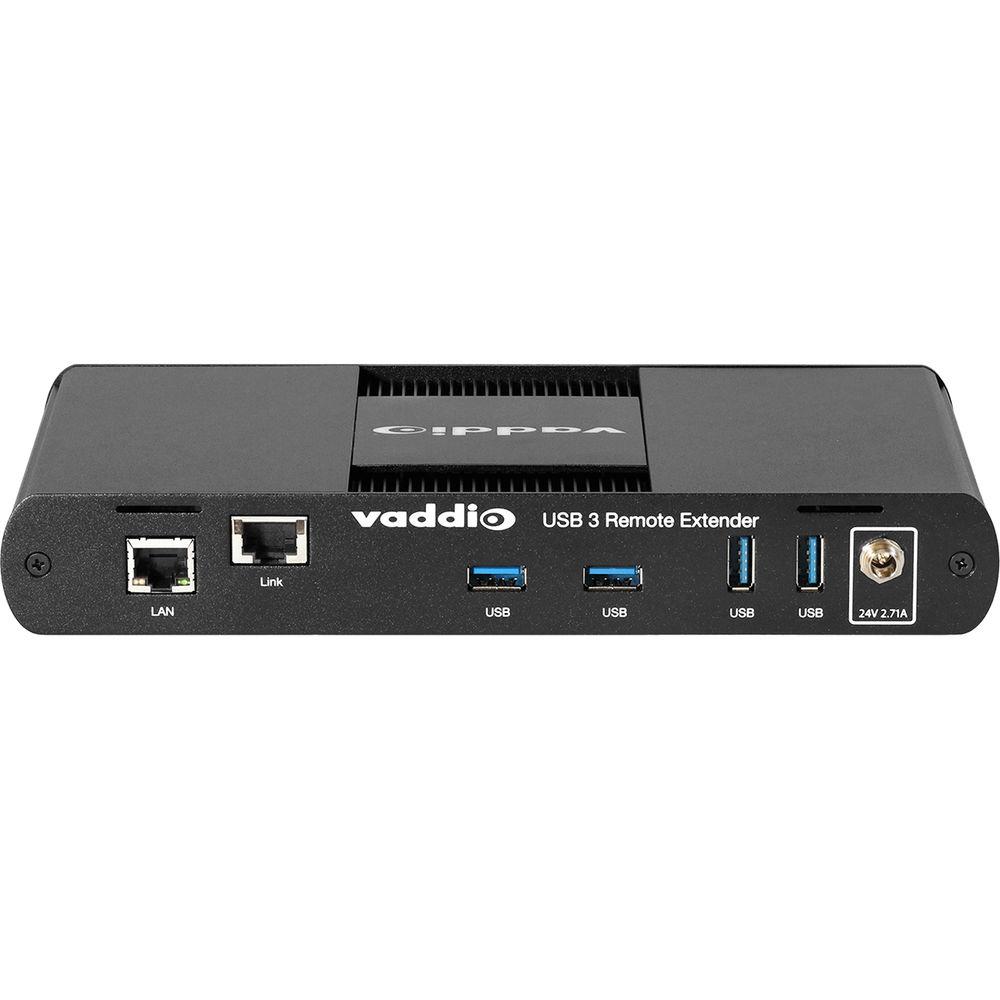

User Manual for Vaddio USB 3 Extenders Click to enlarge the picture
Contents of the user manual for the Vaddio USB 3 Extenders
- Product category: USB Extenders Vaddio
- Brand: Vaddio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vaddio USB Extenders
 |
User manual for the Vaddio USB 3 Extenders contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vaddio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vaddio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vaddio product will considerably shorten its lifespan!
|
Product description Extend USB 3.1 Gen 1 signals beyond the standard 9.8' cable limit for peripheral devices, such as a camera or other AV source, with the USB 3 Extenders from Vaddio. The extender system is made up of a Local Extender and a Remote Extender, which allow for an extension of up to 328' when directly connected over a Cat 6a/7 cable. USB 3.1 Gen 1 data rates of up to 5 Gb/s are supported, although 480 Mb/s USB 2.0 and 12 Mb/s USB 1.1 are also supported. Up to four remote devices are simultaneously supported at full bandwidth, and devices are connected via plug-and-play, meaning that no additional software or drivers are required.
Vaddio's USB 3 Extenders are compatible with Windows, macOS, Linux, and Chrome, and support 100/1000 Mb/s Ethernet and LAN passthrough. The Extender also provides up to 1.2A / 6W to each USB port. Aside from the Local & Remote Extenders, a 6' USB 3.1 Gen 1 cable and power supplies are also included. General Features - Up to 328' / 100m of extension when directly connected over a CAT 6a/7 cable
- USB 3.1 Gen 1 data transfer speeds of up to 5 Gb/s
- Supports up to four remote USB devices simultaneously at full bandwidth (5 Gb/s)
- Plug-and-play, no software drivers required
- Works with most operating systems, including Windows, macOS, Linux, and Chrome
- 100/1000 Mb/s Ethernet channel; LAN pass-through
In the Box Vaddio USB 3 Extenders Local (Rx) Extender Unit Remote (Tx) Extender Unit Local Extender Power Supply (24V / 1A) with AC Cord Remote Extender Power Supply (24V / 2.71A) with AC Cord USB 3.1 Gen 1 Cable (6.0') Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vaddio USB 3 Extenders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaddio 999-1005-032 Specs | | | Point to Point | Up to 328' / 100 m over a Cat6a/7 cable | | | | USB Bandwidth | 5 Gb/s | | USB Support | USB 3.1 Gen 1, USB 2.0, and USB 1.1 | | Data Traffic Types | All traffic types | | Device Types | All device types | | Host Compatibility | OHCI, UHCI, EHCI, and xHCI | | Current | Up to 1.2 A / 6 W to each USB port | | Maximum Number of Devices | 30 | | | | USB Connector | 1 x USB 3.1 Gen 1 Type-B | | Link Connector | 1 x RJ45 Ethernet | | Network Passthrough | 1 x RJ45 Gigabit Ethernet | | Enclosure Material | Anodized aluminum (black) | | Power Supply | Input: 100 to 240 VAC
Output: 24 VDC / 1A | | | | USB Connector | 4 x USB 3.1 Gen 1 Type-A | | Link Connector | 1 x RJ45 Ethernet | | Network Passthrough | 1 x RJ45 Gigabit Ethernet | | Enclosure Material | Anodized aluminum (black) | | Power Supply | Input: 100 to 240 VAC
Output: 24 VDC / 1A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature Range | -4 to 158°F / -20 to 70°C | | Operating Humidity | 20% to 80% relative humidity, non-condensing | | Storage Humidity | 10% to 90% relative humidity, non-condensing | | | | EMC | FCC (Class B), CE (Class B) | | Environmental | RoHS2 (CE) | | | | Dimensions | 5.4 x 9.1 x 1.3" / 13.7 x 23.1 x 3.3 cm (each extender) | | Weight | Local Extender: 2.0 lb / 0.9 kg
Remote Extender: 2.2 lb / 1.0 kg | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 9.7 x 8.3 x 7.2" |
