User Manual for Vanco Digital Audio over Cat 6 5e Cable Extender Set Click to enlarge the picture
Contents of the user manual for the Vanco Digital Audio over Cat 6
- Product category: Video Extenders & Repeaters Vanco
- Brand: Vanco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanco Video Extenders & Repeaters
 |
User manual for the Vanco Digital Audio over Cat 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanco product will considerably shorten its lifespan!
|

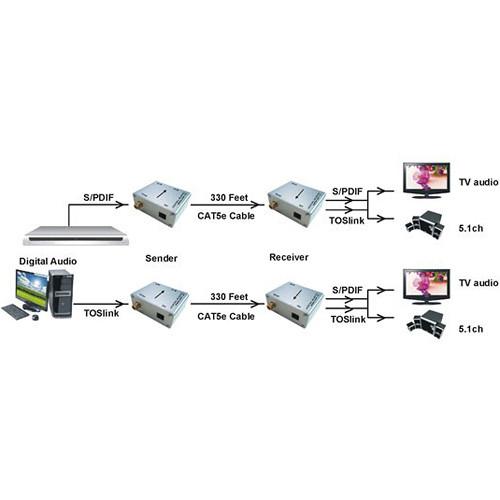

Product description Place your speakers in just the right location with this Digital Audio over Cat 6/5e Cable Extender Set from Vanco. This extender set allows you to connect an audio source such as a DVD player or computer with speakers or a receiver up to 330' away. The lossless signal is transmitted with a 12.8 Mb/s data transmission rate.

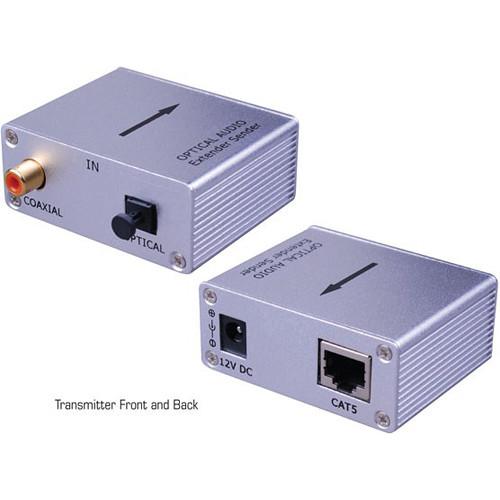

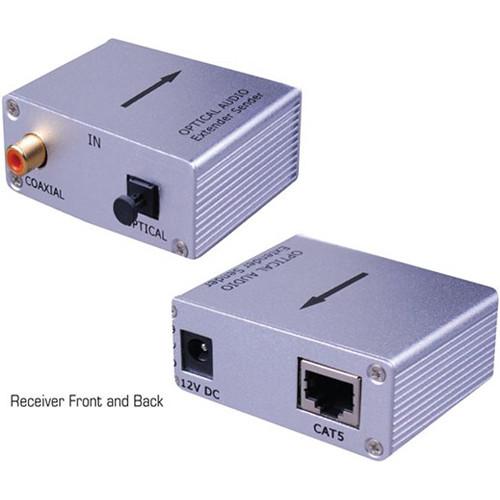

The transmitter box offers a 96 kHz S/PDIF input and an optical TOSLINK input for your audio source, which are auto-selected. The audio is output over an RJ45 port and can travel up to 330' over a single Cat 6 or Cat 5e cable. The receiver box has an RJ45 input and also has auto-selected S/PDIF and optical TOSLINK outputs. Supported audio formats include Dolby Digital 5.1 and DTS. A 12 VDC power supply is included for the transmitter. UPC: 741835096355 In the Box Vanco Digital Audio over Cat 6/5e Cable Extender Set 12 VDC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanco Digital Audio over Cat 6 5e Cable Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanco 280531 Specs | Audio Input | Transmitter:
1 x Optical TOSLINK
1 x S/PDIF Digital Coax
Receiver:
1 x RJ45 | | Audio Output | Transmitter:
1 x RJ45
Receiver:
1 x Optical TOSLINK
1 x S/PDIF Digital Coax | | Transmission Range | Up to 330' / 100 m | | Supported Cables | Cat 6 or Cat 5e
Optical TOSLINK
S/PDIF Digital Coax | | Dimensions | 2.8 x 1.3 x 2.5" / 7.1 x 3.3 x 6.4 cm | | | | Package Weight | 0.66 lb | | Box Dimensions (LxWxH) | 4.25 x 4.1 x 2.7" |
