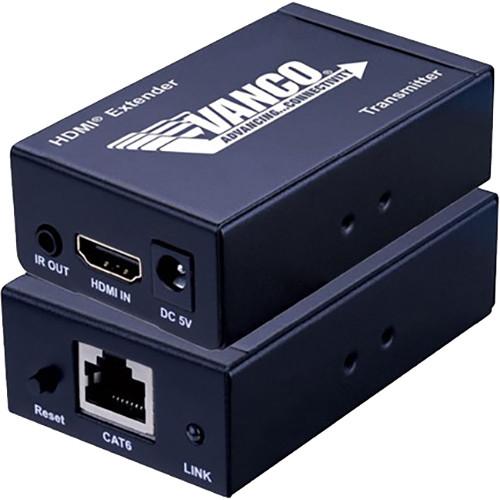

User Manual for Vanco HDMI Extender over Single Cat 6 5e Cable with IR Blaster Click to enlarge the picture
Contents of the user manual for the Vanco HDMI Extender over Single Cat
- Product category: Video Extenders & Repeaters Vanco
- Brand: Vanco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanco Video Extenders & Repeaters
 |
User manual for the Vanco HDMI Extender over Single Cat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanco product will considerably shorten its lifespan!
|
Product description The HDMI Extender over Single Cat 6/5e Cable with IR from Vanco enables you to transmit and receive HDMI signals over distances further than those of standard HDMI cables, extending video and audio over a single Cat 6/5e cable (not included) up to 196'. The HDMI Extender enables you to transmit a robust signal from an HDMI source, such as a Blu-ray device, cable box, or laptop, to a remote display.
The included IR-blaster extension cables help to maintain remote control over distant devices. The signal can be auto-adjusted with the touch of a button for optimal resolutions up to HD 1080p60. The HDMI Extender set is suitable for small office, house of worship, and home theater Cat 6/5e setups where the HDMI source device is located at a remote distance from the display. This HDCP compliant extender features audio support up to 7.1 surround via HDMI, and full IR control over Cat 6/5e. Both transmitter and receiver are compact in form. - Carries HDMI signals beyond the range of a standard HDMI cable
- Extends video and audio over a single 196' Cat 6/5e cable; maintains full IR control
- Auto-adjustment for optimal resolutions up to Full HD 1080p60
- HDCP (content protection) compliant
- Suitable for Cat 6/5e setups where the HDMI source is remotely connected to the display
- Compact units are easy to install and feature LED signal link indicators
UPC: 741835106665 In the Box Vanco HDMI Extender over Single Cat 6/5e Cable with IR Blaster IR Blaster (Tx) IR Blaster (Rx) 2 x 5 VDC Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanco HDMI Extender over Single Cat 6 5e Cable with IR Blaster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanco 280501 Specs | Interface | Transmitter
Input:
1 x HDMI type A
Output:
1 x Cat 6/5e
1 x IR
Receiver
Input:
1 x Cat 6/5e
1 x IR
Output:
1 x HDMI type A | | Resolutions | 1080p: 60
1080i: 60
720p: 60
480p: 60
480i: 60 | | Supported Color Depth | Up to 30-Bit, 3D | | HDCP Compliant | Yes | | Video Bandwidth | 165 MHz, 4.95 Gb/s | | Audio Support | Surround Sound up to 7.1 or Stereo | | Transmission Distance | Up to 196' / 60 m at 1080p60 | | Power Supply | 5 VDC | | Operation Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 10 to 85% RH (No Condensation) | | Storage Temperature | 12 to 176°F / -11 to 80°C | | Storage Humidity | 5 to 90% RH (No Condensation) | | Power Consumption | Transmitter: 5 W
Receiver: 5 W | | Material of Construction | Metal | | Dimensions (LxWxH) | Each Unit:
1.9 x 1 x 3.3" / 4.8 x 2.5 x 8.4 cm | | Weight | Not Supplied by Manufacturer | | | | Package Weight | 1.225 lb | | Box Dimensions (LxWxH) | 8.2 x 7.8 x 2.3" |
