Vanco HDMI over Single Cat 6

Search your instruction manual in PDF to download

User Manual for Vanco HDMI over Single Cat 6 5e Cable Extender Set

Click to enlarge the picture
Vanco HDMI over Single Cat 6 5e Cable Extender Set Contents of the user manual for the Vanco HDMI over Single Cat 6
  • Product category: Video Extenders & Repeaters Vanco
  • Brand: Vanco
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vanco Video Extenders & Repeaters

Vanco HDMI over Single Cat 6 5e Cable Extender Set Vanco HDMI over Single Cat 6 5e Cable Extender Set Vanco HDMI over Single Cat 6 5e Cable Extender Set Vanco HDMI over Single Cat 6 5e Cable Extender Set
User manual for the Vanco HDMI over Single Cat 6 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vanco product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vanco user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vanco product will considerably shorten its lifespan!



Product description

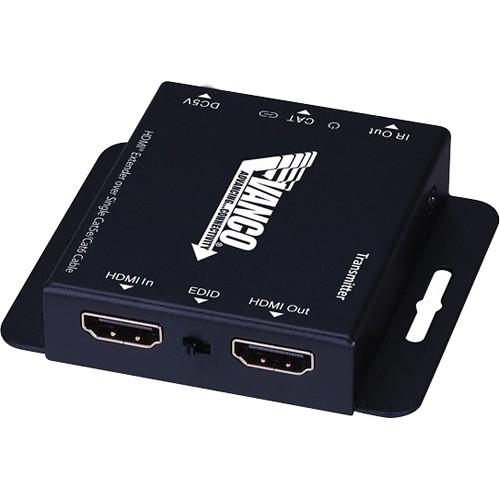

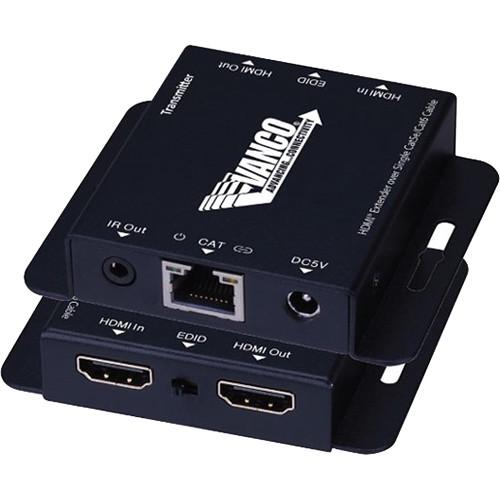

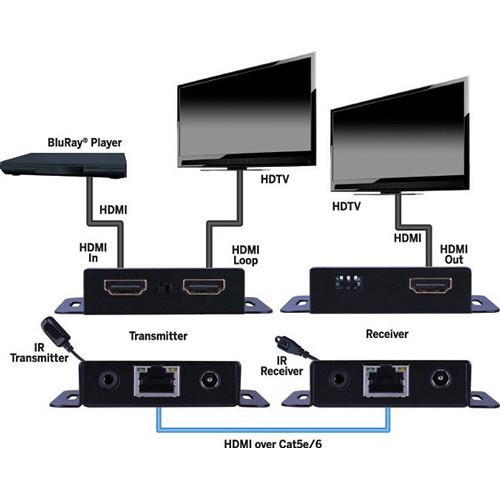

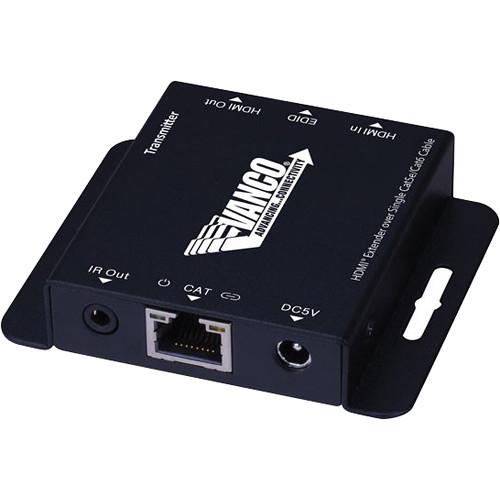

Extend your HDMI signal range up to 164' with this HDMI over Single Cat 6/5e Cable Extender Set from Vanco. This transmitter/receiver extender pair connects one HDMI video source over single Cat 6/5e cables to a single HDMI display on the receiver end. The transmitter's HDMI loop-out port enables you to split the audio and video signals for cascading to additional displays. The extender set supports video resolutions up to 1080p and is HDCP compliant. Features include EDID management via the transmitter or the receiver loop-out, Dolby, DTS and PCM audio compatibility, and EQ adjusting from the receivers. Two 5 VDC power supplies are included with this set. UPC: 741835106061 In the Box Vanco HDMI over Single Cat 6/5e Cable Extender Set
  • Wideband IR Transmitter
  • Wideband IR Receiver
  • 2 x 5 VDC, 1A Power Supplies
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Vanco HDMI over Single Cat 6 5e Cable Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Vanco HDMIEX50 Specs

    Transmitter Input/Output Input:
    1 x HDMI Type A

    Output:
    1 x UTP RJ45 Cat 6/5e
    1 x HDMI Type A
    1 x IR Transmitter
    Receiver Input/Output Input:
    1 x UTP RJ45 Cat 6/5e
    1 x IR Receiver

    Output:
    1 x HDMI Type A
    Maximum Transmission Distance 1080p 24-Bit Color: 164' / 50 m
    Supported Video Resolutions 1080p: 60
    1080i
    720p
    480p
    480i
    Supported Audio Dolby, DTS, PCM
    HDCP Compliant Yes
    Input TMDS signal 3.3 V
    Input DDC Signal 5.0 V / P-P
    ESD Protection ±8 kV (Air-Gap Discharge); Human Body
    Power Consumption 10 W
    Power Supply 5 VDC, 1 A
    Operating Temperature 32 to 104°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Relative Humidity 20-90% (Non-Condensing)
    Dimensions 3.3 x 2.6 x 0.6" / 8.4 x 6.7 x 1.5 cm
    Weight 1 lb / 0.46 kg
    Package Weight 1.19 lb
    Box Dimensions (LxWxH) 8.45 x 6.0 x 2.3"

    Rating

    70% users recommend this product to others. And what about you?
