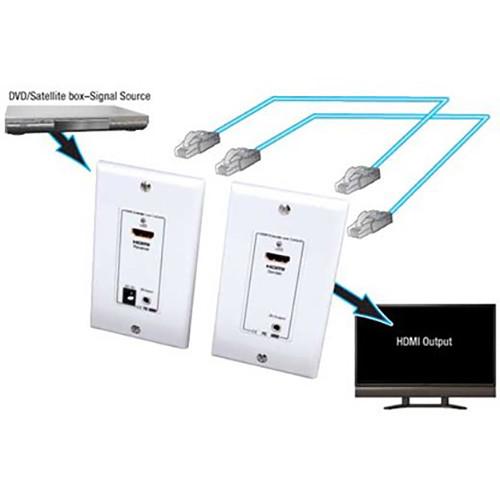

Product description The HDMI Wall Plate Extender Set over Dual Cat 6/5e Cables from Vanco is suitable for small office, house of worship, and home theater Cat 6/5e setups where the HDMI source device is located at a remote distance from the display. It enables you to transmit and receive HDMI signals over distances further than those of standard HDMI cables, extending video and audio over dual Cat 6 cables up to 180' and over dual Cat5e cables up to 164'.
The HDMI Extender Set enables you to transmit up to 1080p video and up to 7.1 digital surround audio from an HDMI source such as a Blu-ray device, cable box, or laptop. This HDCP compliant extender supports full IR control over Cat 6/5e with a separately available IR control system. Both transmitter and receiver are designed as wall plates that fit into single, standard outlet boxes. A 5 VDC power adapter is included for the receiver. HDMI and RJ45 cables are not included with this set. - Suitable for Cat 6/5e setups where the HDMI source is remotely connected to the display
- Carries HDMI signals beyond the range of a standard HDMI cable
- Extends up to Full HD 1080p60 video and audio over dual Cat 6 cables up to 180' and over dual Cat 5e cables up to 164'; supports separately available IR control system
- HDCP (content protection) compliant
- Wall plate units are easy to install and feature LED signal link indicators
UPC: 741835091879 In the Box Vanco HDMI Wall Plate Extender Set over Dual Cat 6/5e Cables Receiver Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanco HDMI Wall Plate Extender Set over Dual Cat 6 5e Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

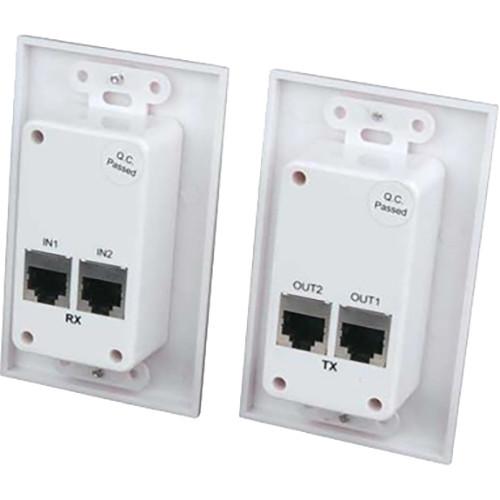

Technical parametersVanco 280725 Specs | Interface | Transmitter
Input:
1 x HDMI type A
Output:
2 x Cat 6/5e
1 x IR
Receiver
Input:
2 x Cat 6/5e
1 x IR
Output:
1 x HDMI type A | | Resolutions | 1080p: 60
1080i: 60
720p: 60
480p: 60
480i: 60 | | HDCP Compliant | Yes | | Audio Support | Digital Surround Sound up to 7.1 or Stereo | | Transmission Distance | Up to 180' / 54.9 m over Dual Cat 6 at 1080p60
Up to 164' / 50 m over Dual Cat 5e at 1080p60 | | Power | Receiver: 5 W | | Dimensions (LxWxH) | Each Unit:
2.8 x 4.5 x 1.3" / 7.1 x 11.4 x 3.3 cm | | Weight | Not Supplied by Manufacturer | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.15 x 5.8 x 2.25" |
