User Manual for Vanco VGA over Cat 6 5e with Audio Extender Set Click to enlarge the picture
Contents of the user manual for the Vanco VGA over Cat 6 5e
- Product category: Video Extenders & Repeaters Vanco
- Brand: Vanco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanco Video Extenders & Repeaters
 |
User manual for the Vanco VGA over Cat 6 5e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanco product will considerably shorten its lifespan!
|

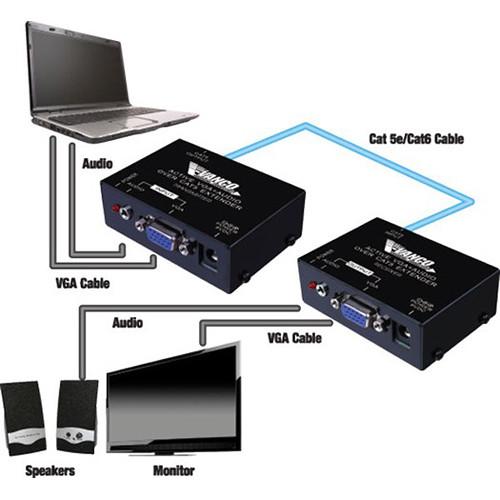

Product description Place your display in just the right location with this VGA over Cat 6/5e with Audio Extender Set from Vanco. This extender set allows you to connect a video and audio source such as computer with a monitor, TV, or projector, or with speakers or a receiver up to 500' away. The transmitter and receiver included in this set are powered by included 5 VDC power supplies.

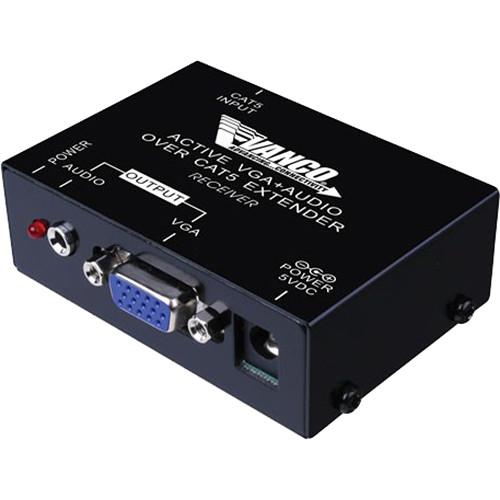

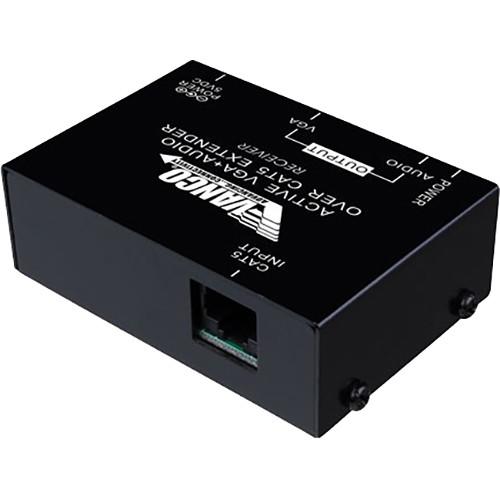

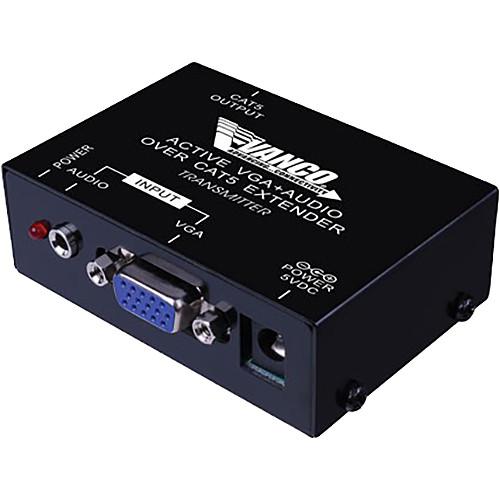

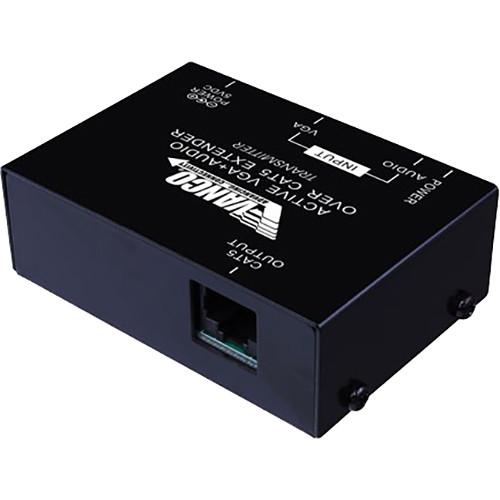

The transmitter box offers a VGA input and a 3.5mm stereo input for your audio source. The video and audio are output over an RJ45 port and 640 x 480 video can travel up to 500' at over a single Cat 6 or Cat 5e cable. The setup also supports transmitting 1600 x 1200 video up to 198' feet away. The receiver box has an RJ45 input and also has a VGA and 3.5mm output for connection to your monitor, TV, or projector. It also features adjustable EQ for boosting the signal.
See below for more detail about supported resolutions and transmission distance. - Supported Resolutions
- Supports up to 198' / 60m range with resolution 1600 x 1200
Supports up to 264' / 80m range with resolution 1280 x 1024
Supports up to 330' / 100m range with resolution 1024 x 768
Supports up to 396' / 120m range with resolution 800 x 600
Supports up to 500' / 150m range with resolution 640 x 480 UPC: 741835098014 In the Box Vanco VGA over Cat 6/5e with Audio Extender Set (500') 2 x 5 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanco VGA over Cat 6 5e with Audio Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanco 280544 Specs | Supported Resolutions | 1600 x 1200 (UXGA)
1280 x 1024 (SXGA)
1024 x 768 (XGA)
800 x 600 (SVGA)
640 x 480 (VGA) | | Input | Transmitter:
1 x VGA
1 x 3.5 mm Stereo
Receiver:
1 x RJ45 | | Output | Transmitter:
1 x RJ45
Receiver:
1 x VGA
1 x 3.5 mm Stereo | | Supported Cables | VGA
3.5 mm Stereo
Cat 6 and Cat 5e | | Power | 5 VDC | | Signal Path Bandwidth | Not Supplied by Manufacturer | | Dimensions | Each Unit: 2.9 x 1 x 2" / 7.4 x 2.5 x 5.1 cm | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.0 x 4.6 x 3.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
