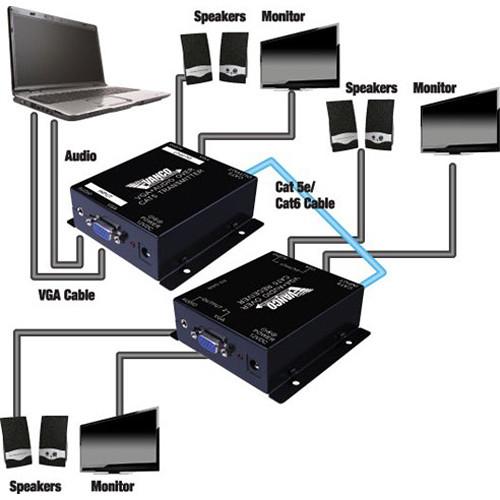

Product description Place your display in just the right location with this VGA over Cat 6/5e with Audio Extender Set from Vanco. This extender set allows you to connect a video and audio source such as computer with a monitor, TV, or projector, or with speakers or a receiver up to 1000' away. The transmitter and receiver included in this set are powered by included 12 VDC power supplies.

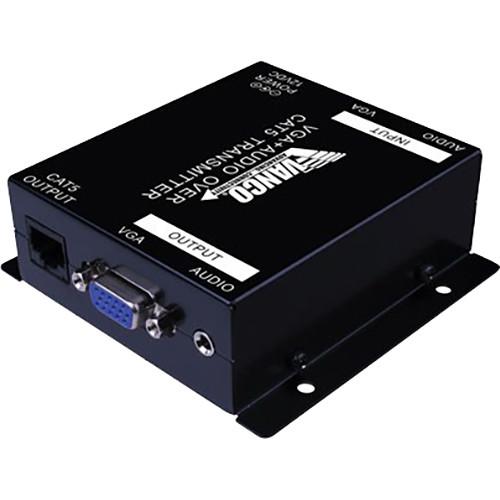

The transmitter box offers a VGA input and a 3.5mm stereo input for your audio source. The video and audio are output over an RJ45 port and 640 x 480 video can travel up to 1000' at over a single Cat 6 or Cat 5e cable. The setup also supports transmitting 1600 x 1200 video up to 330' feet away. The receiver box has an RJ45 input and also has a VGA and 3.5mm output for connection to your monitor, TV, or projector. It also features adjustable EQ and gain controls for boosting the signal. With their dual output, you can output VGA and 3.5mm audio from both the transmitter and receiver at the same time you are transmitting over Cat 6/5e.
See below for more detail about supported resolutions and transmission distance. - Supported Resolutions
- Supports up to 330' / 100m range with resolution 1600 x 1200
Supports up to 396' / 120m range with resolution 1280 x 1024
Supports up to 594' / 180m range with resolution 1024 x 768
Supports up to 660' / 200m range with resolution 800 x 600
Supports up to 1000' / 300m range with resolution 640 x 480 UPC: 741835098021 In the Box Vanco VGA over Cat 6/5e with Audio Extender Set (1000') 2 x 12 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanco VGA over Cat 6 5e with Audio Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanco 280546 Specs | Supported Resolutions | 1600 x 1200 (UXGA)
1280 x 1024 (SXGA)
1024 x 768 (XGA)
800 x 600 (SVGA)
640 x 480 (VGA) | | Input | Transmitter:
1 x VGA
1 x 3.5 mm Stereo
Receiver:
1 x RJ45 | | Output | Transmitter:
1 x VGA
1 x 3.5 mm Stereo
1 x RJ45
Receiver:
2 x VGA
2 x 3.5 mm Stereo | | Supported Cables | VGA
3.5 mm Stereo
Cat 6 and Cat 5e | | Power | 12 VDC | | Signal Path Bandwidth | 350 MHz | | Dimensions | Each Unit: 3.7 x 1.3 x 3.8" / 9.4 x 3.3 x 9.7 cm | | | | Package Weight | 1.725 lb | | Box Dimensions (LxWxH) | 7.0 x 4.5 x 2.9" |
