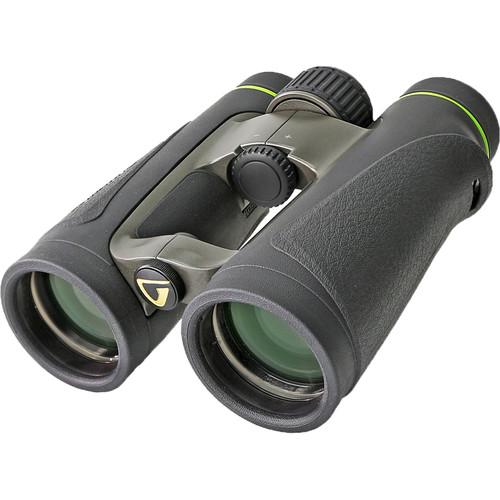

User Manual for Vanguard 10x42 Endeavor ED IV Binocular Click to enlarge the picture
Contents of the user manual for the Vanguard 10x42 Endeavor ED IV Binocular
- Product category: Binoculars Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Binoculars
 |
User manual for the Vanguard 10x42 Endeavor ED IV Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More vubsdsaacveceurcaftzf Building on the success of their earlier iterations, the Vanguard Optics 10x42 Endeavor ED IV Binocular gets upgraded with HOYA extra-low dispersion (ED) glass, phase-corrected SK-15 roof prisms, and their advanced MultiGuard optical coatings to improve light transmission, color rendition, clarity, and contrast while eliminating chromatic aberration. These updated technologies and materials, combined with an exceptional 65° wide apparent angle of view, work together to reduce the appearance of visible hand shake common in high-power binoculars to present an immersive observational experience on the trail, at the range, in the stadium, or sightseeing around town. To pick out feather and fauna details, the binocular boasts an impressive 5.9' close focus distance.An open-bridge/dual-hinge design helps to reduce weight without sacrificing strength and provides a large surface area to improve grip strength and security. Textured rubber armoring offers protection from drops and impacts, while further improving the grip and comfort in the hand. Engineered for durability, the lightweight magnesium-alloy housing is O-ring sealed and nitrogen filled to be waterproof and resistant to internal fogging when moving through extreme temperature changes and environmental conditions. The Endeavor ED IV provides the performance and comfort birders, hunters, and outdoor enthusiasts require for long observation sessions in all weather. - Optical Performance
-
- 10x magnification
- 42mm objective lens diameter
- Phase-corrected prisms provide improved light reflection, high contrast, and true color fidelity
- SK-15 prisms have a higher refractive index than BK7 and BAK4, with a lower dispersion than BAK4

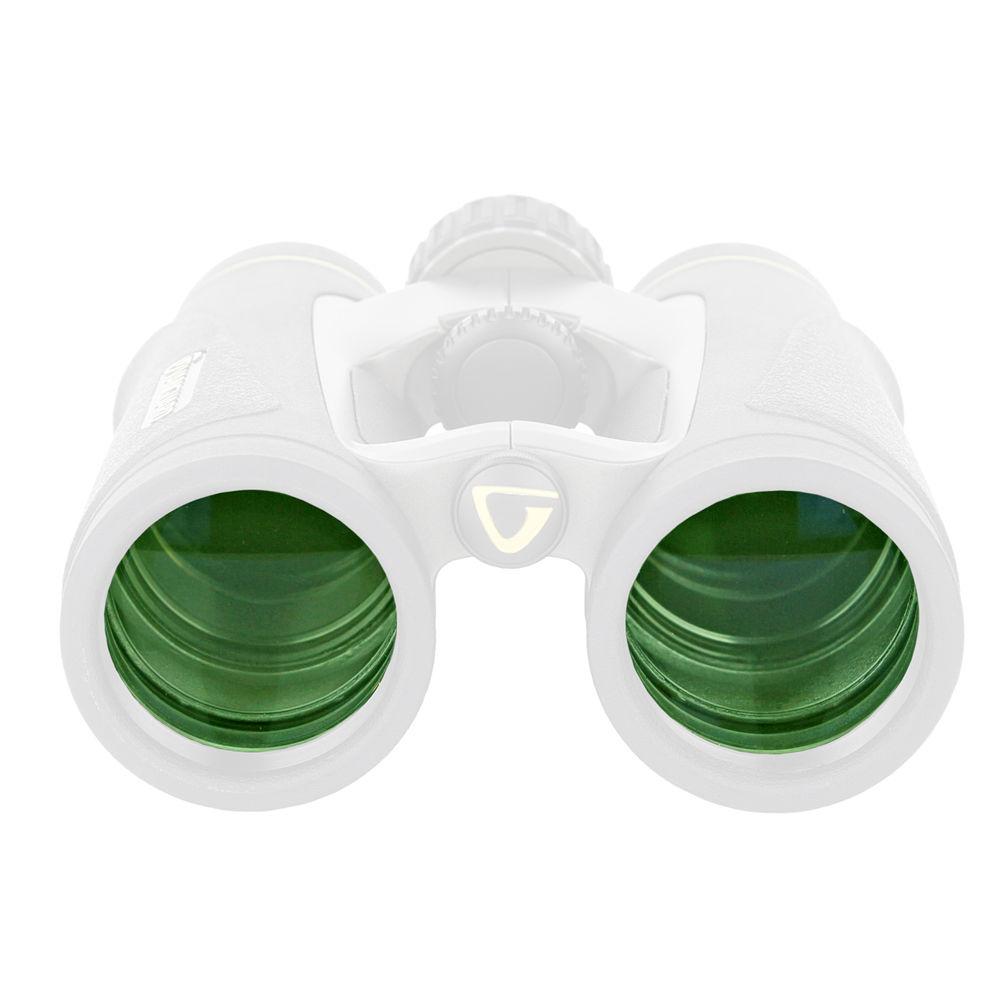

- HOYA extra-low dispersion (ED) lenses virtually eliminate chromatic aberration for true color transmission across the entire field of view
- Anti-reflection Advanced MultiGuard fully multi-coated optics improve light transmission for brighter high-contrast images with accurate color rendition
- Wide 65° apparent angle of view
- 340' field of view at 1000 yards
- Short 5.9' minimum focus distance
- Use and Handling
-

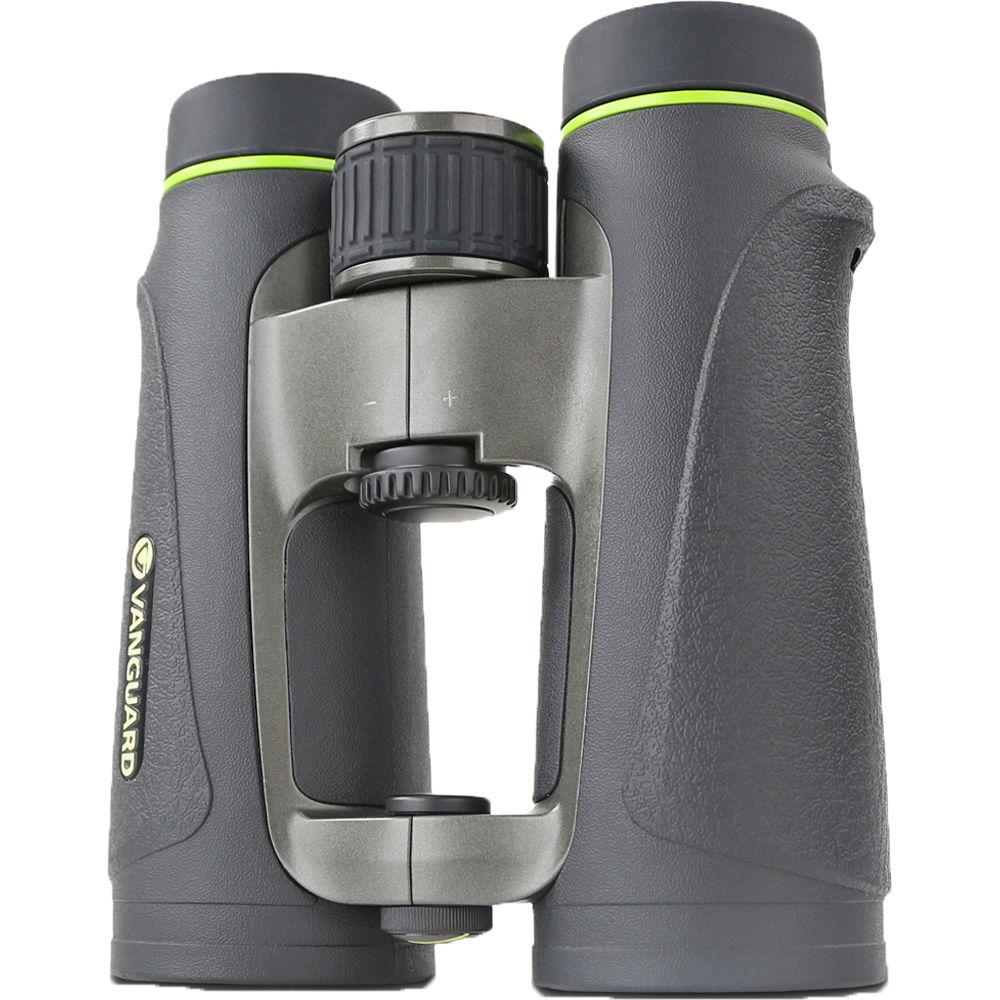

- Open-bridge/dual-hinge design
- Large knurled center focus wheel is easy to manipulate even when wearing gloves
- 56-74mm interpupillary adjustment range
- ±4 center locking dioptric adjustment
- Three-stage click-stop twist-up eyecups for comfortable use with or without eyewear

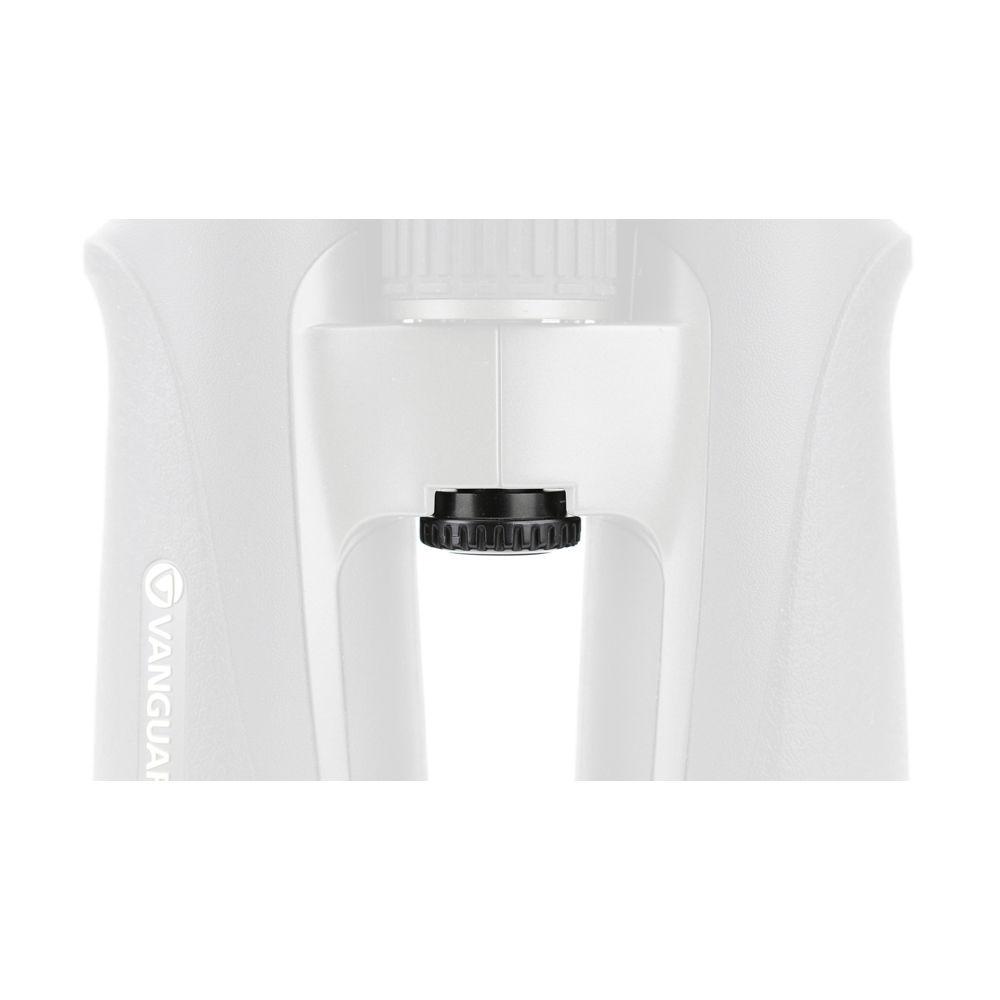

- Tripod mountable with optional adapter
- Exceptionally long 19mm eye relief
- Comfortable 4.2mm exit pupil
- Construction Details
-
- Bridge design reduces weight and provides a more comfortable and secure grip by allowing user's hands to wrap completely around the optical tubes
- Lightweight and durable magnesium-alloy chassis
- O-ring sealed and nitrogen filled to be waterproof and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
- Textured rubberized armor provides a slip-resistant grip in cold and wet weather
- Flip-down tethered objective lens covers
UPC: 026196348016 In the Box Vanguard 10x42 Endeavor ED IV Binocular Carrying Pouch Neck Strap Lens Cloth 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 vubsdsaacveceurcaftzf A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard 10x42 Endeavor ED IV Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ENDEAVOR ED IV 1042 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.5° (actual) | | Field of View | 341.2' @ 1000 yd / 113.7 m @ 1000 m | | Minimum Focus Distance | 5.9' / 1.8 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 19.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.9 x 5.1" / 15.0 x 12.9 cm | | Weight | 27.7 oz / 785 g | | | | Package Weight | 2.915 lb | | Box Dimensions (LxWxH) | 9.3 x 6.8 x 3.45" |
