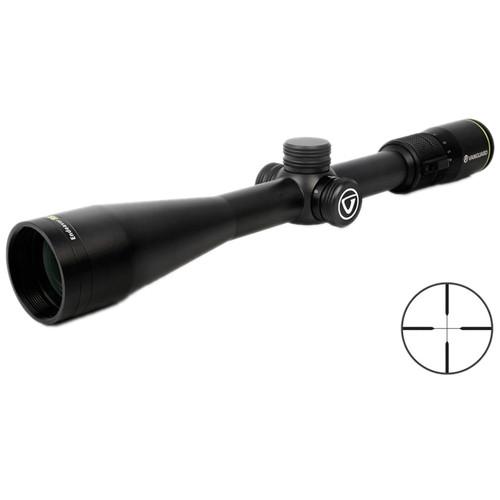

User Manual for Vanguard 4-12x40 Endeavor RS Riflescope Click to enlarge the picture
Contents of the user manual for the Vanguard 4-12x40 Endeavor RS Riflescope
- Product category: Riflescopes Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Riflescopes
 |
User manual for the Vanguard 4-12x40 Endeavor RS Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

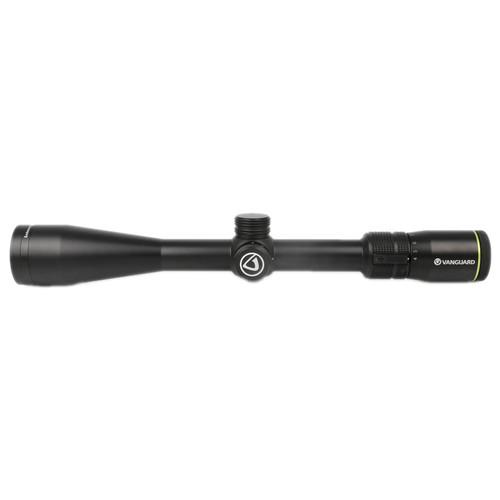

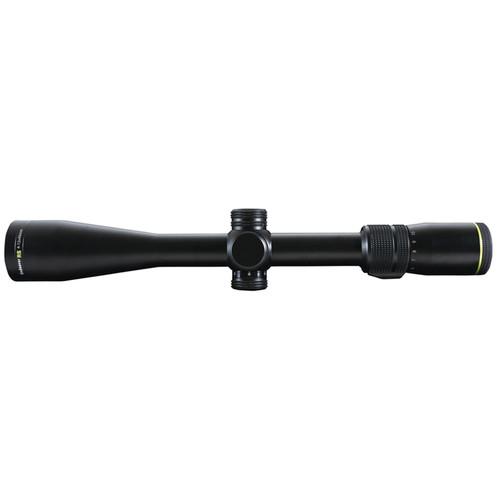

Product description Vanguard's take on a popular and versatile scope configuration, the 4-12x40 Endeavor RS Riflescope is ideal for big-game hunting at medium to long-range. Its max 12x magnification allows for longer shots over open terrain versus the lower magnification model, while the 40mm objective gives the scope enhanced low-light performance over smaller objectives while reducing the bulk and snag-potential often associated with larger lenses. Complementing the zoom and objective is the use of HOYA extra low-dispersion (ED) glass to correct for chromatic and spherical aberration, and anti-reflection multicoatings to produce images that are bright, crisp, and clear with true color rendition.The reticle is situated on the rear (second) focal plane, and features a crosshair design so that the thin center hairs will provide precision aiming without obstructing distant targets. To get you on-target faster, the covered turrets feature 1/4 MOA per click impact point correction with a total of 57 MOA windage and elevation adjustment range. A Rapid Focus Eyepiece and a simple-to-use zoom collar allow for fast and easy transition from one subject to the next or for accurate tracking of moving targets.Designed to withstand the rigors of the wild, the housing is made of T6061 aluminum alloy with a 1" one-piece main-tube, and a corrosion and scratch resistant anodized finish. It is nitrogen-filled and O-ring sealed to be waterproof and fogproof in all but the most extreme conditions and temperatures. - Optical Performance
-
- 4-12x zoom magnification
- 40mm objective lens
- HOYA extra low-dispersion glass reduces chromatic and spherical aberration crisp images and true color rendition
- Anti-reflection multicoated optics
- 201-79' field of view at 100 yards
- Reticle
-
- Duplex crosshair reticle
- Situated on second (rear) focal plane
- Reticle etched onto the glass for permanent placement
- Duplex crosshair features thick outer posts and thin center hairs that won't obstruct small or distant targets
- Use and Handling
-

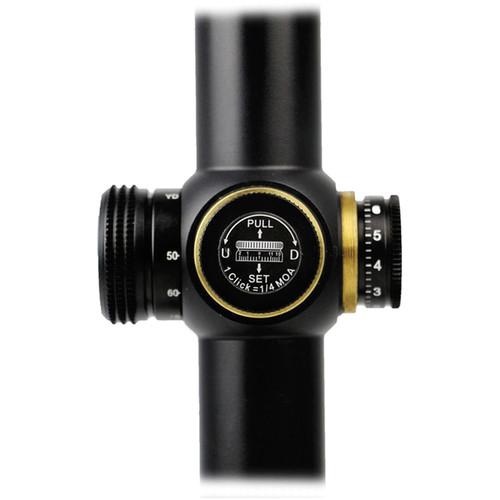

- Covered turrets

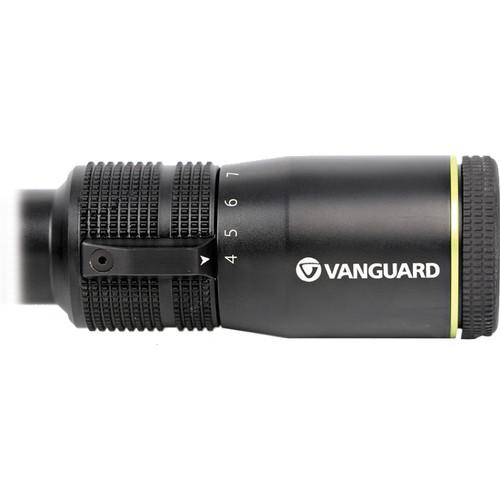

- Rapid Focus Eyepiece for faster target acquisition
- 1/4 MOA per click impact point correction
- 12 MOA per turret rotation
- 57 MOA windage and elevation adjustment range
- Construction
-
- 1" one-piece main-tube
- Lightweight and durable T6061 aluminum alloy
- Corrosion and scratch-resistant anodized matte-black finish
- Nitrogen-filled, water and fogproof
UPC: 026196347439 In the Box Vanguard 4-12x40 Endeavor RS Riflescope (Duplex Crosshair Reticle) Ocular Cap Objective Cap Soft Carrying Bag Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard 4-12x40 Endeavor RS Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ENDEAVOR RS 41240D Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 201' @ 100 yd / 67 m @ 100 m
12x: 79' @ 100 yd / 26 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | | | Reticle Type | Duplex Crosshair Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 57 MOA | | Elevation Adjustment | 57 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14.1" / 35.8 cm | | Weight | 20.8 oz / 590 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 16.535 x 3.937 x 3.701" |
