User Manual for Vanguard 8x32 Endeavor ED Binocular Click to enlarge the picture
Contents of the user manual for the Vanguard 8x32 Endeavor ED Binocular
- Product category: Binoculars Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Binoculars
 |
User manual for the Vanguard 8x32 Endeavor ED Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

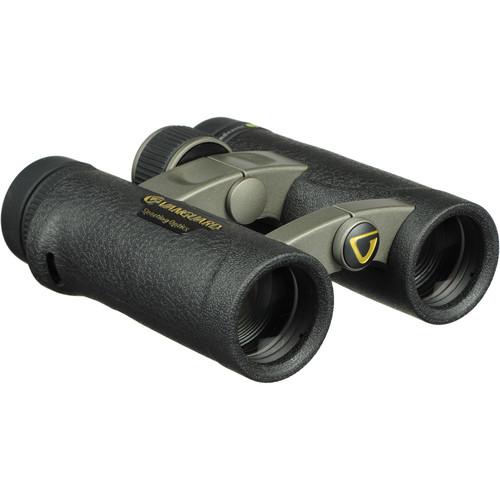

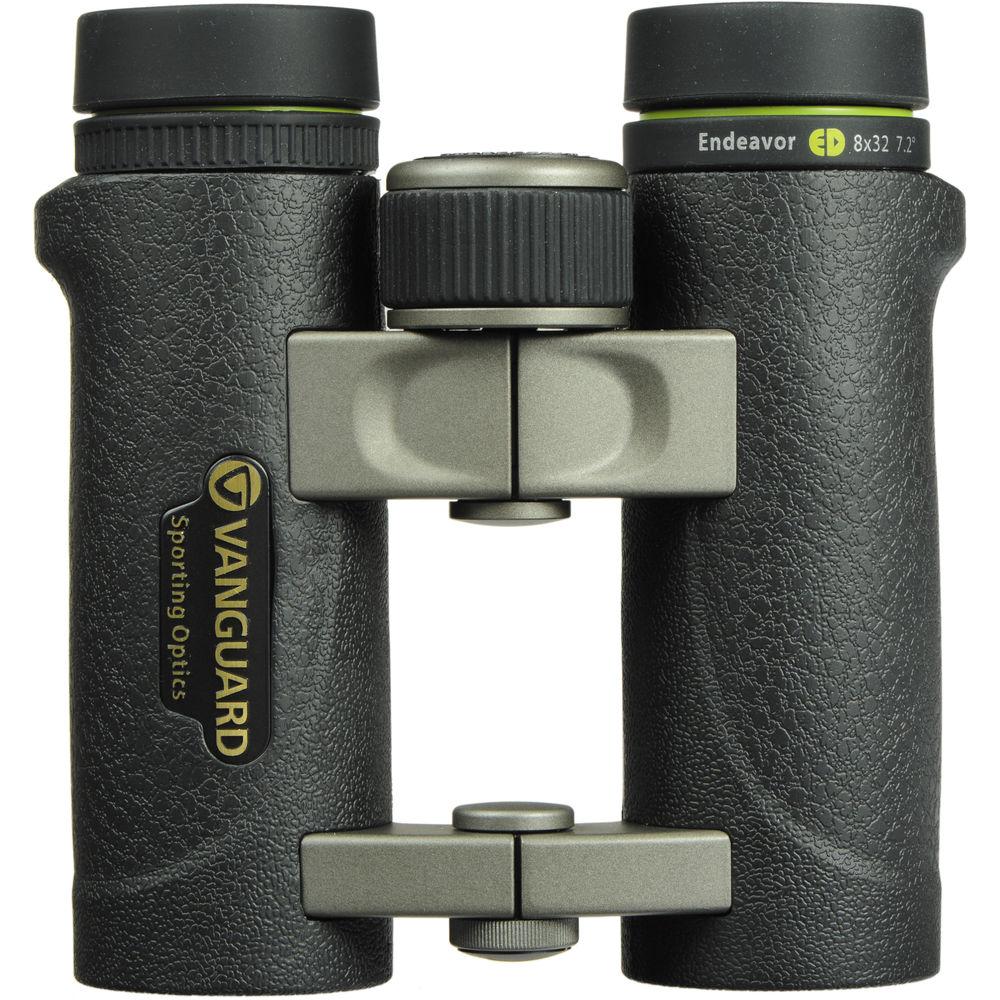

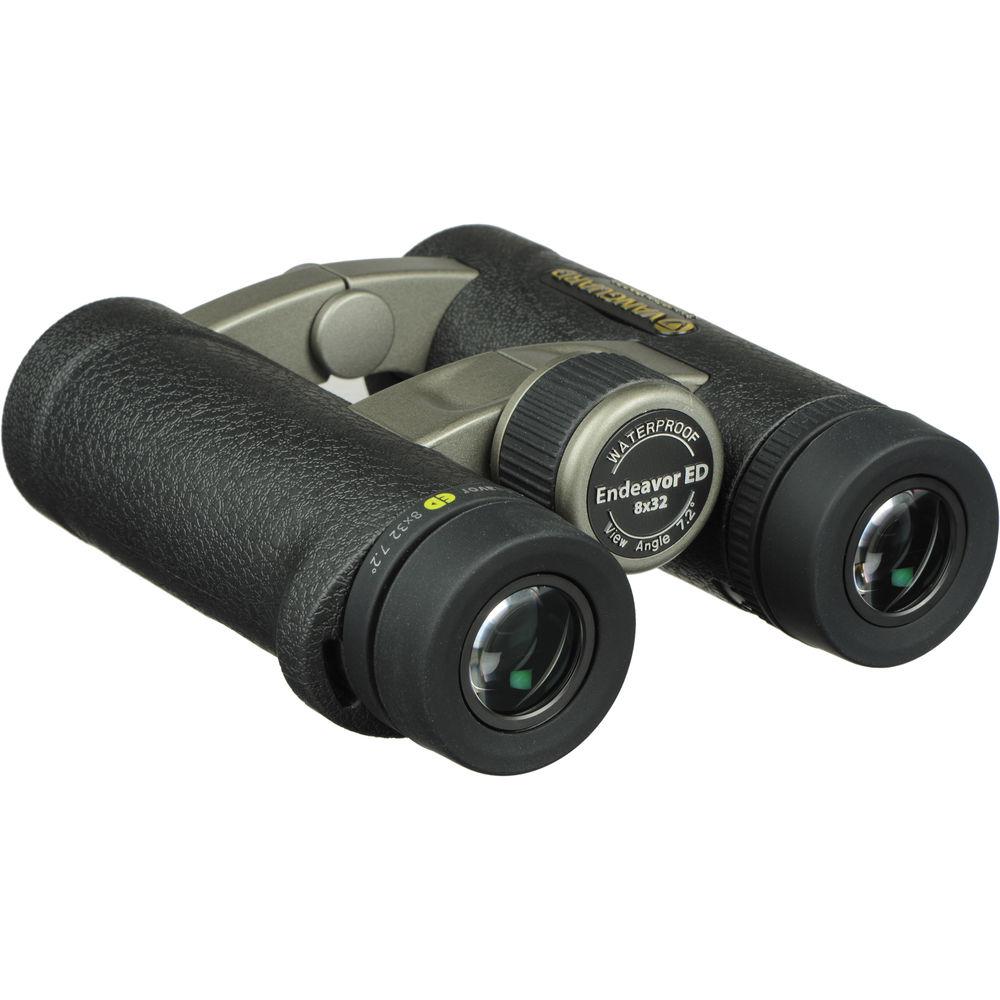

Product description The B&H Binocular Buying Guide Read More The 8x32 Endeavor ED Binocular from Vanguard features a nitrogen-filled housing and extra-low dispersion (ED) glass elements, equipping this optic for outdoor performance in low light and harsh weather conditions. This configuration from the Endeavor series has 8x magnification and a 6.6' minimum focus distance that is impressive for a mid-range binocular. Its close focus capability, in addition to a long 17.5mm eye relief and wide 58° apparent viewing angle, make this 8x binocular ready to handle almost any glassing task, including birding and hunting.Vanguard outfitted the Endeavor ED binocular with a high-transmission optical path that transmits bright images with minimal fringing and enhanced contrast. Complementing the multi-coated ED lenses are the V-Max and emerald coatings, which increase light transmission and enhance the full spectrum of color, especially the natural shades of green. The phase-corrected BAK4 prisms render crisp details and maximum color fidelity. The resulting view is saturated with color and sharp right up to the edge of the binocular's field of view.A rubber-armored and weather-sealed housing helps the Endeavor ED deliver reliable performance rain or shine. The slip-resistant textured rubber grip is also applied to the center focus wheel, which will come in handy when attempting fine focus adjustments while wearing gloves or with wet hands. Twist-up rubber eyecups, flip-down objective covers, and an ergonomic dual-bridge design add user-friendly handling features to match the Endeavor ED binocular's premium optics. - Optical Performance
-
- 8x magnification
- 32mm objectives
- Extra-low dispersion (ED) glass delivers true color across the entire field of view
- BAK4 roof prisms with P2 phase-corrective prism coating
- Emerald and V-Max anti-reflective full multi-coatings and color-enhancing coatings
- 7.2° angle of view delivers 58° apparent viewing angle
- 6.6' close focusing distance
- Long 17.5mm eye relief
- Construction Details
-
- Lightweight and durable polymer housing
- Textured rubber armor provides a slip-resistant grip
- Open-bridge design makes handling easier while reducing weight
- Oversized center focus wheel with rubber gripping ridges
- Twist-up eyecups with three click-stop positions
- Tripod mountable with optional adapter
- Flip-down objective covers
- Locking diopter ring
- Nitrogen-filled fogproof
- Waterproof, O-ring sealed
UPC: 026196346296 In the Box Vanguard 8x32 Endeavor ED Binocular (Green/Black) Carrying Case Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard 8x32 Endeavor ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ENDEAVOR ED 8320 Specs | Prism Type | Roof | | Magnification | 8.0 x | | Objective Lens Diameter | 32 mm | | Angle of View | 7.2° (Actual) | | Field of View | 378.0' @ 1000 yd / 126.0 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 17.5 mm | | Interpupillary Adjustment | 55 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.2 x 5.0" / 13.2 x 12.7 cm | | Weight | 19.05 oz / 540.07 g | | | | Package Weight | 1.925 lb | | Box Dimensions (LxWxH) | 8.05 x 6.4 x 3.1" |
