User Manual for Vanguard 8x32 Endeavor ED II Binocular Click to enlarge the picture
Contents of the user manual for the Vanguard 8x32 Endeavor ED II Binocular
- Product category: Binoculars Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Binoculars
 |
User manual for the Vanguard 8x32 Endeavor ED II Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

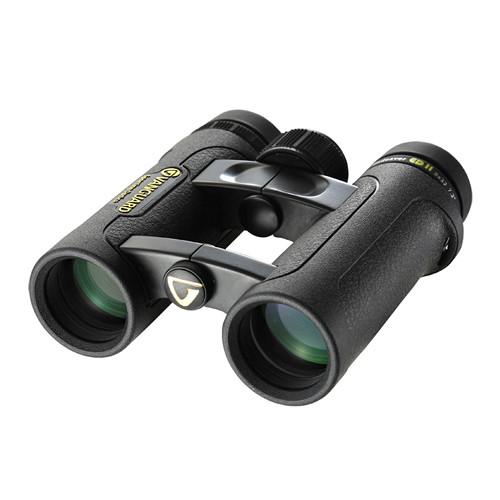

Product description The B&H Binocular Buying Guide Read More The 8x32 Endeavor ED II Binocular from Vanguard Optics features extra-low dispersion (ED) glass and phase-corrected BAK4 roof prisms that work together to virtually eliminate chromatic aberration, which produces images with true color fidelity across the entire field of view and enhanced contrast. Complementing the glass and prisms are anti-reflection fully multi-coated optics that improve light transmission for bright and clear images.An open-bridge design helps to reduce weight without sacrificing strength and provides a large surface area to hold, even with the compact body. Pebbled rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight magnesium-alloy housing is nitrogen filled and O-ring sealed for fog and waterproof performance, and the three-stage click-stop twist-up eyecups provide a custom-fit eye relief for use with or without eyewear. - Optical Performance
-
- 8x magnification
- 32mm objective lens diameter
- Extra-low dispersion (ED) lenses virtually eliminate chromatic aberration for true color transmission across the entire field of view
- Phase-corrected BAK4 prisms provide improved light reflection, high contrast, and true color fidelity
- Anti-reflection fully multi-coated optics enhance light transmission for brighter views
- 57.6° apparent field of view
- 378 ft field of view at 1000 yd
- Use and Handling
-
- Knurled center focus wheel

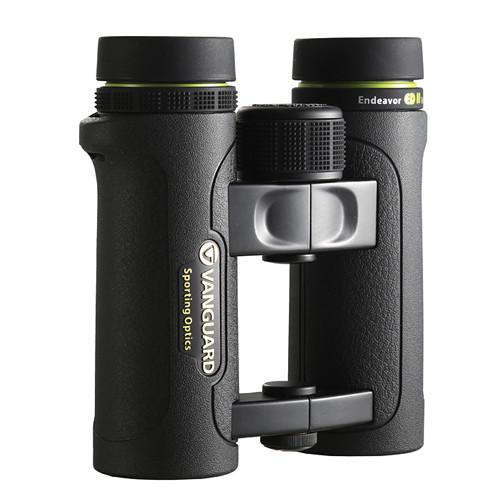

- Open-bridge design reduces weight and provides a more comfortable grip

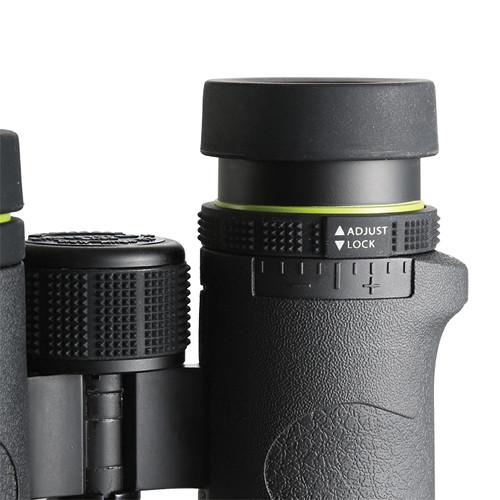

- Three-stage click-stop twist-up eyecups for use with or without eyewear
- Right-eye locking diopter adjustment
- Tripod mountable with optional adapter
- Construction Details
-
- Durable magnesium-alloy housing
- Nitrogen filled and O-ring sealed for fog and waterproof performance
- Pebbled rubberized protective housing armor
- Flip-down tethered objective lens covers
UPC: 026196346371 In the Box Vanguard 8x32 Endeavor ED II Binocular 2 x Flip-Down Objective Lens Covers 2 x Ocular Lens Covers Carrying Pouch Neck Strap Lens Cloth Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard 8x32 Endeavor ED II Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ENDEAVOR ED II 8320 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 7.2° (Actual) | | Field of View | 378.0' @ 1000 yd / 126.0 m @ 1000 m | | Minimum Focus Distance | 5.9' / 1.8 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 17.5 mm | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.2 x 5.0" / 13.2 x 12.8 cm | | Weight | 19.05 oz / 540 g | | | | Package Weight | 1.915 lb | | Box Dimensions (LxWxH) | 7.95 x 6.4 x 3.1" |
