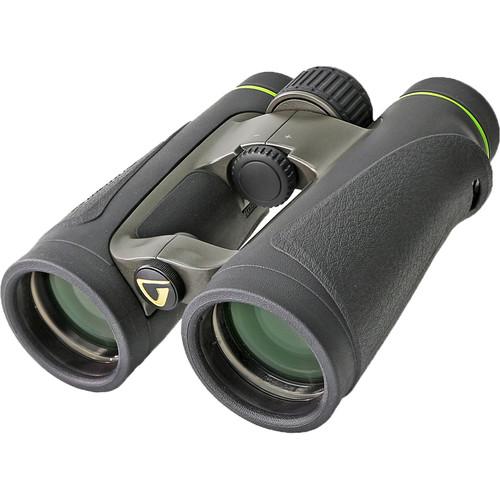

Product description The B&H Binocular Buying Guide Read More bxxtuyreyqfzvcyx Building on the success of their earlier iterations, the Vanguard Optics 8x42 Endeavor ED IV Binocular gets upgraded with HOYA extra-low dispersion (ED) glass, phase-corrected SK-15 roof prisms, and their advanced MultiGuard optical coatings to improve light transmission, color rendition, clarity, and contrast; while eliminating chromatic aberration. These updated technologies and materials work together to produce an immersive observational experience on the trail, at the range, in the stadium, or sightseeing around town. To pick out feather and fauna details, the binocular boasts an impressive 5.9' close focus distance.An open-bridge/dual-hinge design helps to reduce weight without sacrificing strength, and provides a large surface area to improve grip strength and security. Textured rubber armoring offers protection from drops and impacts, while further improving the grip and comfort in the hand. Designed for durability, the lightweight magnesium-alloy housing is nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes and environmental conditions. The Endeavor ED IV's provide the performance and comfort birders, hunters, and outdoor enthusiasts require for long observation sessions in all weather. - Optical Performance
-
- 8x magnification
- 42mm objective lens diameter
- Phase-corrected prisms provides improved light reflection, high-contrast, and true color fidelity
- SK-15 prisms have a higher refractive index than BK7 and BAK4, with a lower dispersion than BAK4
- HOYA extra-low dispersion (ED) lenses virtually eliminates chromatic aberration for true color transmission across the entire field of view

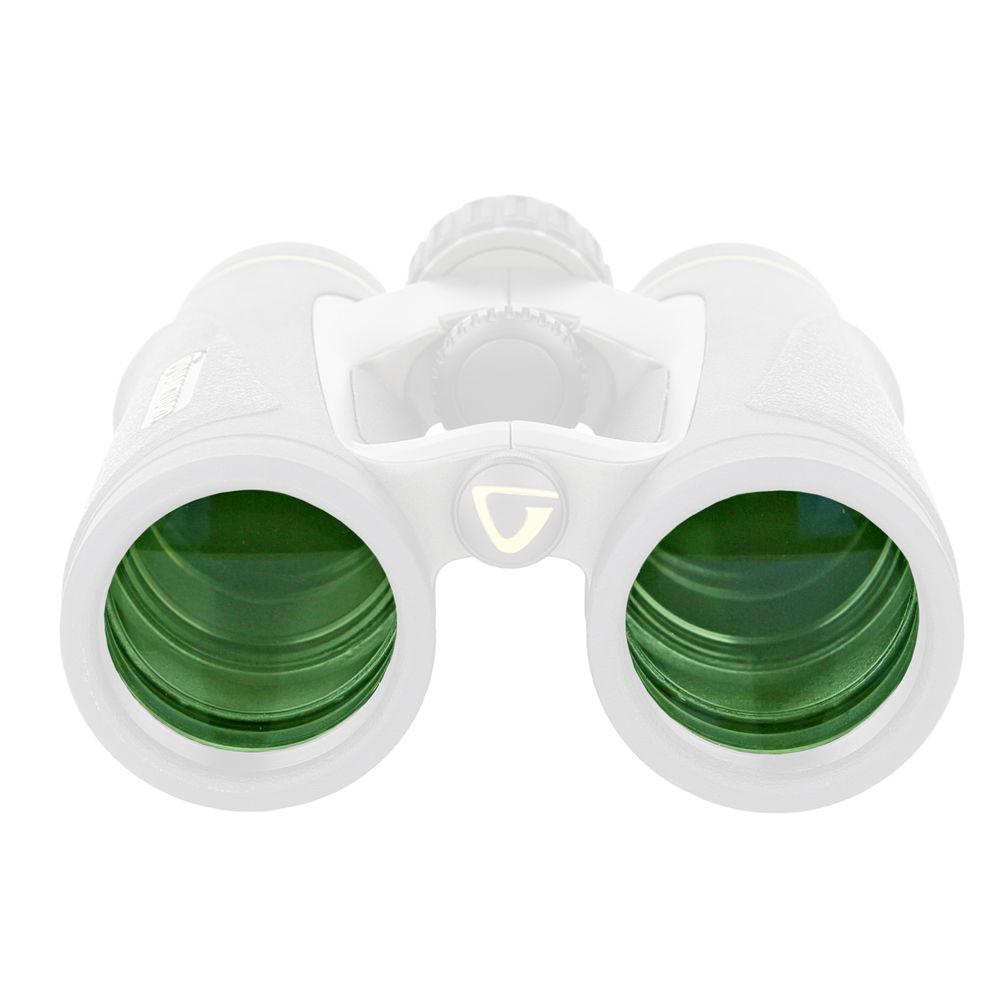

- Anti-reflection Advanced MultiGuard fully multi-coated optics improves light transmission for brighter high-contrast images with accurate color rendition
- 377' field of view at 1000 yards
- Short 5.9' minimum focus distance
- Use and Handling
-

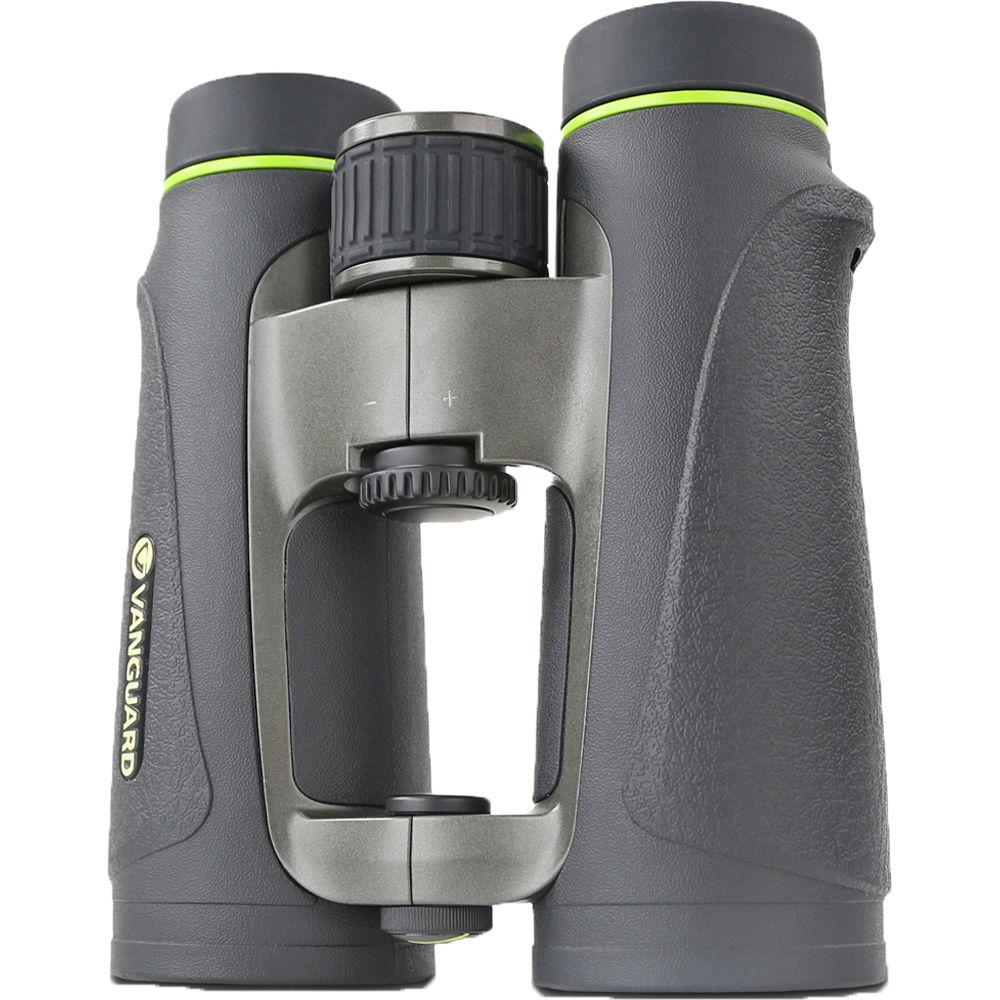

- Open-bridge/Dual-hinge design
- Large knurled center focus wheel is easy to manipulate even when wearing gloves
- 56-74mm interpupillary adjustment range

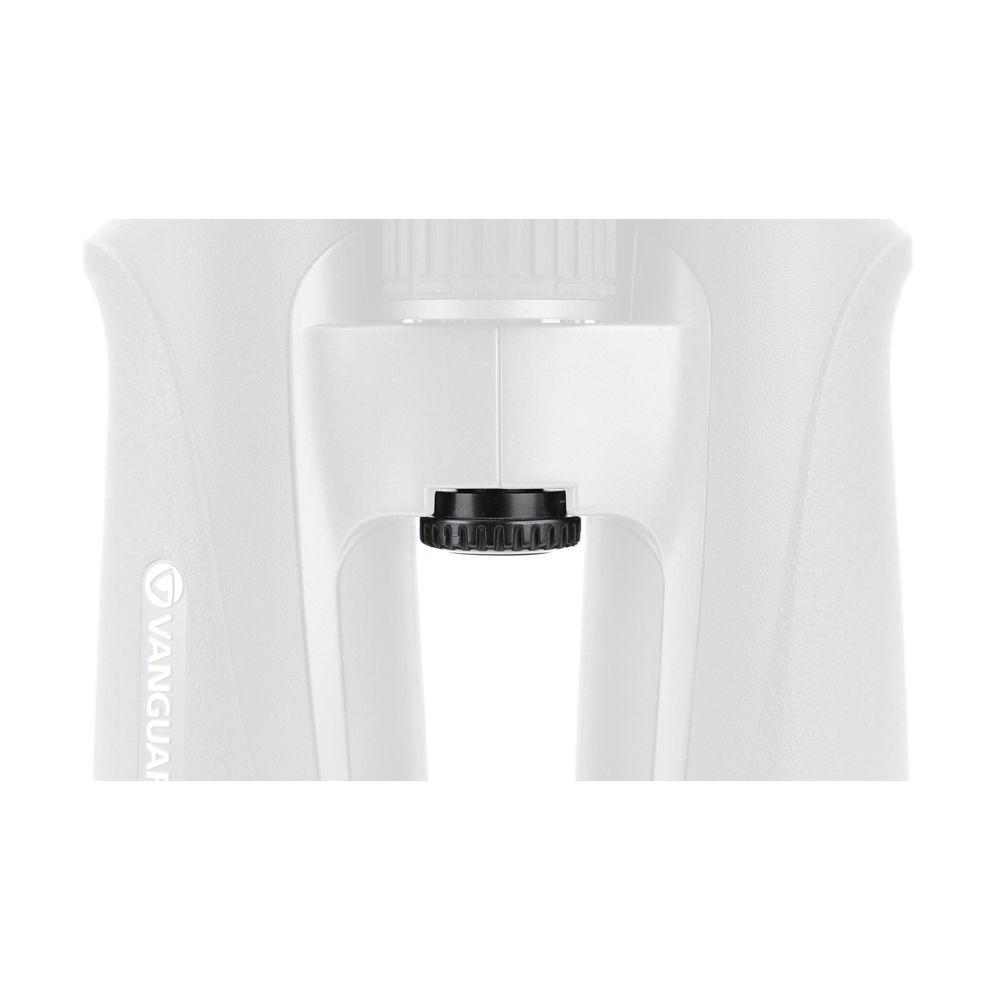

- ±4 center locking dioptric adjustment
- Three-stage click-stop twist-up eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Exceptionally long 19mm eye relief
- Wide 5.25mm exit pupil completely covers fully dilated pupils in low-light to provide a full-frame view without vignetting
- Construction Details
-
- Bridge design reduces weight and provides a more comfortable and secure grip by allowing user's hands to wrap completely around the optical tubes
- Lightweight and durable magnesium-alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
- Textured rubberized armor provides a slip-resistant grip in cold and wet weather
- Flip-down tethered objective lens covers
UPC: 026196348009 In the Box Vanguard 8x42 Endeavor ED IV Binocular Carrying Pouch Neck Strap Lens Cloth 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 bxxtuyreyqfzvcyx A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard 8x42 Endeavor ED IV Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ENDEAVOR ED IV 8420 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.2° (actual) | | Field of View | 378.0' @ 1000 yd / 126.0 m @ 1000 m | | Minimum Focus Distance | 5.9' / 1.8 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 19.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.9 x 5.1" / 15.0 x 12.9 cm | | Weight | 27.7 oz / 785 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 9.3 x 6.8 x 3.6" |
