User Manual for Vanguard Alta 233AO Aluminum-Alloy Tripod Kit with PH-21 2-Way Pan Head Click to enlarge the picture
Contents of the user manual for the Vanguard Alta 233AO Aluminum-Alloy Tripod Kit
- Product category: Tripods with Heads Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripods with Heads
 |
User manual for the Vanguard Alta 233AO Aluminum-Alloy Tripod Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

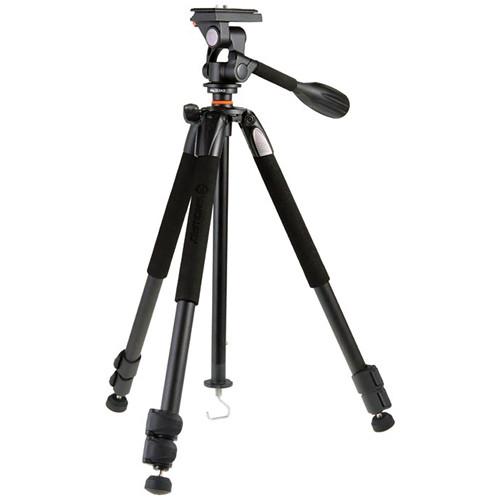

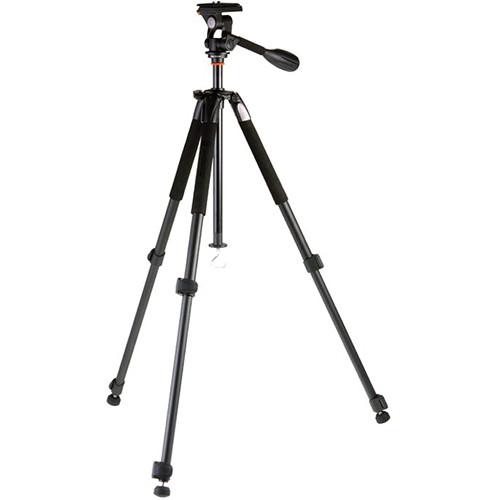

Product description Time-Lapse Tips and Tools Read More This Alta+ 233AO Aluminum-Alloy Tripod Kit from Vanguard supports up to 6.6 lb, measures 24.0" when folded, and includes a PH-21 2-Way, Pan-and-Tilt Head with QS-52 Quick Release Plate. Each of its 3-section legs features an independent spread as well as flip locks for fast deployment. Together, the three legs can be can be positioned for a minimum height of 46.6" to a maximum height of 57.1" with the center column fully raised. Foam covers on each of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet each with a twist-out, metal spike further enhance stability on a wide variety of surfaces, including soft and uneven soil.
Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the QS-52 Quick Release Plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, and tilted -60° backwards or 90° forwards. These two movements function simultaneously, and both the rotation and tilt can be set in place using the pan bar's integrated twist lock.
A carry bag is included for storage or transport. - General Use and Handling
-
- Supports up to 6.6 lb
- Push-and-pull rapid center column for rapid positioning
- Can be set to a minimum height of 46.6" to a maximum height of 57.1" with the center column fully raised

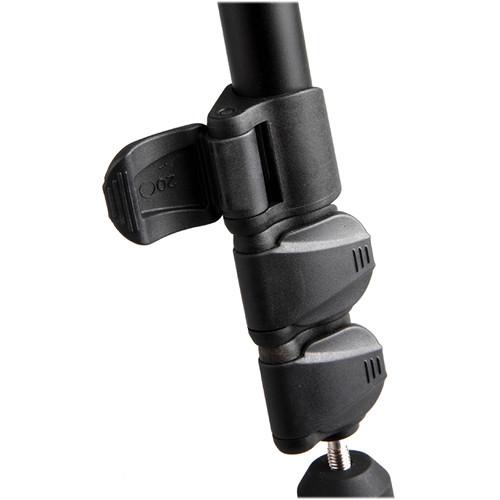

- Aluminum-alloy legs each feature 3 sections, flip locks for fast deployment, and can be independently spread
- Legs can be locked at 25°, 50°, or 80° angles
- Foam covers on each of the legs provide a secure and comfortable grip
- Rubber feet with twist-out, metal spikes further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Removable ballast hook
- 1/4"-20 mount for direct attachment of accessories that feature 1/4"-20 female accessory threads

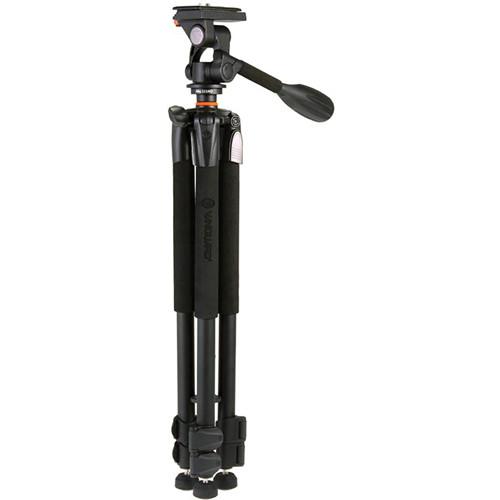

- Weighs 1.6 lb, measures 24.0" when folded
- Head
-

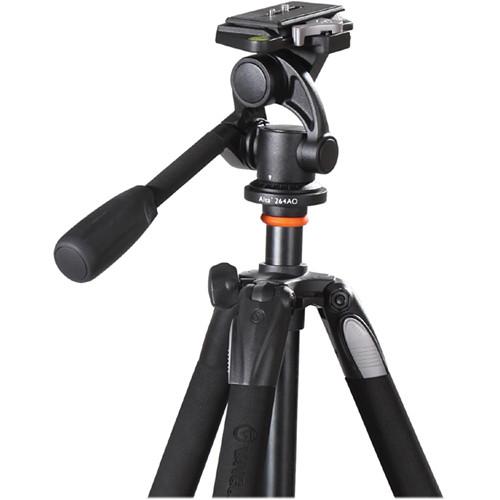

- 2-way, pan-and-tilt head with built-in bubble level
- Compatible with tripods or support systems that feature a 1/4"-20 mount
- Can be rotated 360°, and tilted -60° backwards or 90° forwards
- Head rotation, as well as backwards-and-forwards-tilt movements function simultaneously
- Quick release cam lock on top of head is compatible with included QS-52 Quick Release Plate
- Quick release plate with 1/4"-20 mount with rubberized, anti-slip surface and anti-twist index pin
UPC: 026196330875 In the Box Vanguard Alta+ 233AO Aluminum-Alloy Tripod Kit with PH-21 2-Way Pan Head PH-21 2-Way Pan Head Tripod Bag Limited 2-Year Warranty, Extendable to 10-Year Warranty with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Alta 233AO Aluminum-Alloy Tripod Kit with PH-21 2-Way Pan Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard 233AO Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 6.6 lb / 3 kg | | Maximum Working Height | 57.1" / 145 cm | | Minimum Working Height | 46.6" / 118.4 cm | | Folded Length | 24" / 61 cm | | Materials | Aluminum Alloy | | Weight | 1.6 lb / 0.7 kg | | | | Leg Lock Type | Flip Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Retractable, Spiked | | | | Center Column Features | Ballast Hook, 1/4"-20 Accessory Mounting Thread | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 24.9 x 5.1 x 4.3" |
