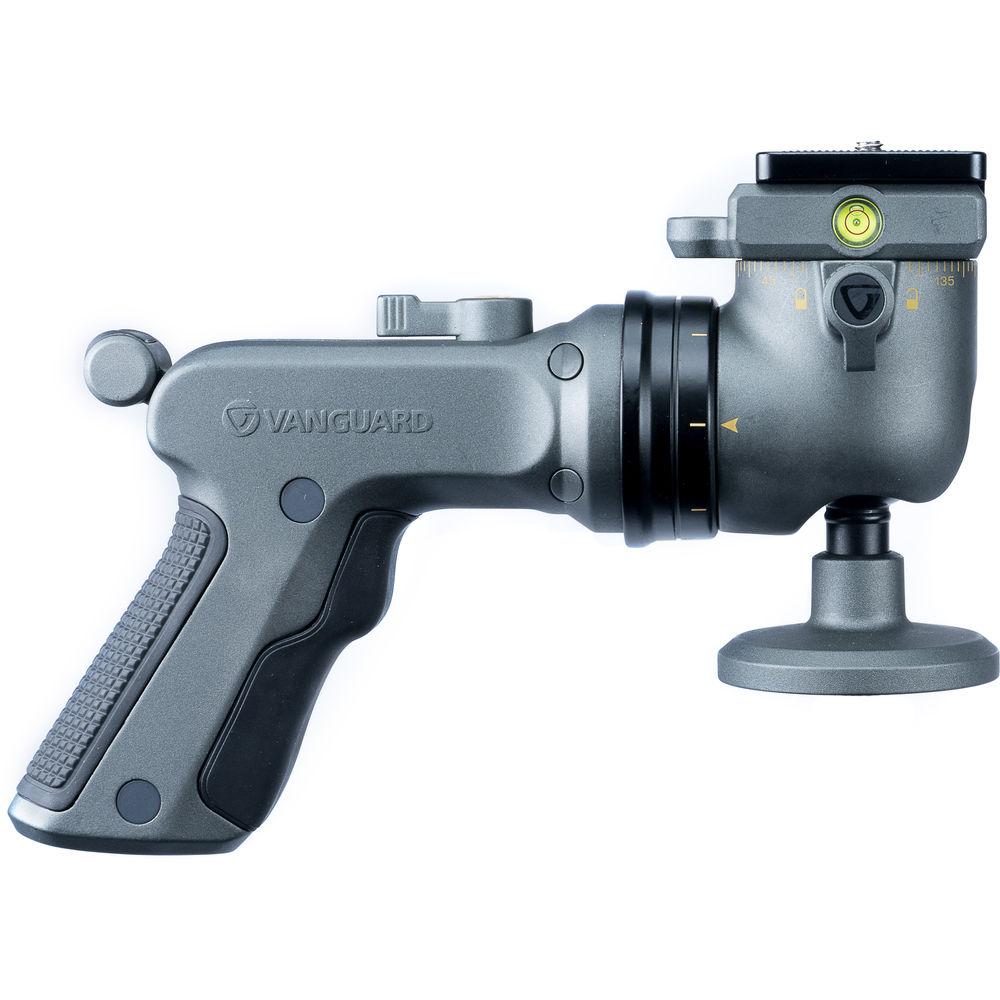

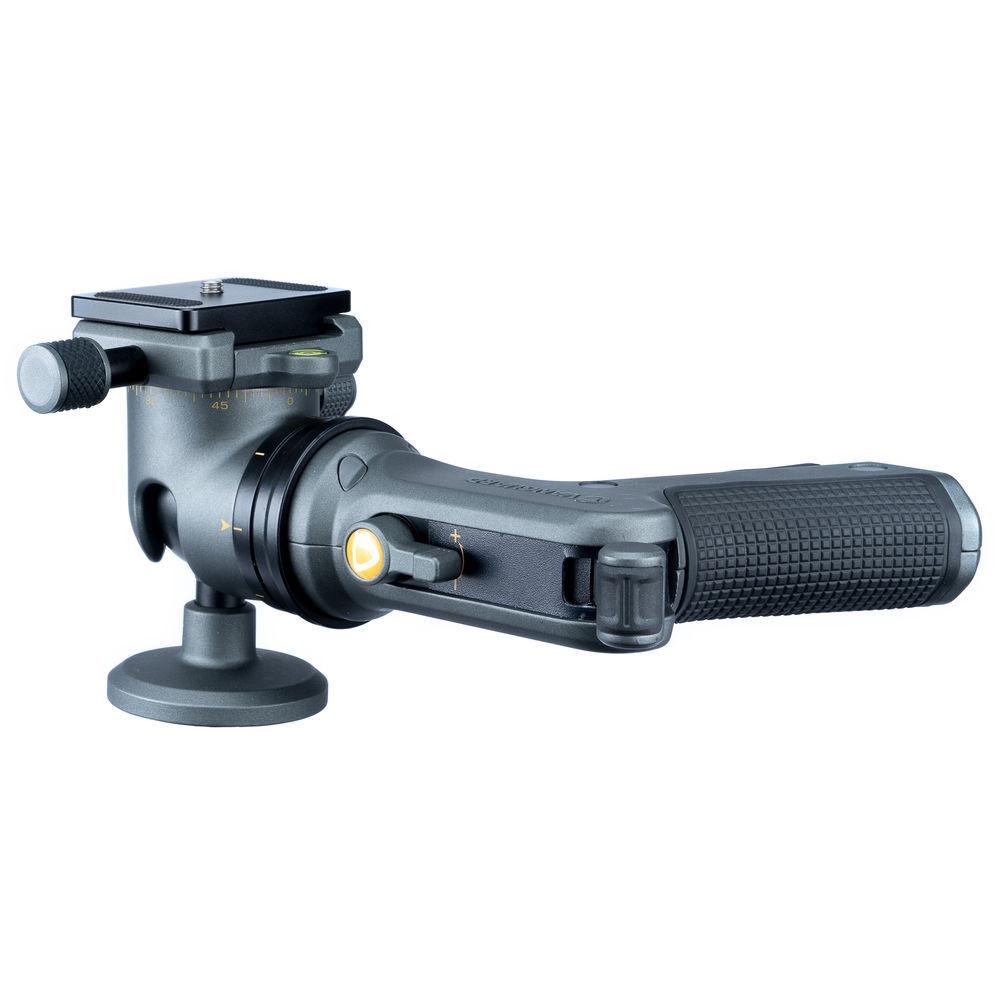

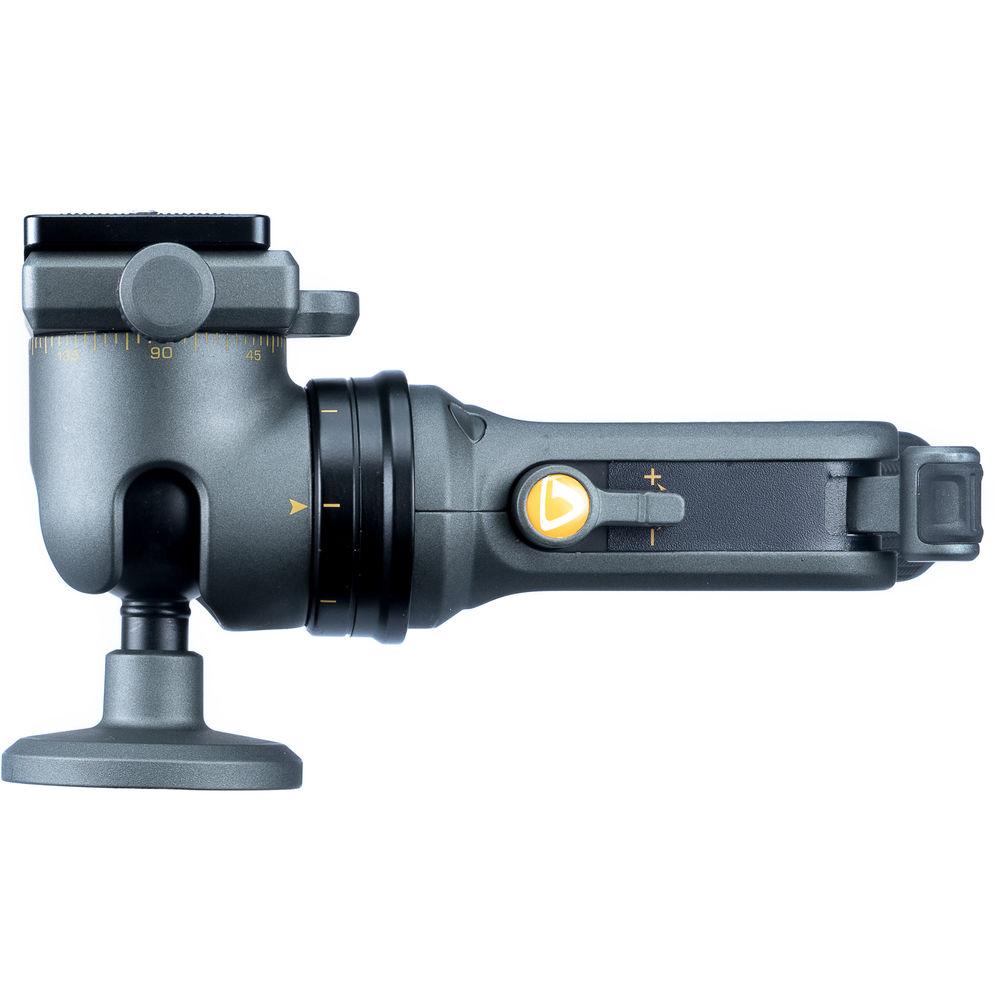

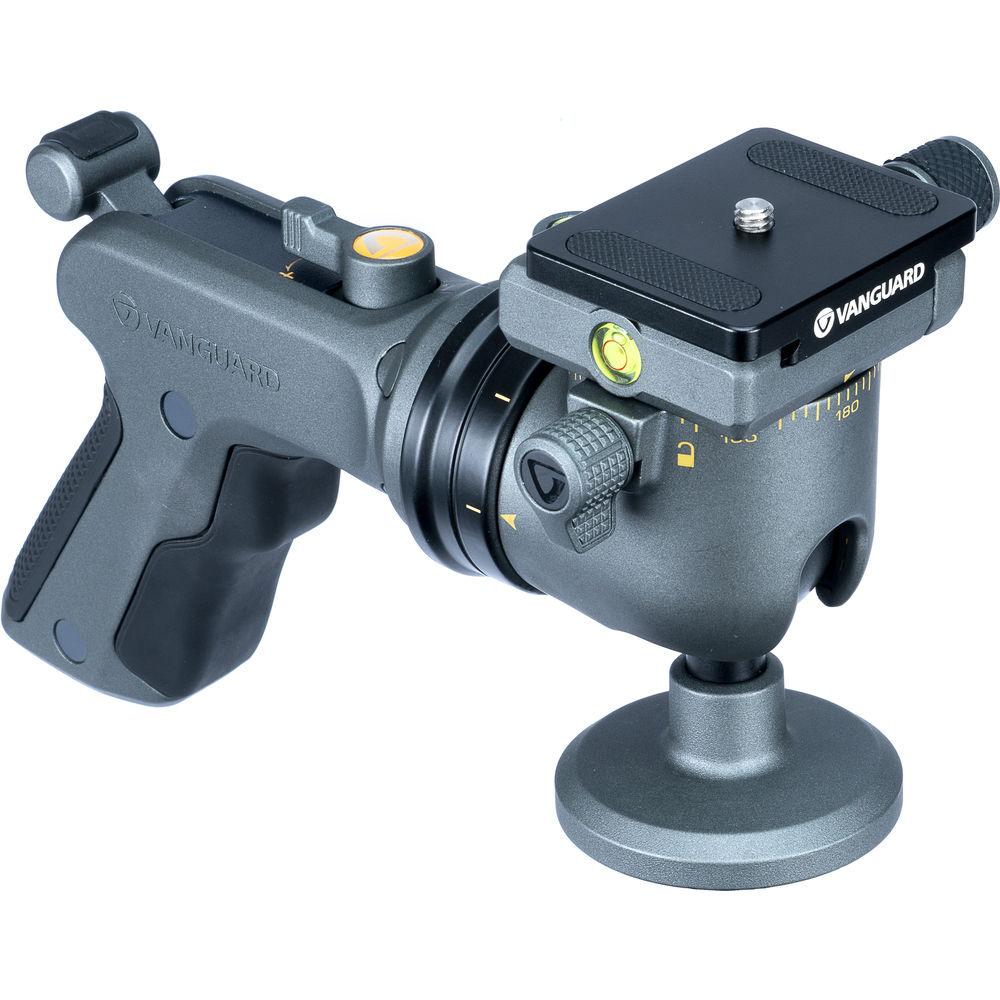

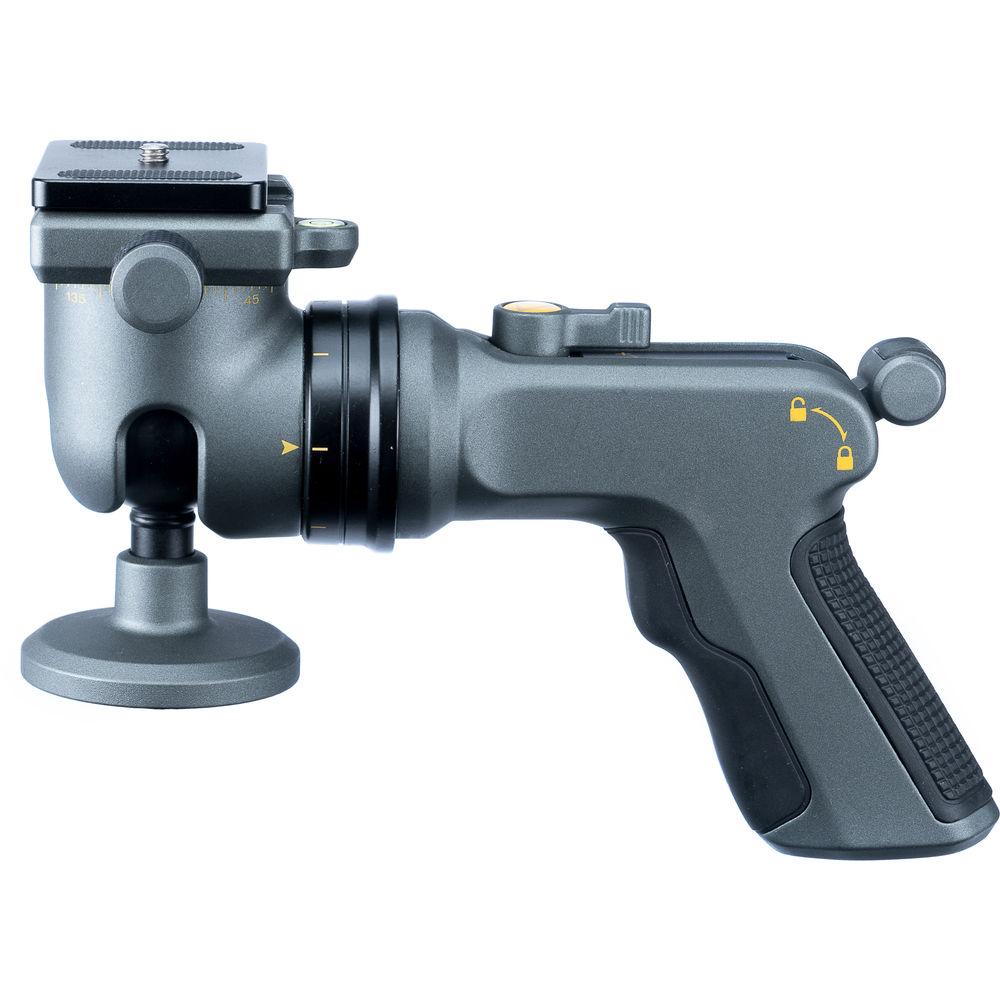

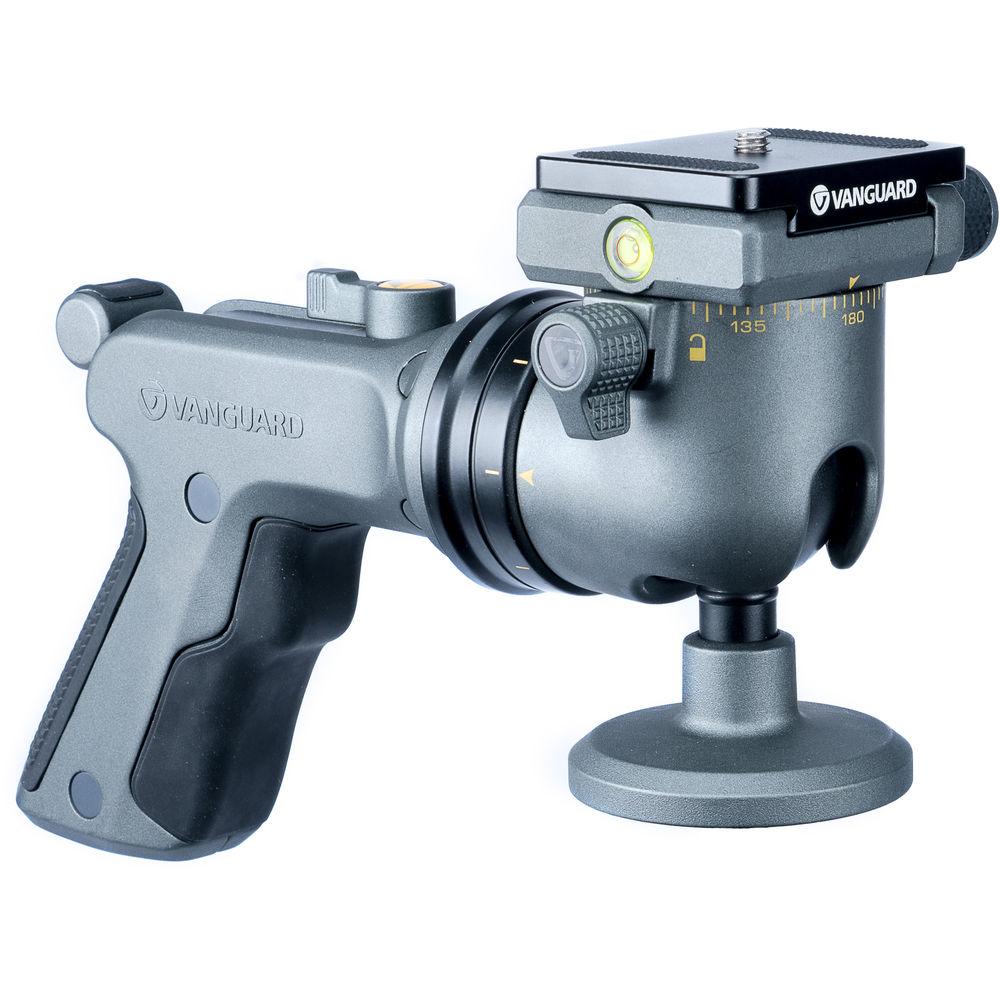

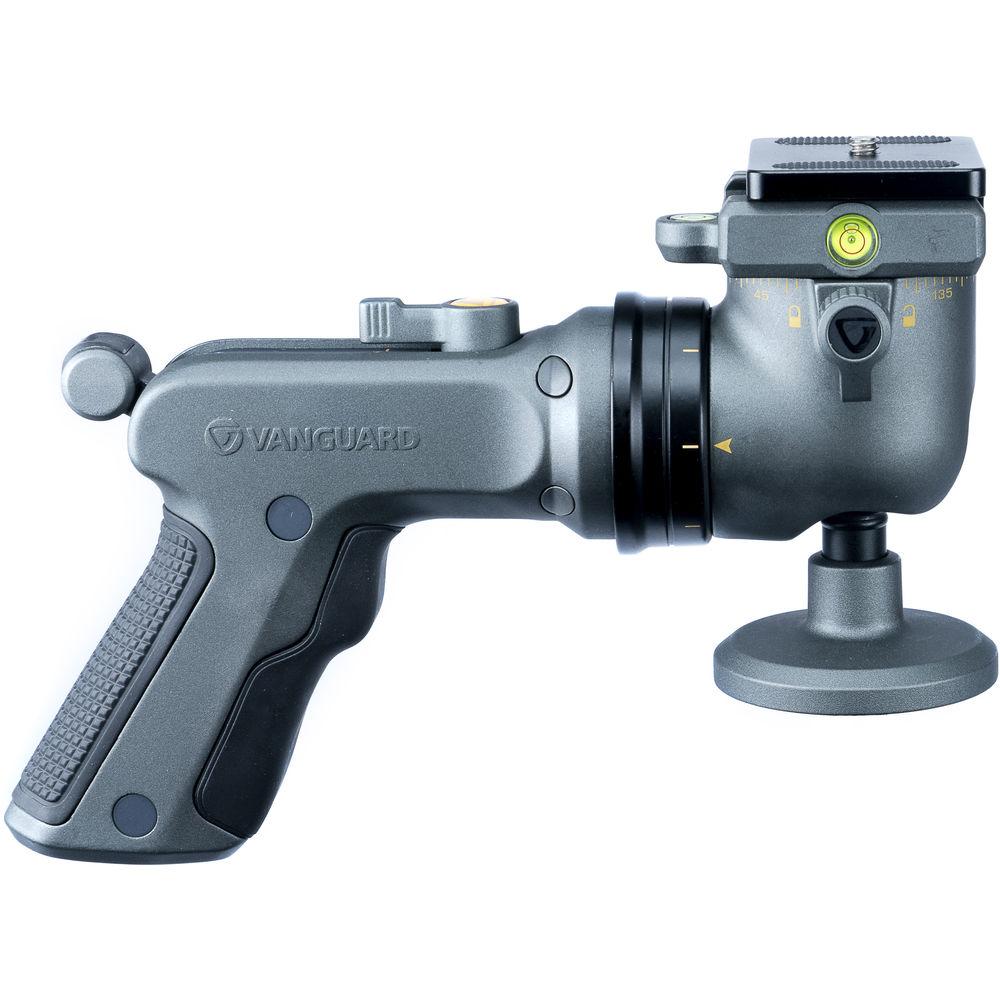

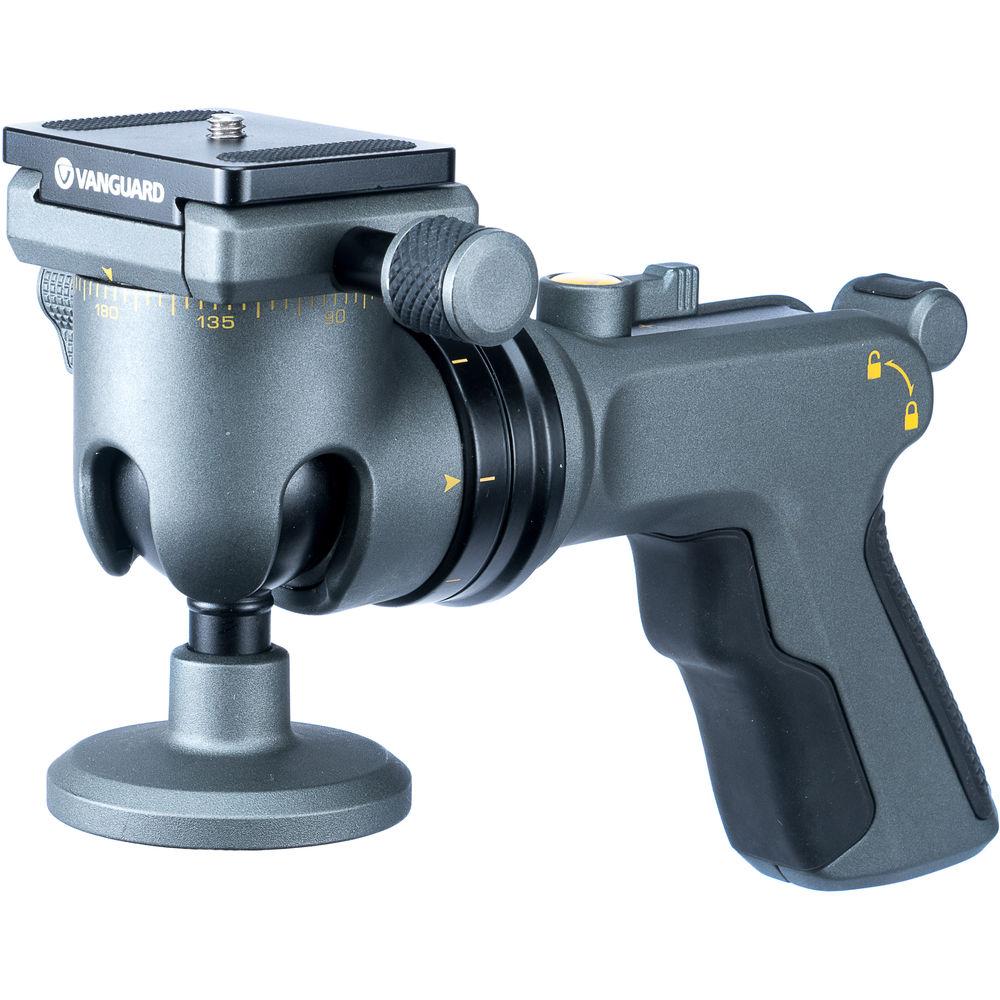

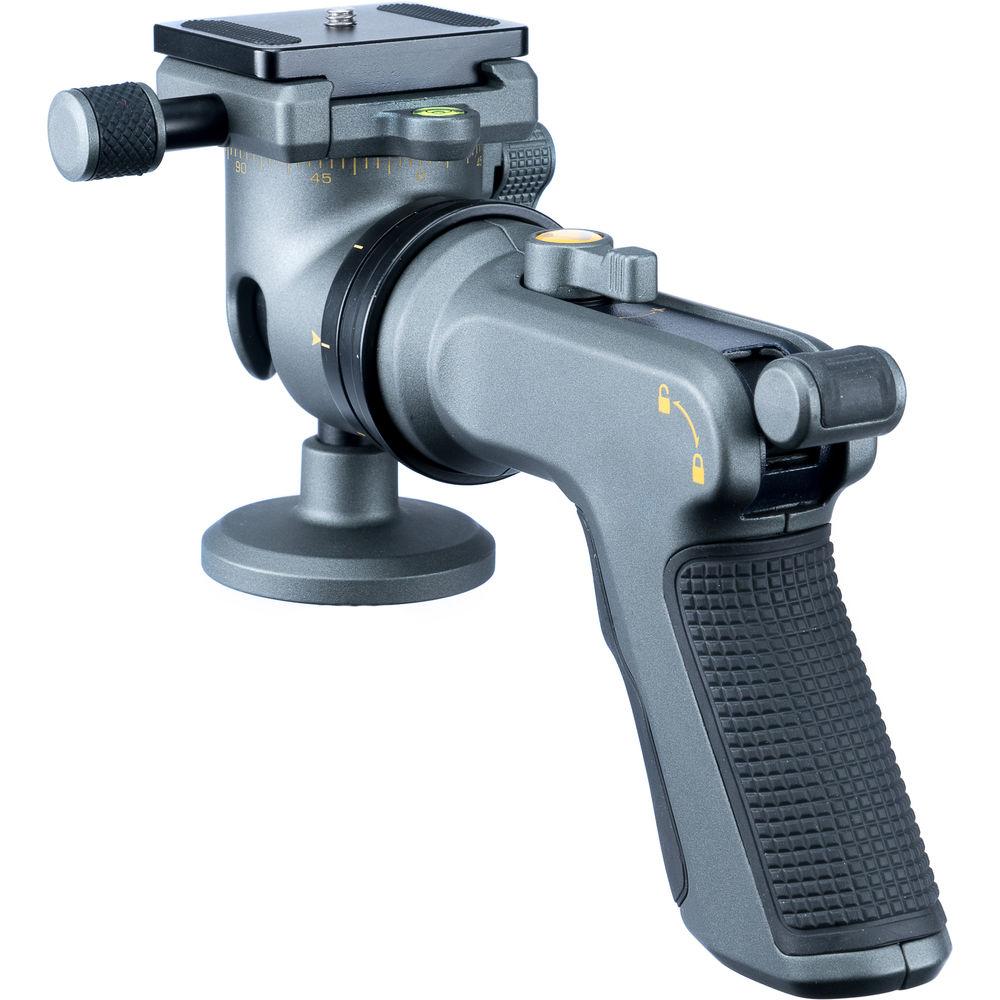

User Manual for Vanguard ALTA GH-100 Pistol Grip Ball Head Click to enlarge the picture
Contents of the user manual for the Vanguard ALTA GH-100 Pistol Grip Ball
- Product category: Tripod Heads Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripod Heads
 |
User manual for the Vanguard ALTA GH-100 Pistol Grip Ball contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

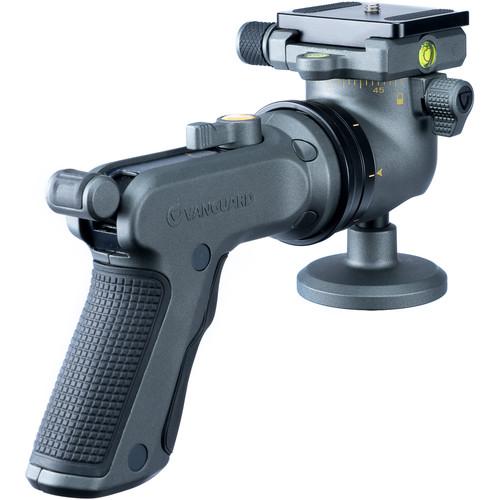

Product description - Alta GH-300T and GH-100 Grip Heads for Photography
The ALTA GH-100 Pistol Grip Ball Head from Vanguard is designed for action photography. By squeezing the ergonomic handle, it releases the hold on the ball, allowing you to position your camera angle. Once you release the handle it automatically locks into place. The magnesium ball head features two panning axes, which are located at the base of the head and the other just under the quick release plate. The panning base, with its separate panning lock, rotates a full 360°, and moves freely to follow a fast-paced subject. The second base has 72-click points with 5° intervals, which allows a camera to create panoramic photographs. Moreover, the ball has a lateral tilt of -32 to 90° and a frontal tilt of -8 to 90°. The pistol grip itself can also rotate 360° vertically to 8 pre-set positions. Of course, this is to make the position of the grip comfortable during shooting, and with a load capacity of 13.2 lb and its tension control you can rest assured that the camera will not creep or move anywhere. In addition, the QS-65GH proprietary plate pops into the quick release mechanism and is secured by the dual-locking levers. UPC: 026196349433 In the Box Vanguard ALTA GH-100 Pistol Grip Ball Head Limited Lifetime Warranty User Manual PDF 2.1mbcdtxywzfdawqwsbawsstsevwxcyfvrxztxa Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard ALTA GH-100 Pistol Grip Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ALTA GH-100 Specs | | | Head Type | Pistol Grip Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Load Capacity | 13.2 lb / 6 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Magnesium | | | | Lateral Tilt | -32
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
