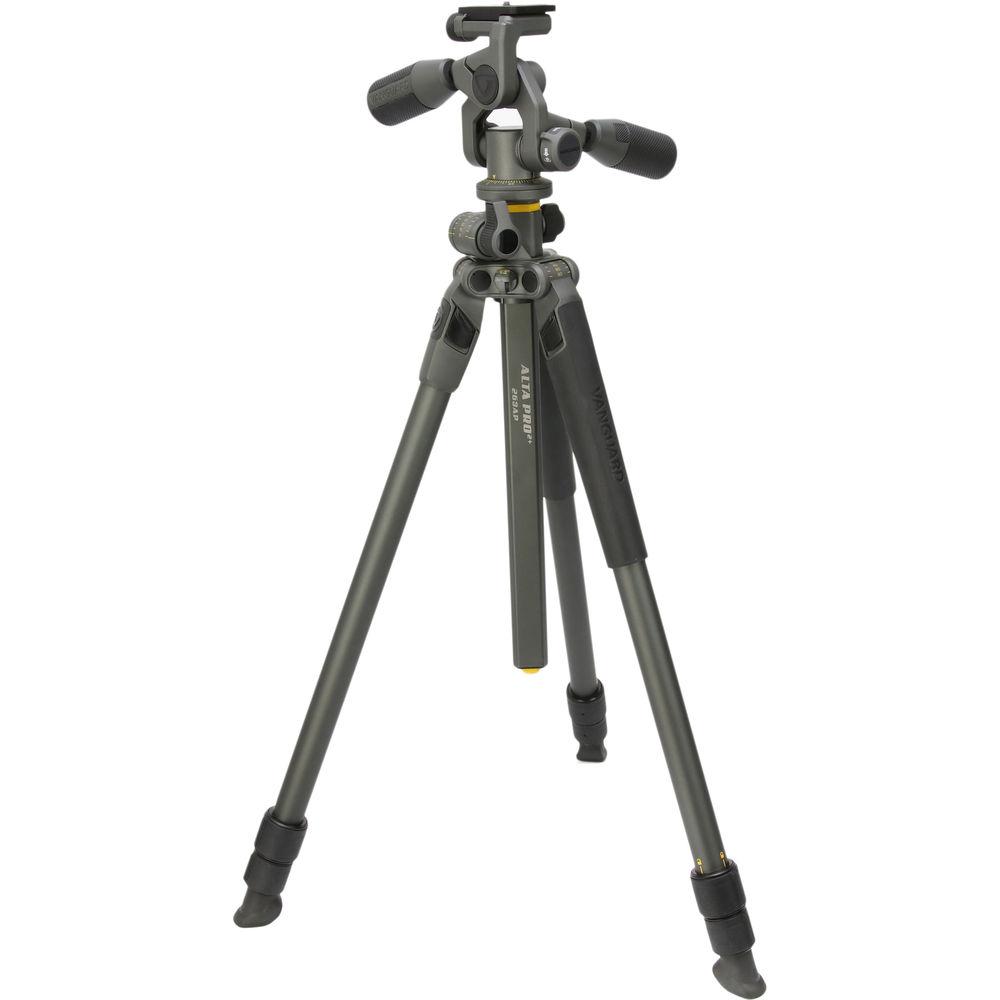

User Manual for Vanguard Alta Pro 2 263AP Aluminum-Alloy Tripod Kit with Alta PH-32 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Vanguard Alta Pro 2 263AP Aluminum-Alloy
- Product category: Tripods with Heads Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripods with Heads
 |
User manual for the Vanguard Alta Pro 2 263AP Aluminum-Alloy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

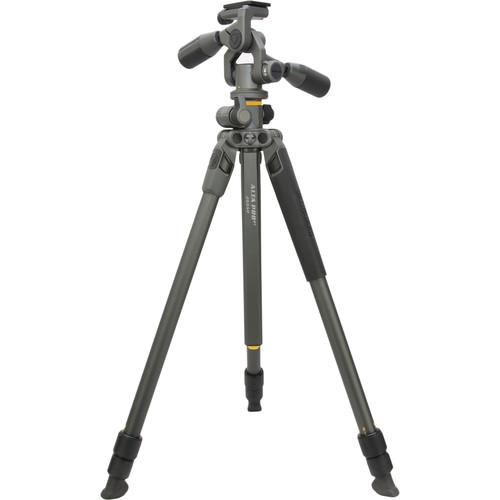

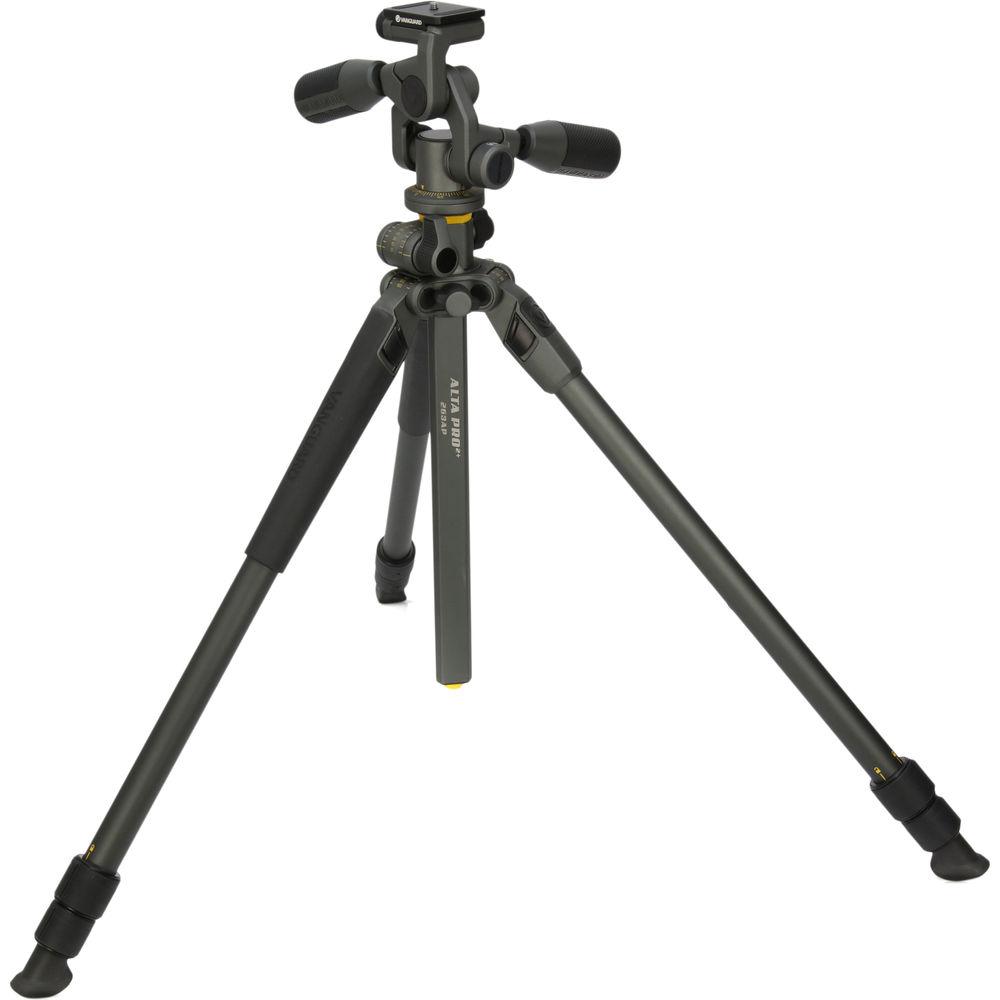

Product description New Tripod Legs and Heads from Vanguard Read More This Alta Pro 2+ 263AP Aluminum-Alloy Tripod Kit from Vanguard supports up to 11.0 lb, measures 29.8" when folded, and includes an Alta PH-32 3-Way, Pan-and-Tilt Head with QS-60 V2 Quick Release Plate. Each of its 3-section legs features an independent spread as well as twist locks for rapid deployment. Together, the three legs can be extended to obtain a maximum height of 56.8", or 69.0" with the center column fully raised. When the center column and the legs are retracted, the tripod kit stands at 28.0". Polymer covers on two of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet help to enhance stability on a wide variety of surfaces.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the QS-60 V2 Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the PH-32 3-Way, Pan-and-Tilt Head by tightening or loosening the clamp's knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened. The quick release plate features a rubberized, non-slip platform while a bubble level is built-in along the edge of the clamp.

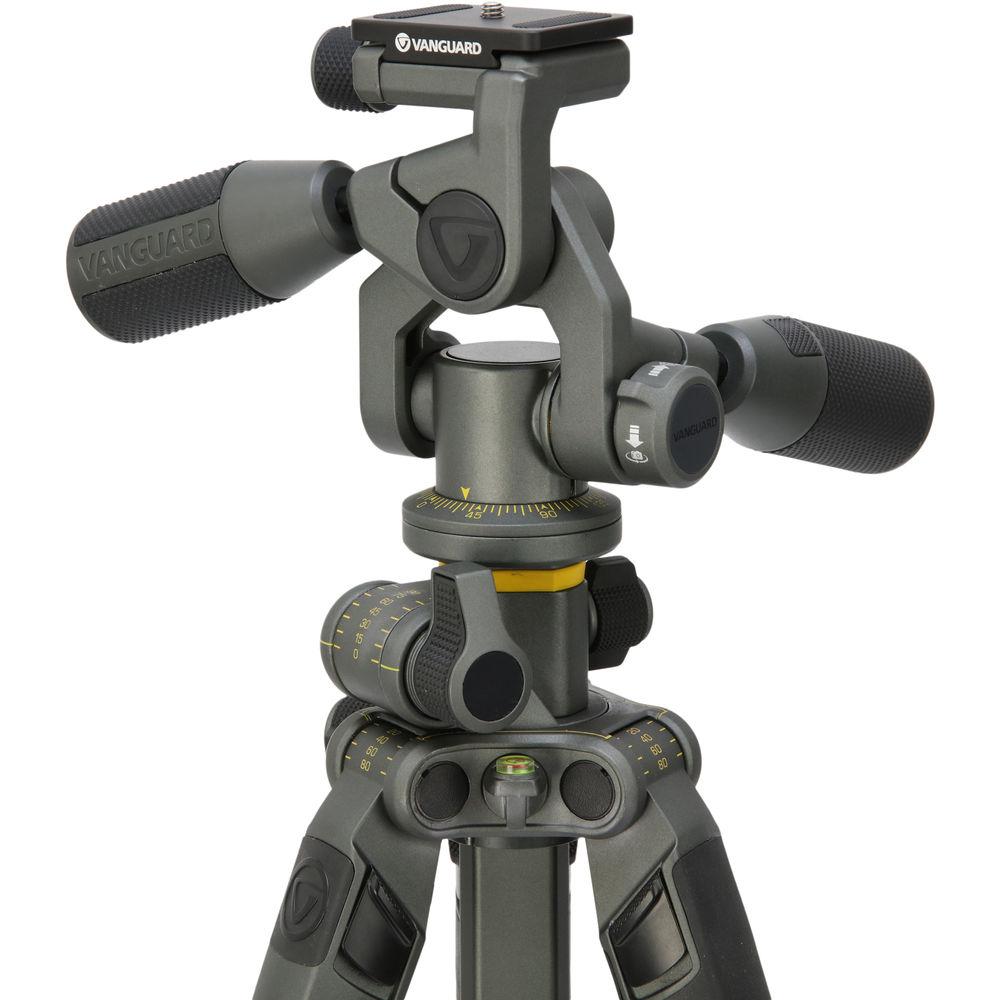

The PH-32 3-Way, Pan-and-Tilt Head can be rotated 360°, and tilted -60° backwards or 90° forwards. For portrait orientation, it offers a sideways +90°/-30° tilt angle. Each of these three movements function independently of each other and can be locked into place.

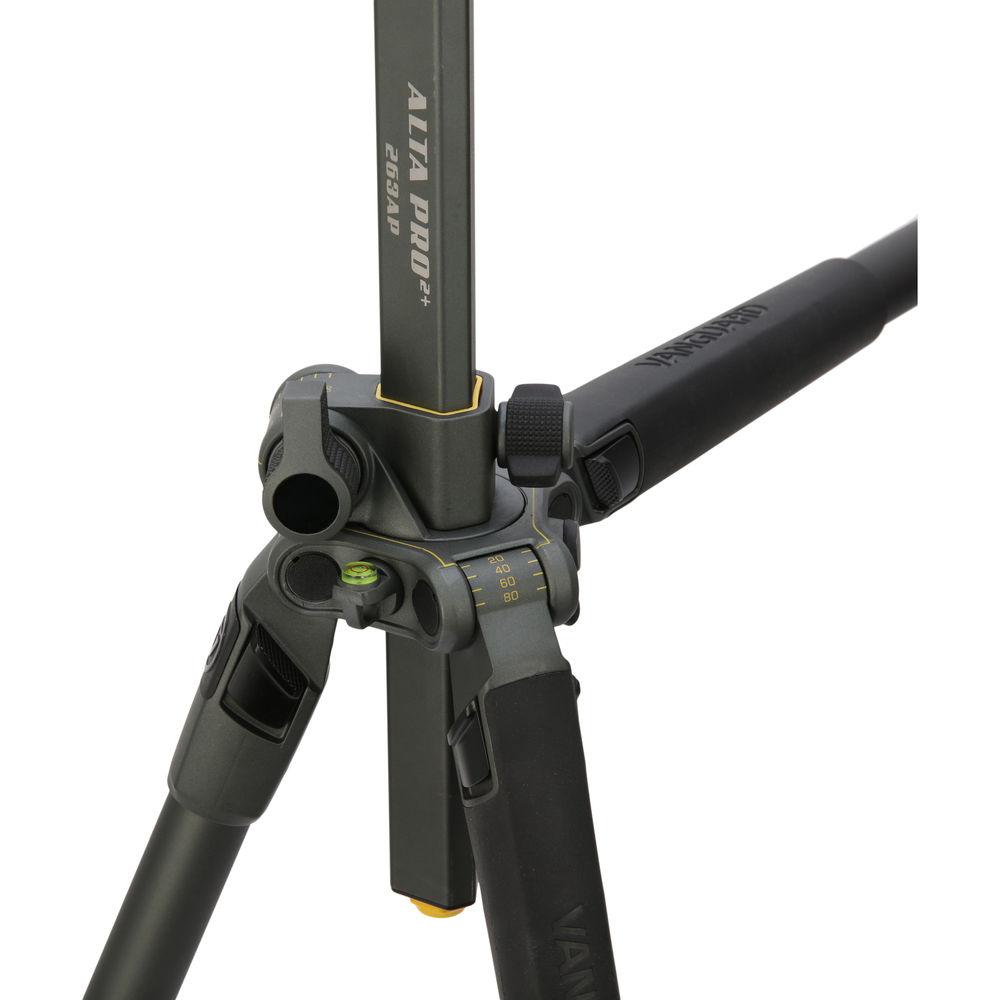

For added versatility, the center column is connected to the tripod by a fulcrum that enables 90° of upwards or downwards tilt that can be locked into place. Additionally, the center column assembly permits 360° of independent rotation. With the ability to push and pull the center column at all times, those tilt and swivel movements allow the center column to be used as an extendable cross arm or a miniature camera boom. This allows an attached camera to be easily raised toward an elevated subject or over a scene. A camera that is placed toward the end of center column can be positioned perpendicular to the tripod, while the legs can be further lowered for a minimum height of 11.0". The camera can then be extended past the tripod's legs, which is particularly useful for copy stand or macro photography. For subjects along the ground, the center column can also be used to obtain low angles while the tripod's user is positioned comfortably behind the camera.
A nylon carry bag with a draw-string closure and shoulder strap is included for storage or transport. - General Use and Handling
-
- Supports up to 11.0 lb
- Push-and-pull rapid center column for rapid camera, lens, or sport optic positioning
- Can be set to a maximum height of 56.8", or 69.0" with the center column fully raised
- Tripod kit stands at 28.0" when the center column and the legs are retracted

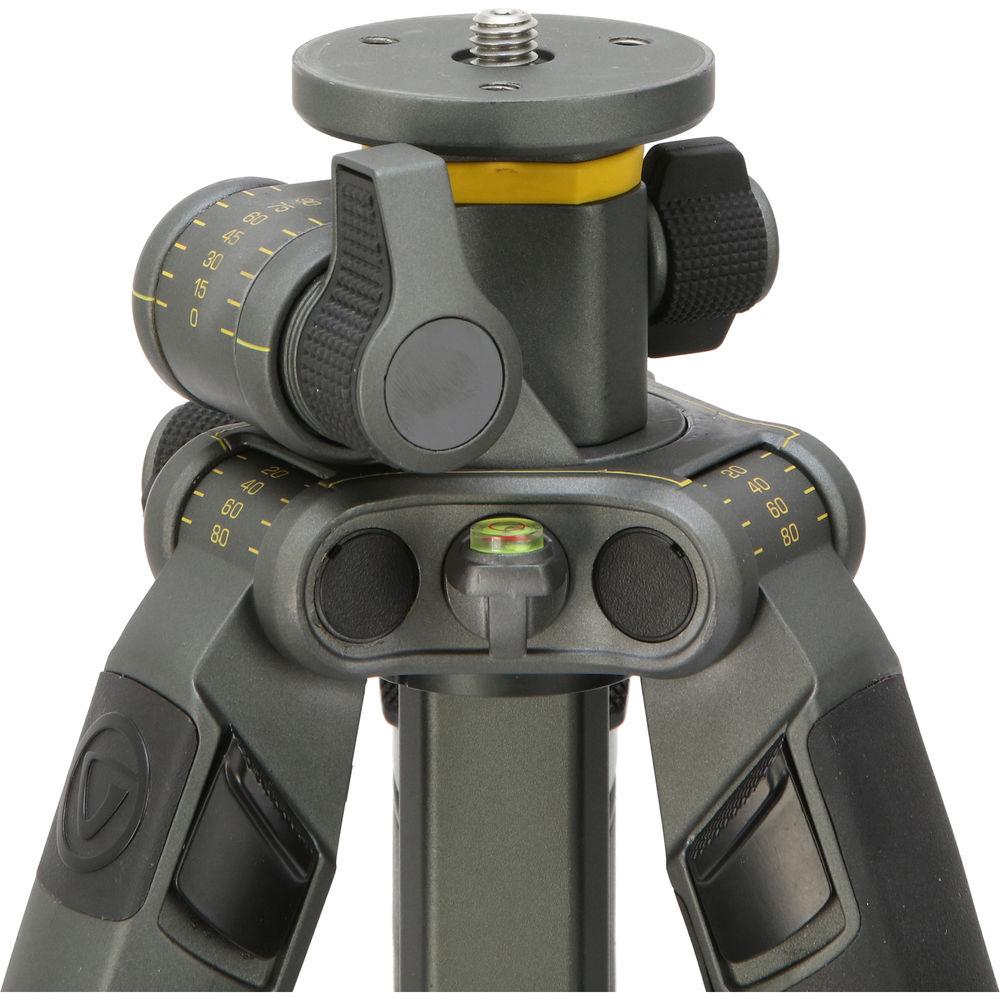

- For added versatility, the center column is connected to the tripod by a fulcrum that enables up to 90° of upwards or downwards tilt, which allows the legs to be further lowered for a minimum height of 11.0"
- Center column can be locked at 0°, 15°, 30°, 45°, 60°, 75° or 90° angles
- Center column assembly permits 360° of independent rotation
- Tilt, swivel, as well as push-and-pull movements allow the center column to be used as an extendable cross arm or a miniature camera boom
- Hexagonal shaft design provides center column with increased torsional rigidity

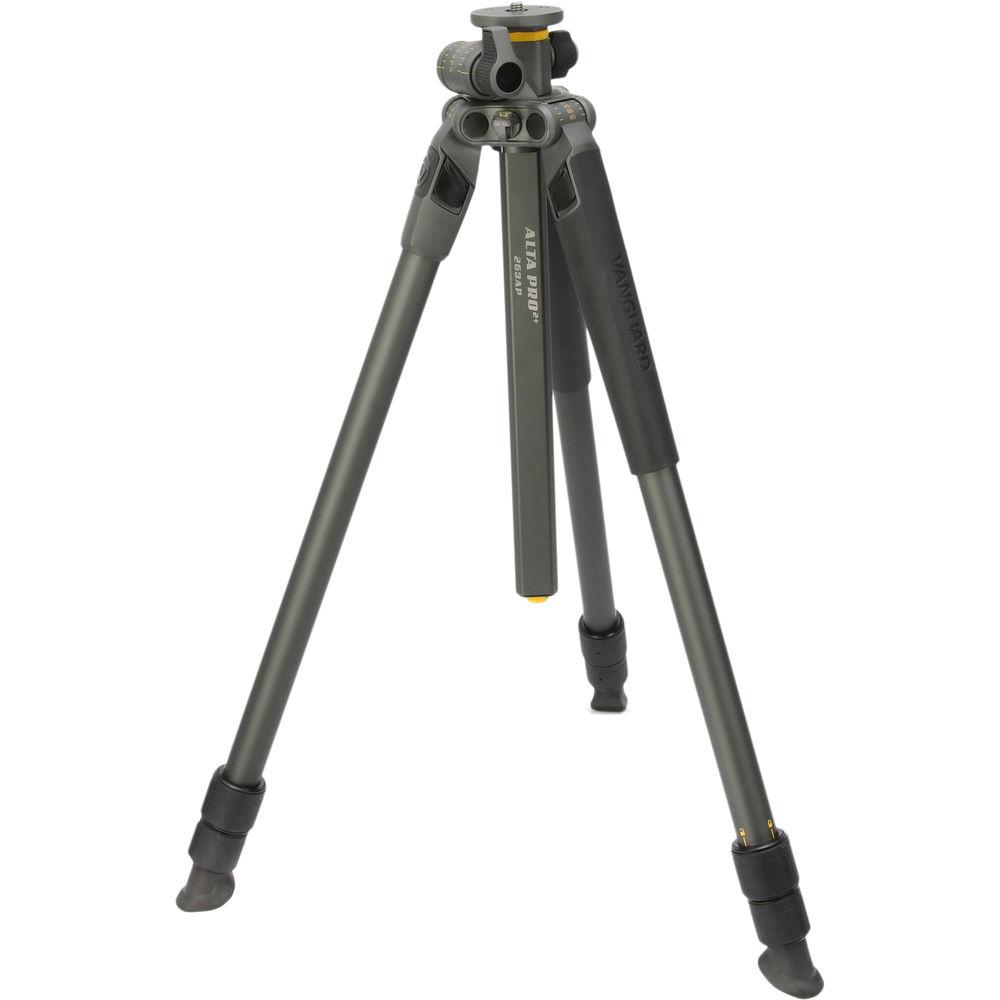

- Aluminum-alloy legs each feature 3 sections, twist locks for rapid deployment, and can be independently spread
- Legs can be locked at 20°, 40°, 60, or 80° angles
- Polymer covers on two of the legs provide a secure and comfortable grip
- Rubber feet help to enhance stability on a wide variety of surfaces
- Separately-available metal spikes can supplement included rubber feet for use on surfaces such as soft and uneven soil
- Built-in tripod bubble level, ballast loop, and 3/8"-16 female accessory thread for direct attachment of accessories that feature 3/8"-16 mounts

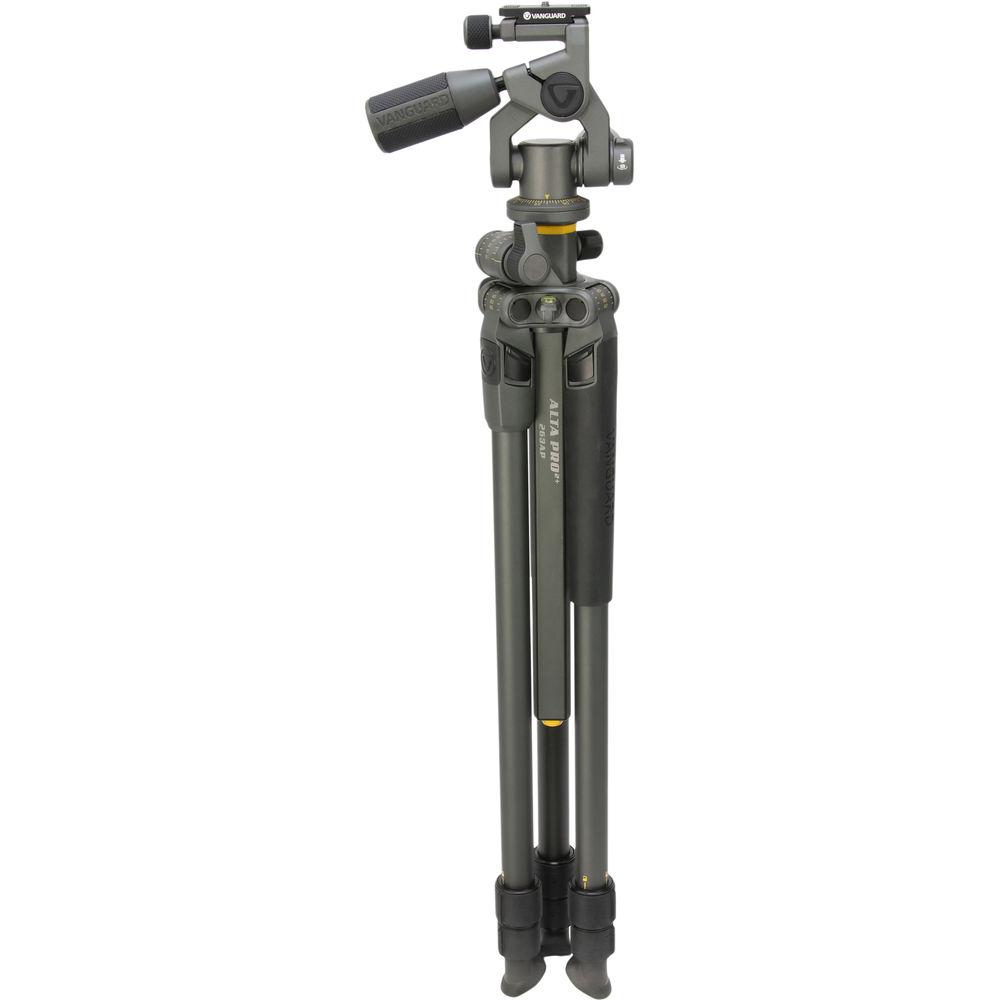

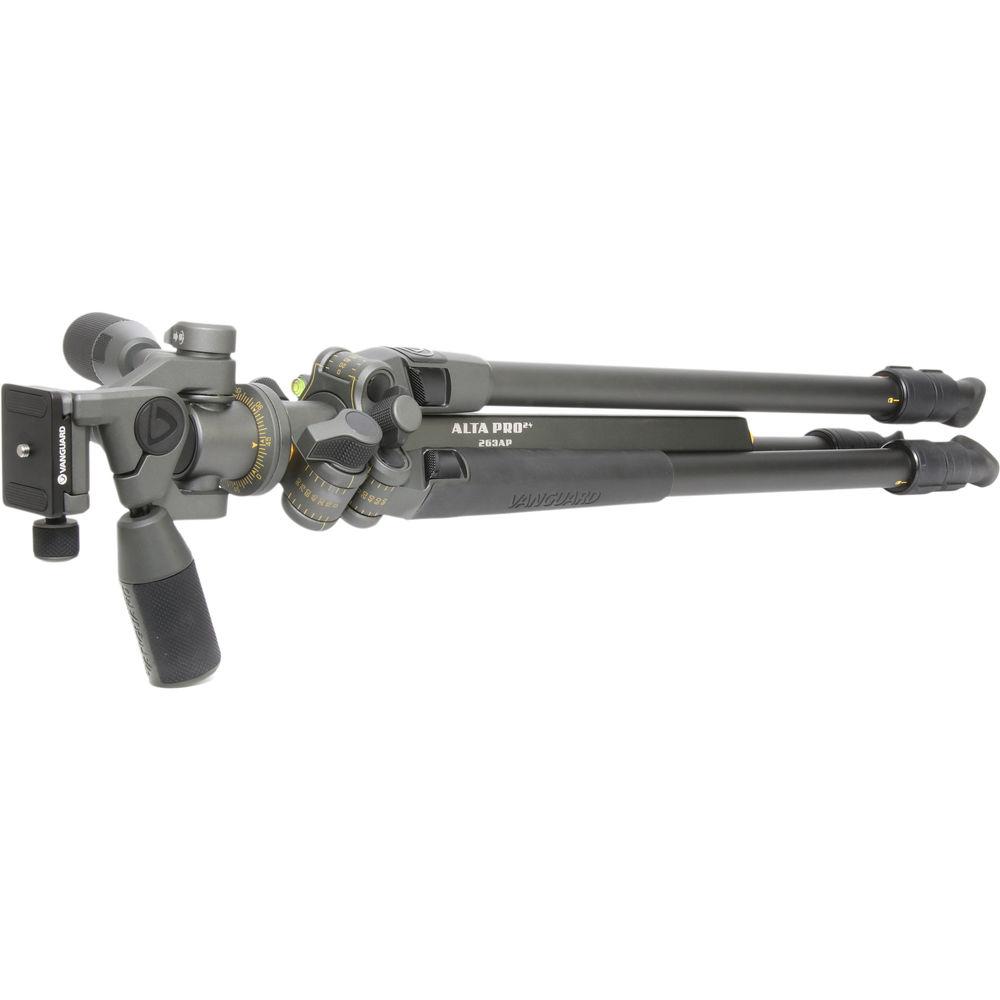

- Weighs 5.7 lb, measures 29.8" when folded
- 3-Way, Pan-and-Tilt Head
-
- Arca-type, 3-way, pan-and-tilt head
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Reducer bushing included for compatibility with tripods or support systems that feature a 1/4"-20 mount
- Can be rotated 360°, and tilted -60° backwards or 90° forwards
- Sideways +90°/-30° tilt angle for portrait orientation
- Two independent, user-extendable handles, one for backwards or forwards tilt, and one for sideways tilt
- Integrated clamp on top of head is compatible with included QS-60 V2 Quick Release Plate
- Built-in bubble level
- Integrated retaining pin on the clamp prevents QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened
- Durable, aluminum-alloy construction
UPC: 026196349105 In the Box Vanguard Alta Pro 2+ 263AP Aluminum-Alloy Tripod Kit with Alta PH-32 3-Way, Pan-and-Tilt Head QS-60 V2 Quick Release Plate 3/8"-16 to 1/4"-20 Reducer Bushing Tripod Bag Limited 10-Year Warranty Time-Lapse Tips and Tools Shawn C. Steiner 07/24/2018 uwvstxzy Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Alta Pro 2 263AP Aluminum-Alloy Tripod Kit with Alta PH-32 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ALTA PRO 2+ 263AP Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | | | Load Capacity | 11 lb / 5 kg | | Maximum Working Height | 69" / 175.3 cm | | Max Height without Center Column | 56.8" / 144.1 cm | | Folded Length | 29.8" / 75.7 cm | | Materials | Aluminum Alloy | | Weight | 5.7 lb / 2.6 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 4 Positions | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Bubble Level | Yes | | | | Center Column Features | Ballast Hook, 3/8"-16 Accessory Mounting Thread | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | Center Column Rotation | 360° | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 30.8 x 5.4 x 5.3" |
