Vanguard Alta Pro 2 263AT Aluminum

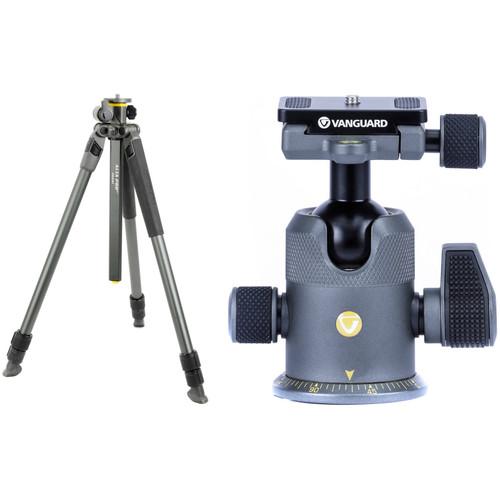

User Manual for Vanguard Alta Pro 2 263AT Aluminum Tripod with BH-250 Ball Head Kit

• Product category: Tripods with Heads Vanguard
• Brand: Vanguard
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vanguard Tripods with Heads

Product description

• Vanguard Alta Pro 2+ 263AT Aluminum Tripod The Vanguard Alta Pro 2+ 263AT Aluminum Tripod supports up to 15.4 lb, measures 24.6" when folded, and can be positioned to a maximum height of 64" with its push-and-pull, rapid center column fully raised. Its 3-section legs each feature an independent 20°, 40°, 60°, or 80° spread as well as 35° twist locks for rapid adjustments. Non-slip, all-weather TPU grips on two of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet enhance stability on a wide variety of surfaces. The center column has a hook for attaching a counterweight for even greater stability. Tripod heads, cameras, lenses, or sport optics that are compatible with 1/4"-20 or 3/8"-16 male threads connect to the top of the tripod's stable, hexagonal, cross arm-type center column that can be positioned horizontally like a small boom in in 15° increments. This allows for a very low minimum working of 15.4" that's ideal for macro work. A tripod bag with shoulder strap is included for storage and transport.
  MACC (Multi-Angle Center Column) System
  • The innovative Multi-Angle Central Column (MACC) System allows users to move the central column from zero to 180-degree angles in variable vertical and horizontal positions making macro-photography and special wide-angle shots easy.
  Leg Angle Selector
  • Achieve ideal positioning and balance of the tripod to match any working terrain, by using the 3-angle leg setting options of 20°, 40°, 60°, or 80°.
  Rugged Build and Stability Features
  • The patented premium magnesium die-cast canopy and head, hexagon-shaped central column for extra stability, and non-slip, spiked rubber feet for changing terrains.
  UPC: 026196349068
• Vanguard Alta BH-250 Ball Head The Alta BH-250 Ball Head from Vanguard is a 1.25 lb Arca-type head that can support cameras that weigh up to 44 lb. Located inside the clamp is a safety pin that prevents the plate from sliding out if the clamp is partially opened. Moreover, the 4.6" tall head has three separate knobs to control it; the main locking knob governs the movement of the ball, the friction control knob adds or decreases drag on the ball per your comfort level, and the third knob enables the ball head to pan a full 360°. A single-cut notch on the side allows a mounted camera to move in a 90° vertical angle. Mounting the ball head to a tripod is easily done via the 3/8"-16 thread, but a 1/4"-20 bushing adapter is included for those tripods with a smaller thread. Additionally, a QS-60 V2 Quick Shoe is also included with the ball head. UPC: 026196349648

• Alta Pro 2+ 263AT Aluminum Tripod sbyyybtyuycasfexrdxatabczuzeyfywsr
• Tripod Bag
• Limited 2-Year Warranty
• Limited 8-Year Warranty Extension after Product Registration

• Alta BH-250 Ball Head

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Vanguard Alta Pro 2+ 263AT Aluminum Tripod

  Load Capacity	15.4 lb / 6.99 kg
  Maximum Working Height	64" / 162.6 cm
  Minimum Working Height	15.4" / 39.1 cm
  Folded Length	24.6" / 62.48 cm
  Head Mount Type	1/4"-20 Male, 3/8"-16 Male
  Weight	4.3 lb / 1.95 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Twist Lock
  Leg Positions	4 Positions
  Independent Leg Spread	Yes
  Leg Sections	3
  Leg Diameter	1.02" / 26 mm
  Feet Features	Rubber

  Center Column Features	Ballast Hook
  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes
  Center Column Rotation	180°

  Box Dimensions (LxWxH)	26.1 x 5.3 x 5.3"

• Vanguard Alta BH-250 Ball Head

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread & 1/4"-20 with Bushing
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	Arca-Type
  Load Capacity	44 lb / 19.96 kg
  Number of Bubble Levels	2
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Aluminum

  Vertical Tilt
