User Manual for Vanguard Alta Pro 2 264AP Aluminum Tripod Kit with Alta PH-32 3-Way Fluid Pan Head Click to enlarge the picture
Contents of the user manual for the Vanguard Alta Pro 2 264AP Aluminum
- Product category: Tripods with Heads Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripods with Heads
 |
User manual for the Vanguard Alta Pro 2 264AP Aluminum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

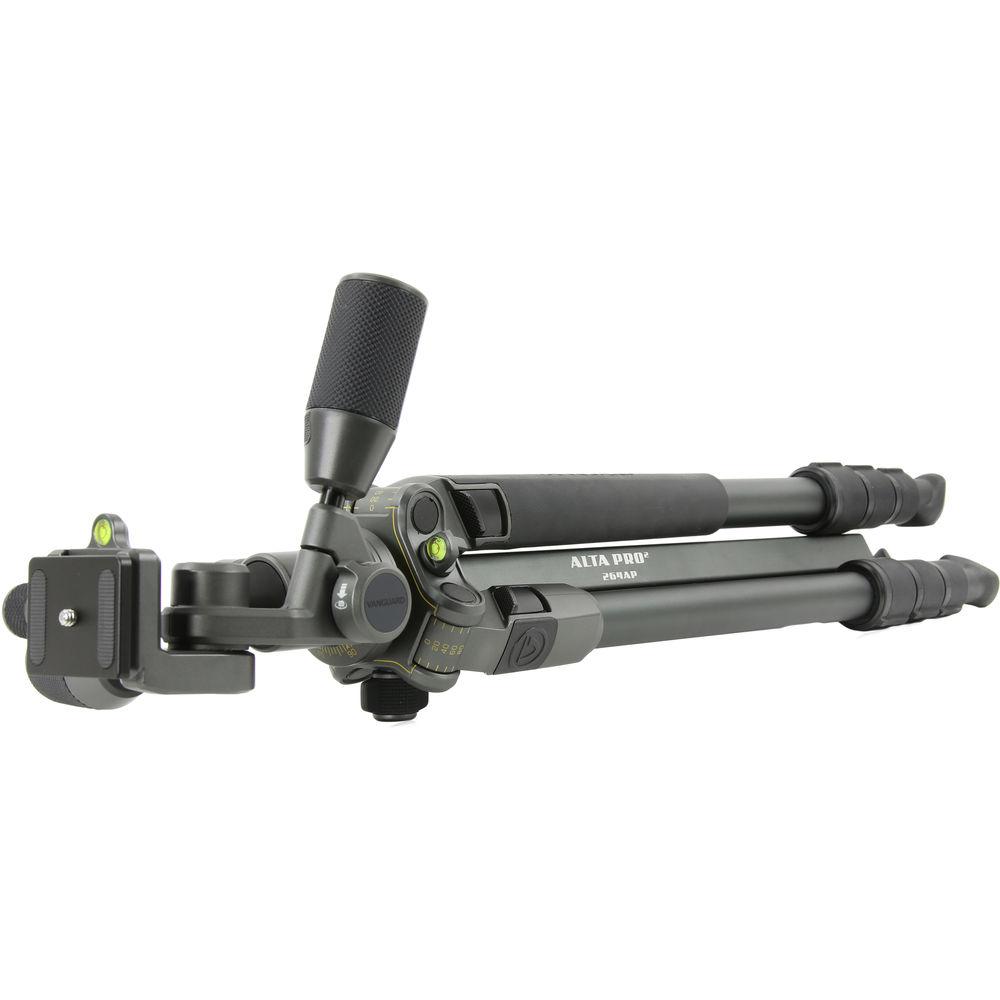

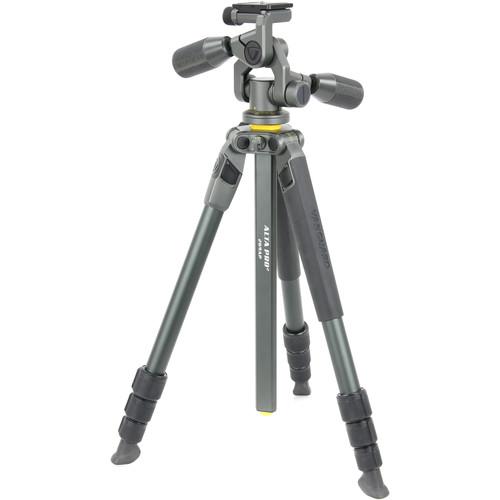

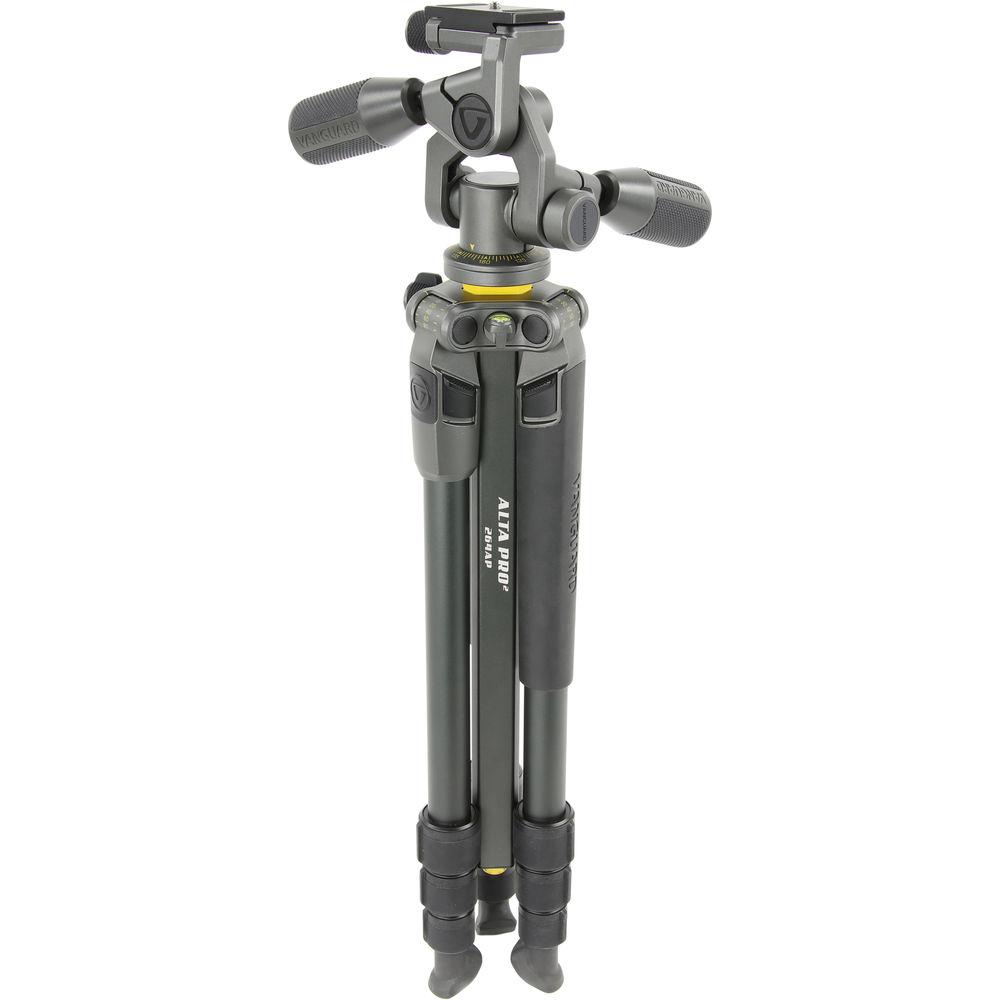

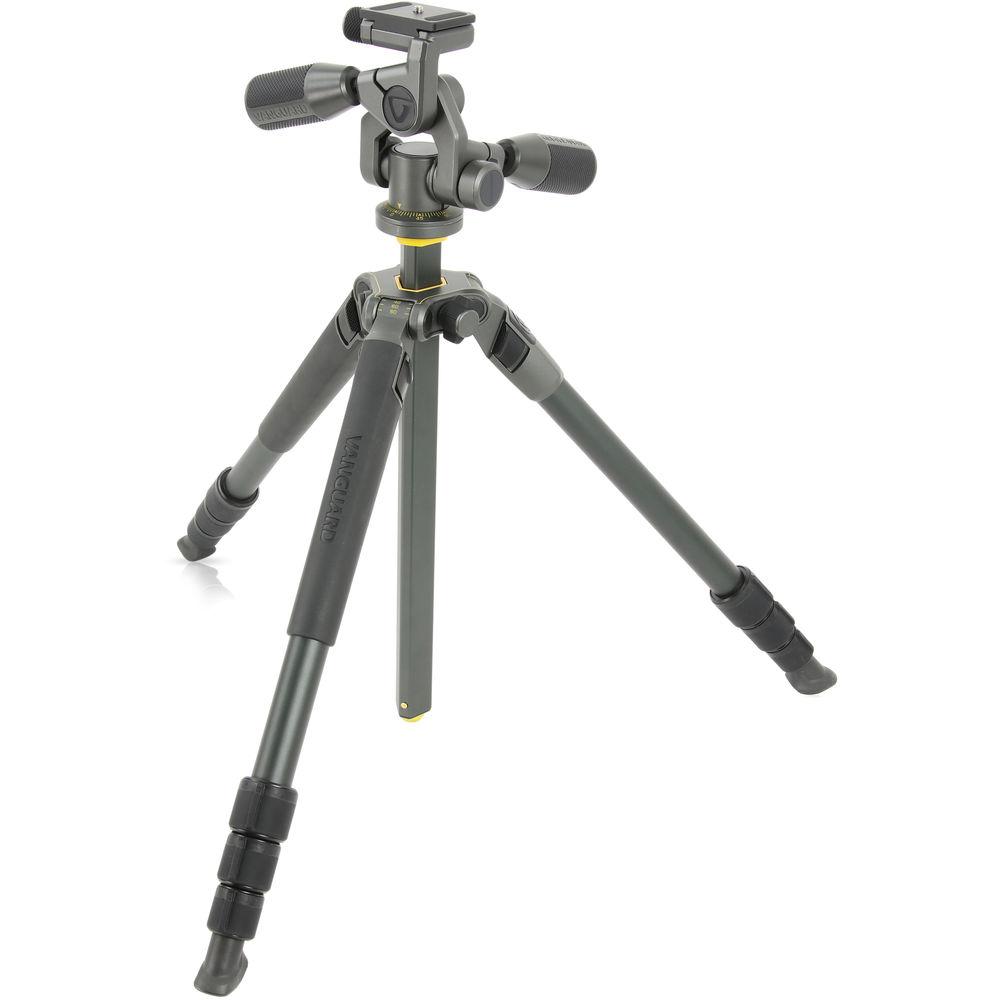

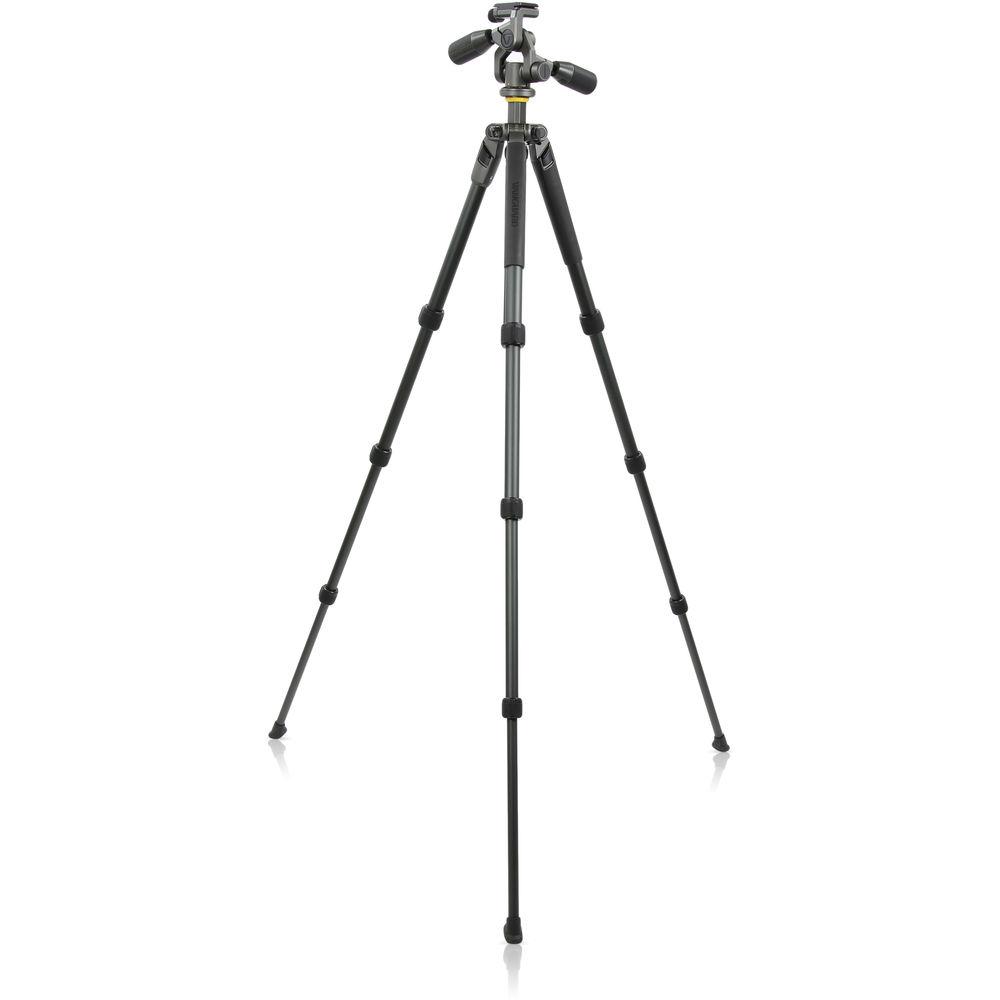

Product description Time-Lapse Tips and Tools Read More The Vanguard Alta Pro 2 264AP Aluminum Tripod with PH-32 Pan Head supports up to 11 lb, measures 23.6" when folded, and can rise to a maximum height of 64.25" with its rapid center column fully raised. Its 4-section legs each feature an independent 20°, 40°, 60°, or 80° spread as well as 35° twist locks for rapid adjustments. Non-slip, all-weather TPU grips on two of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet enhance stability on a wide variety of surfaces. The tripod spider (canopy) has a 3/8"-16 tap for attaching lights, articulating arms, and other accessories.The PH-32 3-Way Pan Head can be rotated 360° and tilted -30° backwards or +90° forward. For portrait orientation, it offers a lateral tilt range of -60° to +90°. Each of these movements function independently of each other and can be locked into place. The head has an Arca-compatible quick release. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QS-60 V2 Quick Release Plate which features a rubberized, non-slip platform. The plate can be attached or removed from the QR clamp located at the top of head by tightening or loosening the its knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin that prevents an installed QS-60 V2 plate from accidentally sliding off when the clamp is opened. - Central Column and Lock Mechanism
- The mechanism offers one-handed, effortless smooth operation and rapid set-up, while the unique faceted center column ensures enhanced rigidity and stability.
- Leg Angle Selector

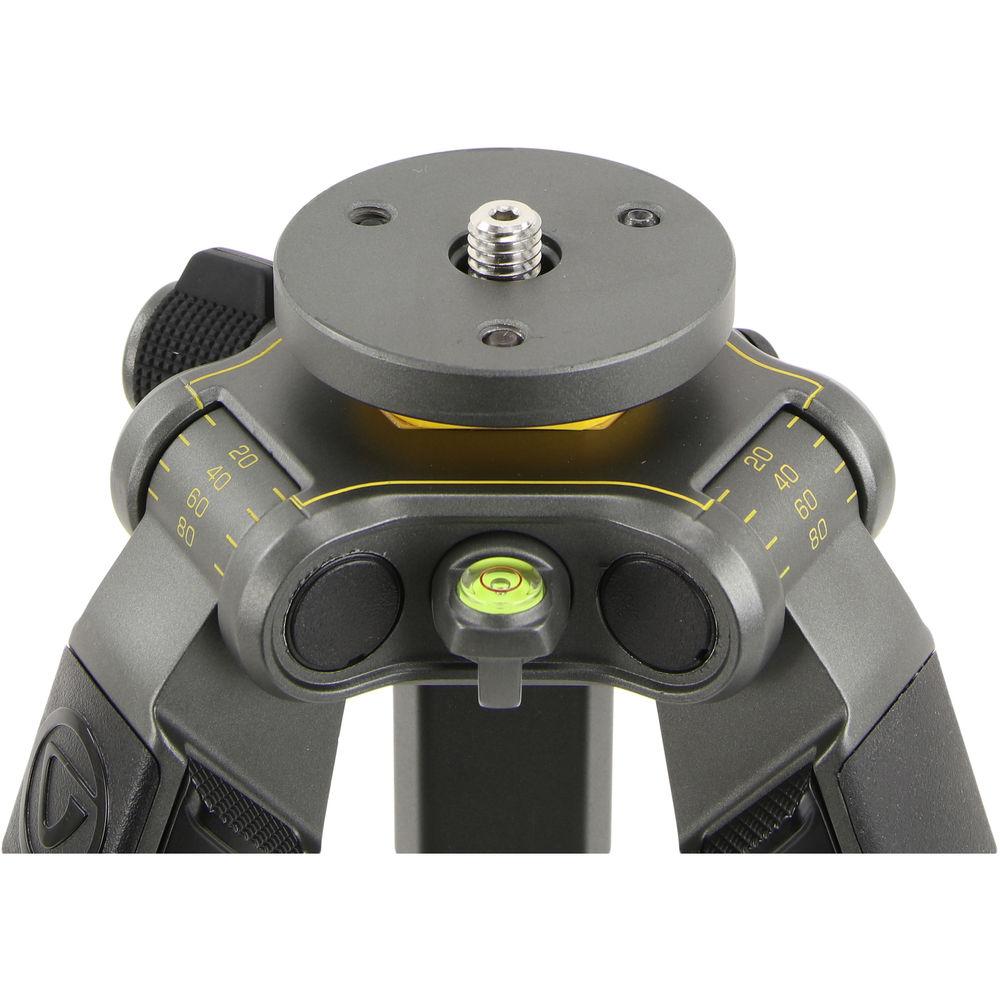

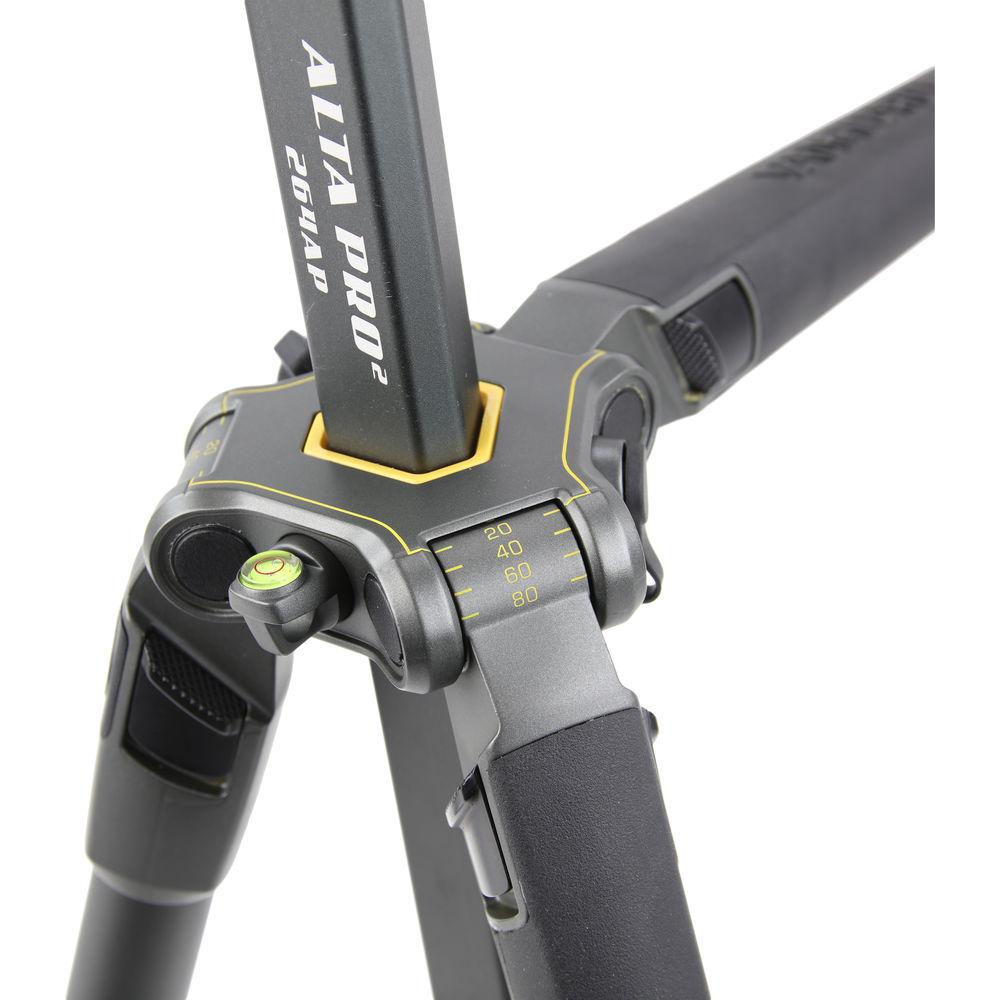

- Achieve ideal positioning and balance of the tripod to match any working terrain, by using the strong and steady 4-angle leg setting options of 20°, 40°, 60°, or 80°.
- Advanced Twist-Lock

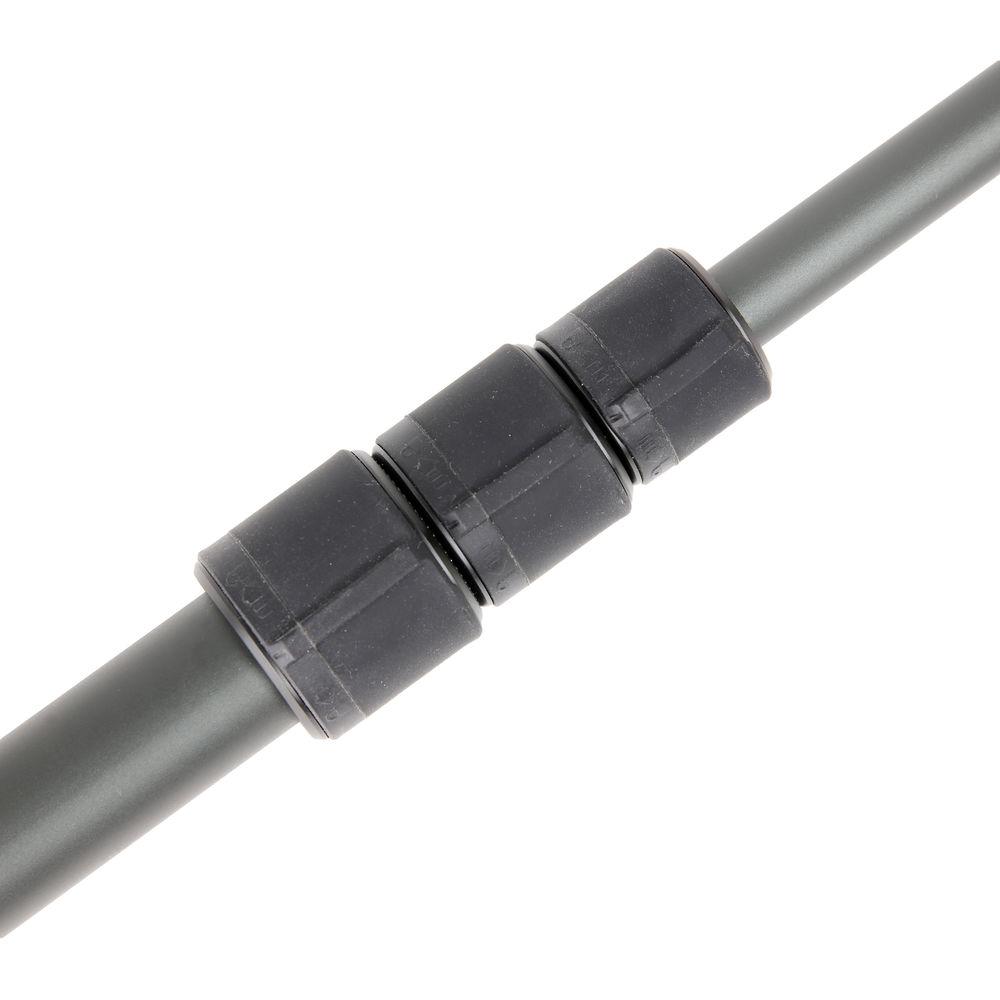

- Fast 35° turn to lock or unlock ensures instant leg extension/retraction.
- Alta Link

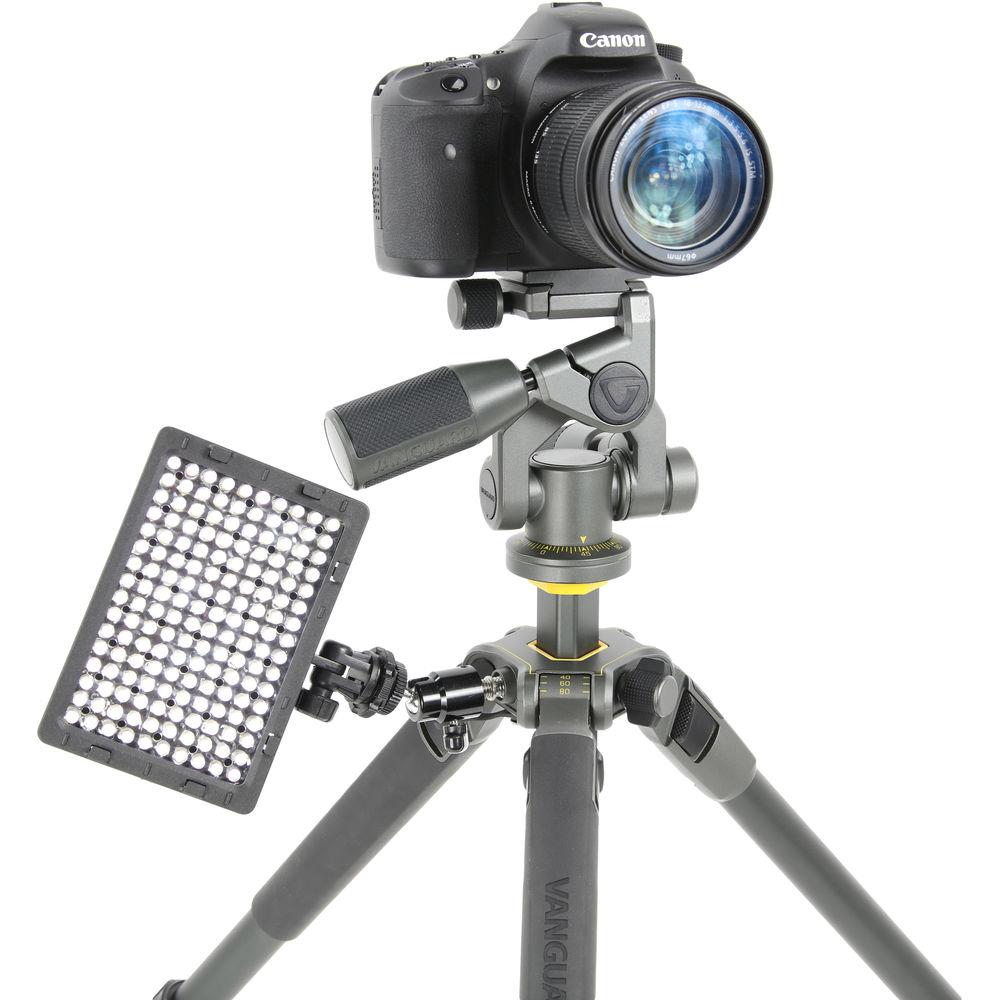

- The tripod canopy (spider) is fitted with a 3/8"-16 threaded connector which allows easy attachment of additional accessories, such as lighting equipment and articulated or flexible arms, thus offering users new creative possibilities.
- Multi Featured
- Its many features include: fitted bubble level and dedicated suspension loop to ensure ideal positioning and additional stability by hanging a counterweight or bags, non-slip, all-weather TPU grips on 2 legs and angled rubber feet to ensure a secure grip on any terrain (spiked feet sold separately). The included tripod bag is designed to fit any standard head combo.

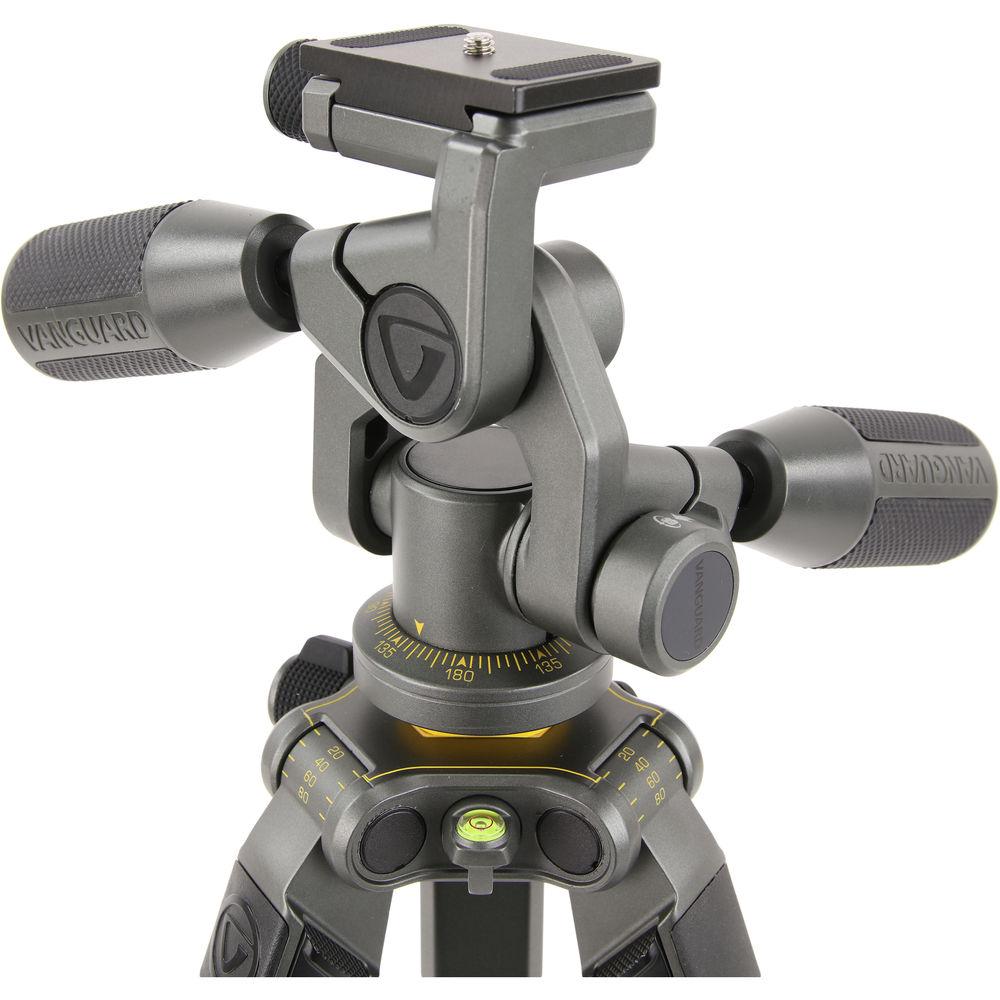

- Alta PH-32 3-Way Pan Head
- This fluid 3-way pan head weighs just 1.5 lb and features an 11 lb payload capacity. The Alta PH-32 offers superior handle ergonomics and precision thanks to the independent control of directions: one handle offers 360° panning and -30° to +90° back-to-front tilt, while the other maintains a lateral tilt range of -60° to +90°. Performance features include friction control and a locking system on vertical and lateral tilt handles, unique quick panorama function button for stitching panorama pictures together and a 360° scale on the base to ensure accurate matching. The head has a bubble level for panoramic photography or videography adjustments and an Arca-compatible quick release and camera plate for fast mounting and dismounting of your camera.
UPC: 026196349396 In the Box Vanguard Alta Pro 2 264AP Aluminum Tripod Kit with Alta PH-32 3-Way Fluid Pan Head Tripod Bag QS-60 V2 Quick Release Plate Limited 2-Year Warranty Limited 8-Year Warranty Extension after Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Alta Pro 2 264AP Aluminum Tripod Kit with Alta PH-32 3-Way Fluid Pan Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard 264AP Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 & 3/8"-16 Threads | | Quick Release Plate Type | Arca-Type | | Number of Bubble Levels | 1 | | | | Lateral Tilt | -60
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
