User Manual for Vanguard Alta Pro 2 264AT 4-Section Aluminum Tripod Click to enlarge the picture
Contents of the user manual for the Vanguard Alta Pro 2 264AT 4-Section
- Product category: Tripod Legs Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripod Legs
 |
User manual for the Vanguard Alta Pro 2 264AT 4-Section contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

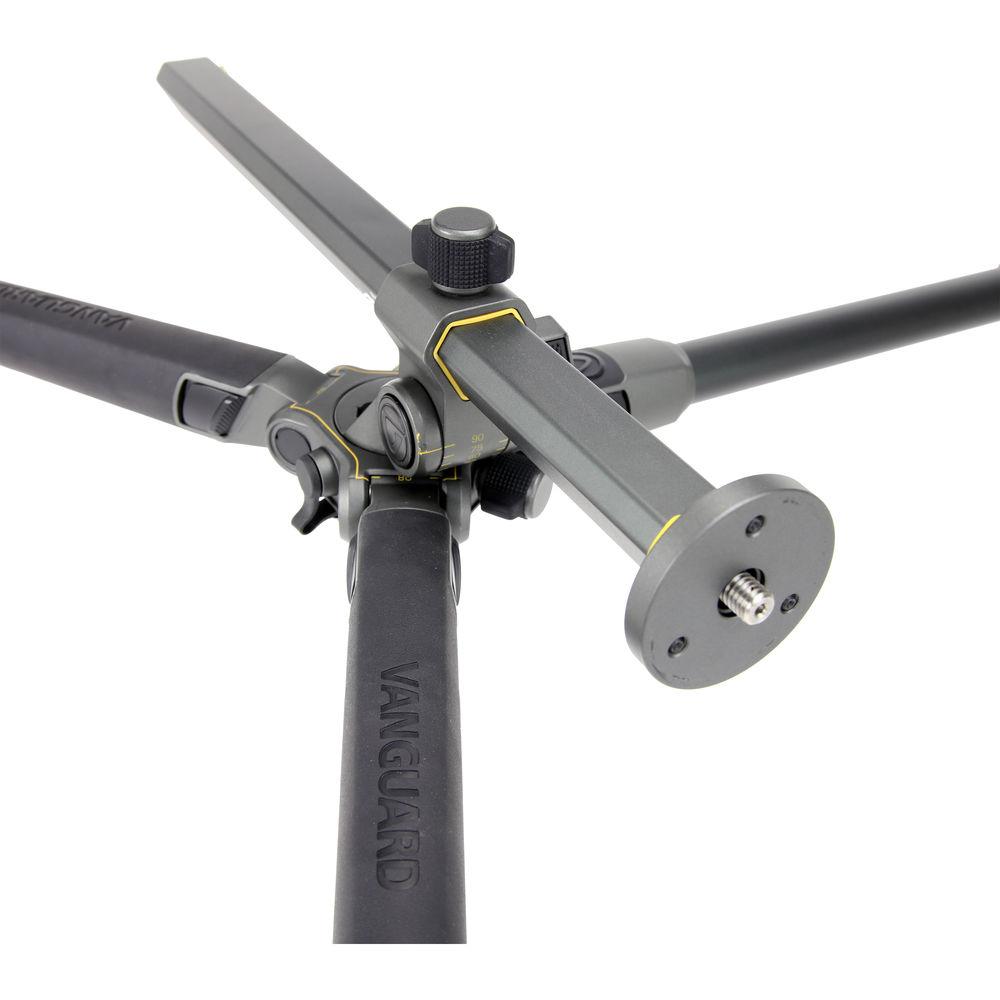

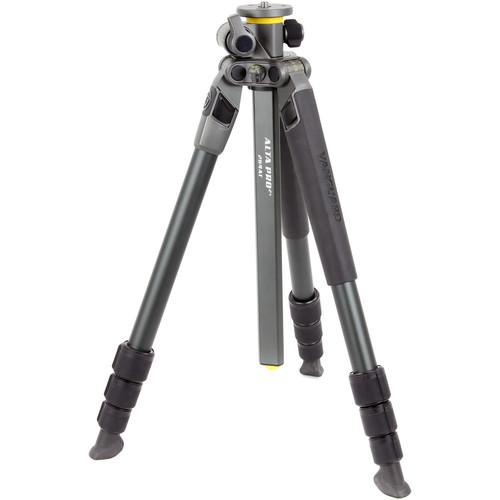

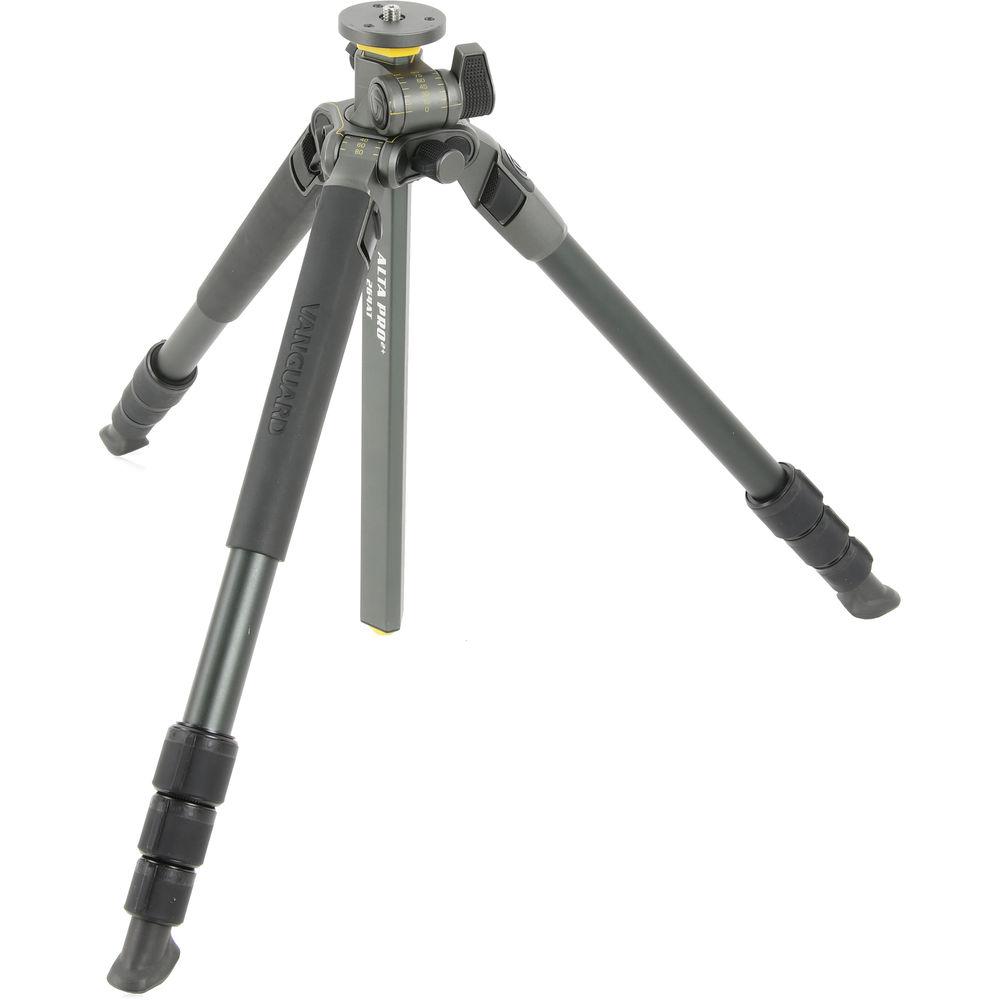

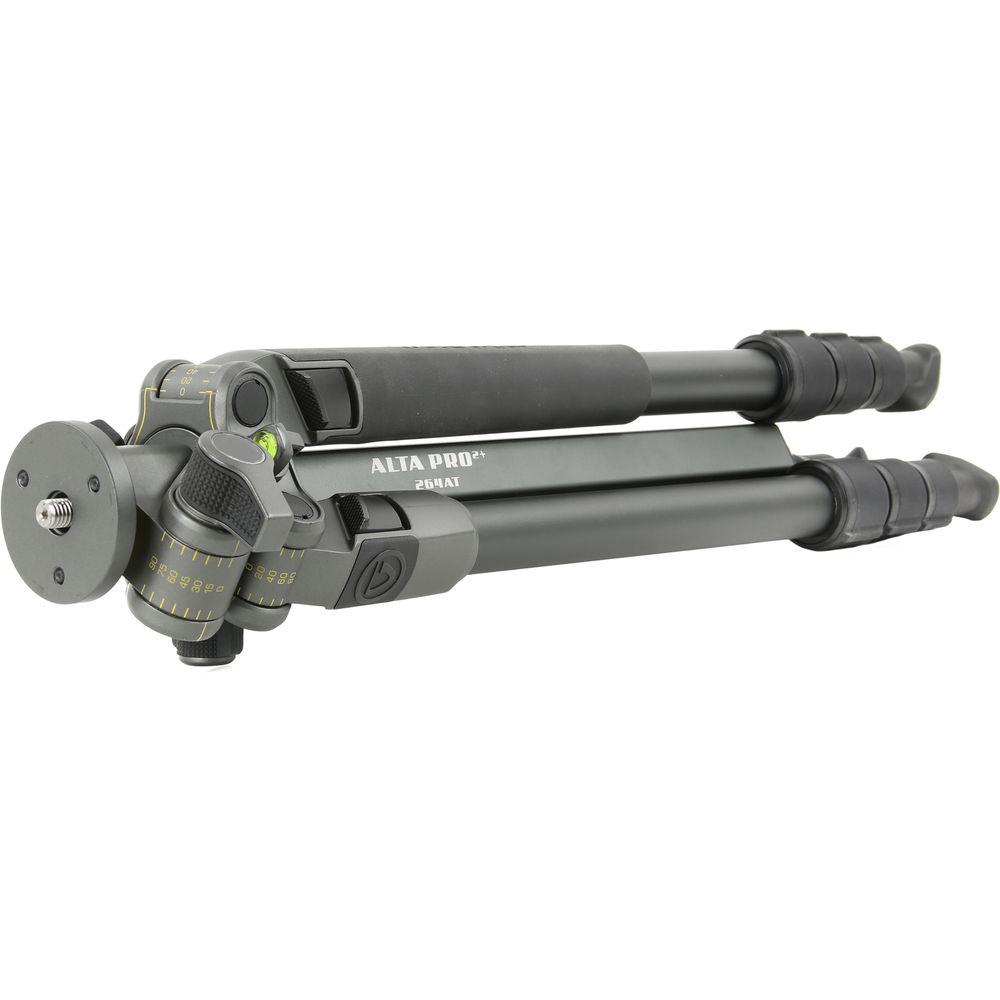

Product description The Vanguard Alta Pro 2+ 264AT Aluminum Tripod supports up to 15.4 lb, measures 19.9" when folded, and can be positioned to a maximum height of 59" with its push-and-pull, rapid center column fully raised. Its 4-section legs each feature an independent 20°, 40°, 60°, or 80° spread as well as 35° twist locks for rapid adjustments. Non-slip, all-weather TPU grips on two of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet enhance stability on a wide variety of surfaces.Tripod heads, cameras, lenses, or sport optics that are compatible with 1/4"-20 or 3/8"-16 male threads connect to top of the tripod's stable, hexagonal, cross arm-type center column that can be positioned horizontally like a small boom in in 15° increments. This allows for a very low minimum working distances that are ideal for macro work. A tripod bag with shoulder strap is included for storage and transport. - MACC (Multi-Angle Center Column System):

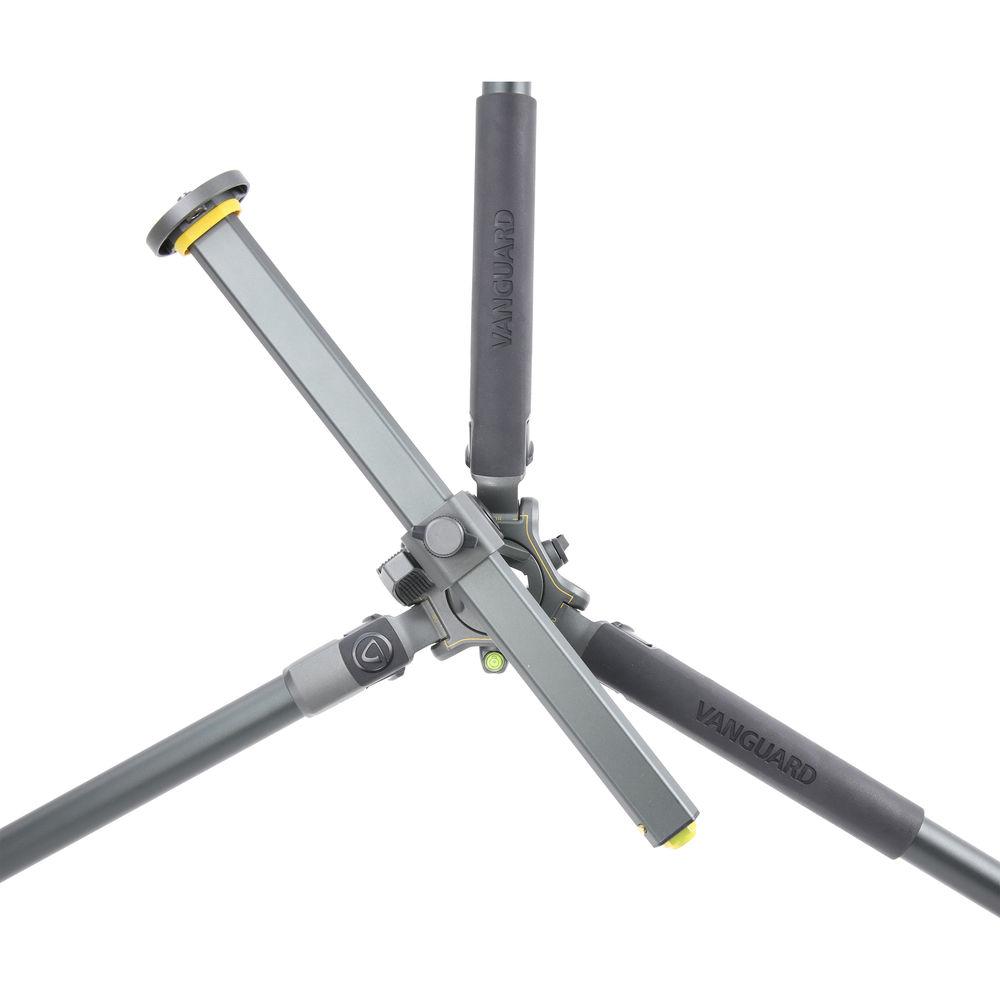

- With a unique quick action center column has simple and intuitive twist and lock positioning at any angle in 15° steps with a rotation range of -90° to +90°.

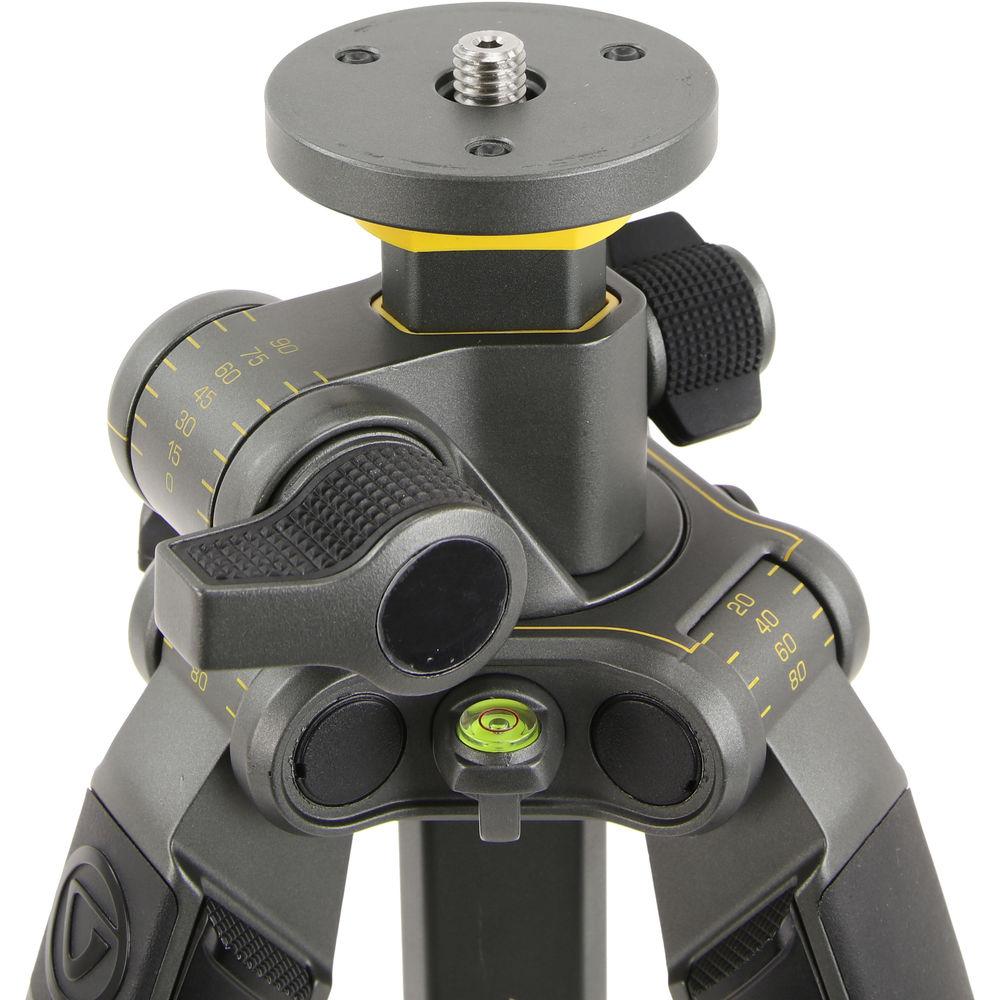

- Central Column and Lock Mechanism
- The mechanism offers one-handed, effortless smooth operation and rapid set-up, while the unique hexagonal central column ensures enhanced rigidity and stability.

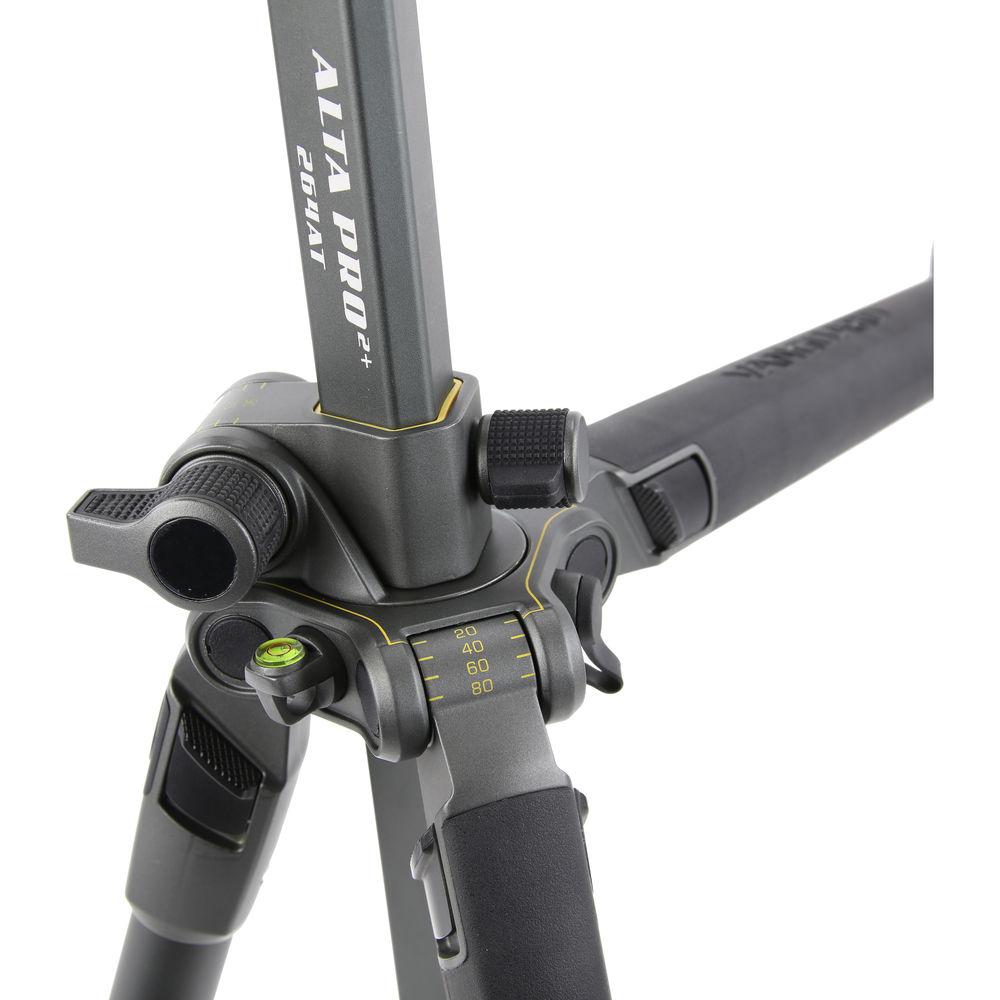

- Leg Angle Selector
- Achieve ideal positioning and balance of the tripod to match any working terrain, by using the strong and steady 4-angle leg setting options of 20°, 40°, 60°, or 80°.

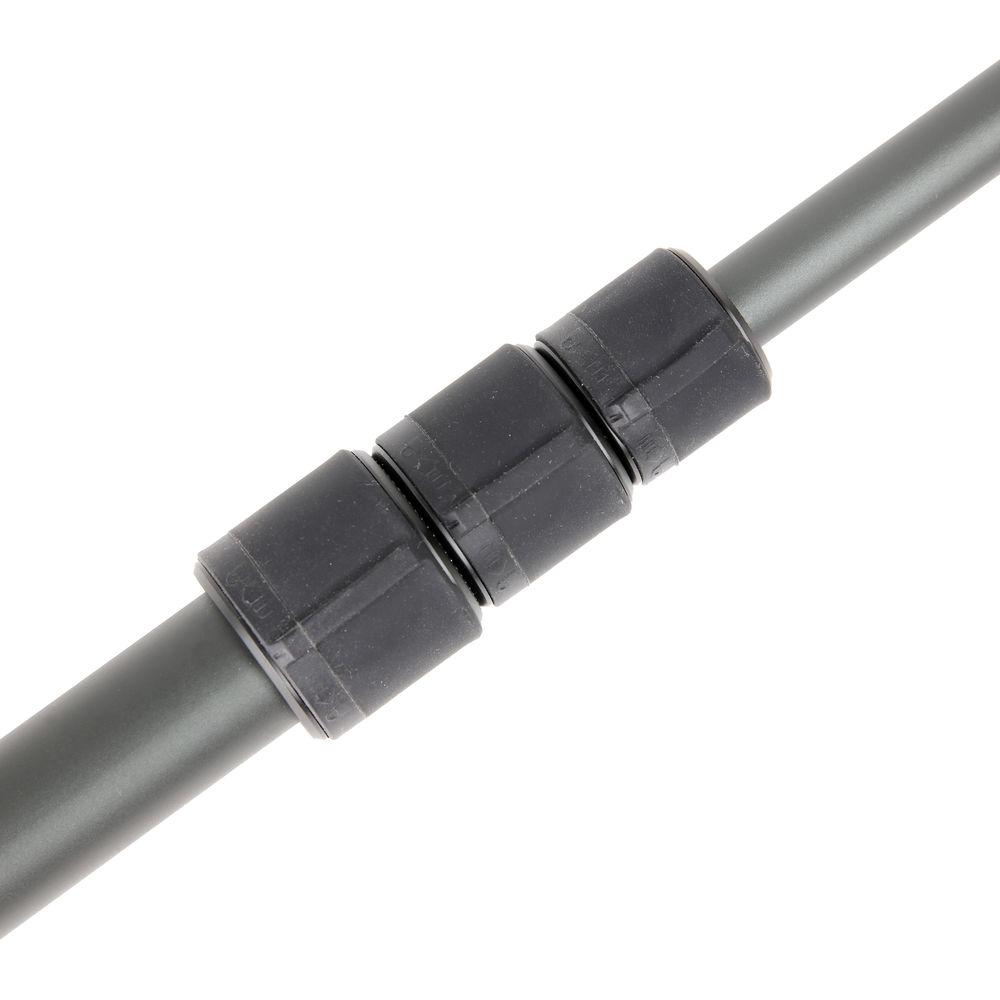

- Advanced Twist-Lock
- Fast 35° turn to lock or unlock ensures instant leg extension/retraction. This system is engineered to support a high load capacity in comparison with other tripods in its class.
- ALTA Link
- The tripod is fitted with a 3/8"-16 threaded connector, which allow easy attachment of additional accessories, such as lighting equipment and articulated or flexible arms, thus offering users new creative possibilities.
- Multi Featured
- Its many features include: fitted bubble level and dedicated suspension loop to ensure ideal positioning and additional stability by hanging a counterweight or bags; non-slip, all-weather TPU grips on 2 legs; angled rubber feet to ensure a secure grip on any terrain (spiked feet sold separately). Included tripod bag is designed to fit any standard head combo.
UPC: 026196349112 In the Box Vanguard Alta Pro 2+ 264AT 4-Section Aluminum Tripod Tripod Bag Limited 2-Year Warranty Limited 8-Year Warranty Extension after Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Alta Pro 2 264AT 4-Section Aluminum Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard ALTA PRO 2+ 264AT Specs | | | Load Capacity | 15.4 lb / 6.99 kg | | Maximum Working Height | 59" / 149.9 cm | | Folded Length | 19.9" / 50.55 cm | | Weight | 4.2 lb / 1.91 kg | | Materials | Aluminum Alloy | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Leg Positions | 4 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Feet Features | Rubber | | | | Center Column Features | Ballast Hook | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | Center Column Rotation | 90° | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 21.1 x 5.3 x 5.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
