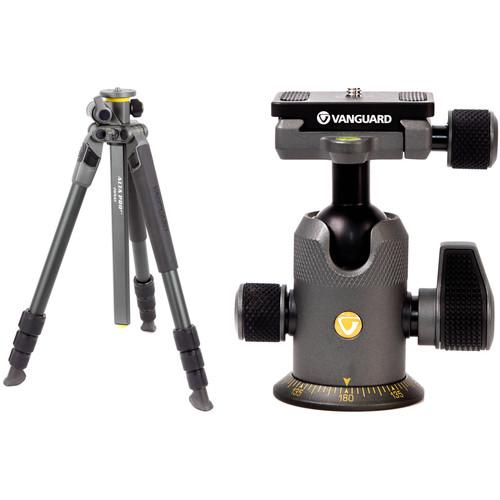

User Manual for Vanguard Alta Pro 2 264AT Aluminum Tripod with BH-100 Ball Head Kit

• Product category: Tripods with Heads Vanguard
• Brand: Vanguard
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vanguard Tripods with Heads

Product description

• Vanguard Alta Pro 2+ 264AT 4-Section Aluminum Tripod The Vanguard Alta Pro 2+ 264AT Aluminum Tripod supports up to 15.4 lb, measures 19.9" when folded, and can be positioned to a maximum height of 59" with its push-and-pull, rapid center column fully raised. Its 4-section legs each feature an independent 20°, 40°, 60°, or 80° spread as well as 35° twist locks for rapid adjustments. Non-slip, all-weather TPU grips on two of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet enhance stability on a wide variety of surfaces.Tripod heads, cameras, lenses, or sport optics that are compatible with 1/4"-20 or 3/8"-16 male threads connect to top of the tripod's stable, hexagonal, cross arm-type center column that can be positioned horizontally like a small boom in in 15° increments. This allows for a very low minimum working distances that are ideal for macro work. A tripod bag with shoulder strap is included for storage and transport.
  MACC (Multi-Angle Center Column System):
  • With a unique quick action center column has simple and intuitive twist and lock positioning at any angle in 15° steps with a rotation range of -90° to +90°.
  Central Column and Lock Mechanism
  • The mechanism offers one-handed, effortless smooth operation and rapid set-up, while the unique hexagonal central column ensures enhanced rigidity and stability.
  Leg Angle Selector
  • Achieve ideal positioning and balance of the tripod to match any working terrain, by using the strong and steady 4-angle leg setting options of 20°, 40°, 60°, or 80°.
  Advanced Twist-Lock
  • Fast 35° turn to lock or unlock ensures instant leg extension/retraction. This system is engineered to support a high load capacity in comparison with other tripods in its class.
  ALTA Link
  • The tripod is fitted with a 3/8"-16 threaded connector, which allow easy attachment of additional accessories, such as lighting equipment and articulated or flexible arms, thus offering users new creative possibilities.
  Multi Featured
  • Its many features include: fitted bubble level and dedicated suspension loop to ensure ideal positioning and additional stability by hanging a counterweight or bags; non-slip, all-weather TPU grips on 2 legs; angled rubber feet to ensure a secure grip on any terrain (spiked feet sold separately). Included tripod bag is designed to fit any standard head combo.
  UPC: 026196349112
• Vanguard Alta BH-100 Ball Head The Vanguard Alta BH-100 is an Arca-type ball head that has a load capacity of 22.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. A reducer bushing is provided, which allows this ball head to be attached to tripods or other support systems that feature a 1/4"-20 mount.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QS-60 V2 Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin. This pin prevents an installed QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened. The quick release plate features a rubberized, non-slip platform while two built-in bubble levels along the edges of the clamp accommodate landscape or portrait orientations.

  By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by rotating the friction knob located above the primary locking knob. Toward the side of the ball head opposite the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.
  • • Arca-type ball head with 22.0 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Reducer bushing included for compatibility with tripods or support systems that feature a 1/4"-20 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Large, primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Knurled friction knob located above the primary locking knob applies variable tension on the ball-and-socket joint's movements
    • Secondary locking knob with knurled surface allows head to rotate 360°
    • Integrated clamp on top of on the ball-and-socket joint is compatible with included QS-60 V2 Quick Release Plate
    • Two built-in bubble levels along the edges of the clamp accommodate landscape or portrait orientations
    • Integrated retaining pin on the clamp prevents QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened
    • Durable, aluminum-alloy construction
  UPC: 026196349419

• Alta Pro 2+ 264AT 4-Section Aluminum Tripod sbyyybtyuycasfexrdxatabczuzeyfywsr
• Tripod Bag
• Limited 2-Year Warranty
• Limited 8-Year Warranty Extension after Product Registration

• Alta BH-100 Ball Head

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Vanguard Alta Pro 2+ 264AT 4-Section Aluminum Tripod

  Load Capacity	15.4 lb / 6.99 kg
  Maximum Working Height	59" / 149.9 cm
  Folded Length	19.9" / 50.55 cm
  Weight	4.2 lb / 1.91 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Twist Lock
  Leg Positions	4 Positions
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Rubber

  Center Column Features	Ballast Hook
  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes
  Center Column Rotation	90°

  Box Dimensions (LxWxH)	21.1 x 5.3 x 5.2"

• Vanguard Alta BH-100 Ball Head

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	Arca-Type
  Load Capacity	22 lb / 10 kg
  Number of Bubble Levels	2
  Friction Control	Yes
  Independent Pan Lock	Yes

  Ball Sphere Diameter	1.26" / 32 mm
