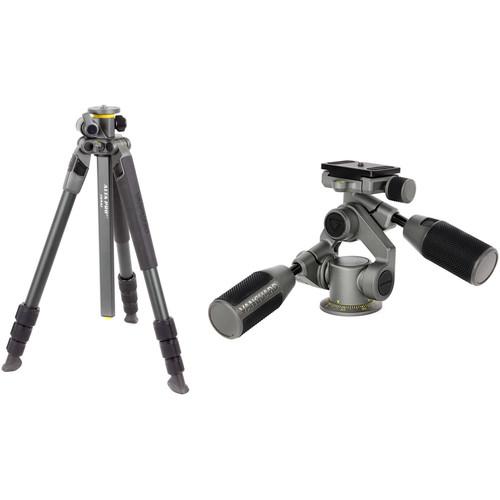

User Manual for Vanguard Alta Pro 2 264AT Aluminum Tripod with PH-32 Pan Head Kit

• Product category: Tripods with Heads Vanguard
• Brand: Vanguard
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vanguard Tripods with Heads

Product description

• Vanguard Alta Pro 2+ 264AT 4-Section Aluminum Tripod The Vanguard Alta Pro 2+ 264AT Aluminum Tripod supports up to 15.4 lb, measures 19.9" when folded, and can be positioned to a maximum height of 59" with its push-and-pull, rapid center column fully raised. Its 4-section legs each feature an independent 20°, 40°, 60°, or 80° spread as well as 35° twist locks for rapid adjustments. Non-slip, all-weather TPU grips on two of the legs provide a secure, comfortable grip while moving the tripod, and rubber feet enhance stability on a wide variety of surfaces.Tripod heads, cameras, lenses, or sport optics that are compatible with 1/4"-20 or 3/8"-16 male threads connect to top of the tripod's stable, hexagonal, cross arm-type center column that can be positioned horizontally like a small boom in in 15° increments. This allows for a very low minimum working distances that are ideal for macro work. A tripod bag with shoulder strap is included for storage and transport.
  MACC (Multi-Angle Center Column System):
  • With a unique quick action center column has simple and intuitive twist and lock positioning at any angle in 15° steps with a rotation range of -90° to +90°.
  Central Column and Lock Mechanism
  • The mechanism offers one-handed, effortless smooth operation and rapid set-up, while the unique hexagonal central column ensures enhanced rigidity and stability.
  Leg Angle Selector
  • Achieve ideal positioning and balance of the tripod to match any working terrain, by using the strong and steady 4-angle leg setting options of 20°, 40°, 60°, or 80°.
  Advanced Twist-Lock
  • Fast 35° turn to lock or unlock ensures instant leg extension/retraction. This system is engineered to support a high load capacity in comparison with other tripods in its class.
  ALTA Link
  • The tripod is fitted with a 3/8"-16 threaded connector, which allow easy attachment of additional accessories, such as lighting equipment and articulated or flexible arms, thus offering users new creative possibilities.
  Multi Featured
  • Its many features include: fitted bubble level and dedicated suspension loop to ensure ideal positioning and additional stability by hanging a counterweight or bags; non-slip, all-weather TPU grips on 2 legs; angled rubber feet to ensure a secure grip on any terrain (spiked feet sold separately). Included tripod bag is designed to fit any standard head combo.
  UPC: 026196349112
• Vanguard ALTA PH-32 3-Way Pan Head (Aluminum) The aluminum ALTA PH-32 3-Way Pan Head from Vanguard is a 1.5 lb Arca-type compatible support that has a load capacity of 11 lb. The head has two separate handle locks, one for the vertical tilt and the other handle locks the lateral tilt and panning simultaneously. The front tilting range is -60° to +90°, the lateral range is -30° to +90°, and the head can rotate a full 360°. In addition, the 5.2" tall support has two bubble levels, and includes a quick plate with a safety pin, which prevents the plate from sliding or falling out if the clamp was partially opened by accident. UPC: 026196349426

• Alta Pro 2+ 264AT 4-Section Aluminum Tripod uyvyryqbterb
• Tripod Bag
• Limited 2-Year Warranty
• Limited 8-Year Warranty Extension after Product Registration

• ALTA PH-32 3-Way Pan Head (Aluminum)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Vanguard Alta Pro 2+ 264AT 4-Section Aluminum Tripod

  Load Capacity	15.4 lb / 6.99 kg
  Maximum Working Height	59" / 149.9 cm
  Folded Length	19.9" / 50.55 cm
  Weight	4.2 lb / 1.91 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Twist Lock
  Leg Positions	4 Positions
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Rubber

  Center Column Features	Ballast Hook
  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes
  Center Column Rotation	90°

  Box Dimensions (LxWxH)	21.1 x 5.3 x 5.2"

• Vanguard ALTA PH-32 3-Way Pan Head (Aluminum)

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Female & 1/4"-20 with Bushing
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	Arca-Type
  Load Capacity	11 lb / 4.99 kg
  Number of Bubble Levels	2
  Friction Control	No
  Independent Pan Lock	Yes
  Material	Aluminum

  Lateral Tilt
