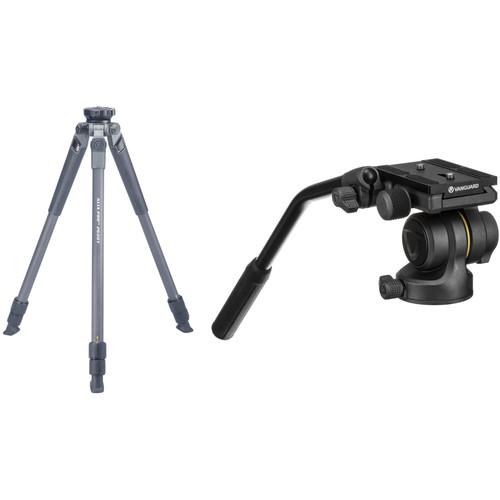

User Manual for Vanguard Alta Pro 2V 263CT Carbon Fiber Tripod Kit with PH-114V Video Head Click to enlarge the picture
Contents of the user manual for the Vanguard Alta Pro 2V 263CT Carbon
- Product category: Tripod Systems Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripod Systems
|
User manual for the Vanguard Alta Pro 2V 263CT Carbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|
Product description The Vanguard Alta Pro 2V 263CT Carbon Fiber Tripod Kit from B&H Photo supports camera rigs up to 13.2 lb and includes a PH-114V video head with a QS-61 Arca-Swiss-type quick release plate. The lightweight tripod features a 75mm half ball for quick leveling, and the head features 360° of pan and 45 to 90° of tilt for smooth moves. - Vanguard Alta Pro 2V 263CT Carbon Fiber Tripod The Alta Pro 2V 263CT Carbon Fiber Tripod from Vanguard maintains your horizon leveled with its built-in 75mm leveling half ball and its two bubble levels on the top plate. The top plate accepts a head with a 3/8"-16 socket and has locking set screws that secure the head. With a load capacity of 13.2 lb, the tripod supports a spotting scope, a video camera, or a mirrorless or DSLR camera up to that weight comfortably. The 3.5 lb, three section tripod has twist leg locks that disengage with a quarter turn, and at the top of each lock there is a marking that shows whether the lock is open or closed. Extending all the sections gets you a maximum height of 51.1" and with multi-leg angles, you can splay the legs out completely to a minimum height 6.1". There are four angles of 20, 40, 60, and 80° that are indicated with labeled degree markings. Additionally, the support folds down to 23.9" for transport or storage, and the tripod legs feature rubber feet that prevent sliding on smooth surfaces and provide a better grip on uneven terrain. UPC: 026196350699
- Vanguard ALTA PH-114V Magnesium Alloy Video Head The Vanguard ALTA PH-114V Magnesium Alloy Video Head supports cameras and accessories weighing up to 17.6 pounds. The Arca-type camera plate, with one sliding and one fixed screw, slides within the top of the tripod head's camera platform enabling precision balance adjustments. The head itself features a 58mm diameter flat base with a 3/8"-16 receiver, allowing you to mount it to a wide variety of camera supports such as tripod legs, sliders, and half ball leveling adapters.
The head features fluid action for smooth pans and tilts, with a tilt range of -45 to 90°, and 360° of pan. The head incorporates a bubble level and pan handle rosettes on the left and right sides (only one handle is included). UPC: 026196349655 In the Box - Alta Pro 2V 263CT Carbon Fiber Tripod
- Tripod Bag
- Limited 2-Year Warranty (Extended 8 Years with Online Registration)
- ALTA PH-114V Magnesium Alloy Video Head
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Alta Pro 2V 263CT Carbon Fiber Tripod Kit with PH-114V Video Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vanguard Alta Pro 2V 263CT Carbon Fiber Tripod
| | | Load Capacity | 13.2 lb / 5.99 kg | | Maximum Working Height | 51.1" / 129.8 cm | | Minimum Working Height | 6.1" / 15.5 cm | | Folded Length | 23.9" / 60.71 cm | | Head Mount Type | 3/8"-16 Male | | Weight | 3.5 lb / 1.59 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Twist Lock | | Leg Positions | 4 Positions | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Leg Diameter | 1.02" / 26 mm | | Feet Features | Rubber | | | | Box Dimensions (LxWxH) | 24.4 x 5.0 x 4.8" | - Vanguard ALTA PH-114V Magnesium Alloy Video Head
| | | Camera Plate Features | Quick Release | | Camera Plate Type | Arca-type | | | | Base Mount | 3/8"-16 Female | | | | Drag Control | Fixed | | Vertical Tilt | +90
