Vanguard ALTA PRO 2V 263CV Carbon

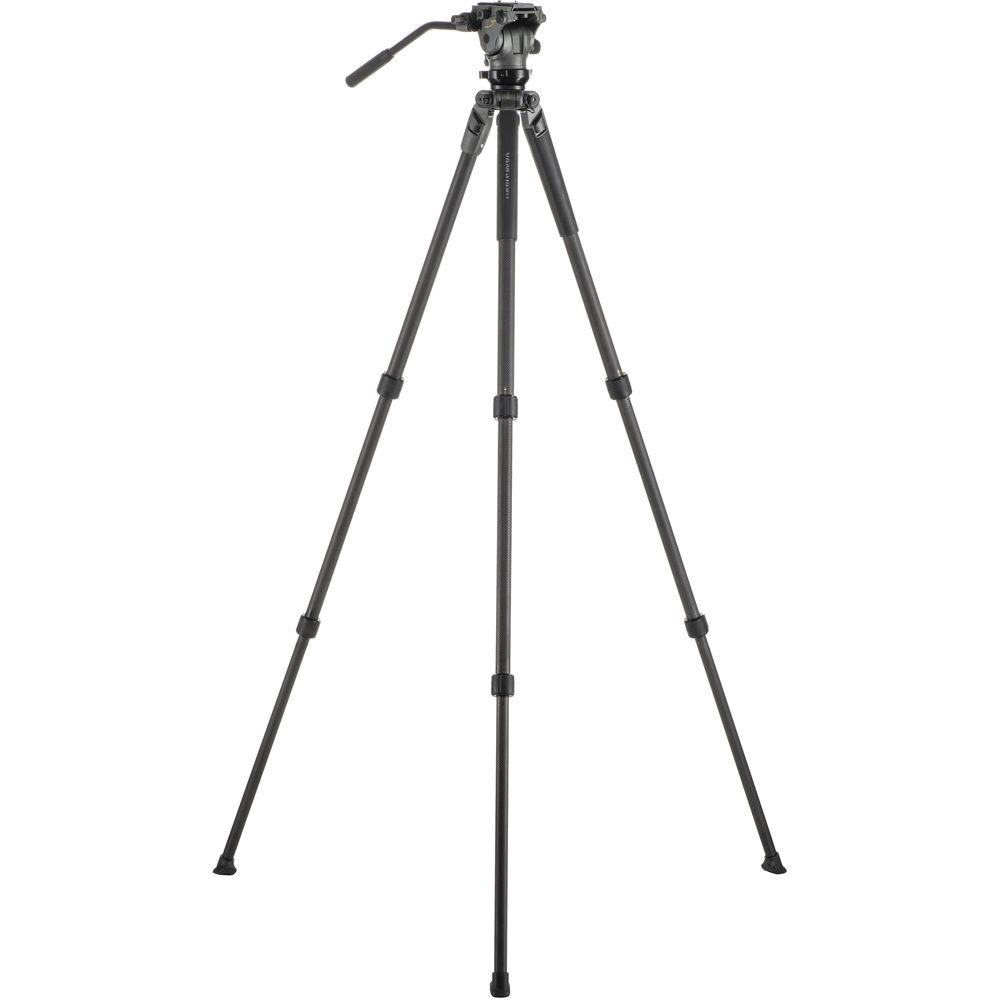

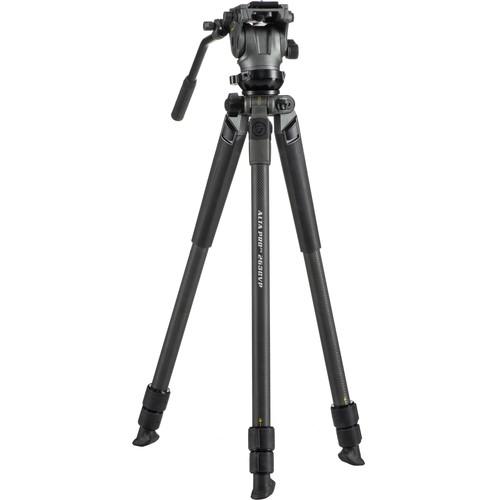

User Manual for Vanguard ALTA PRO 2V 263CV Carbon Fiber Tripod with ALTA PH-123V Head

• Product category: Tripod Systems Vanguard
• Brand: Vanguard
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vanguard Tripod Systems

Product description

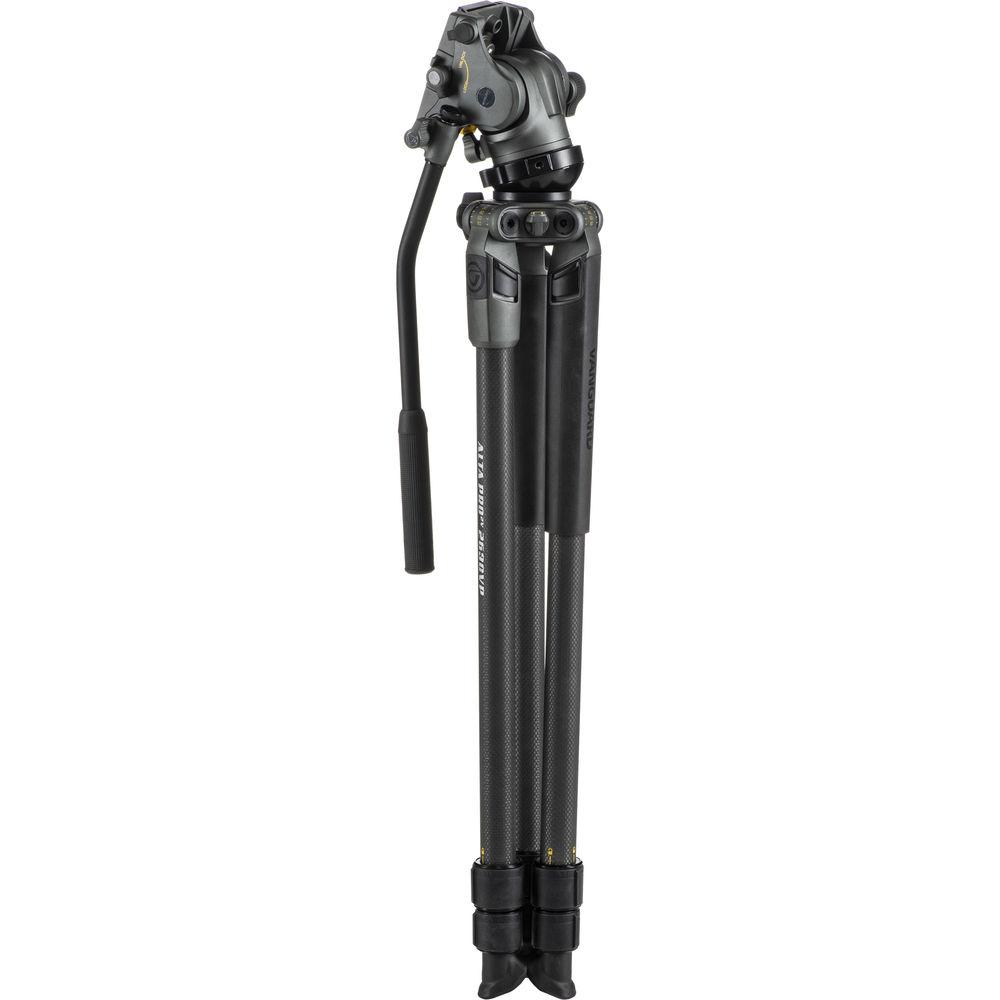

• Alta Pro 2V 263CT Carbon Fiber Tripod The Alta Pro 2V 263CT Carbon Fiber Tripod from Vanguard maintains your horizon leveled with its built-in 75mm leveling half ball and its two bubble levels on the top plate. The top plate accepts a head with a 3/8"-16 socket and has locking set screws that secure the head. With a load capacity of 13.2 lb, the tripod supports a spotting scope, a video camera, or a mirrorless or DSLR camera up to that weight comfortably. The 3.5 lb, three section tripod has twist leg locks that disengage with a quarter turn, and at the top of each lock there is a marking that shows whether the lock is open or closed. Extending all the sections gets you a maximum height of 51.1" and with multi-leg angles, you can splay the legs out completely to a minimum height 6.1". There are four angles of 20, 40, 60, and 80° that are indicated with labeled degree markings. Additionally, the support folds down to 23.9" for transport or storage, and the tripod legs feature rubber feet that prevent sliding on smooth surfaces and provide a better grip on uneven terrain. UPC: 026196350699

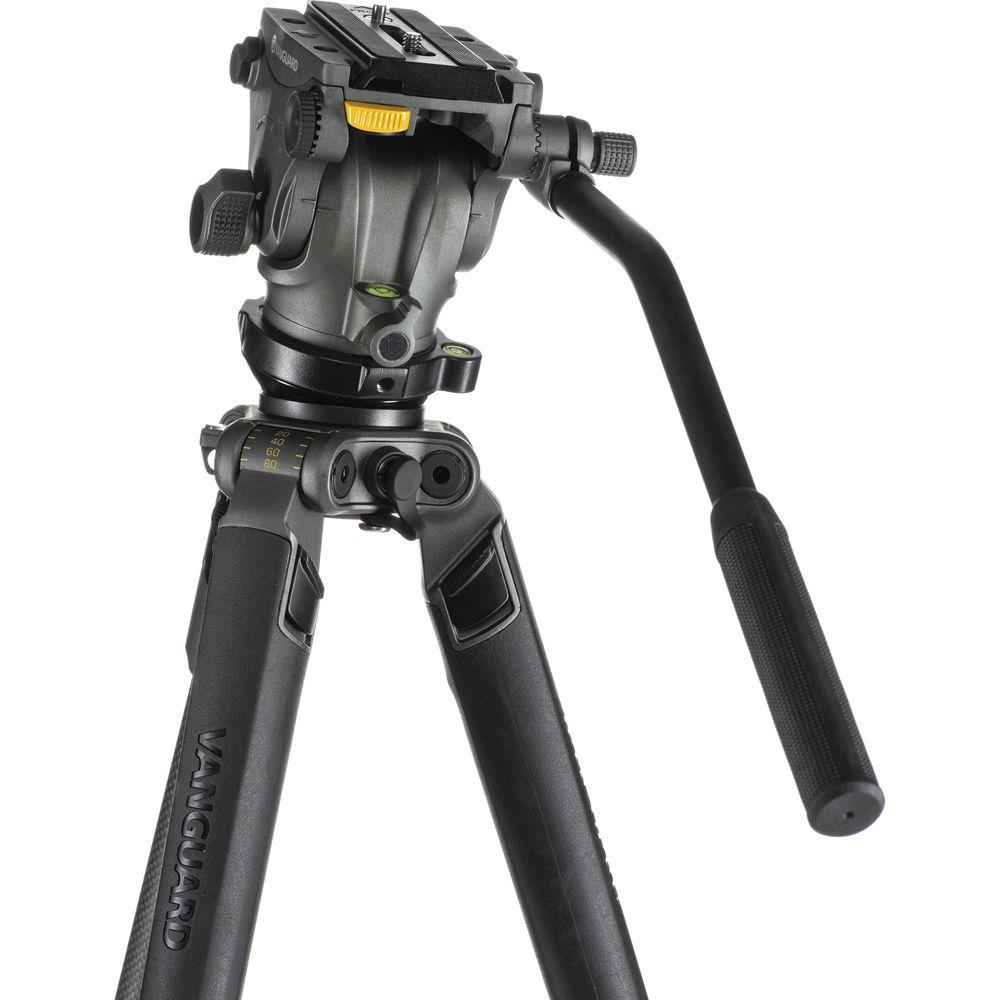

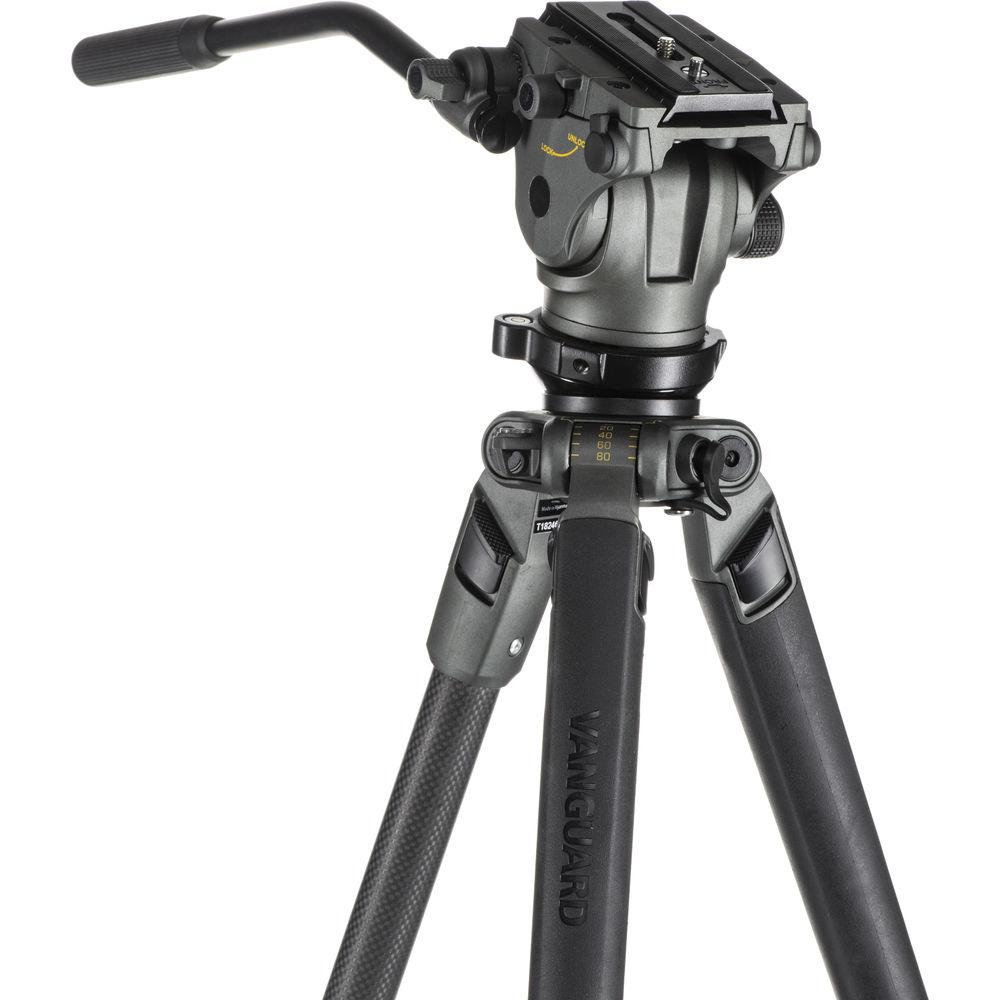

• ALTA PH-123V Magnesium Alloy Video Head The Vanguard ALTA PH-123V Magnesium Alloy Video Head is a compact and lightweight two-way fluid head with a 58mm flat base. It supports up to 17.5 lb and can be directly mounted on a variety of support products thanks to the flat base. Attach it to tripods, monopods, sliders, and other gear via the 3/8"-16 threaded mounting hole on the bottom or using an included 3/8"-16 to 1/4"-20 bushing.

  The head provides 360° pan and 60 to -90° tilt movement and features an adjustable spring-loaded counterbalance system that ensures ideal balance for your tilt position. The counterbalance system is engaged at the flip of a switch. A pan bar is included that can be mounted on the left or right side, and a camera plate is included with both 1/4"-20 and 3/8"-16 mounting screws and a safety pin.
  Key Features
  • • Pan/tilt two-way fluid head
    • 58mm flat base with 3/8"-16 mounting thread and 1/4"-20 bushing
    • 17.5 lb payload
    • 13.2 lb optimum load performance
    • 360° pan and 60 to -90° tilt movement
    • Spring-loaded counterbalance
    • Pan bar attachable to either side
    • Camera plate with both 1/4"-20 and 3/8"-16 mounting screws and safety pin
    • Bubble level
    • Secure locking system
    • Safety camera release button
  UPC: 026196350866

• Tripod Bag

• Limited 2-Year Warranty (Extended 8 Years with Online Registration)

• QS-67 Camera Plate with 1/4"-20 and 3/8"-16 Screws (3.5" Length)

• Pan Bar

• Limited 2-Year Warranty (Extendable to 10 Years with Registration)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Alta Pro 2V 263CT Carbon Fiber Tripod

  Load Capacity	13.2 lb / 5.99 kg
  Maximum Working Height	51.1" / 129.8 cm
  Minimum Working Height	6.1" / 15.5 cm
  Folded Length	23.9" / 60.71 cm
  Head Mount Type	3/8"-16 Male
  Weight	3.5 lb / 1.59 kg
  Materials	Carbon Fiber
  Bubble Level	Yes

  Leg Lock Type	Twist Lock
  Leg Positions	4 Positions
  Independent Leg Spread	Yes
  Leg Sections	3
  Leg Diameter	1.02" / 26 mm
  Feet Features	Rubber

  Box Dimensions (LxWxH)	24.4 x 5.0 x 4.8"

• ALTA PH-123V Magnesium Alloy Video Head

  Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male

  Base Mount	3/8"-16 Female with 1/4"-20 Bushing Adapter

  Drag Type	Fluid
  Vertical Tilt	+60 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 77 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
