User Manual for Vanguard Dynamics VAIL Amp In-Wall 60W Stereo Amplifier for the 2nd Generation Amazon Echo Dot Click to enlarge the picture
Contents of the user manual for the Vanguard Dynamics VAIL Amp In-Wall 60W
- Product category: Amplifiers Vanguard Dynamics
- Brand: Vanguard Dynamics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Dynamics Amplifiers
 |
User manual for the Vanguard Dynamics VAIL Amp In-Wall 60W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard Dynamics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard Dynamics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard Dynamics product will considerably shorten its lifespan!
|

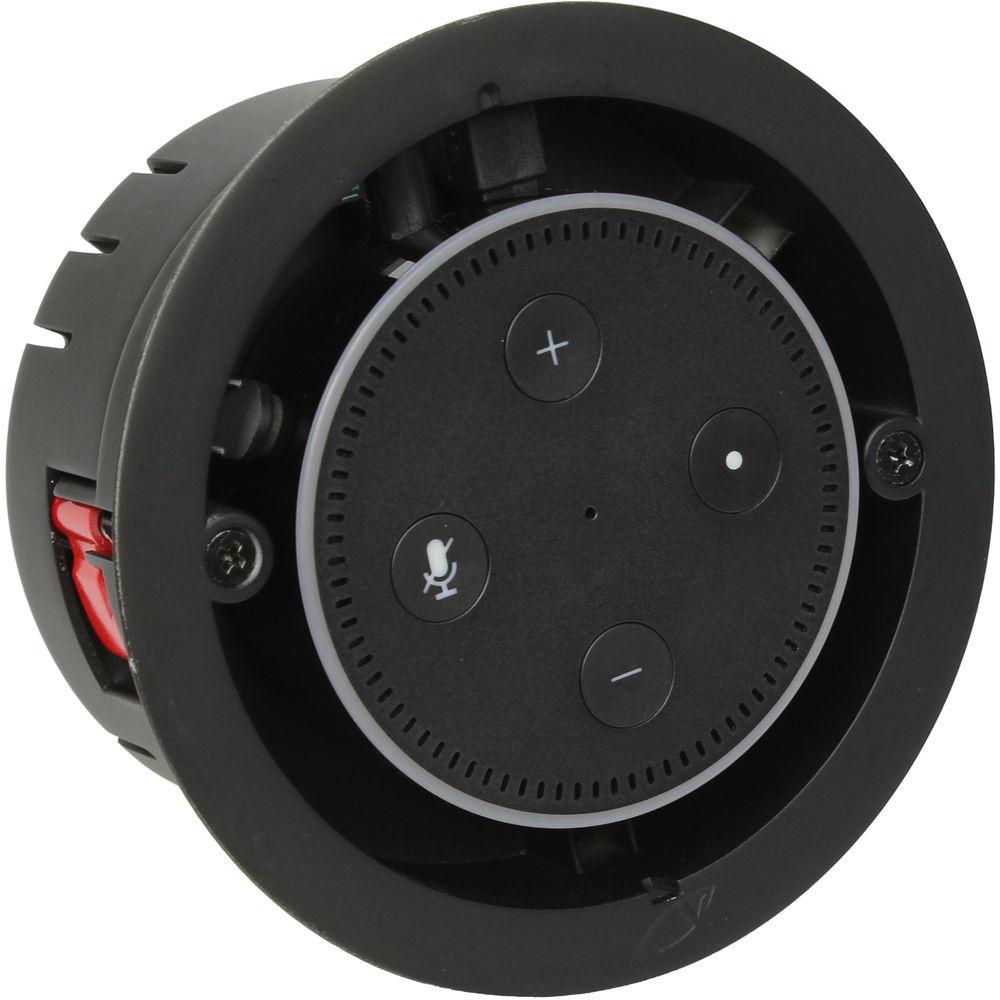

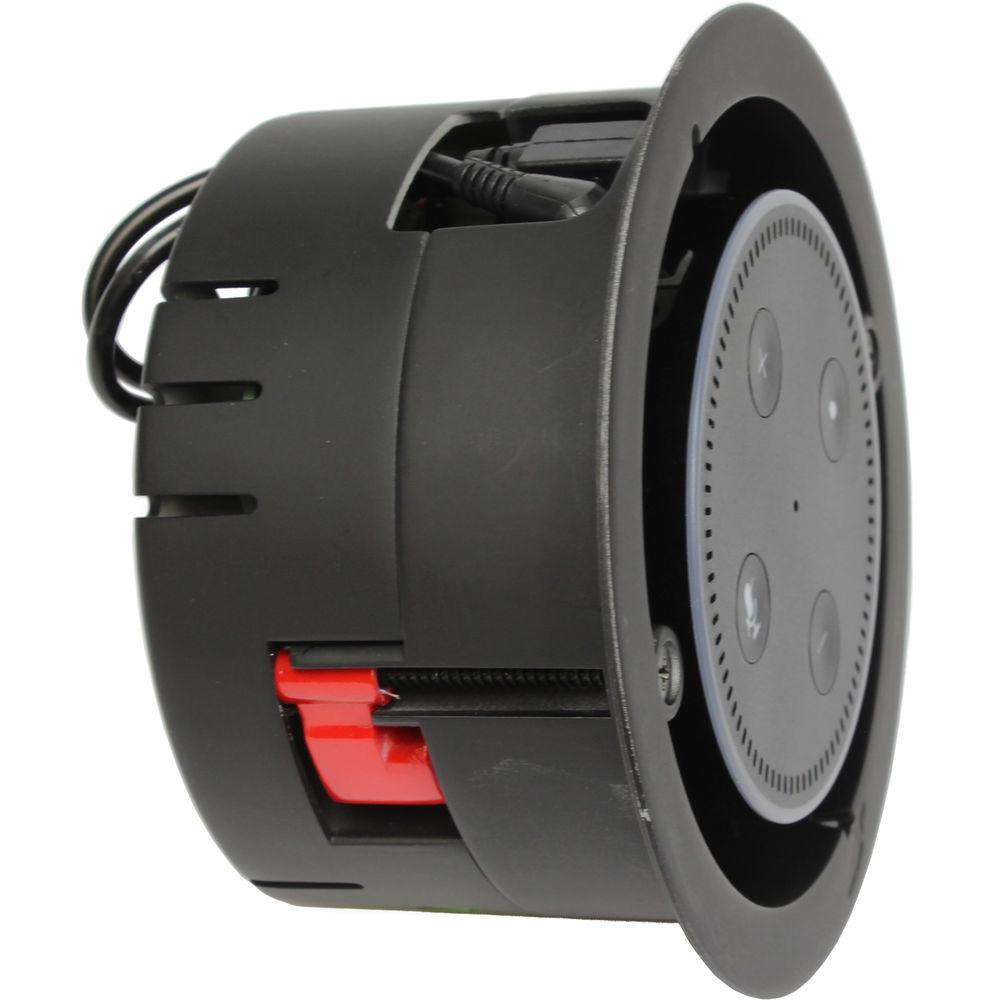

Product description Enhance the audio of your 2nd Generation Amazon Echo Dot and integrate it with your in-wall or in-ceiling speaker system with the Vanguard Dynamics VAIL Amp In-Wall 60W Stereo Amplifier. It mounts your Echo Dot into the wall and sends its audio output, Alexa and all, directly to your architectural speakers with a 30W per channel output. The included wall plate offers a stereo RCA audio input and subwoofer output. The wall plate also provides power to the amp, or the included adapter plug lets you take power from nearly any wall outlet. The Echo Dot trim cover is paintable to help match your décor. -
- 30W per channel digital amplifier

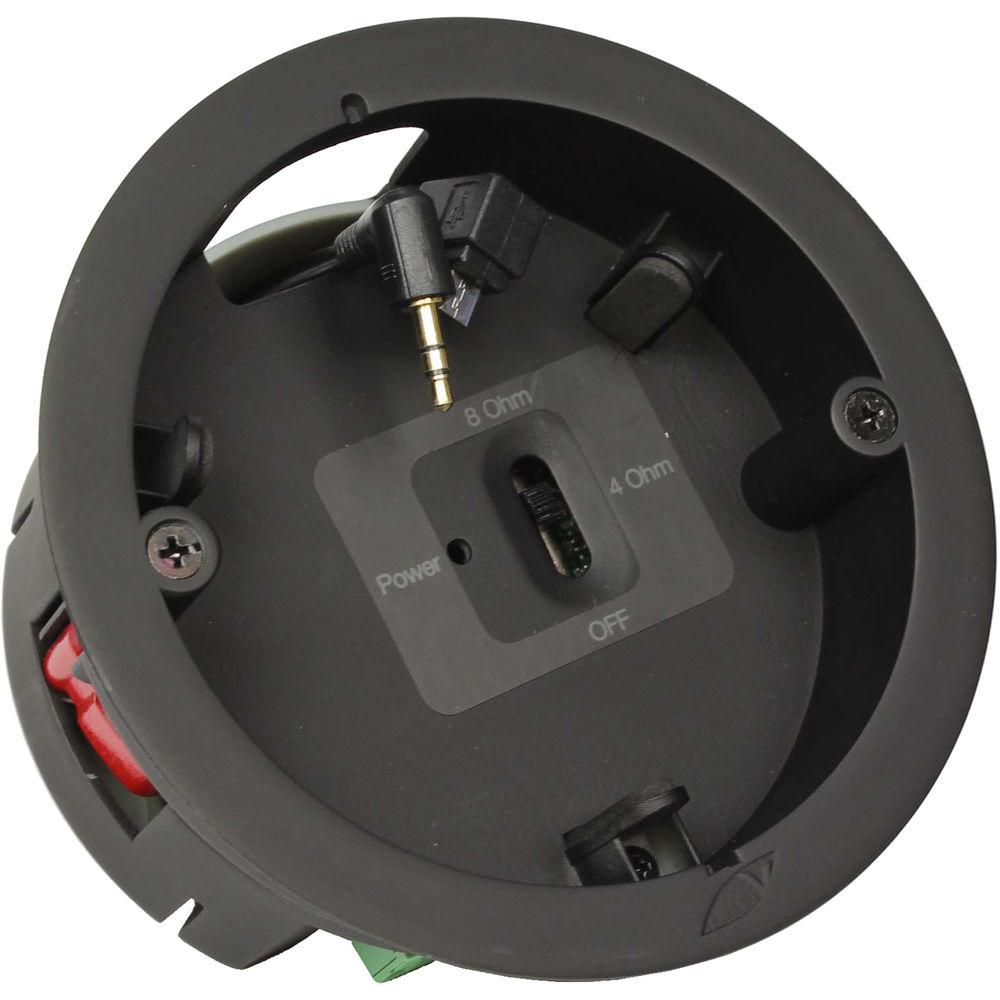

- 4/8 Ohm switchable
- Provides power to Echo Dot
- RCA line in to add the audio source of your choice
- Subwoofer output
- Extendable connections from amplifier to wall plate up to 100'
- Power and speakers can be run up to 300' with included Euroblock terminal adapter plug
- Ethernet cable sends audio from the wall plate to the amp, and the subwoofer signal from the amp to the plate
- Paintable snap-on square trim cover
UPC: 747742164866 In the Box Vanguard Dynamics VAIL Amp In-Wall 60W Stereo Amplifier for the 2nd Generation Amazon Echo Dot 6' Cat 5 Cable 6' CL2-Rated Speaker Wire with Euroblock Terminals 2 x Wall Plate Mounting Screws Euroblock Terminal Power Adapter Plug 24 VDC Power Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Dynamics VAIL Amp In-Wall 60W Stereo Amplifier for the 2nd Generation Amazon Echo Dot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

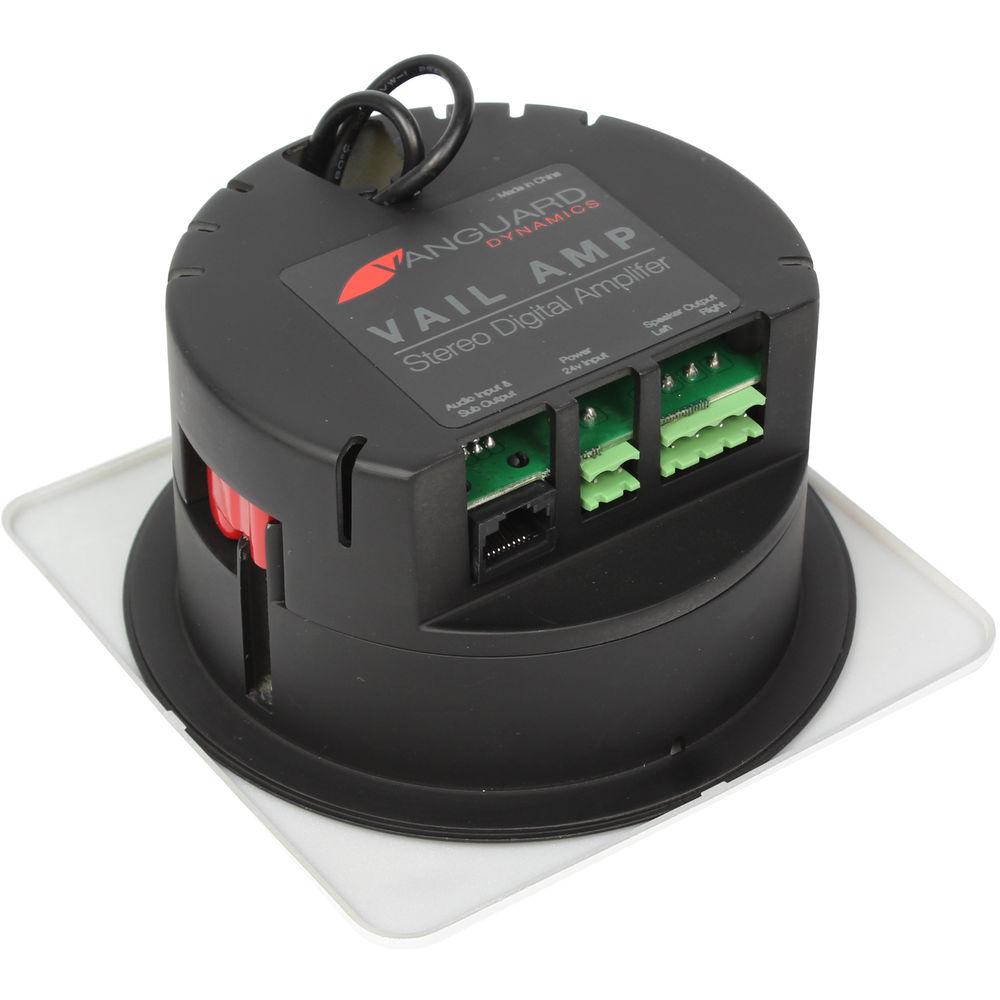

Technical parametersVanguard Dynamics VAIL AMP Specs | | | Compatibility | 2nd Generation Amazon Echo Dot | | Number of Channels | 2 | | Power Rating | 2 x 30 W | | Frequency Response | Not specified by manufacturer | | Impedance | 4/8 Ohm switchable | | Rear Connections | 2 x Euroblock speaker outputs
1 x RJ45 Ethernet audio input/subwoofer output (to/from wall plate)
1 x Euroblock power input (from wall plate) | | Front Connections | 1 x 1/8" / 3.5 mm in/out for Echo Dot audio

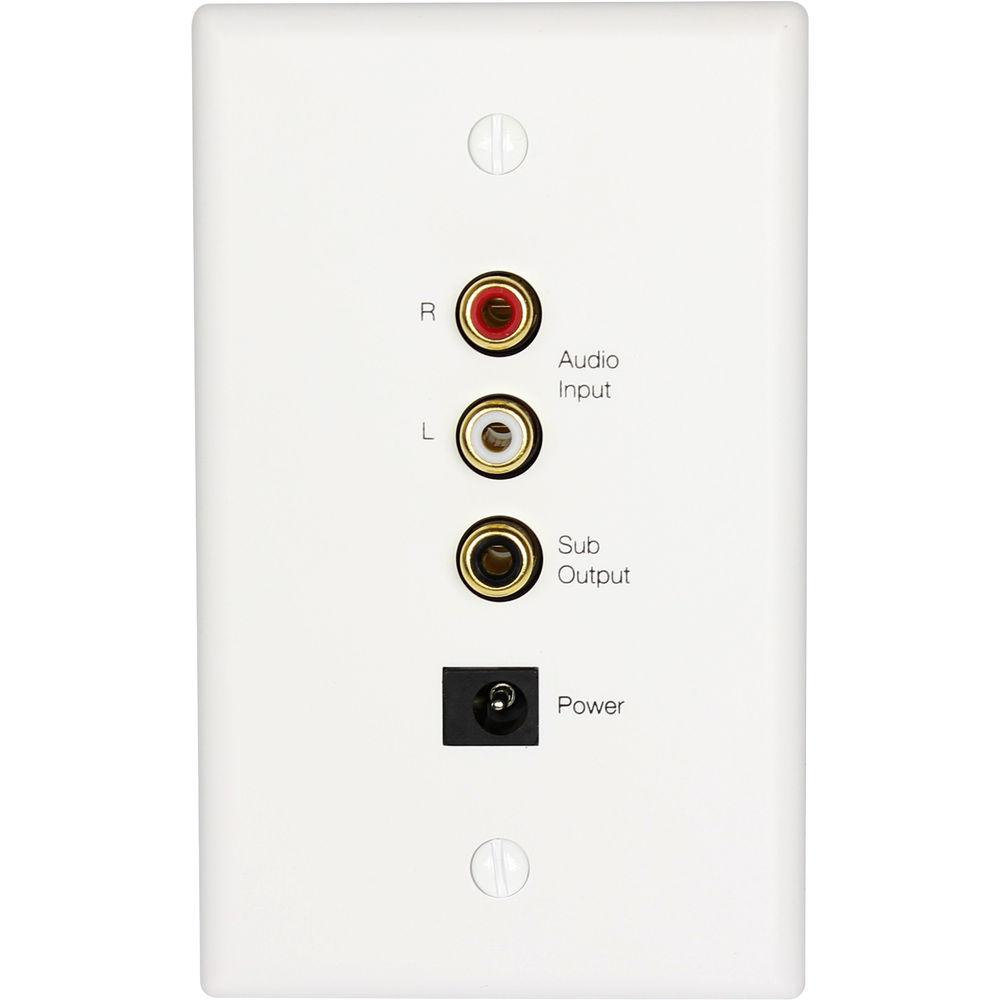

1 x micro-USB for Echo Dot power | | Power Requirements | 110 VAC | | Power Adapter | 24 VDC | | Cutout Size | 4.33 x 2.6" / 110 x 66 mm (diameter x depth) | | Plate Dimensions | 5.25 x 5.25" / 133.3 x 133.3 mm | | Weight | Not specified by manufacturer | | | | Gang Qty | 1 | | Front Connections | 1 x stereo RCA input pair
1 x RCA subwoofer output
1 x barrel connector power input | | Rear Connections | 1 x RJ45 Ethernet audio output/subwoofer input (to/from amp)
1 x Euroblock power output (to amp) | | Plate Dimensions | 2.78 x 4.54" / 70.5 x 115.3 mm | | Cutout Depth | Not specified by manufacturer | | Overall Depth | 2.06" / 52.2 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.47 lb | | Box Dimensions (LxWxH) | 19.3 x 12.3 x 11.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
