User Manual for Vanguard Endeavor HD 15-45x65 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Vanguard Endeavor HD 15-45x65 Spotting Scope
- Product category: Spotting Scopes Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Spotting Scopes
 |
User manual for the Vanguard Endeavor HD 15-45x65 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

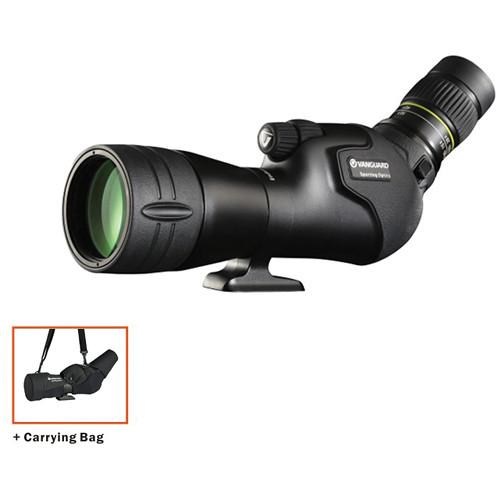

Product description A Guide to Birding with Spotting Scopes Read More The angled-viewing Endeavor HD 15-45x65 Spotting Scope from Vanguard combines a nitrogen-filled magnesium housing and a fully multi-coated optical path to create a well-equipped zoom optic for intermediate- to long-range observation. Vanguard gave the Endeavor HD series an extra-low dispersion (ED) lens system and phase-corrected BAK4 prisms, which maximize light transmission and produce color-faithful images that are rich with contrast.This version of the Endeavor HD spotting scope includes a 15-45x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.7-1.3° angle of view complement the eyepiece's long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope's functionality. A stacked dual-focus mechanism enables the observer to make fine- and coarse-focus adjustments. The tripod mounting foot has a standard 1/4"-20 socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom-fit raincoat carrying case help to make the Endeavor HD a full-featured spotting scope for outdoor use. - Optical Performance
-
- 15-45x magnification, 65mm objective
- Extra-low dispersion glass elements, BAK4 prisms
- Fully multi-coated optics
- 2.7-1.3° angle of view
- 14.7-foot close focus distance (at 15x)
- Use and Handling
-
- Angled-viewing eyepiece is inclined 45° from the objective lens

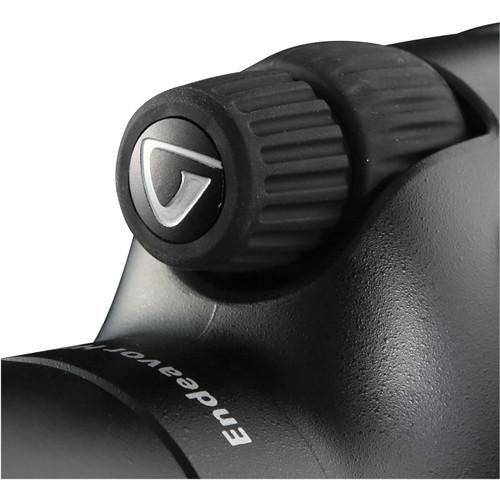

- Separate coarse / fine focus controls

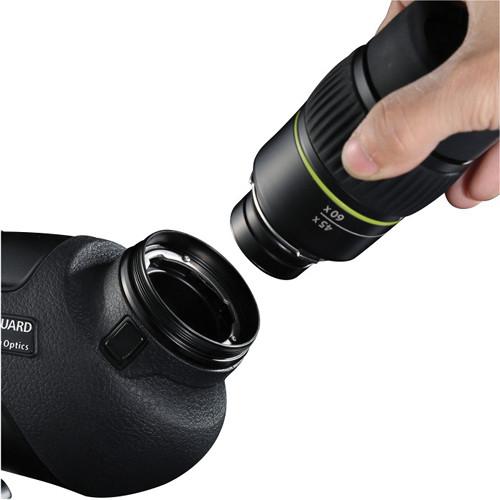

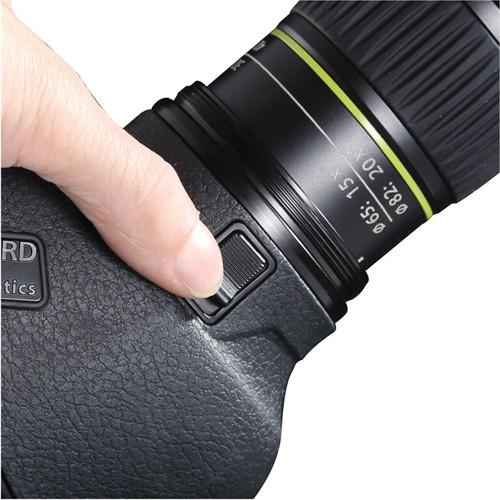

- Interchangeable eyepiece mount
- Tripod mounting foot
- Construction Details
-
- Nitrogen-filled fogproof / waterproof housing
- Magnesium body with textured rubber armor
- Built-in sunshield

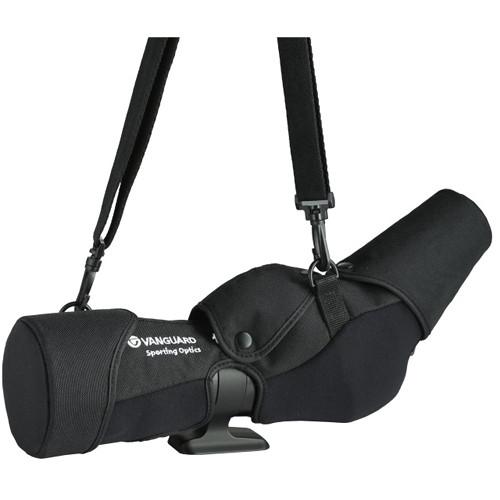

UPC: 026196343455 In the Box Vanguard Endeavor HD 15-45x65 Spotting Scope (Angled Viewing) Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Endeavor HD 15-45x65 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard 65A Specs | | | Magnification | 15 to 45x | | Objective Lens Diameter | 65 mm | | Angle of View | 15x: 2.7° (Actual)
45x: 1.3° (Actual) | | Field of View | 15x: 144.0' @ 1000 yd / 43.8 m @ 1000 m
45x: 69.0' @ 1000 yd / 21.0 m @ 1000 m | | Minimum Focus Distance | 15x: 14.7' / 4.5 m
45x: 18.0' / 5.5 m | | Eye Relief | 19.0 to 20.0 mm | | | | Dimensions | L: 13.6 x H: 7.1" / L: 34.5 x H: 18.0 cm | | Weight | 49.4 oz / 1.4 kg | | | | Package Weight | 4.37 lb | | Box Dimensions (LxWxH) | 14.95 x 5.75 x 4.9" |
