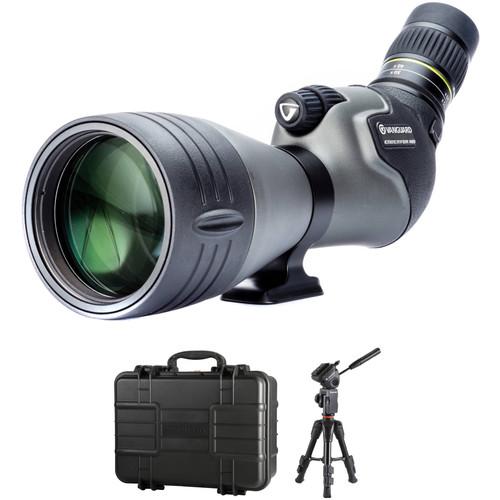

User Manual for Vanguard Endeavor HD 20-60x82 Spotting Scope Tabletop Kit Click to enlarge the picture
Contents of the user manual for the Vanguard Endeavor HD 20-60x82 Spotting Scope
- Product category: Spotting Scopes Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Spotting Scopes
|
User manual for the Vanguard Endeavor HD 20-60x82 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More B&H assembled this Vanguard Endeavor HD 20-60x82 Spotting Scope Tabletop Kit to give you a powerful observation platform with the ability to safely transport and carry your scope to the local gun range or far-off mountains. This kit includes a scope with a wide zoom range and massive objective to discern details of distant subjects easily, a reliable and highly portable tabletop tripod, and a virtually indestructible carrying case for the spotter body and eyepiece. - Vanguard Endeavor HD 20-60x82 Spotting Scope (Angled Viewing) The angled-viewing Endeavor HD 20-60x82 Spotting Scope from Vanguard combines a nitrogen-filled magnesium housing and a fully multi-coated optical path to create a well-equipped zoom optic for intermediate- to long-range observation. Vanguard gave the Endeavor HD series an extra-low dispersion (ED) lens system and phase-corrected BAK4 prisms, which maximize light transmission and produce color-faithful images that are rich with contrast.This version of the Endeavor HD spotting scope includes a 20-60x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.1-1.0° angle of view complement the eyepiece's long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope's functionality. A stacked dual-focus mechanism enables the observer to make fine- and coarse-focus adjustments. The tripod mounting foot has a standard 1/4"-20 socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom-fit raincoat carrying case help to make the Endeavor HD a full-featured spotting scope for outdoor use.
- Optical Performance
-
- 20-60x magnification, 82mm objective
- Extra-low dispersion glass elements, BAK4 prisms
- Fully multi-coated optics
- 2.1-1.0° angle of view
- 19.7-foot close focus distance (at 20x)
- Use and Handling
-
- Angled-viewing eyepiece is inclined 45° from the objective lens
- Separate coarse / fine focus controls
- Interchangeable eyepiece mount
- Tripod mounting foot
- Construction Details
-
- Nitrogen-filled fogproof / waterproof housing
- Magnesium body with textured rubber armor
- Built-in sunshield
UPC: 026196343479 - Vanguard Supreme 40F Carrying Case The black Vanguard USA Supreme 40F Carrying Case is a virtually indestructible, engineered hard polypropylene case that is airtight and built to withstand the most extreme conditions. The O-ring sealed case is waterproof to 16.5'. It has a three-piece foam set with a recessed interior for the top foam and an automatic pressure equalization valve. There are thick, quick release, easy-open latches that lock in place, and steel-reinforced lock holders for use with padlocks for added security. The case can be carried by a cushioned handle and it has anti-slip rubber feet.This case received an award in Germany for design excellence.
- Construction
-
- Virtually indestructible, engineered hard polypropylene
- Waterproof, airtight and built to withstand the most extreme conditions
- Three-piece foam set
- Automatic pressure equalization valve
- O-ring sealed
- Thick, quick release easy-open latches that lock in place
- Steel-reinforced lock holders for use with padlocks for added security
- Anti-slip rubber feet
- Case received an award in Germany for design excellence
- The foam set contains a top foam layer that protects the contents when opening the case, a layer of dense, customizable hexagon-shaped foam that can be pulled out for custom fitting and a convoluted foam layer in the lid
- Recessed area inside the case for the top foam
- Temperature rating -40 to +203° F
- Material can support up to 265 lbs of exterior weight (referring to the tensile material strength)
UPC: 026196318606 - Vanguard Espod CX 1OS Tabletop Tripod The Espod CX 1OS Tabletop Tripod from Vanguard is a compact and lightweight support that is ideal for hikers and hunters who need a dependable tripod to bring everywhere.
The tripod features a sturdy aluminum build which allows it to support up to 6.6 lb while weighing just 2.1 lb - an ideal weight capacity for compact cameras, binoculars, and spotting scopes. In keeping with its compact nature the CX 10S folds up to just 15" for travel and extends to 24.6" for use when crouching or lying prone in the field. Set-up is quick and easy with 3-section legs and integrated flip locks.
The 3-way pan and tilt head is an ideal companion for a camera or a wide array of sports optics - allowing for smooth horizontal pans and even vertical tilts. The head's movement is controlled by a single positioning arm and a separate knob which allows for 90° vertical tilts. The portion of the tripod attached to the head may be removed and used as a window mount - ideal for taking quick shots out of the comfort of your own car. UPC: 026196347385 In the Box - Endeavor HD 20-60x82 Spotting Scope (Angled Viewing) uyvyryqbterb
- Carrying Case
- Limited Lifetime Warranty
- Supreme 40F Carrying Case
- Espod CX 1OS Tabletop Tripod
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Endeavor HD 20-60x82 Spotting Scope Tabletop Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vanguard Endeavor HD 20-60x82 Spotting Scope (Angled Viewing)
| | | Magnification | 20 to 60x | | Objective Lens Diameter | 82 mm | | Angle of View | 20x: 2.1° (Actual)
60x: 1.0° (Actual) | | Field of View | 20x: 330.0' @ 1000 yd / 100.6 m @ 1000 m
60x: 156.0' @ 1000 yd / 47.5 m @ 1000 m | | Minimum Focus Distance | 20x: 14.7' / 4.5 m
60x: 18.0' / 5.5 m | | Eye Relief | 19.0 to 20.0 mm | | | | Dimensions | L: 15.0 x H: 7.0" / L: 38.0 x H: 18.0 cm | | Weight | 63.8 oz / 1.8 kg | | | | Box Dimensions (LxWxH) | 16.2 x 6.25 x 4.9" | - Vanguard Supreme 40F Carrying Case
| Carry/Transport Options | Top Handle | | Closure Type | Latch | | Materials | Polypropylene | | Interior Contents | Cube/Diced Foam | | Exterior Dimensions | 18.3 x 14.4 x 7.7" / 46.5 x 36.6 x 19.6 cm | | Interior Dimensions | 16.9 x 11.6 x 6.9" / 42.9 x 29.5 x 17.5 cm | | Watertight | Yes | | Weight | 9.7 lb / 4.4 kg | | | | Box Dimensions (LxWxH) | 19.5 x 14.0 x 8.0" | - Vanguard Espod CX 1OS Tabletop Tripod
| | | Load Capacity | 6.6 lb / 3 kg | | Maximum Working Height | 24.6" / 62.5 cm | | Minimum Working Height | 14.8" / 37.5 cm | | Dimensions | L: 15.0" / L: 38.1 cm (Folded) | | Weight | 2.1 lb / 952.5 g | | | | Leg Sections | 3 | | Feet Features | Rubber | | | | Box Dimensions (LxWxH) | 15.1 x 4.3 x 4.2" |
