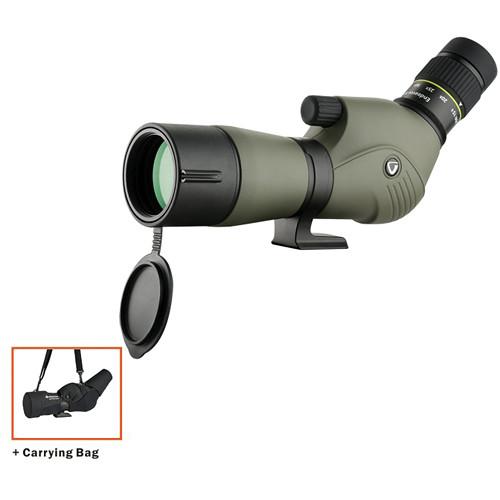

User Manual for Vanguard Endeavor XF 15-45x60 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Vanguard Endeavor XF 15-45x60 Spotting Scope
- Product category: Spotting Scopes Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Spotting Scopes
 |
User manual for the Vanguard Endeavor XF 15-45x60 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

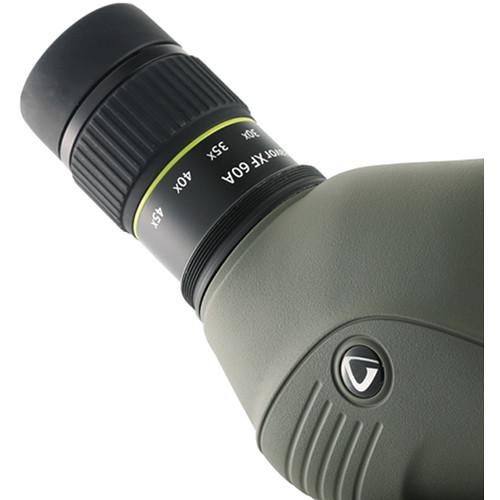

Product description A Guide to Birding with Spotting Scopes Read More zuvudxfdvyvyqcewtwtbfrs The angled-viewing Endeavor XF 15-45x60 Spotting Scope from Vanguard combines a nitrogen-filled magnesium housing and a fully multi-coated optical path to create a lightweight zoom optic for intermediate- to long-range observation. Vanguard equipped the Endeavor XF series with phase-corrected BAK4 prisms, which maximize color fidelity and produce contrast-rich images.In addition to the image quality and weather-sealed construction, the Endeavor XF includes several features that enhance the scope's functionality. This version of the Endeavor XF spotting scope has a 15-45x zoom eyepiece that features a comfortable 19mm eye relief and twist-up rubber eyecup. The tripod mounting foot has a standard 1/4"-20 socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom-fit raincoat carrying case help to make the Endeavor XF a well-equipped spotting scope for outdoor use. - Optical Performance
-
- 15-45x magnification, 60mm objective
- Fully multi-coated optics
- Phase-corrected BAK4 prisms
- 2.7-1.3° angle of view
- 16 ft close-focus distance (at 15x)
- Use and Handling
-
- Angled-viewing eyepiece is inclined 45° from the objective lens
- Twist-up rubber eyecup

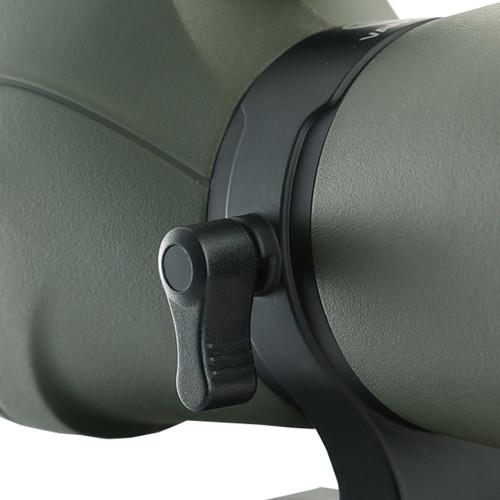

- Tripod mounting foot
- Flip-down objective cover
- Construction Details
-
- Nitrogen-filled fog and waterproof housing
- Magnesium body with rubber armoring
- Built-in sunshield
- 45 oz weight
UPC: 026196343523 In the Box Vanguard Endeavor XF 15-45x60 Spotting Scope (Angled Viewing) Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard Endeavor XF 15-45x60 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard 60A Specs | | | Magnification | 15 to 45x | | Objective Lens Diameter | 60 mm | | Angle of View | 15x: 2.7° (Actual)
45x: 1.3° (Actual) | | Field of View | 15x: 144.0' @ 1000 yd / 43.8 m @ 1000 m
45x: 69.0' @ 1000 yd / 21.0 m @ 1000 m | | Minimum Focus Distance | 15x: 16.0' / 5.0 m
45x: 20.0' / 6.0 m | | Eye Relief | 19.0 to 20.0 mm | | | | Dimensions | L: 13.8 x H: 7.1" / L: 35.0 x H: 18.0 cm | | Weight | 45.0 oz / 1.3 kg | | | | Package Weight | 3.97 lb | | Box Dimensions (LxWxH) | 14.2 x 8.0 x 4.65" |
