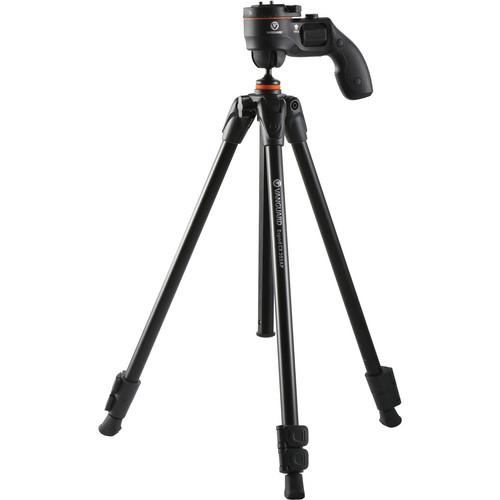

User Manual for Vanguard ESPOD CX 203AGH Aluminum-Alloy Tripod Kit with GH-20 Pistol Grip Ball Head Click to enlarge the picture
Contents of the user manual for the Vanguard ESPOD CX 203AGH Aluminum-Alloy Tripod
- Product category: Tripods with Heads Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripods with Heads
|
User manual for the Vanguard ESPOD CX 203AGH Aluminum-Alloy Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More tdtxrwdzaudcyuzxeuxvzductw This ESPOD CX 203AGH Aluminum-Alloy Tripod Kit from Vanguard supports up to 7.7 lb, measures 23.3" when folded, and includes a GH-20 Pistol Grip Ball Head with QS-29 Quick Release Plate. Each of its 3-section legs features an independent spread as well as flip locks for fast deployment. Together, the three legs can be can be positioned for a minimum height of 47.9" to a maximum height of 61.0" with the center column fully raised.
Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the QS-29 Quick Release Plate, which is secured to the tripod head using a quick release cam lock. By releasing the GH-20 Pistol Grip Ball Head's rotating thumb lock, the tripod head's integrated ball-and-socket joint can be quickly swiveled 360°, angled, fully tilted, or returned to its upright position. Additionally, the cam lock assembly, along with the quick release plate, can be rotated 360° independently of the head. - General Use and Handling
-
- Supports up to 7.7 lb
- Push-and-pull rapid center column for rapid positioning
- Can be set to a minimum height of 47.9" to a maximum height of 61.0" with the center column fully raised
- Aluminum-alloy legs each feature 3 sections, flip locks for fast deployment, and can be independently spread
- Rubber feet enhance stability on a wide variety of surfaces
- Weighs 3.8 lb, measures 23.3" when folded
- Head
-
- Ball head with ergonomic pistol grip and integrated, rotating thumb lock provides 360° of swivel control and can be tilted down to a 90° angle
- Quick release cam lock on top of head is compatible with included QS-29 Quick Release Plate
- Quick release plate with 1/4"-20 mount with rubberized, anti-slip surface and anti-twist index pin
- Friction lock for cam lock assembly allows quick release plate to independently rotate 360°
UPC: 026196344551 In the Box Vanguard ESPOD CX 203AGH Aluminum-Alloy Tripod Kit with GH-20 Pistol Grip Ball Head Vanguard GH-20 Pistol Grip Ball Head Vanguard QS-29 Quick Release Plate Limited 2-Year Warranty, Extendable to 5-Year Warranty with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard ESPOD CX 203AGH Aluminum-Alloy Tripod Kit with GH-20 Pistol Grip Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard 203AGH Specs | | | Head Type | Pistol Grip Head | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 7.7 lb / 3.5 kg | | Maximum Working Height | 61" / 154.9 cm | | Minimum Working Height | 47.9" / 121.7 cm | | Folded Length | 23.3" / 59.2 cm | | Materials | Aluminum Alloy | | Weight | 3.8 lb / 1.7 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 23.8 x 5.5 x 4.1" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
