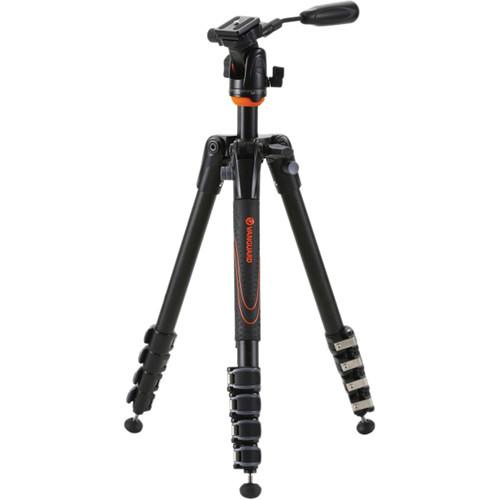

User Manual for Vanguard VEO 235AP Aluminum Tripod with PH-25 2-Way Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the Vanguard VEO 235AP Aluminum Tripod with
- Product category: Tripods with Heads Vanguard
- Brand: Vanguard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vanguard Tripods with Heads
 |
User manual for the Vanguard VEO 235AP Aluminum Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vanguard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vanguard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vanguard product will considerably shorten its lifespan!
|

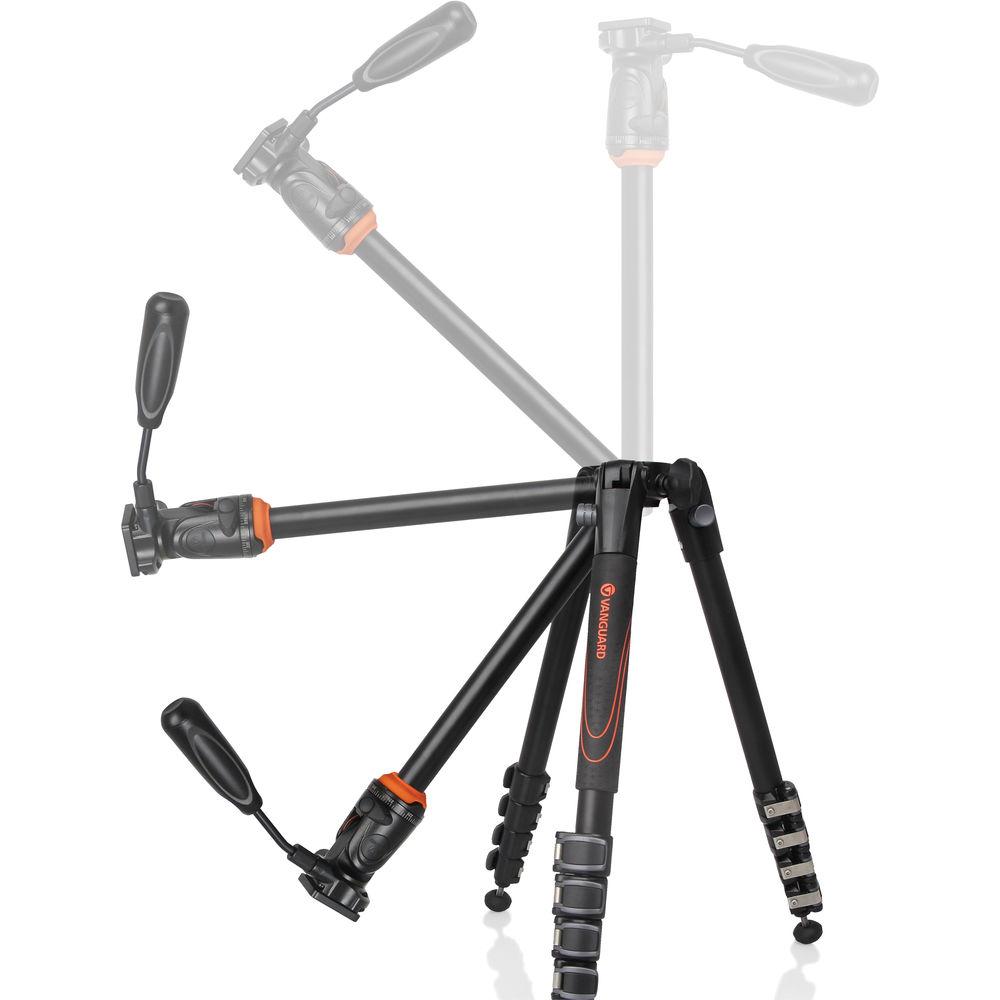

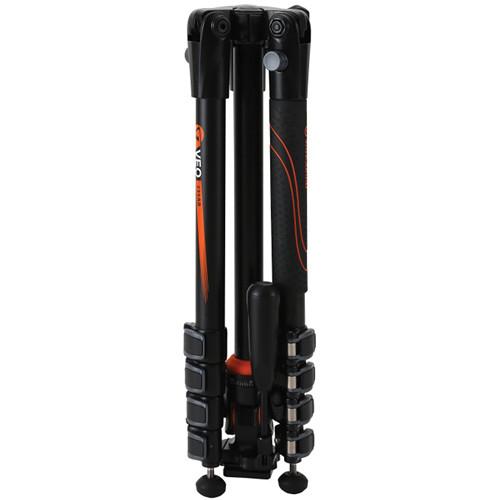

Product description Time-Lapse Tips and Tools Read More The Vanguard VEO 235AP Aluminum Tripod with PH-25 2-Way Pan/Tilt Head extends to 56.7" high, weighs 3.3 lb, and can hold up to 7.7 lb. It features a unique rapid rotating center column that swings 180° around to place the center column and pan head between the tripod's legs. This contributes to the compact folded length of just 14.9".

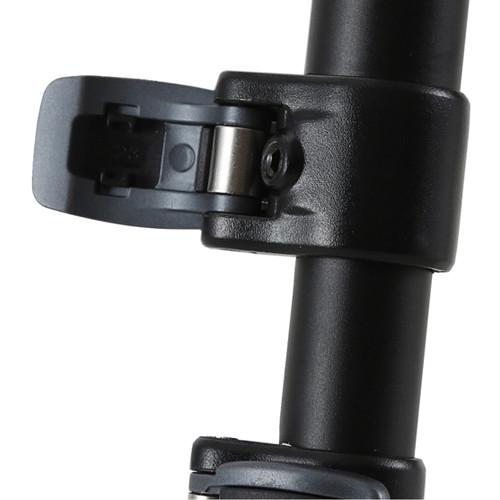

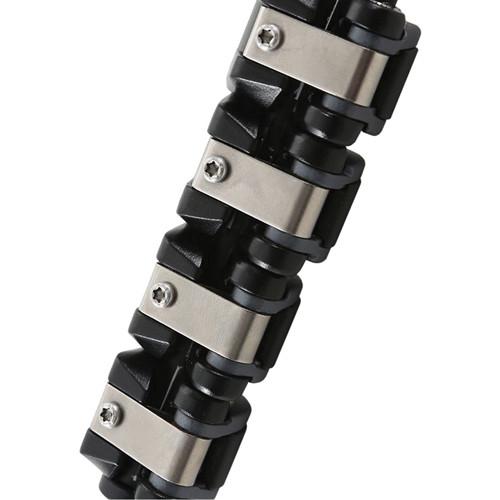

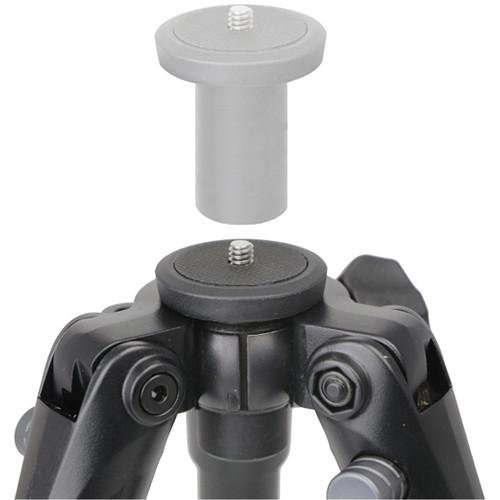

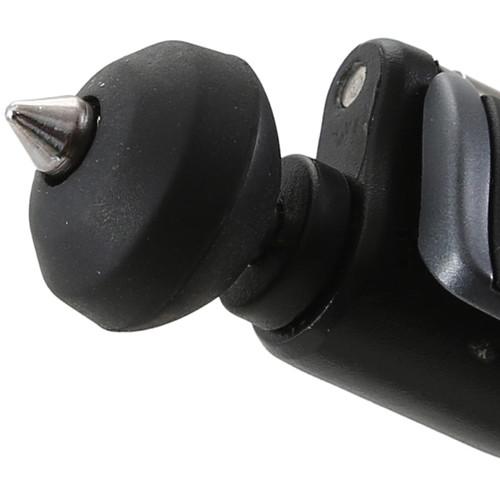

The tripod's 5-section legs employ flip locks to individually lock the sections to your desired length. Each leg has a rubber foot that can be twisted to reveal a metal spike, enabling the tripod to sit stably on a variety of surfaces. Included with the tripod is a short center column, which when in place allows the tripod to reach a minimum height of 6.4" including the head.

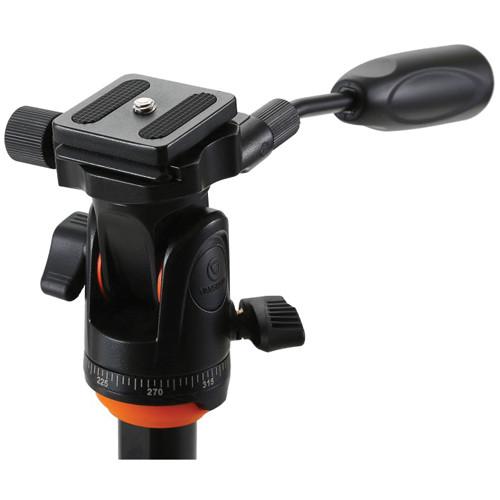

The included PH-25 2-way pan/tilt head has separate locking knobs for the 360° panning motion and the front-to-back tilting. A pan bar helps to provide smooth pans for video shooting, and a quick release plate is included for easy attaching and detaching of a camera. UPC: 026196347767 In the Box Vanguard VEO 235AP Aluminum Tripod with PH-25 2-Way Pan/Tilt Head Carrying Case Hex Wrench Short Center Column Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vanguard VEO 235AP Aluminum Tripod with PH-25 2-Way Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVanguard VEO 235AP Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Quick Release Plate Type | QS-60S | | | | Load Capacity | 7.7 lb / 3.5 kg | | Maximum Working Height | 56.7" / 144 cm | | Max Height without Center Column | 47.6" / 120.9 cm | | Minimum Working Height | 6.4" / 16.3 cm | | Folded Length | 14.9" / 37.8 cm | | Materials | Aluminum Alloy | | Weight | 3.3 lb / 1.5 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 5 | | Leg Diameter | 0.9" / 23 mm | | Bubble Level | Yes | | Feet Features | Retractable, Spiked | | | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 16.0 x 5.0 x 4.5" |
