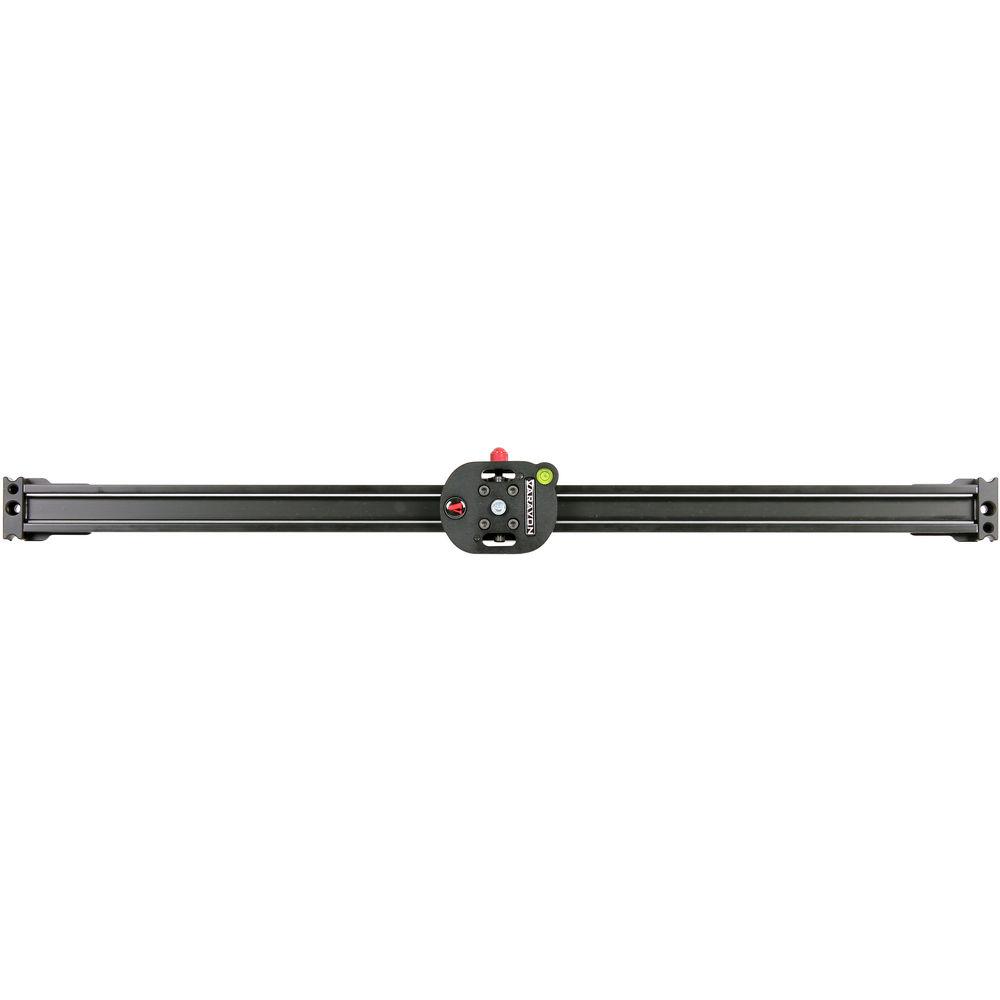

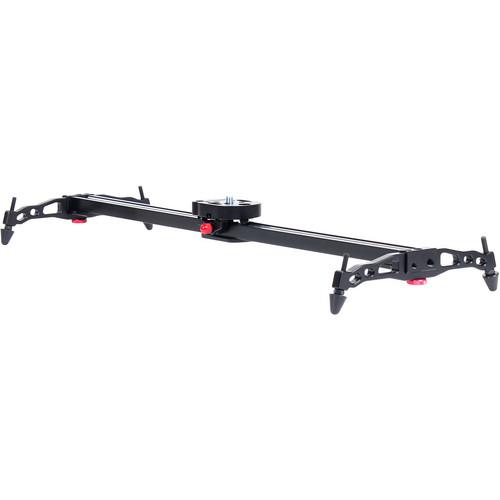

Product description The Varavon Slidecam LITE 800 is a camera slider designed to support loads up to 20 lb (9 kg). It measures 31.5" long and features a carriage with three steel roller bearings for smooth and quiet motion. The slider track incorporates three sets of 1/4"-20 and 3/8"-16 mounting holes, allowing you to support it in the center or at both ends. Two removable height adjustable legs are also included for using the slider on the ground. The legs provide height adjustment for leveling, and are articulated, allowing you to adjust them for uneven surfaces.

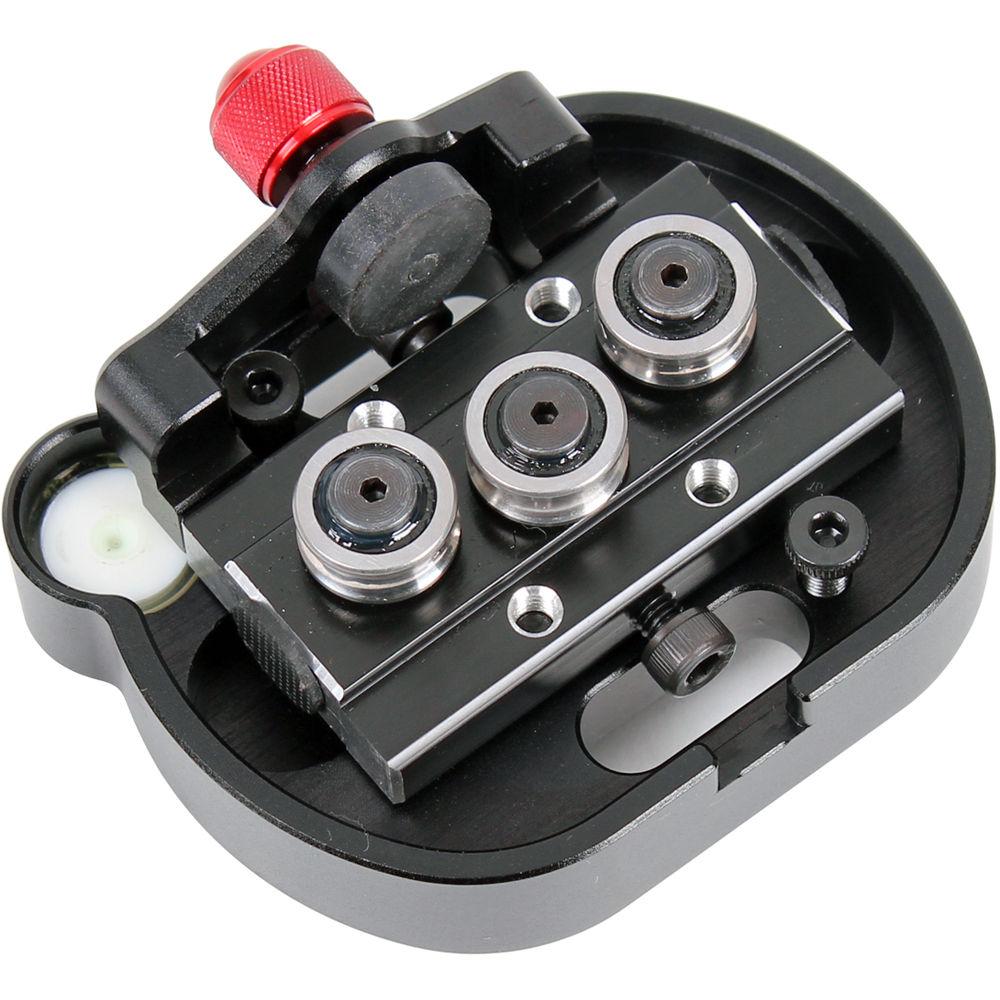

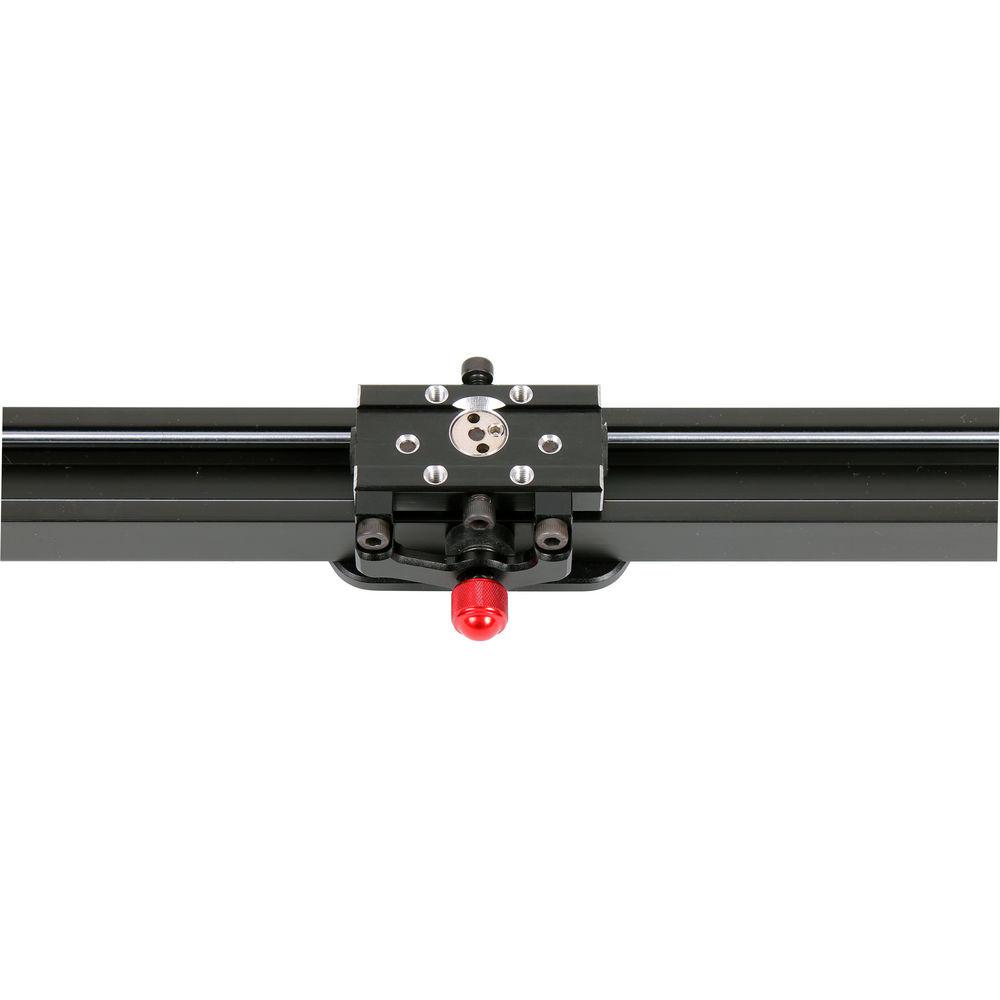

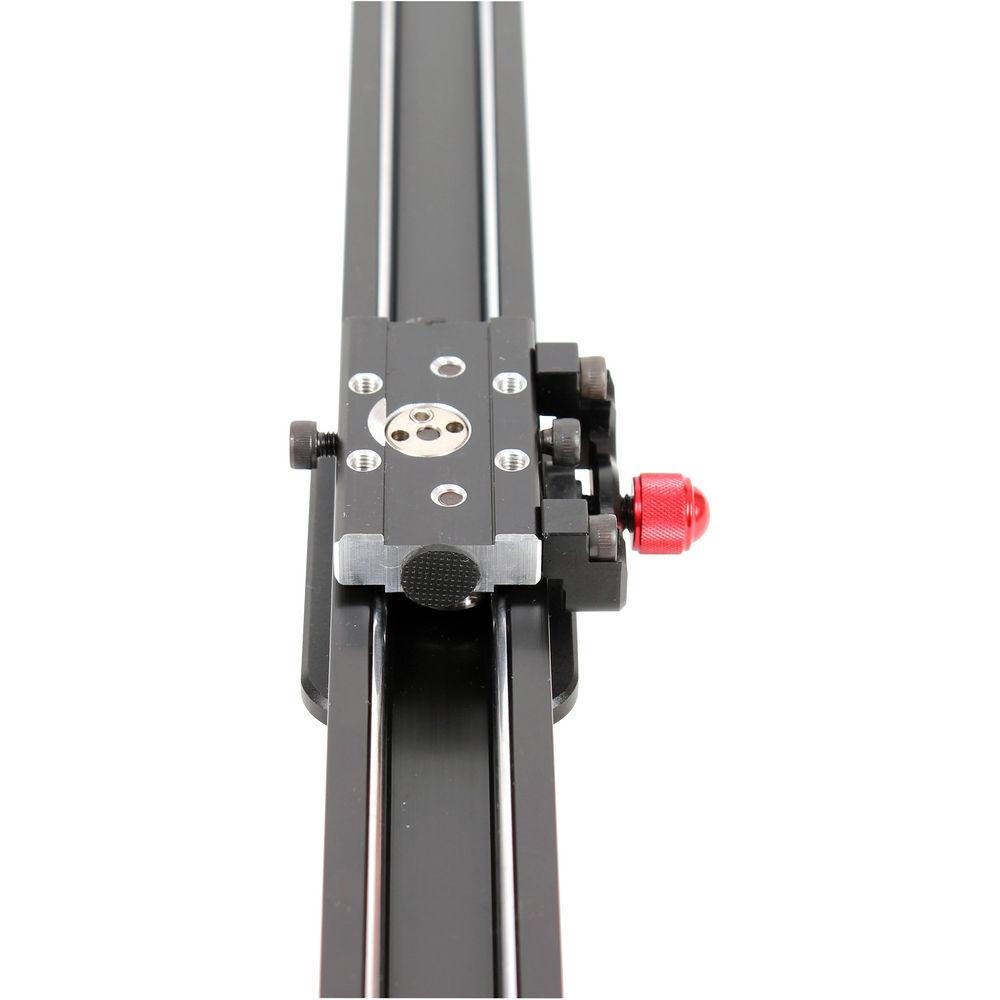

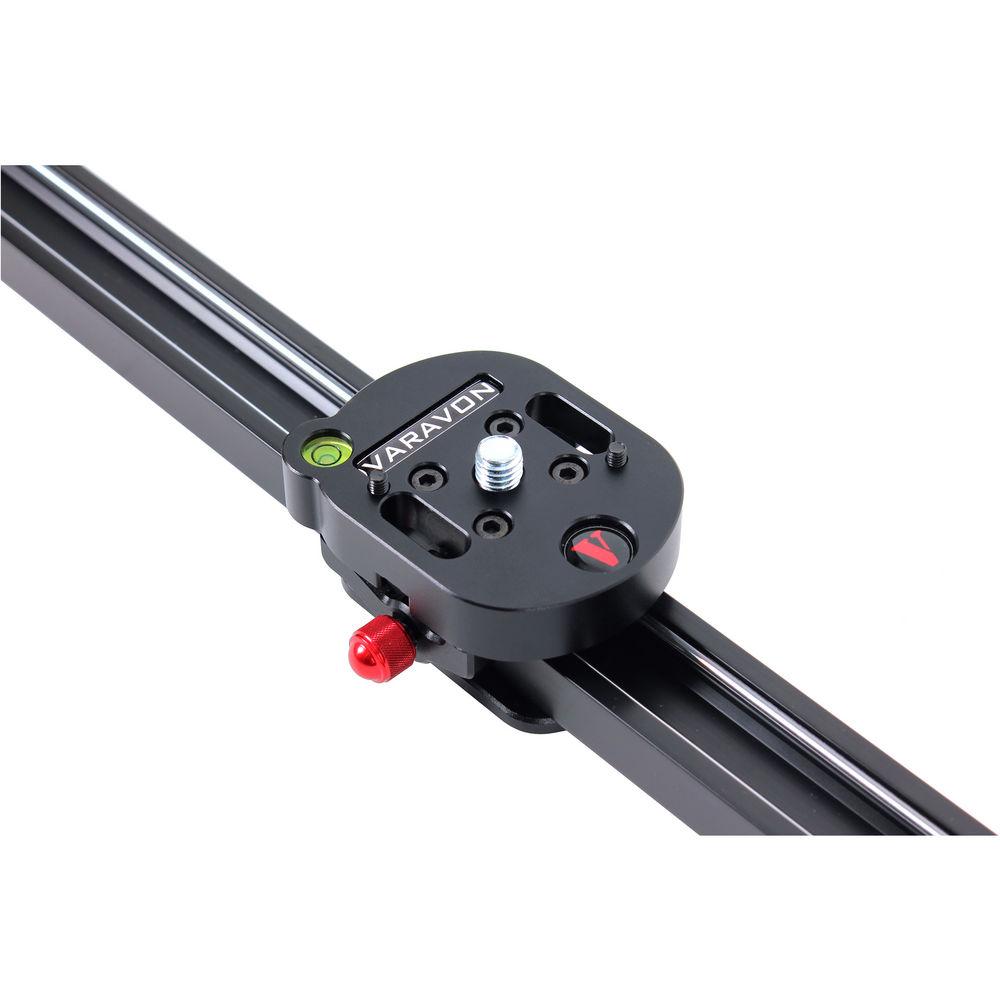

The slider carriage features a 3/8"-16 threaded mounting screw with a large thumb wheel to tighten down available flat base heads. A friction break mechanism is used to apply tension or lock the carriage in place along the rails. The carriage incorporates a built-in bubble level that allows you to confirm the level of the track. The included oil seals are used to clean and oil the chrome plated track for smooth sliding. Included with the slider is a carrying case for transport or storage. - Key Features
-
- 20 lb (9 kg) load capacity
- Carriage with three large roller bearings for smooth and silent motion
- Bearing mechanism is tension-adjustable using included wrenches
- Chrome coated rails are rust and corrosion resistant
- Adjustable brake
- The feet are removable and attach to the track using a large easy to use spin wheel
- The removable feet feature a single point of articulation, providing 90° of vertical adjustment
- Built-in end stops with threaded holes that allow you to mount available accessories
- Leveling bubble
- Carrying case with shoulder strap
- Optional Motorroid motion control system
UPC: 659096357330 In the Box Varavon Slidecam LITE 800 (31.5") 2 x Legs 3 x Allen Wrenches Storage Pouch for Legs 2 x Oil Seals Carry Bag with Shoulder Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Varavon Slidecam LITE 800 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVaravon SL-LITE800 Specs | | | Load Capacity | 20 lb / 9.1 kg | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 3 x 1/4"-20 Female Thread
3 x 3/8"-16 Female Thread | | | | Dimensions |
