User Manual for VariZoom Cinema Pro Jr Click to enlarge the picture
Contents of the user manual for the VariZoom Cinema Pro Jr
- Product category: Motorized Pan/Tilt Heads VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Motorized Pan/Tilt Heads
|
User manual for the VariZoom Cinema Pro Jr contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|

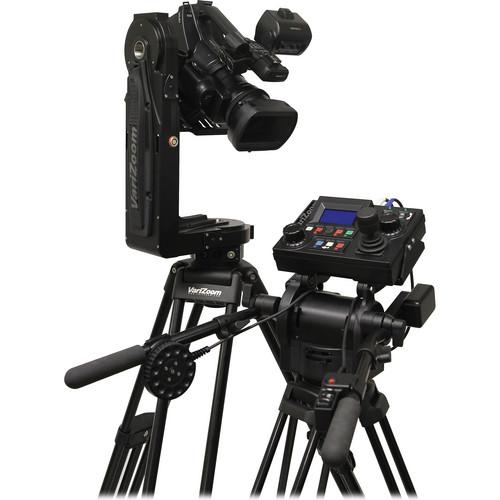

Product description The VariZoom Cinema Pro Jr (Pan-bars Unit, Power Supply, Hard Travel Case) is a digital motion control system that includes the Pan-bars module with advanced controller, power supply unit, and a hard travel case. You are offered a scaled down version of the Cinema Pro digital motion control system with 30% reduced programming, speed, and load capability. You can use the motion control system for cameras weighing up to 35 lb and achieve maximum pan/tilt speeds of 110-120°/sec. The system also integrates a precision enclosed drivetrain for enhanced performance. The Cinema Pro Jr also includes the Pan-bars unit with an advanced controller that provides comprehensive parametric motion control and recording capabilities. Integrated into the controller (full function remote) are an LCD readout display, connector panel, joystick based pan, tilt and zoom controls, and a focus control knob. You can use the advanced controller as a stand-alone module for desktop or tripod operations, or couple it with other optional control input units. The Cinema Pro Jr supports multiple control input options. You can move and record to marked positions, achieve full motion control during record and playback, and programmable maximum speeds and smoothing for each motor. Operator commands are precisely conveyed from the controller across a distance of up to 2500’ to the head. You can also program the motion limits and achieve servo tuning of the motors via the remote console. Serial and Analog lens control coupled with zoom compensation for high-quality and smooth shots at telephoto is available for Fujinon, Canon, and Preston lenses. You can leverage the high rigidity of the digital motion control system to achieve accurate and smooth motion of long lenses. It is ideal for portable crane or jib-based operations, and weighs 13 lb and measures 21 x 6 x 11.4”. - Digital motion control system - includes the Pan-bars module with advanced controller, power supply unit, and a hard travel case
- Scaled down version of the Cinema Pro digital motion control system with 30% reduced programming, speed, and load capability
- Supports cameras weighing up to 35 lb and achieve maximum pan/tilt speeds of 110-120°/sec
- Integrates a precision enclosed drivetrain for enhanced performance
- Includes a Pan-bars unit with an advanced controller that provides comprehensive parametric motion control and recording capabilities
- Advanced Controller - includes LCD readout display, connector panel, joystick based pan, tilt and zoom controls, and a focus control knob
- Functions as a stand-alone module for desktop or tripod operations, or can be coupled with other optional control input units
- Supports multiple control input options
- Allows you to move and record to marked positions, achieve full motion control during record and playback, and programmable maximum speeds and smoothing for each motor
- Provides precise transmission of operator commands from the controller across a distance of up to 2500' to the head
- Offers programming of motion limits and servo tuning of the motors via the remote console
- Provides serial and analog lens control coupled with zoom compensation for high-quality and smooth shots at telephoto while using Fujinon, Canon, and Preston lenses
- Integrates high rigidity to achieve accurate and smooth motion of long lenses
- Weighs 13 lb and measures 21 x 6 x 11.4"
- Ideal for portable crane or jib-based operations
Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Cinema Pro Jr in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom Cinema Pro Jr Specs | Height | 20.5" (52cm) | | Width | 11.3" (28.7cm) | | Depth | 6" (15.2cm) | | Weight | 13 lb (5.8kg) | | Maximum Camera Weight | 35 lb (15.8kg) | | Pan/Tilt Speed | 1.0 sec for 210° | | Warranty | 2 Years |
