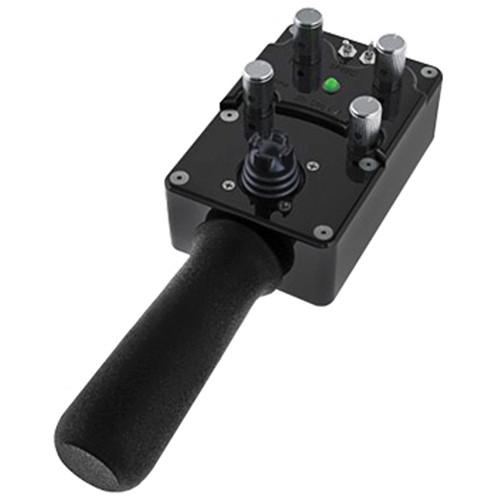

Product description The VariZoom Cinema Pro Remote Head and Jibstick Jr Kit is a sophisticated and powerful motion control system for videographers. The kit includes the Cinema Pro Remote Head and Jibstick Jr. Controller. It also comes with a 50' control cable, 30' XLR power extension, power supply, and case. The Jibstick Jr is a streamlined manual controller that allows precise, tunable pan and tilt motion. It uses a precision thumb control joystick on a compact handgrip control box. All controls and settings are within reach of your fingertips. The Jibstick Jr works beautifully where intuitive manual control is needed, and it can be upgraded later with an advanced console and pan bars or hand wheels (sold separately). It allows you to reverse the direction of pan & tilt independently, adjust speed limits for pan & tilt independently, adjust joystick deadband, and set smoothing control for softer starts & stops. The Cinema Pro Remote Head is constructed from exoskeletal body sections that are CNC machined from solid billet aluminum to exacting standards, ensuring rigidity and structural integrity. The custom slip rings, rugged slip-ring base, and robust motor drives are designed and tested intensively to perform even under demanding conditions. The remote head is suitable for big budget motion pictures and also for worship facilities, sports, concerts, newsrooms, military, government, and other film, video, and HD applications. - Head is primarily constructed from aluminum, with carbon fiber platform rails and some stainless steel, steel, brass, and bronze components
- Camera plate has 2.0" (50.8 mm) of vertical adjustment for camera balancing
In the Box VariZoom Cinema Pro Remote Head and Jibstick Jr Kit CinemaPro Remote Head Jibstick Jr. Controller Control Cable (50') XLR Power Extension Cable (30') Power Supply Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Cinema Pro Remote Head and Jibstick Jr Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom Cinema Pro Specs | Connector | Head Power: 4-pin XLR
Kuper Node: 6-pin LEMO (red)
Controller: 7-pin LEMO (green)
Video Out: BNC | | Camera | Clearance (Under Slung) Standard:
Minimum: 15.5" (393.7 mm) / Maximum: 17.5" (444.5 mm)
With 1 Head Extension:
Minimum: 17.5" (444.5 mm)
Maximum: 19.5" (495.3 mm)
With 2 Head Extensions:
Minimum: 19.5" (495.3 mm)
Maximum: 21.5" (546.1 mm) | | Pan/Tilt Speed | Up to 210°/sec (maximum up to 512°/sec with custom high-speed motors) | | Mechanical | Travel: Unlimited rotation for each axis unless hardwired | | Dimensions (H x W x D) | 19.5 x 12.0 x 6.0" (495.3 x 304.8 x 152.4 mm)
Camera Plate:
From Center Mounting Hole to Tilt Arm: 5" (127 mm), with standard nodal line plate installed. This may be offset by 1/4" or 1/8" with offset nodal line plates installed. | | Weight | 21.0 lb (9.5 kg)
Camera: 50.0 lb (22.6 kg) |
