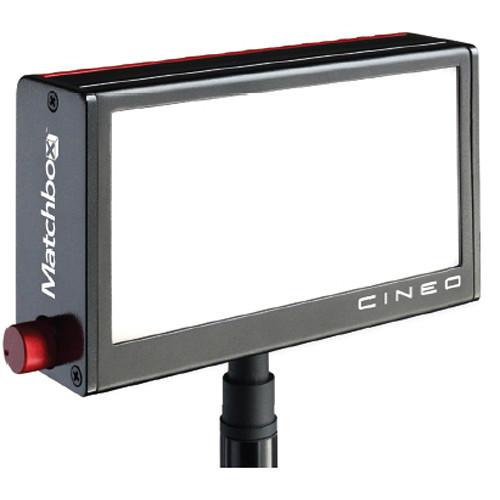

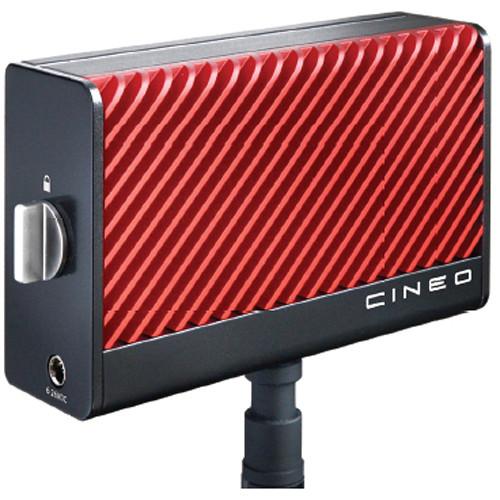

Product description The Cineo Matchbox Bundle from VariZoom includes the Matchbox LED on-camera light, an L-Series type battery adapter for Matchbox lights, and the VZSHOE swivel shoe mount. It also comes with a Sony NPF 47Wh battery, NP-F battery charger, and a soft case. - Basic Matchbox LED Light Kit For users in need of a versatile, compact light, the Basic Matchbox LED Light Kit from Cineo features Remote Phosphor Technology for changing color temperature by simply swapping out panels for higher output and greater color accuracy. It has high CRI ratings of 98 at 3200K and 94 at 5600K as well as TLCI ratings of 99 at 3200K and 97 at 5600K. Also, output at 3' is rated at 315 lux / 30.5 fc at 3200K and 362 lux / 37.5 fc at 5600K. Additionally, it has a wide beam angle of 160° along with both local and DMX dimming options from 0-100%.
The panel is durable with a weather-resistant construction and the units are made in the USA. The 3.25 x 5.25 x 1.5" panel also emits zero UV light and has a 1/4"-20 thread on the base for mounting in a variety of situations. An AC adapter is included, along with a 6' extension cable and both 3200K and 5600K phosphor panels while optional battery kits can convert it for ultra-portable operation. - Photometrics
- 3200K: 30.5 fc (315 lux) at 3' (1 m)
5600K: 37.5 fc (362 lux) at 3' (1 m) UPC: 850526006006 - Sony NPF Battery Adapter for Matchbox LED Light This Sony NPF Battery Adapter for Matchbox LED Lights from Cineo Lighting allows you to use Sony or Sony-type NPF camera batteries, that you may already own, to power the Matchbox light. UPC: 850526006631

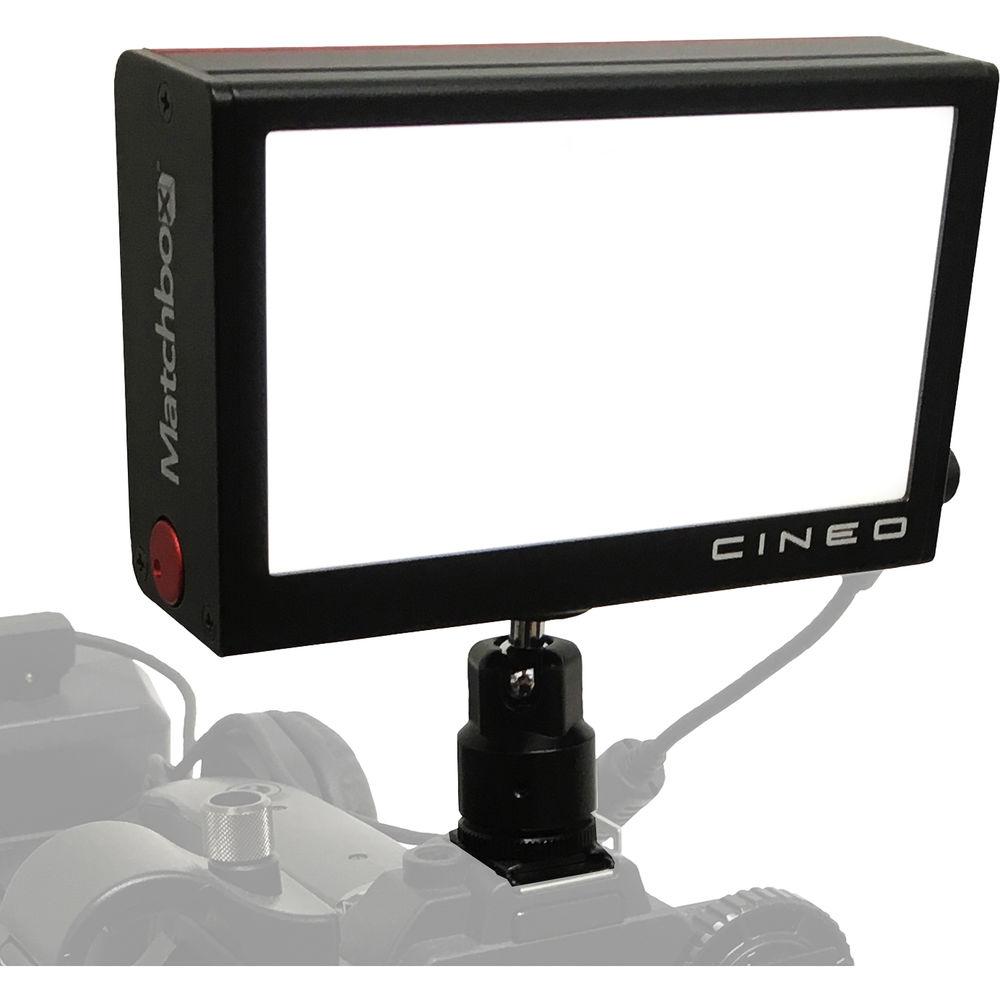

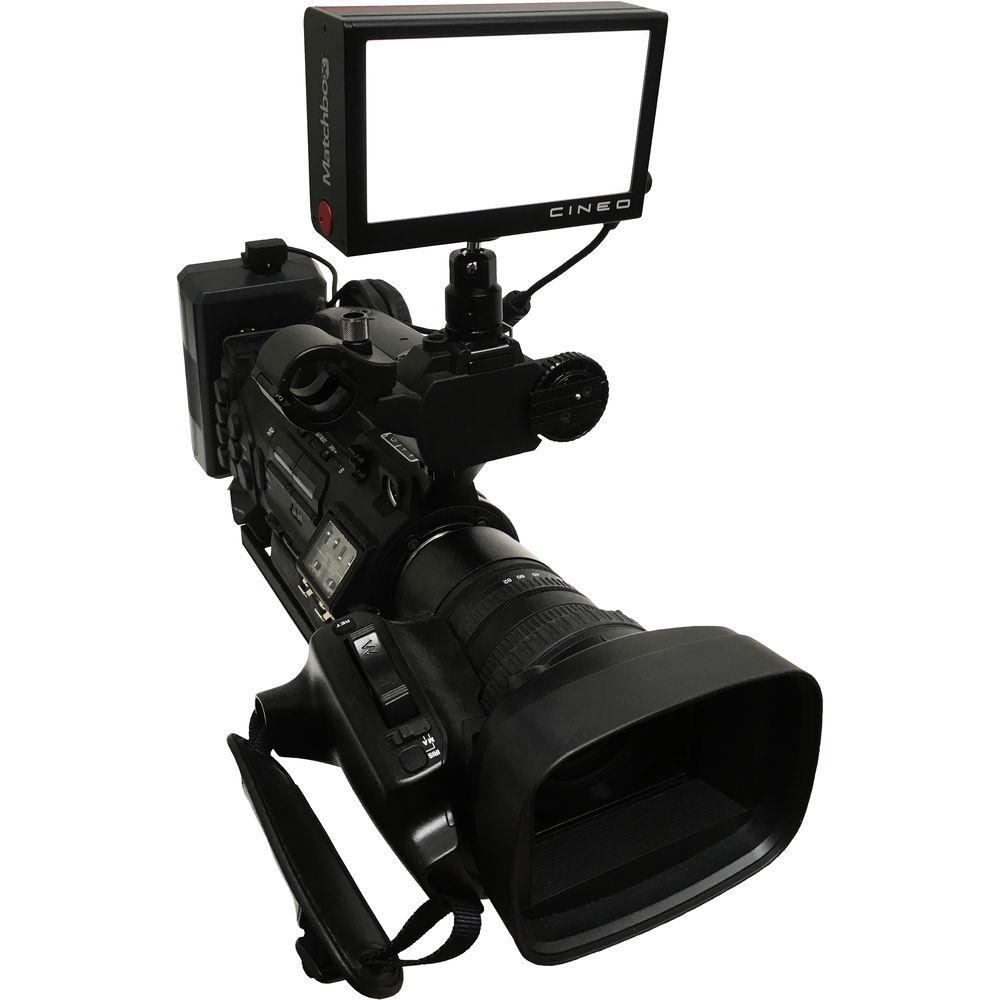

- VZSHOE Swivel Shoe Mount Mount a monitor, mic, or any other 1/4"-20 accessory to your camera's hot shoe with the aluminum and steel VZSHOE Swivel Shoe Mount from VariZoom. It has locking tilt and swivel movements, thanks to a ball head, for easy positioning of your accessories. Additionally, it features a female 1/4"-20 thread on the base and includes a male to male 1/4"-20 fitting for mounting the VZSHOE to nearly any threaded support system. UPC: 877038000650
In the Box Bundle Items Basic Matchbox LED Light Kit cvrbxuyzed Sony NPF Battery Adapter for Matchbox LED Light cvrbxuyzed VZSHOE Swivel Shoe Mount - Male-to-Male 1/4"-20 Fitting
Also Includes - Sony NPF 47Wh Battery
- NPF Battery Charger
- Soft Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Cineo Matchbox Bundle with Full Battery Kit, Shoe Mount, and Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Basic Matchbox LED Light Kit
| | | Beam Angle | 160° | | Color Temperature | 3200K
5600K | | Color Accuracy Standard | CRI 98 at 2700K
CRI 98 at 3200K
CRI 97 at 4300K
CRI 94 at 5600K
TLCI 99 at 2700K
TLCI 99 at 3200K
TLCI 98 at 4300K
TLCI 97 at 5600K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Lumens | 1000 | | Expected Lamp Life | 35,000 Hours (L70) | | Fixture Dimensions | 3.2 x 5.2 x 1.5" / 82.6 x 133.4 x 38.0 mm | | Fixture Weight | 15 oz / 425 g | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 6 to 26 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 13 W | | | | IP Rating | None | | Operating Temperature | -4 to 104°F / -20 to 40°C | | | | Box Dimensions (LxWxH) | 7.45 x 5.35 x 4.9" | - Sony NPF Battery Adapter for Matchbox LED Light
| | | Box Dimensions (LxWxH) | 8.7 x 5.6 x 2.4" | - VZSHOE Swivel Shoe Mount
| Bottom Mount | 1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | Material | Aluminum, Steel | | Dimensions | 1 x 2" / 2.5 x 5.1 cm | | | | Box Dimensions (LxWxH) | 2.25 x 1.9 x 1.15" |
