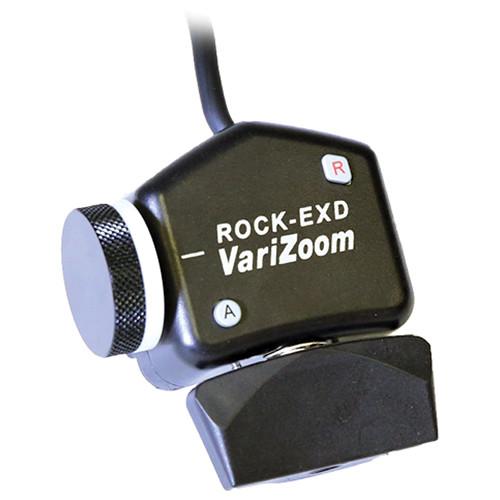

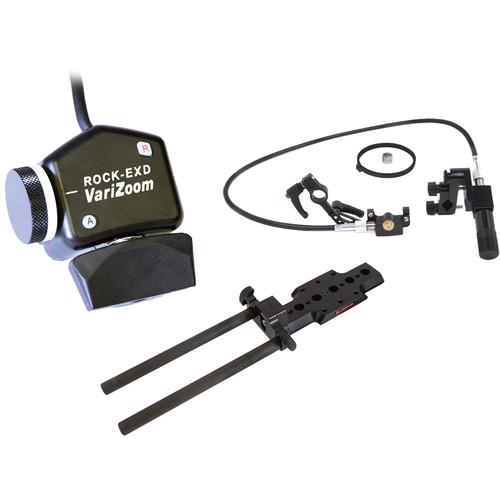

Product description The Compact Zoom and Focus Control for Sony PMW-300/200/160/EX3/EX1 is a bundle from VariZoom that features the VZROCKEXD compact zoom rocker, the VZFC-U twist-grip mechanical focus controller, and the VZDVRODS lightweight support (LWS) rod system to support the focus controller. The system is designed to work with select Sony PMW-series camcorder, included the Sony PMW-300, PMW-200, PMW-160, PMW-EX1, and PMW-EX3. The system is ideal for dual-handled tripod and pedestal setups, jib shots, and other scenarios where the camera's lens controls can't be accessed directly. It includes 40" control cables for both the zoom and focus controllers. VZROCKEXD Zoom Rocker - Features a large diameter speed dial for the absolute finest degree of zoom speed control. The speed dial allows the operator to set and mark the maximum desired speed and the feather the variable zoom rocker for delicate and repeatable zooms
- High-sensitivity rocker designed to make zooms precise and repeatable
- Low profile record START/STOP button
- Video return button plays back the last five seconds of recorded material
- Rubber-lined clamp for no-slip attachment to any bar up to 1.3"

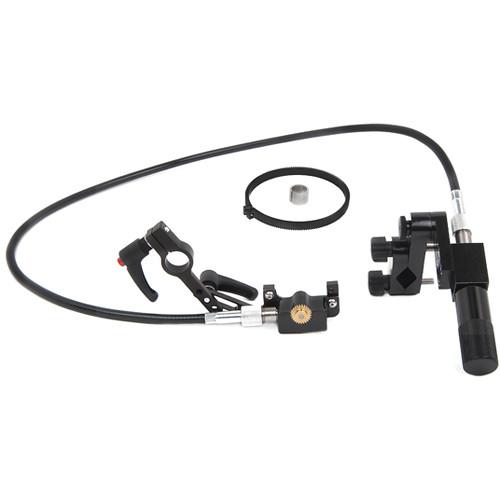

VZFC-U Zoom Controller - Provides smooth, mechanically-driven manual focus control for select Sony professional camcorders
- The VZFC-U adds a clamp-on EX gear adapter to the regular Fujinon focus controller and a bracket-mounted gearbox that mounts on the included VZDVRODS or most other standard 15mm and 19mm rod systems

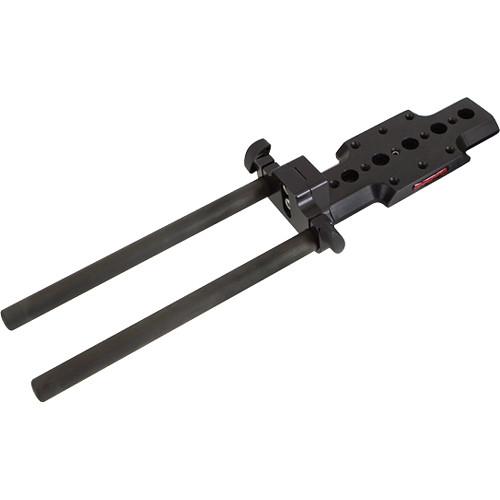

VZDVRODS 15mm Rod Support System - Provides support for the included VZFC-U focus control
- Also works with standard 15mm LWS accessories such as matte boxes and follow focuses
- Adjustable to accommodate most camera sizes
- Additional threaded holes to enable attachment of aft-mount rods, available separately
UPC: 877038006713 In the Box VariZoom Compact Zoom and Focus Control for Sony PMW-300/200/160/EX3/EX1 VZ-DVRODS VZ DV Rod System Rock-EXD Zoom Lens Control for Sony PMW-300/200/160/EX3/EX1 VZFC-U Focus Control for PMW-300/200/160/EX1/EX3 Limited 2-Year Warranty on VZROCKEXD and VZFC-U Limited 1-Year Warranty on VZDVRODS Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Compact Zoom and Focus Control for Sony PMW-300 200 160 EX3 EX1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-SROCKEXD-R Specs | | | Compatibility | Sony PMW-300, PMW-200, PMW-160, PMW-EX1, PMW-EX3 Cameras | | Material | ABS | | Dimensions | Width: 2" / 5.1 cm
Length: 2.8" / 7 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Cord Length: 40" / 102 cm | | Weight | 6.4 oz / 181.4 g | | | | Compatibility | Sony PMW-300, PMW-200, PMW-160, PMW-EX1, PMW-EX3 Cameras
Fujinon Lenses | | Material | Aluminum, stainless steel, brass, nylon | | Dimensions | Handle Dimensions 3 x 5.5" / 7.6 x 14 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Drive Cable Length: 40" / 102 cm | | Weight | Not specified by manufacturer | | | | Material | Aluminum, stainless steel fasteners, carbon fiber rods | | Rods | 2 x 7" x 15 mm | | Dimensions | Minimum: 2.2 x 4.4 x 8.3" / 5.6 x 11.2 x 21.1 cm
Maximum: 2.8 x 4.4 x 14.8" / 7.1 x 11.2 x 37.6 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 12.2 x 12.2 x 4.5" |
