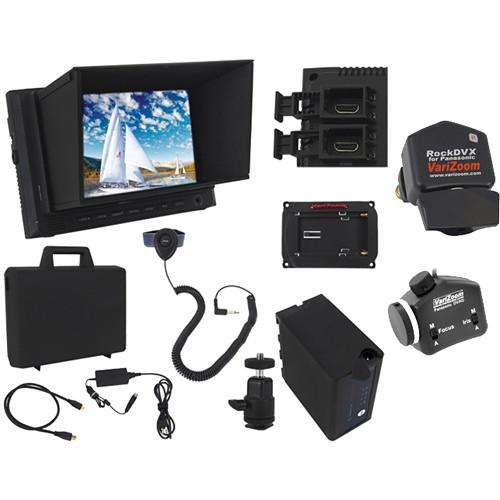

Product description The Compact Zoom, Focus, & Iris Control with 7" Monitor Kit for Panasonic is a bundle from VariZoom that features the VZM7K 7" on-camera field monitor with HDMI in and out, the VZROCKDVX zoom rocker, and the VZPFI focus and iris lens control. The zoom control is compatible with Panasonic camcorders that have a 2.5mm sub-mini remote port, while the lens controller requires a separate 3.5mm mini jack remote port in addition (some Panasonic models only feature the 2.5mm zoom port). Meanwhile, the VZM7K monitor can be used with any camera that has an HDMI output, and also supports HDCP for use with copy-protected sources.

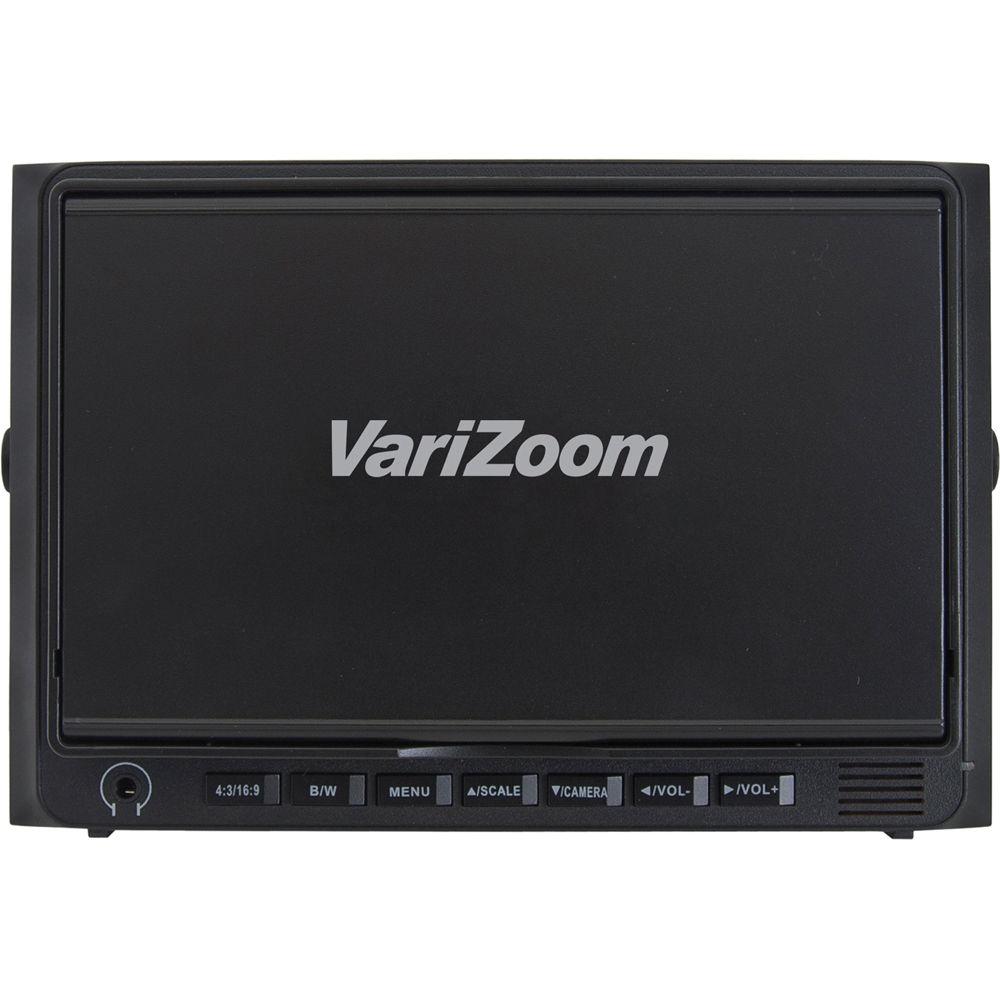

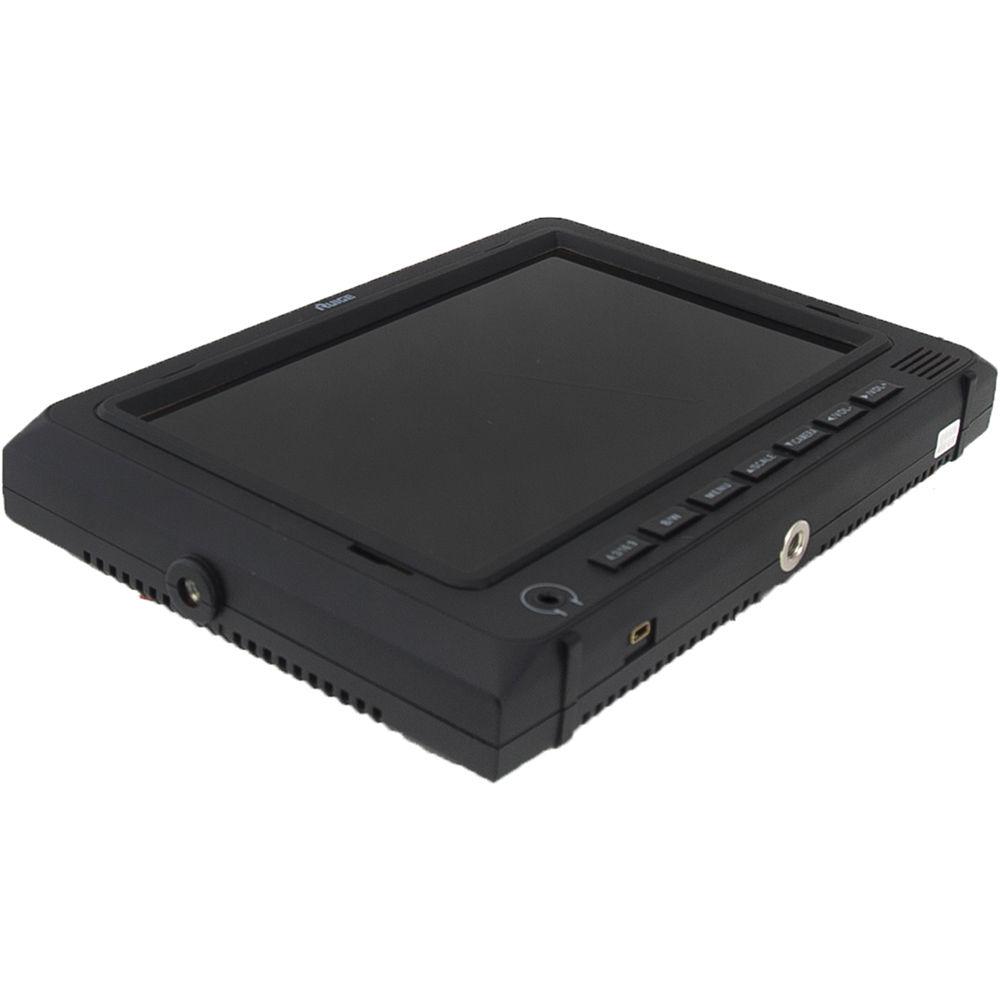

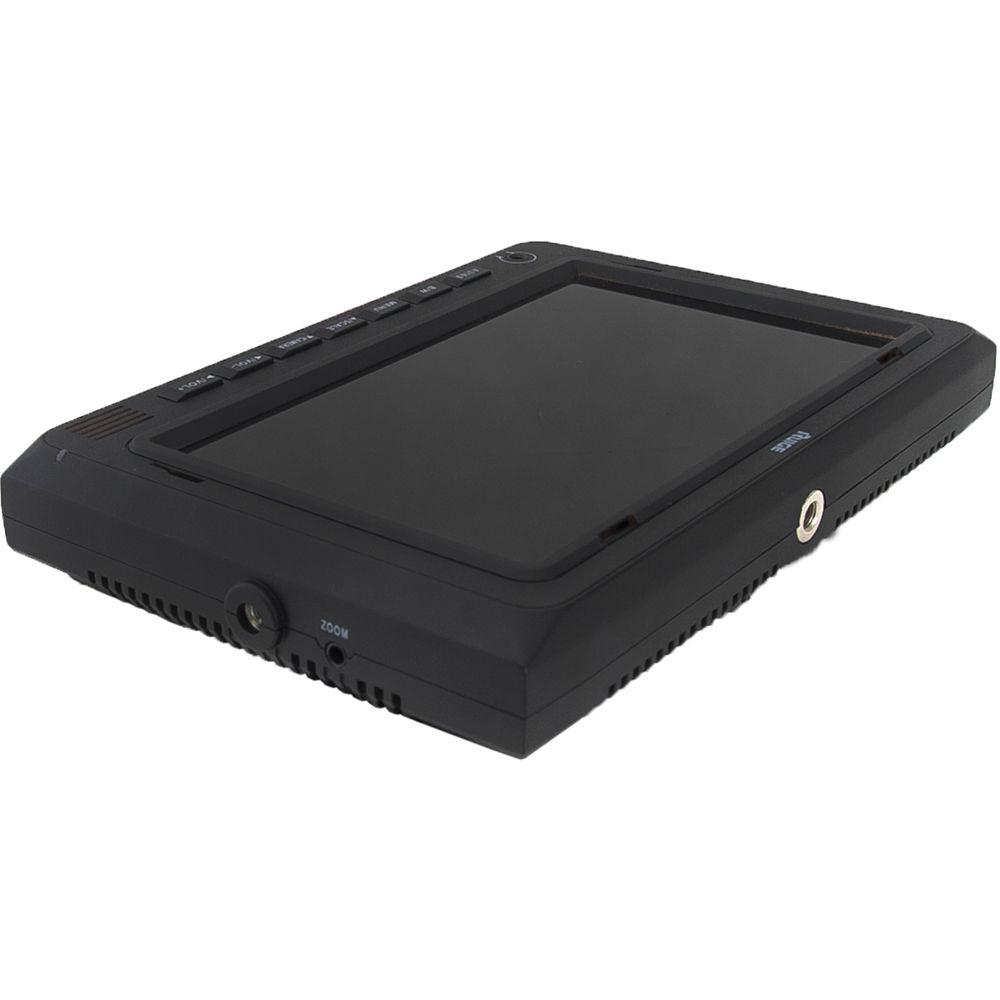

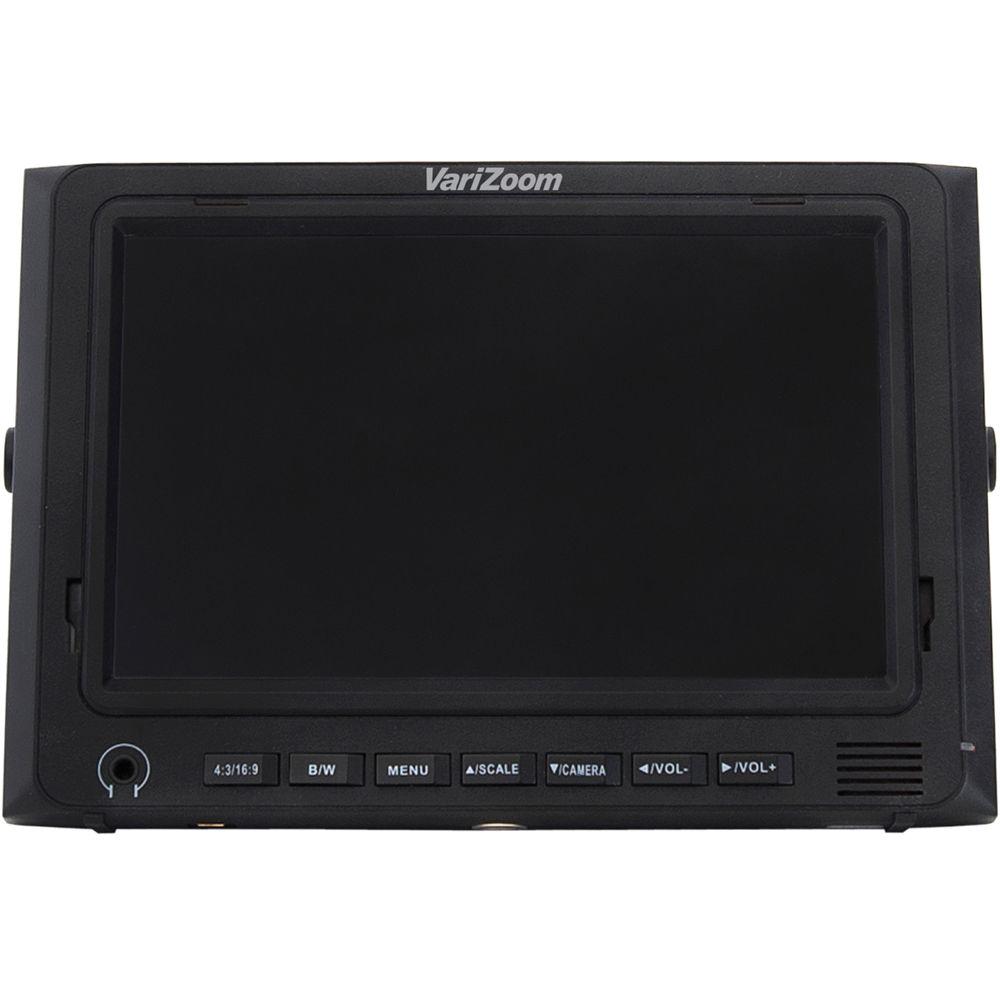

The kit can be deployed as a system or the parts used individually, adapting to your needs on any given day. As a whole it is ideal for jib or crane setups, proving remote camera operation as well as monitoring. The included 2.5mm and 3.5mm control cables are 40" in length, and there are extensions available separately for the scenarios where a longer reach is called for. VZM7 7" Field Monitor Kit - The VZM7 features a 7" diagonal, LED backlit screen with a native resolution of 1024 x 600 and a brightness of 250 nits. The monitor can power from a 6.5 to 36V DC external power source using a 4-pin XLR connector or a Sony L-series type battery. It features an HDMI input with loop-out so the signal can be passed along to a downstream device, and accepts resolutions up to 1080p. There are four 1/4"-20 sockets; one top, bottom, and on either for flexible mounting. The kit includes:

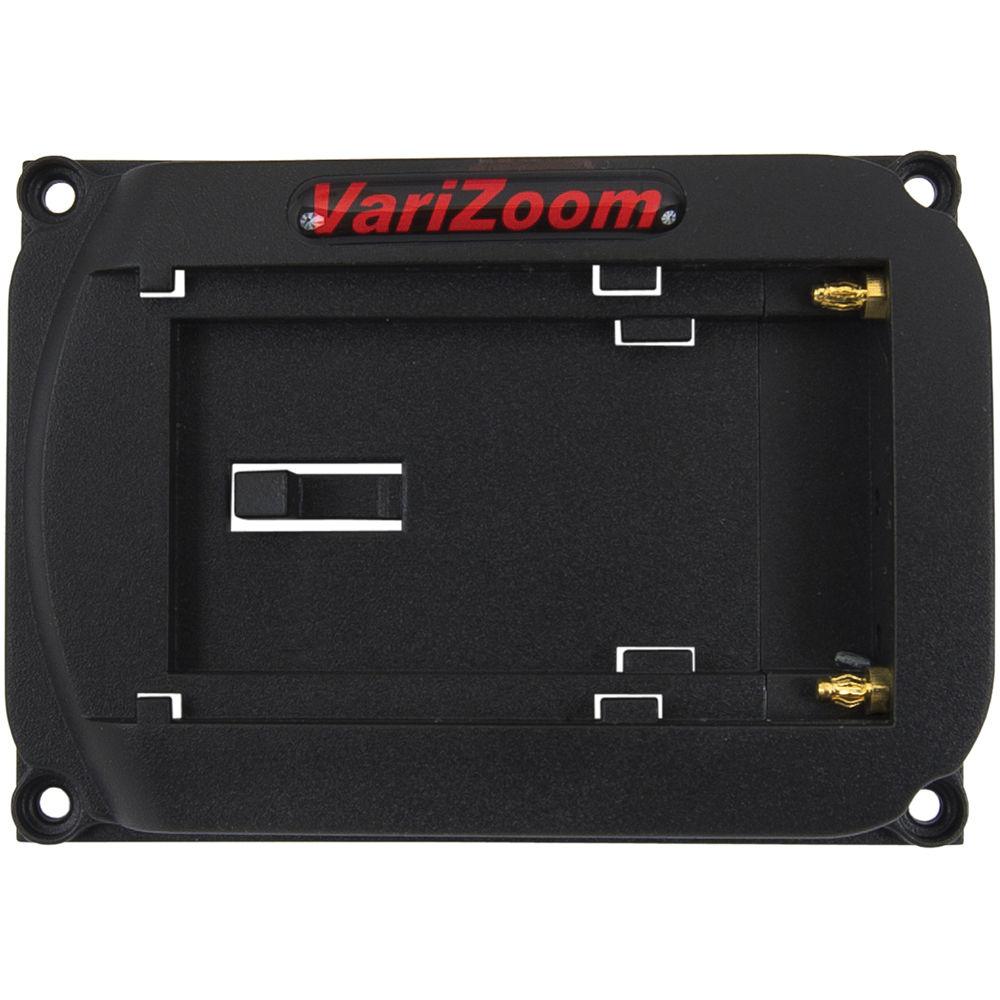

- VZMBPS 47 Wh Sony L-series type battery

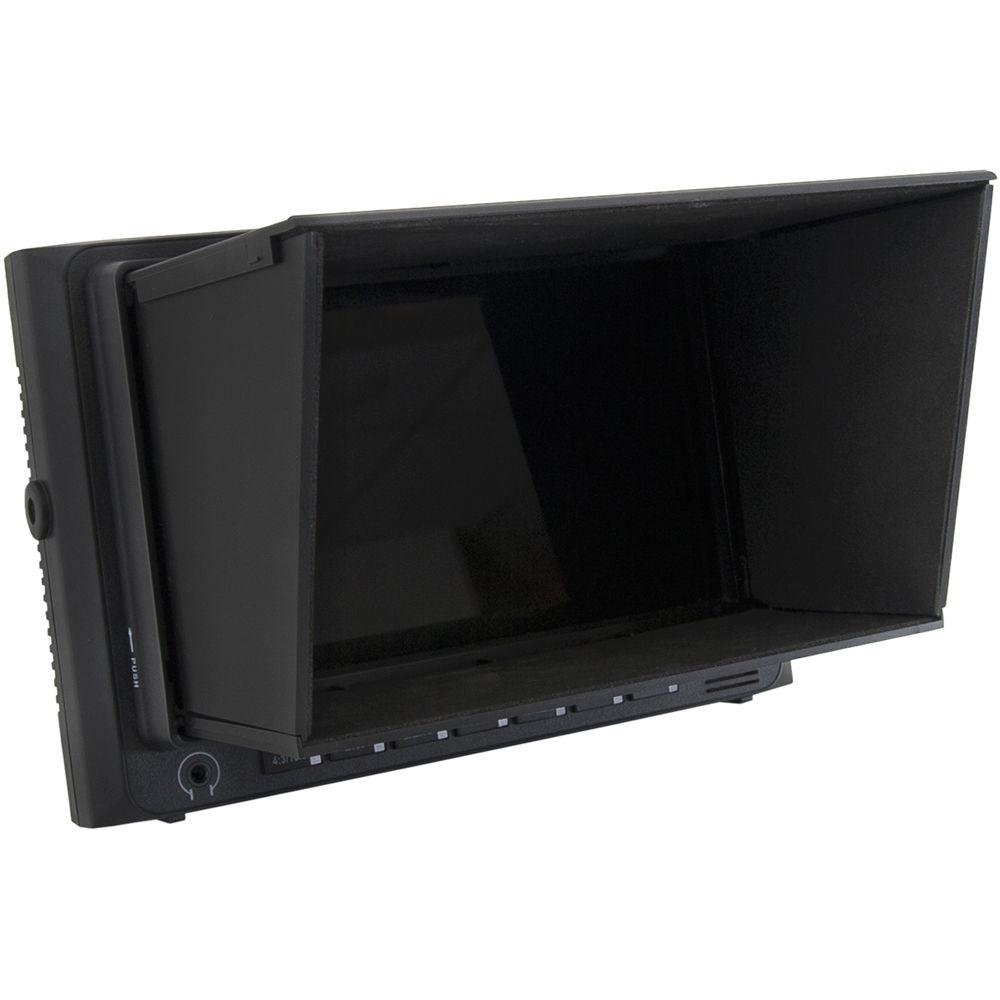

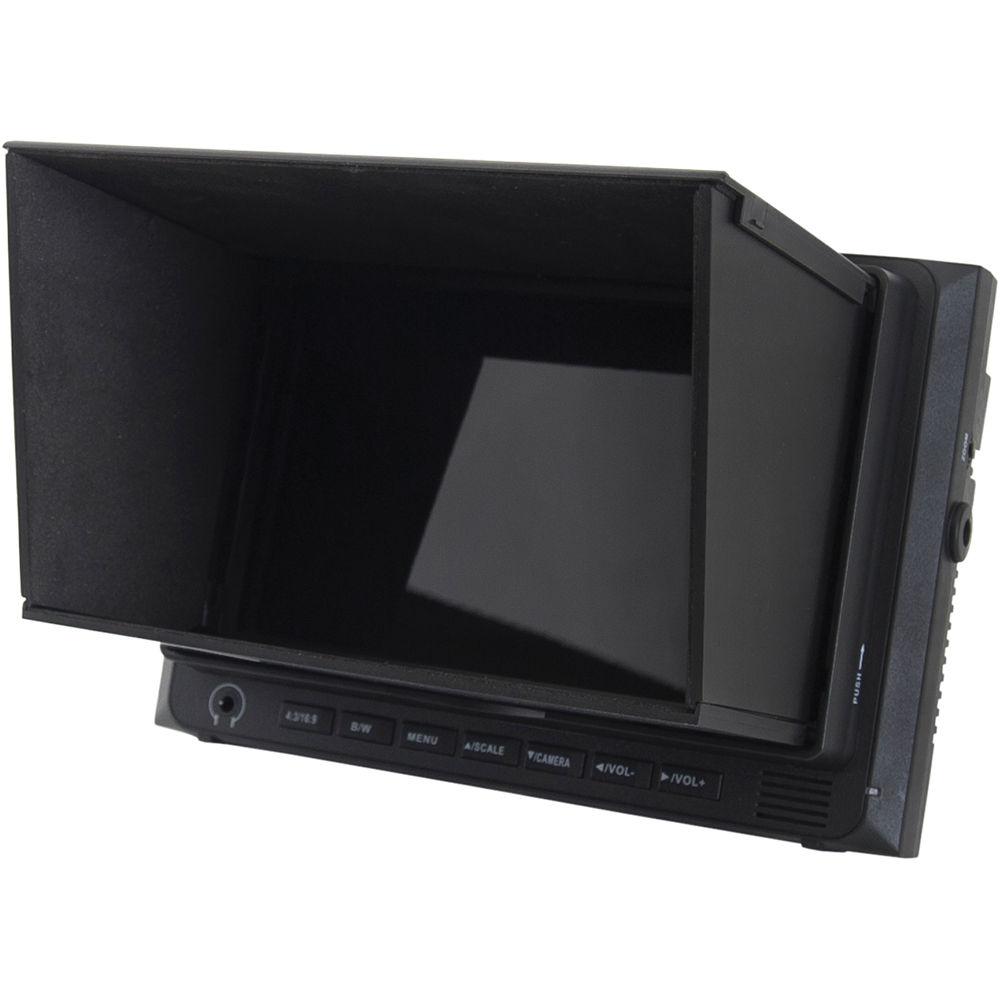

- VZM7HD hard sunhood/screen protector
- VZMCH compact travel charger
- Two HDMI cables

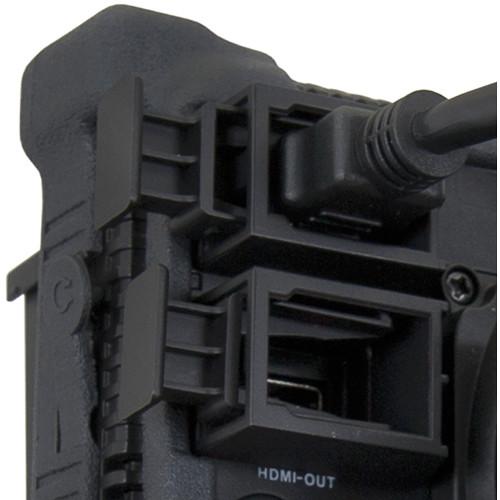

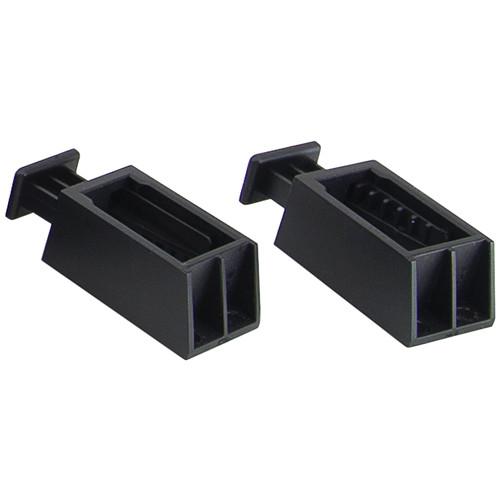

- Two VZMLOCK HDMI locks, for the input and output
- VZSHOE swivel shoe for on-camera mounting
- VZMZB remote zoom button
- VZMCC hard case with foam lining
- Remote "zoom" button allows the image magnification focus assist feature to be engaged/disengaged from a remote that straps onto the tripod handle
- DSLR Scaling to allow full-screen viewing of images from cameras such as the Canon 5DII
- Automatic aspect ratio detection
- Monochrome (black and while) mode
- Image flip for inverted mounting
- Underscan and overscan modes
- Color temperature presets (D65 and D93 standards), or user-defined through RGB settings
- Brightness, contrast, saturation, and sharpness adjustments
- Customizable menu options for menu duration, position, text color and language
- Built-In speaker and headphone jack for audio monitoring
- Pixel-to-pixel magnification and peaking for focus assist
VZROCKDVX Panasonic Zoom Rocker - Pressure-sensitive, side-to-side rocker switch designed to give the feel of broadcast zoom controls
- Wide-sweep variable rocker for smooth, sustainable zooms
- Low profile record START/STOP button
- Camps to tripod handle or other tube up to 1.3" in diameter
- 2.5mm sub-mini interface and 40" cable included
VZPFI Panasonic Focus and Iris Lens Control - Dual-knob adjustment for focus and iris. The larger knob on the side controls focus while the smaller knob on the top controls iris. This makes two-person operation possible
- Dedicated switches to select between manual or auto focus and manual or auto iris
- Locking position switches help ensure confidence in manual/auto mode selection
- Smooth and quiet knobs designed to provide ultra-fine adjustment
- Camps to tripod handle or other tube up to 1.3" in diameter
- 3.5mm mini jack interface and 40" cable included
UPC: 877038006607 In the Box VariZoom Compact Zoom, Focus, Iris Control with 7" Monitor Kit for Panasonic VZM7K 7" Field Monitor Kit VZROCKDVX Panasonic Zoom Rocker VZPFI Panasonic Focus and Iris Lens Control Limited 2-Year Warranty on VZROCKDVX and VZPFI Limited 1-Year Warranty on VZM7K Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Compact Zoom, Focus, Iris Control with 7" Monitor Kit for Panasonic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-USROCK-ZFIHD Specs | | | Screen Size | Diagonal: 7" | | Native Resolution | 1024 x 600 | | Brightness | 250 nits | | Contrast Ratio | 700:1 | | Backlight | LED | | Response Time | 10 ms | | Viewing Angle | Left: 75°
Right: 75°
Up: 70°
Down: 75° | | Video Formats | 1080: 24p, 24psf, 25p, 30p, 50i, 60i, 50p, 60p
720p: 50p, 60p
SD: 480i, 480p, 576i, 576p | | Inputs | 1 x HDMI -- HDCP compliant
1 x Zoom on 3.5 mm mini jack | | Mount | 4 x 1/4"-20 Female: Top, bottom, left, right | | Power Requirements | External Source:
Connector: 1 x 4-pin XLR Voltage: 6.5 to 36 VDC (12 VDC nominal)
Battery:
Type: Sony L-series-compatible
Capacity: 47 Wh, 6600 mAh (lasts up to 6 hours) | | Power Consumption | 8 W maximum | | Dimensions | 8 x 5.4 x 1.5" / 20.3 x 13.7 x 3.8 cm | | Weight | 1.3 lb / 0.6 kg | | | | Compatibility | Most Panasonic camcorders with 2.5 mm sub-mini zoom port; see VariZoom website for a complete list of tested camera models | | Dimensions | Width: 2" / 5.1 cm
Length: 2.8" / 7 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Cord Length: 40" / 102 cm | | Weight | 4 oz / 113.4 g | | | | Compatibility | Most Panasonic camcorders with 2.5 mm sub-mini zoom port; see VariZoom website for a complete list of tested camera models | | Dimensions | Width: 2" / 5.1 cm
Length: 2.8" / 7 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Cord Length: 40" / 102 cm | | Weight | 3.2 oz / 90.7 g | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 15.7 x 15.3 x 15.0" |
